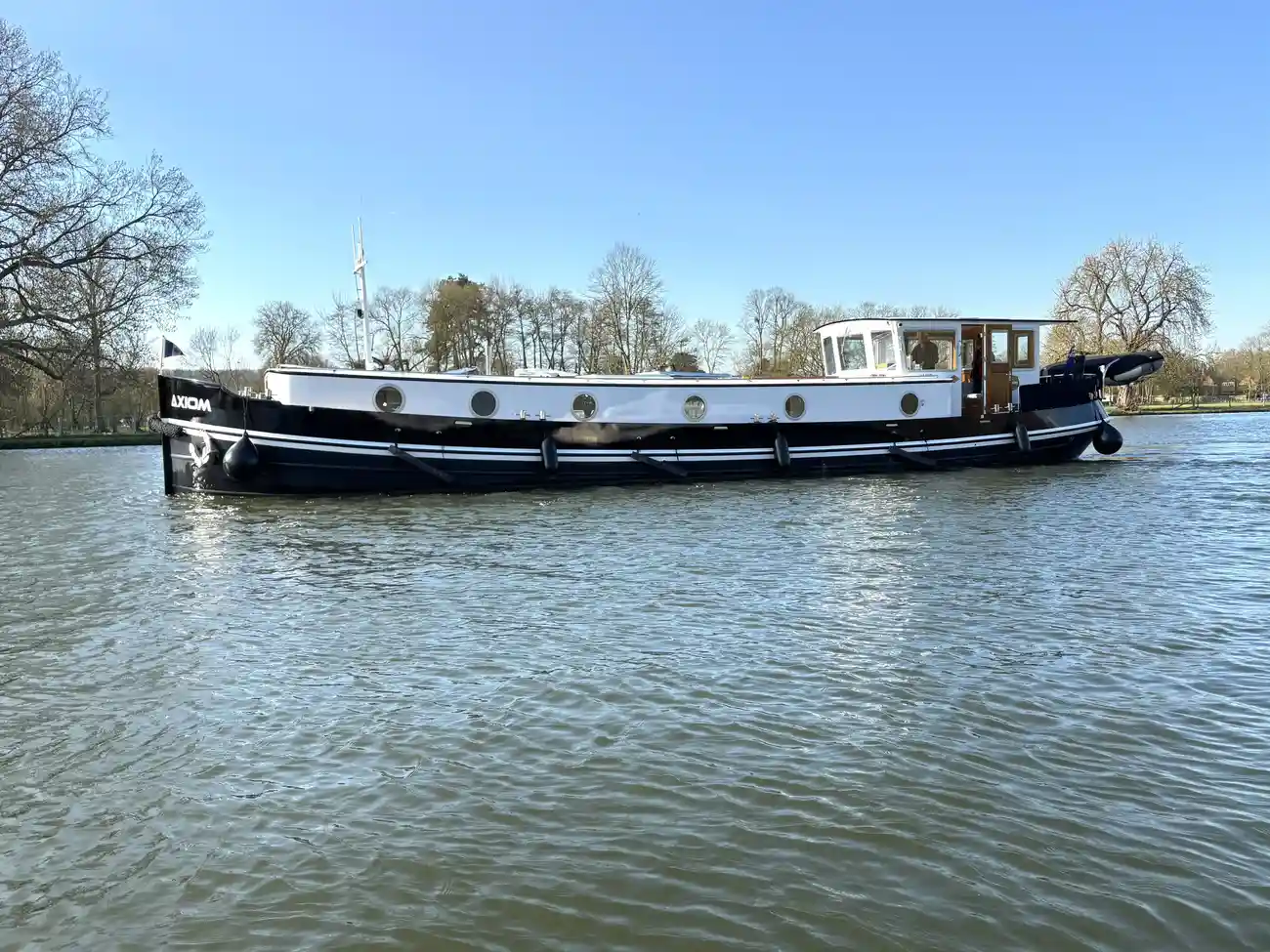

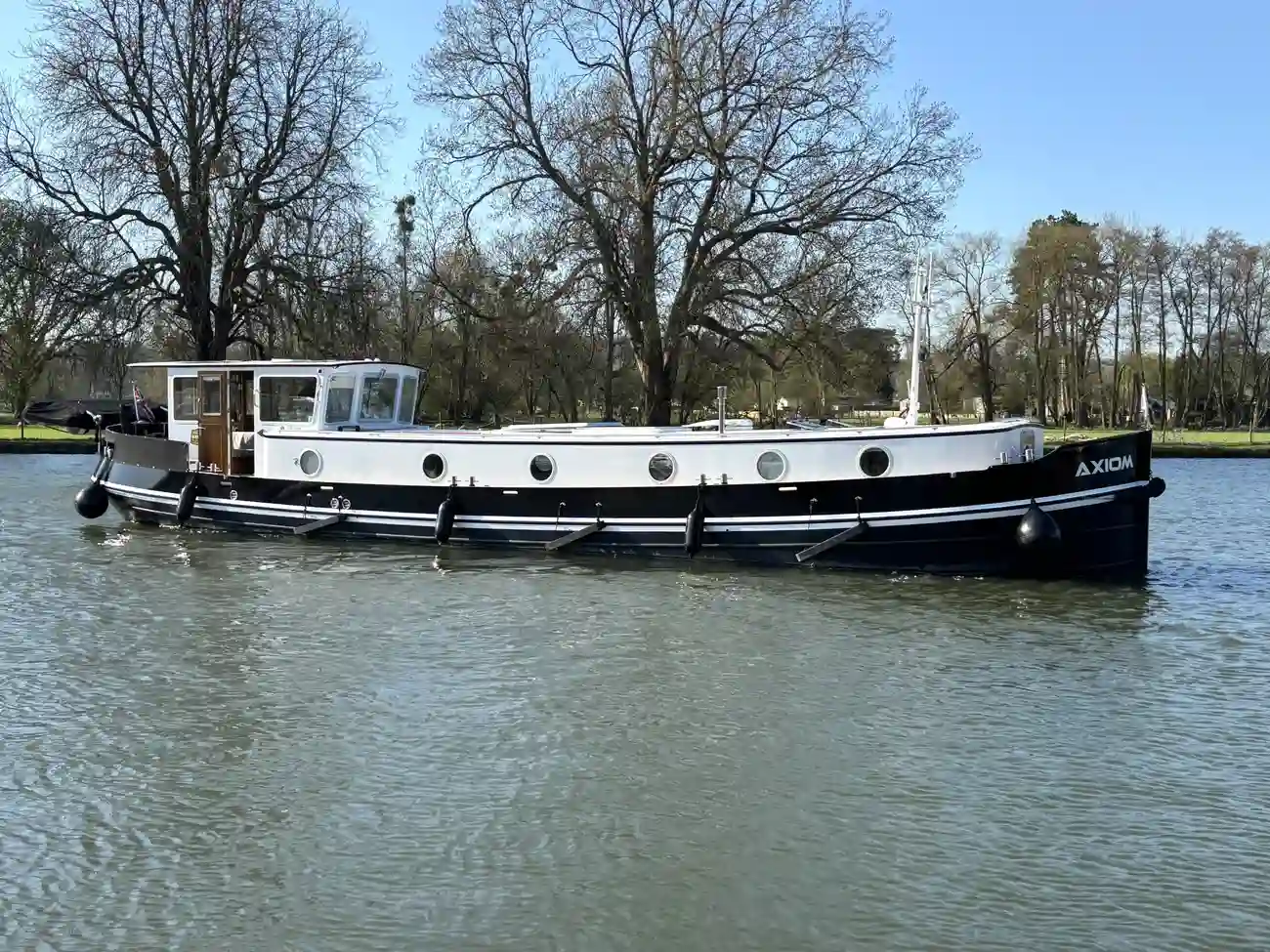

PIPER 60M MOTOR CLASS DUTCH BARGE 2020

NEW ARRIVAL - LIKE NEW

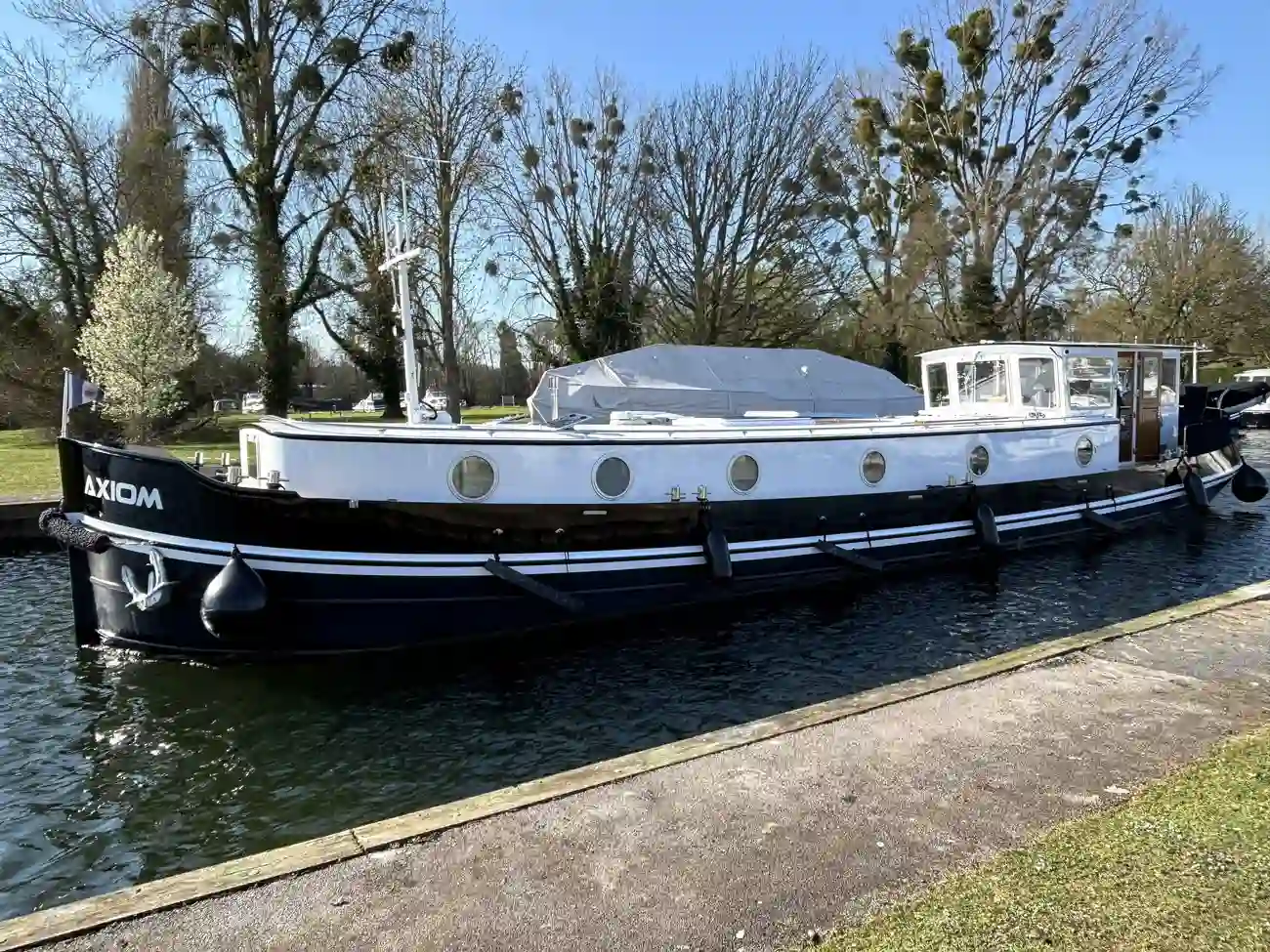

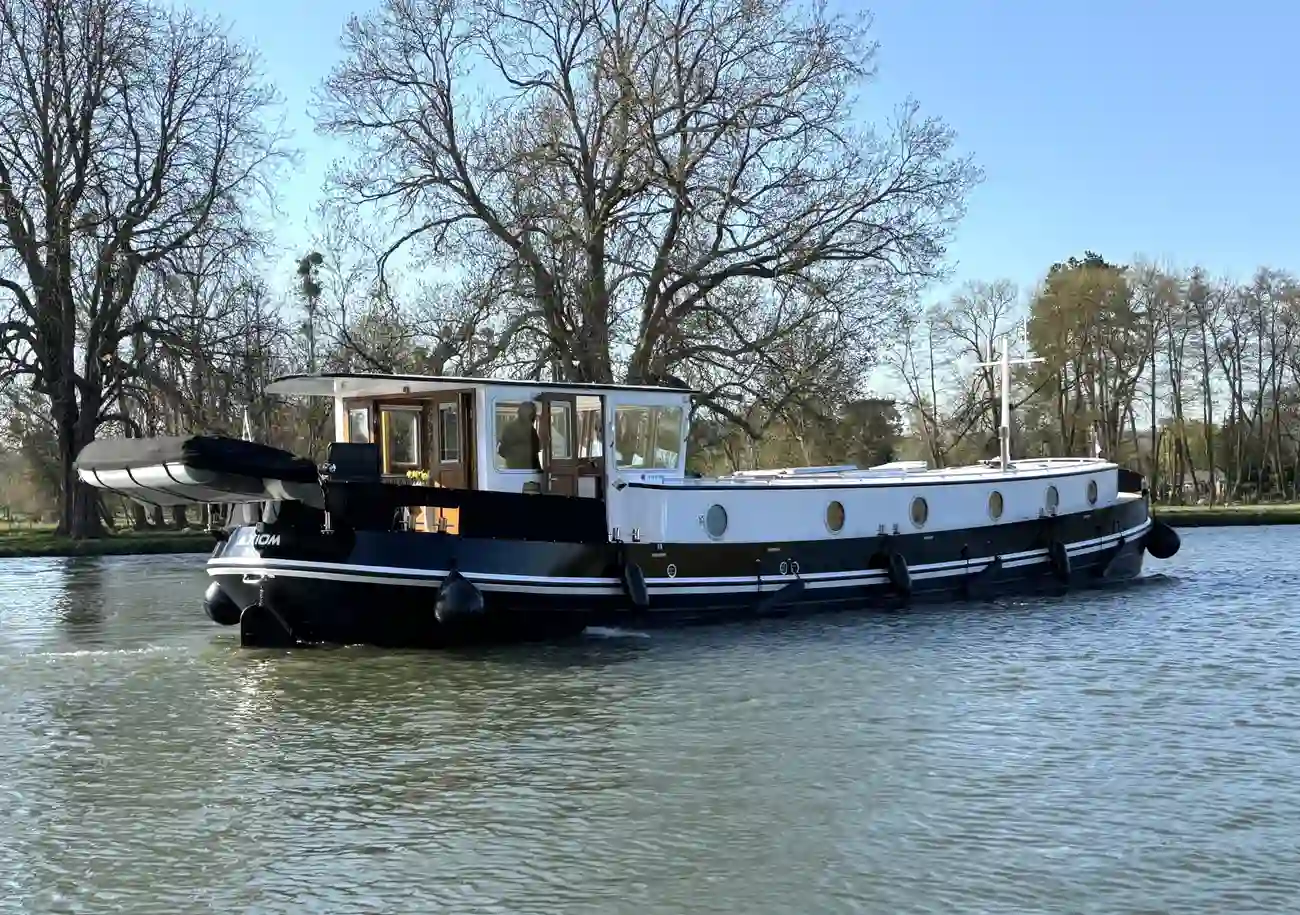

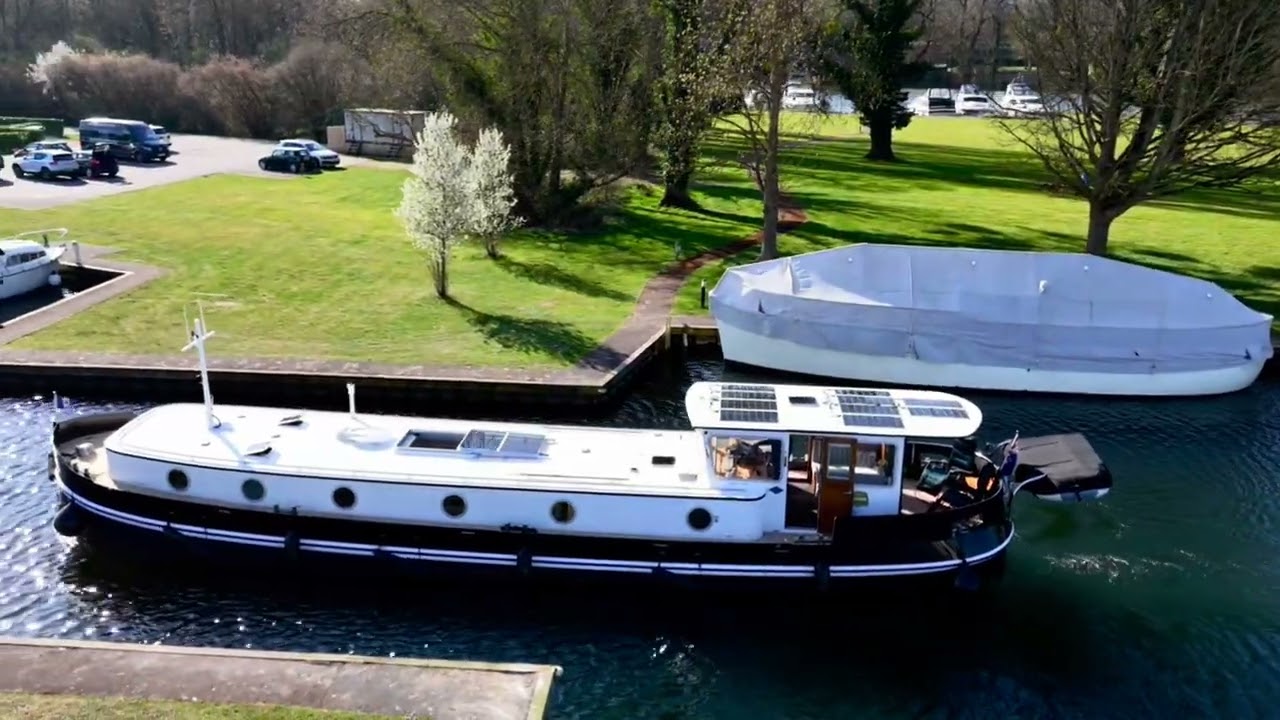

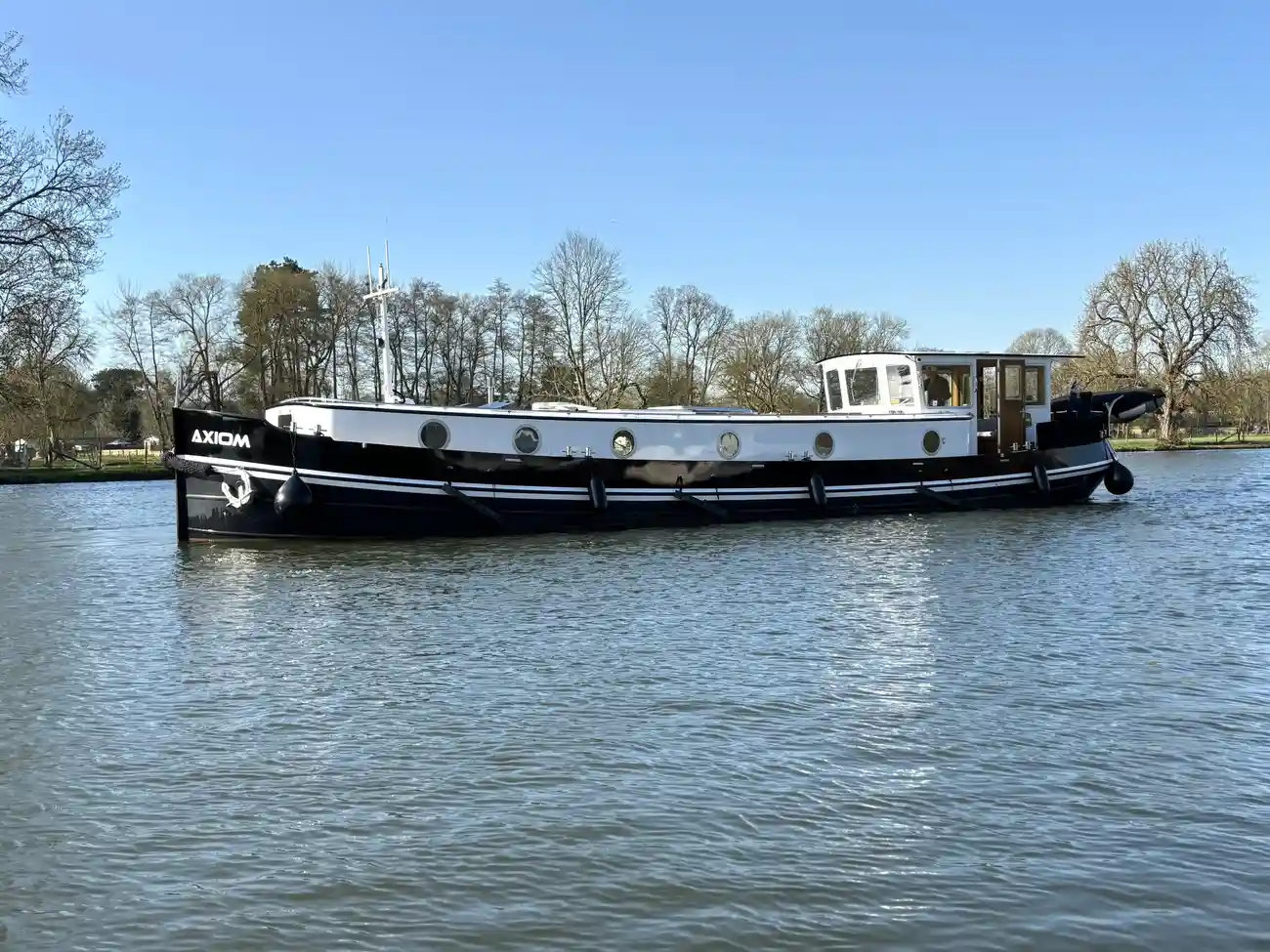

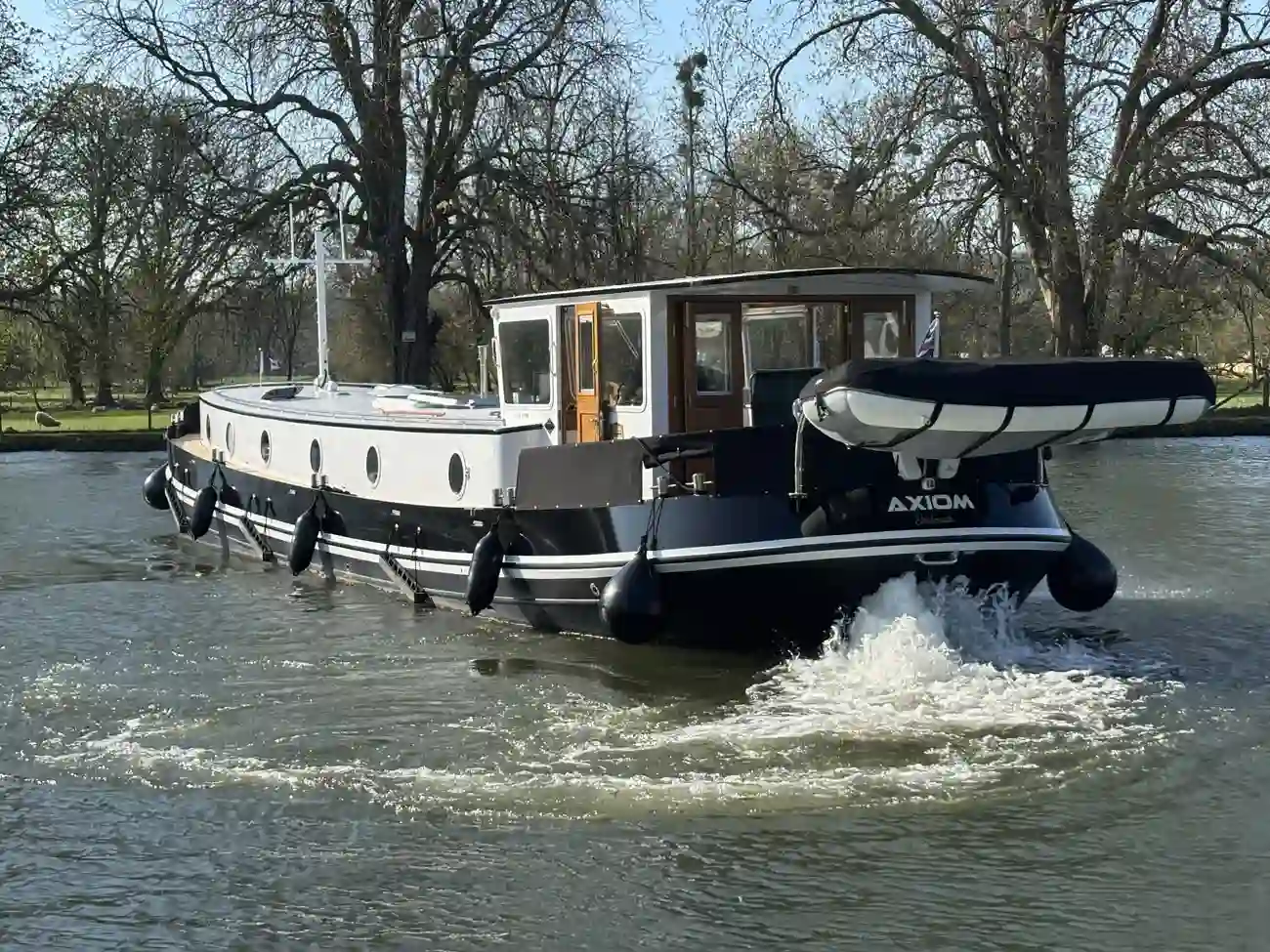

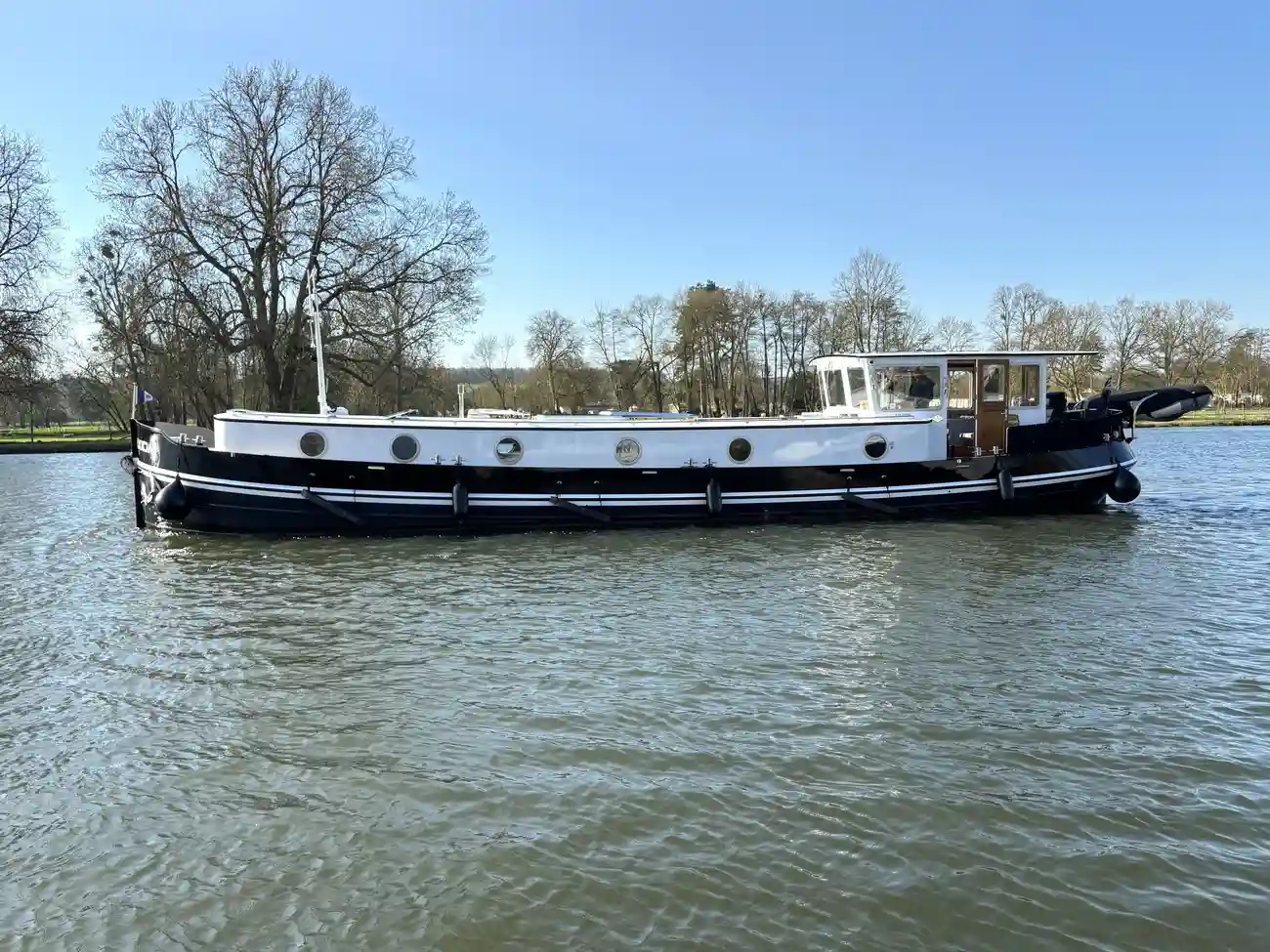

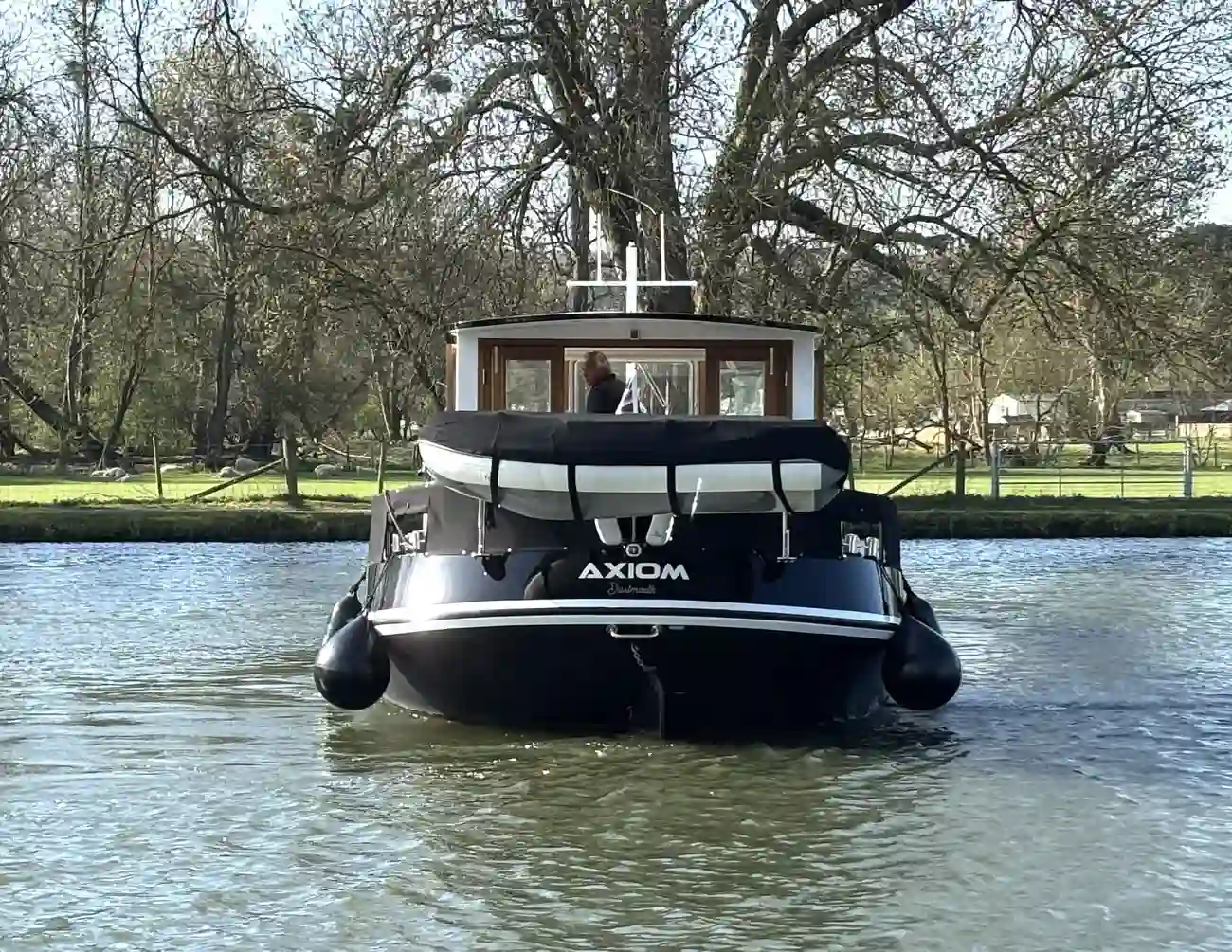

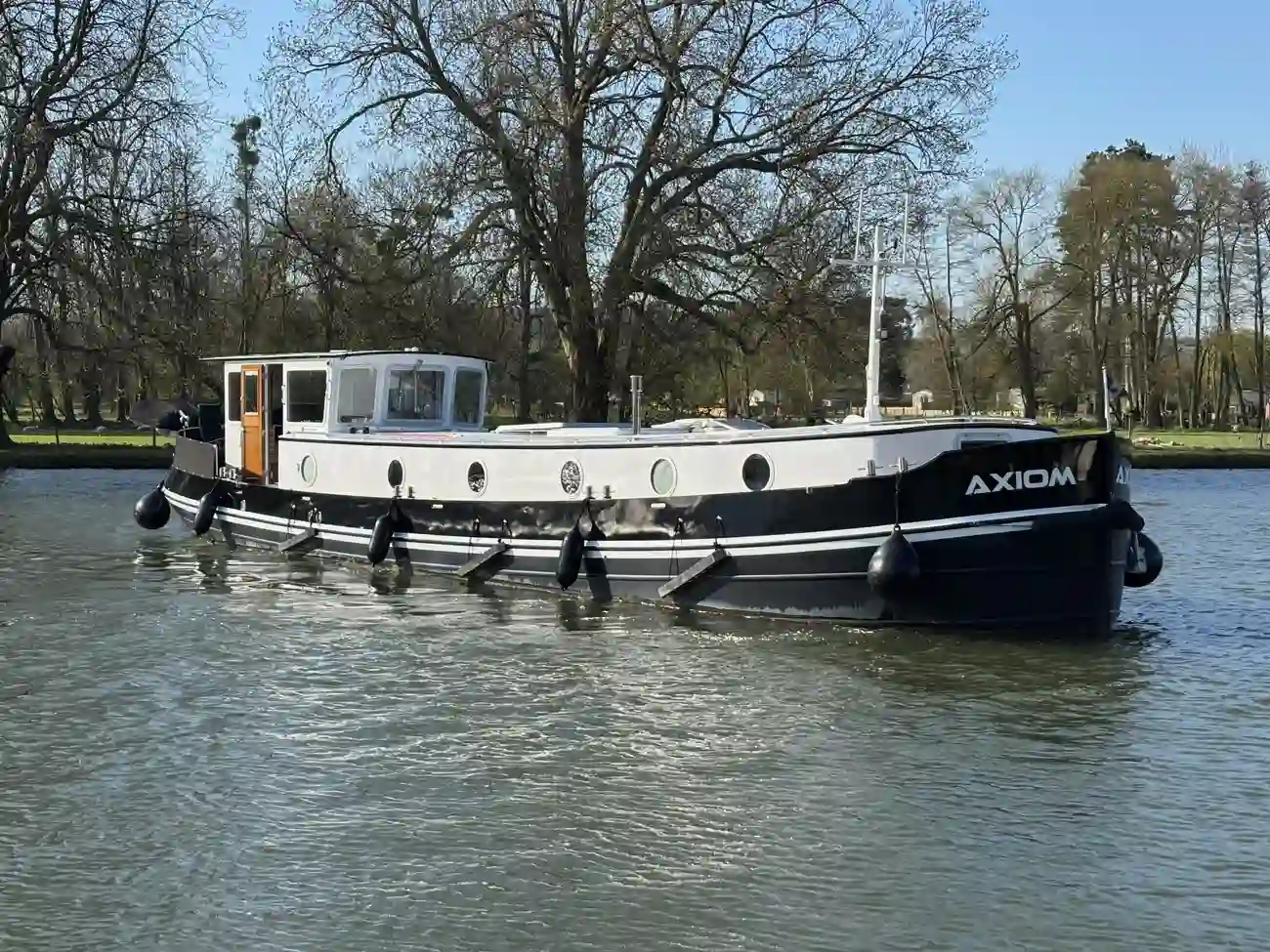

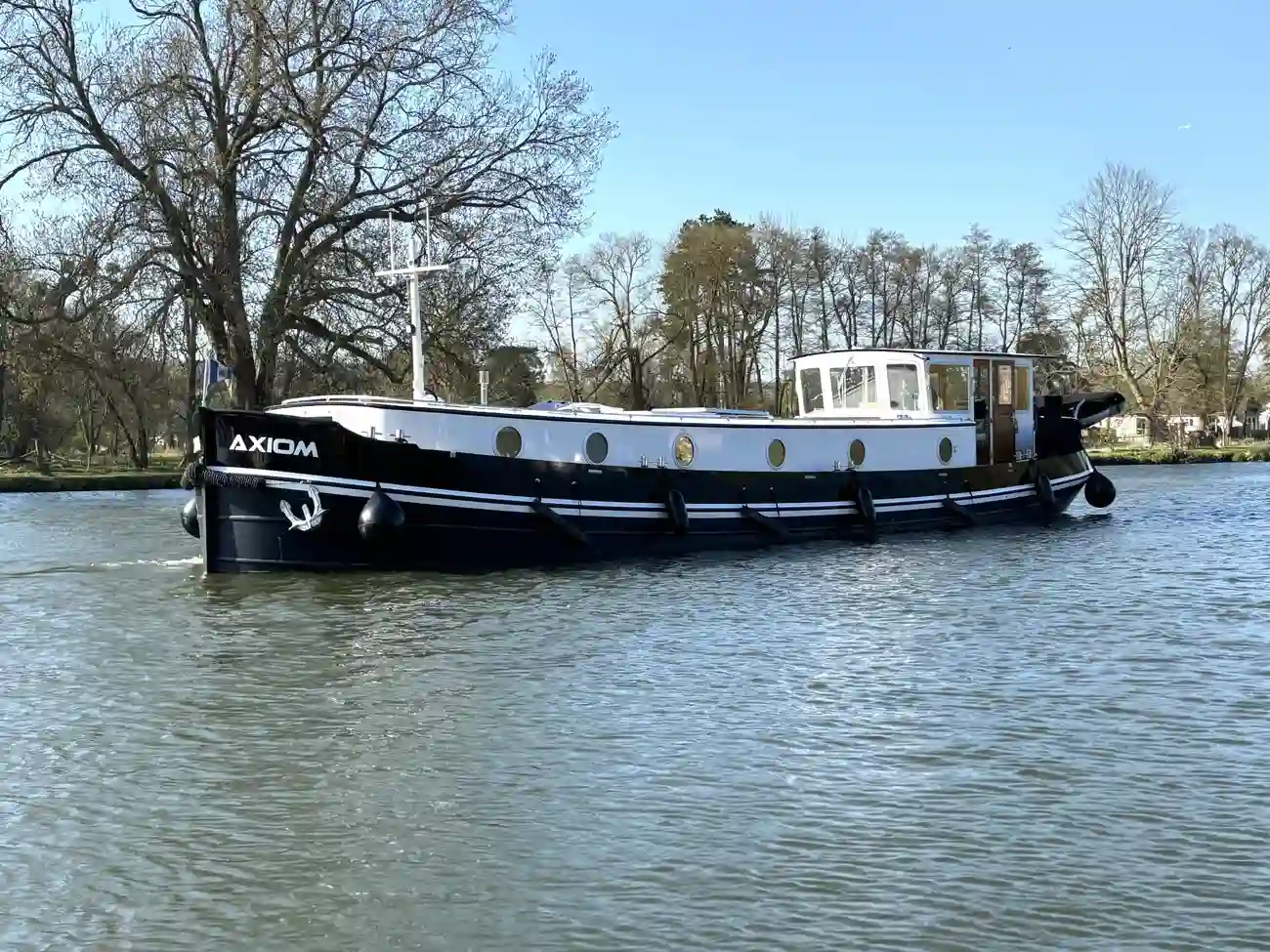

'Axiom' is a 2020 Piper 60M Dutch Barge and is known as a remarkable British built vessel designed for comfort and efficiency. She features a modern spacious interior making it ideal for long journeys or living aboard. Its strong steel hull provides stability and safety allowing it to navigate various waterways with ease. The well known design incorporates port hole windows which offers stunning views and with a large skylight the saloon is engulfed with plenty of natural light. Overall the Piper 60M is a perfect choice for those seeking adventure or a peaceful life on the water. She is a 1 owner vessel from new who has meticulously maintained her leaving this vessel looking as new to this date. Grab yourself the chance of owning one of the highest spec'd Piper 60's ever built.

MOORING AVAILABLE AT HARLEYFORD MARINA FOR THE PURCHASER OF THIS VESSEL

VISIT OUR YOUTUBE CHANNEL TO SEE MORE VIDEO CONTENT OF THIS VESSEL

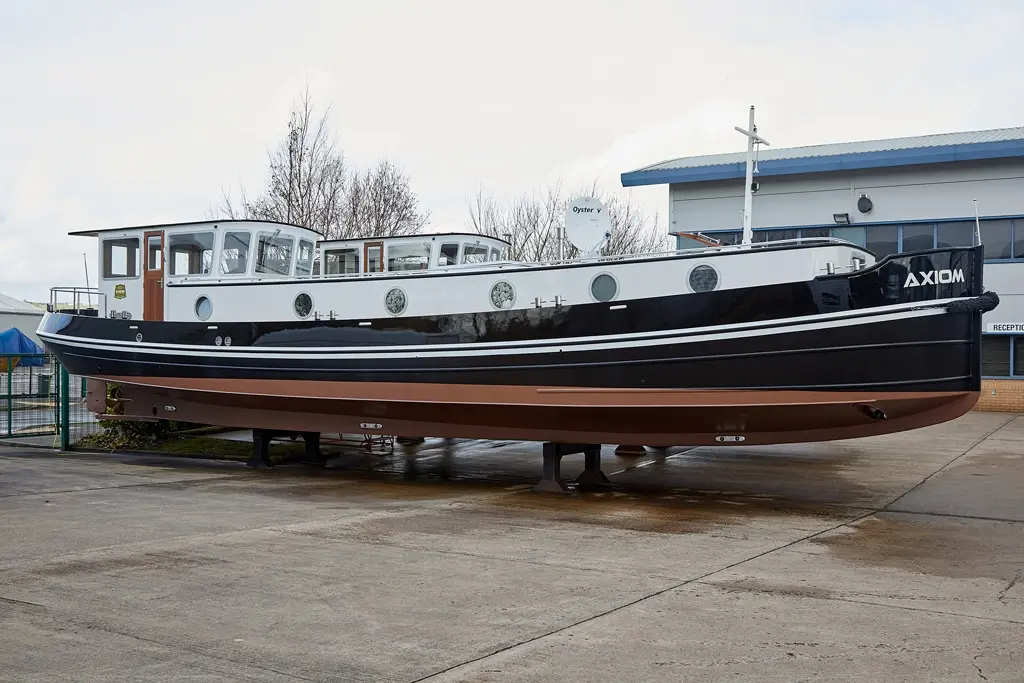

Steelwork
o    Standard - as per builders' specification
o    Shipbuilding Quality Grad A Steel plate according to EN10204 / 302 LRS
o    Shipbuilding plate blasted to SA 2.5 and primed by Dutch supplier
o    Spray foam insulation
o    13mm keel plate
o    8mm chines and hull sides
o    6mm decks
o    5mm superstructure
o    1876L Water tank with level indicator
o    1077L main propulsion fuel tank with level indicator
o    854L black waste tank with level indicator
o    16L Grey Tank (divertible to black tank)
Additional build cost options
o    1371L auxiliary fuel tank with level indicator to support generator, central heating and Reflex stove/heater
o    Vetus 70L Hydraulic tank and controls for thrusters for the hydraulic anchor, windlass & steering
o    Extended wheelhouse roof
o    Additional stainless-steel bollards
o    Stainless-steel rubbing strips to mooring bollards
o    Toe steps to access cabin roof
o    Bases for davits to stern
o    Brackets for swivelling davits
o    Simpson high capacity swivelling davits 125Kg
o    Stainless steel eyelets to secure Z fenders x 12
o    Stainless steel passerelle sockets x 4

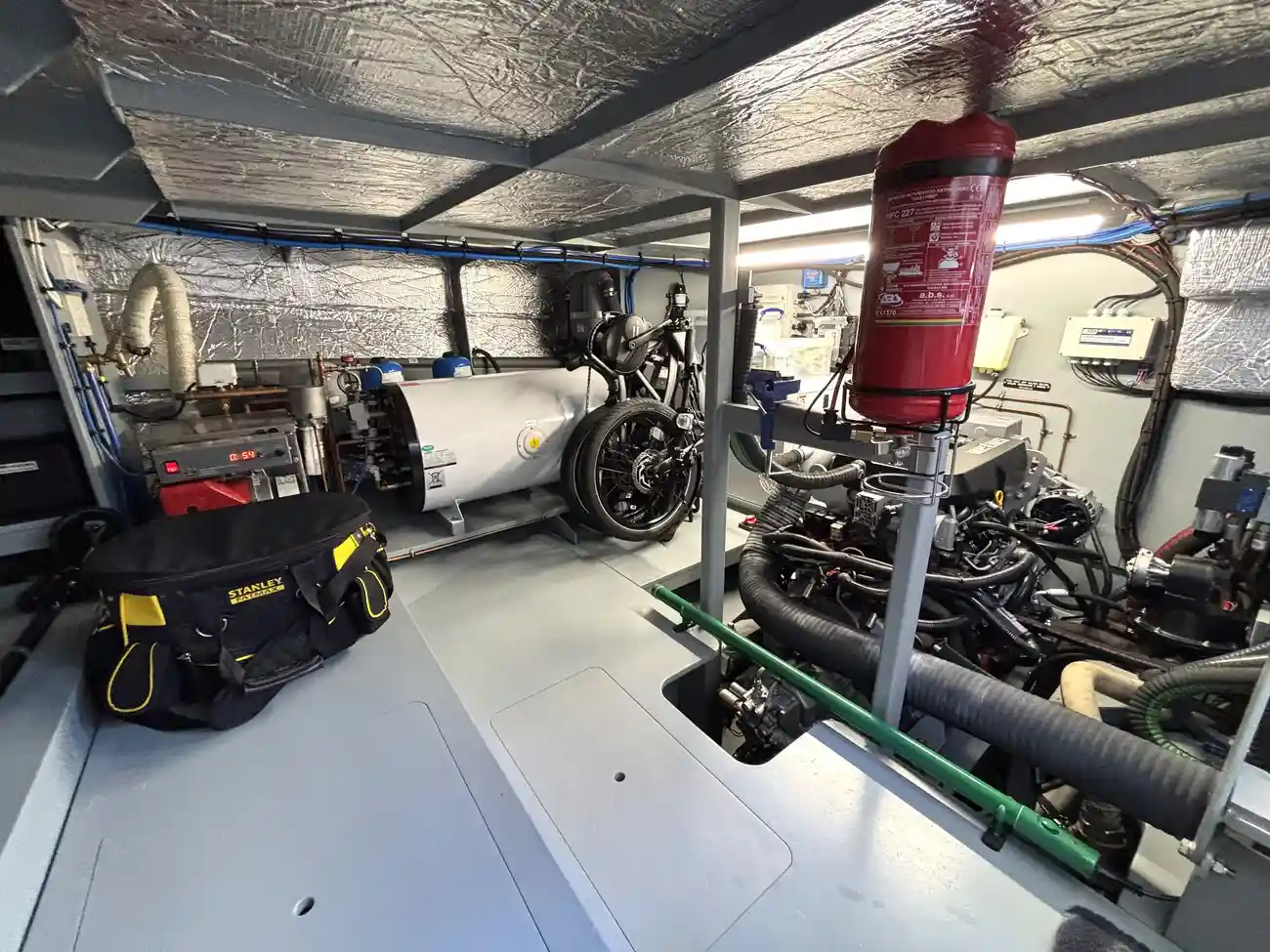

Engineering
o    Standard - as per builders' specification
o    Kabola pressure jet central heating boiler - serviced annually
o    75L calorifier
o    1Kw immersion heater
o    Heating via radiators
o    3.5Kw Mastervolt isolation transformer
o    Automatic engine room fire suppression system

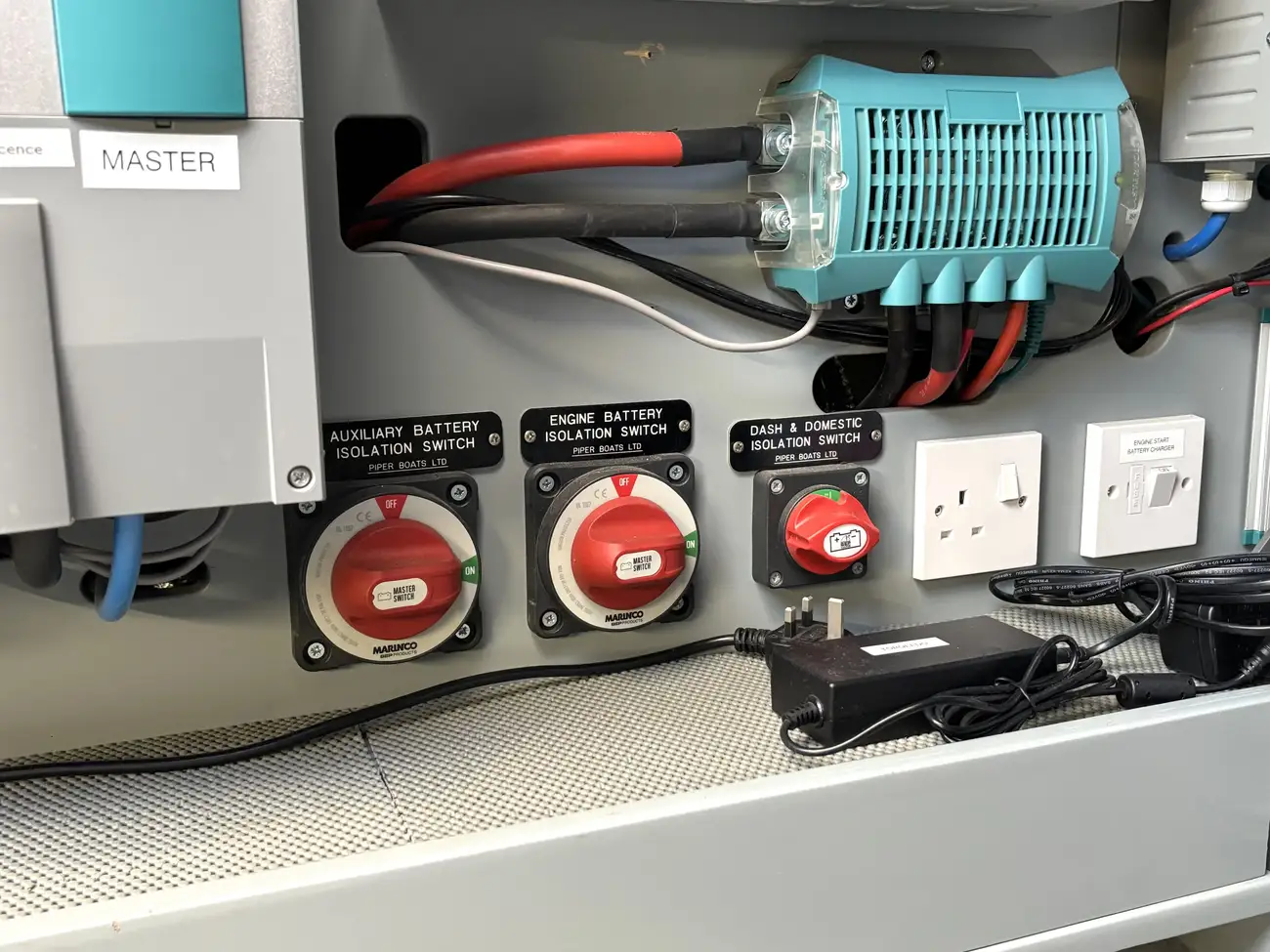

o    Mastervolt battery monitoring system
o    Twin alternators (See upgrade below)
Additional build cost options

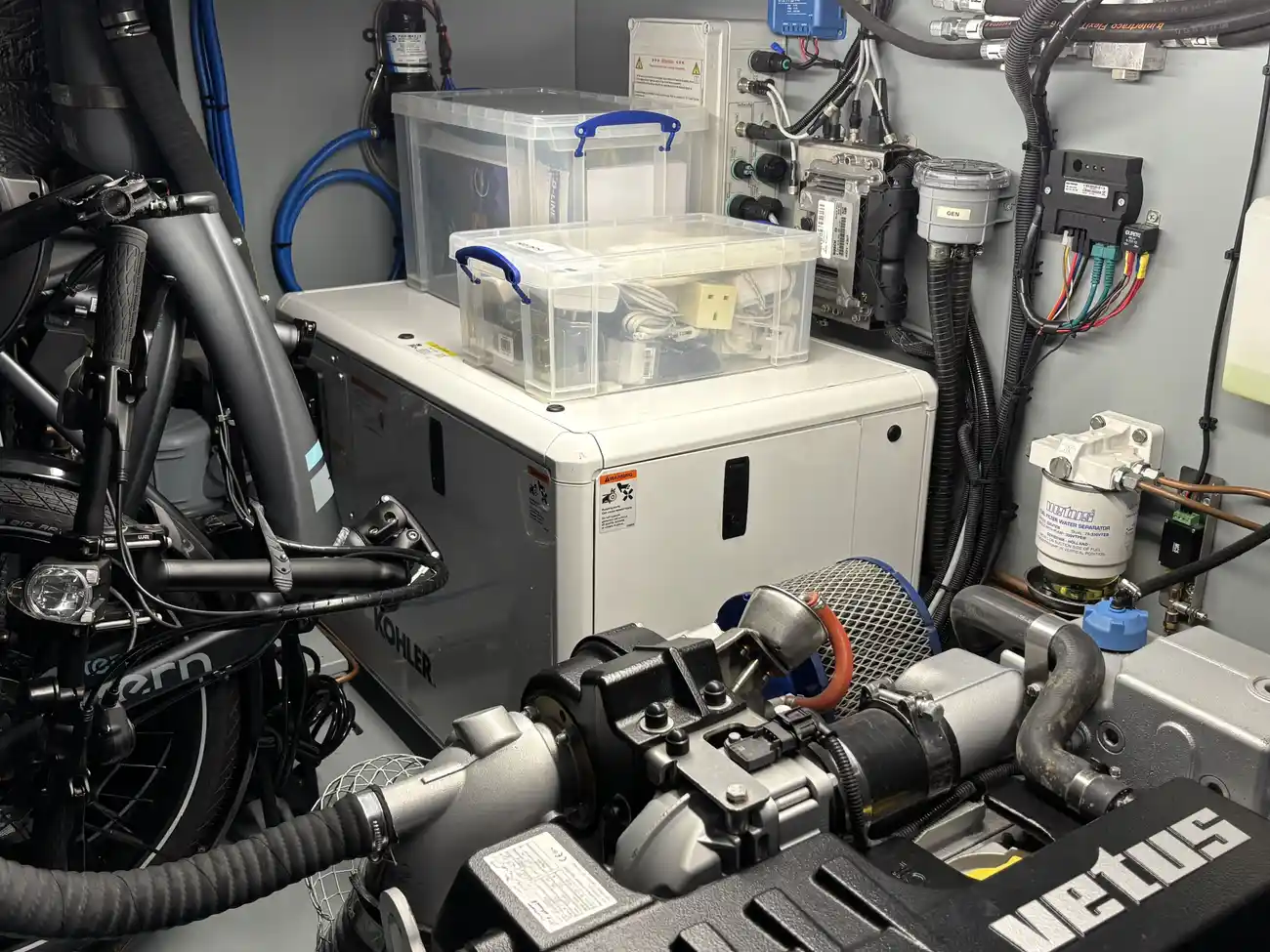

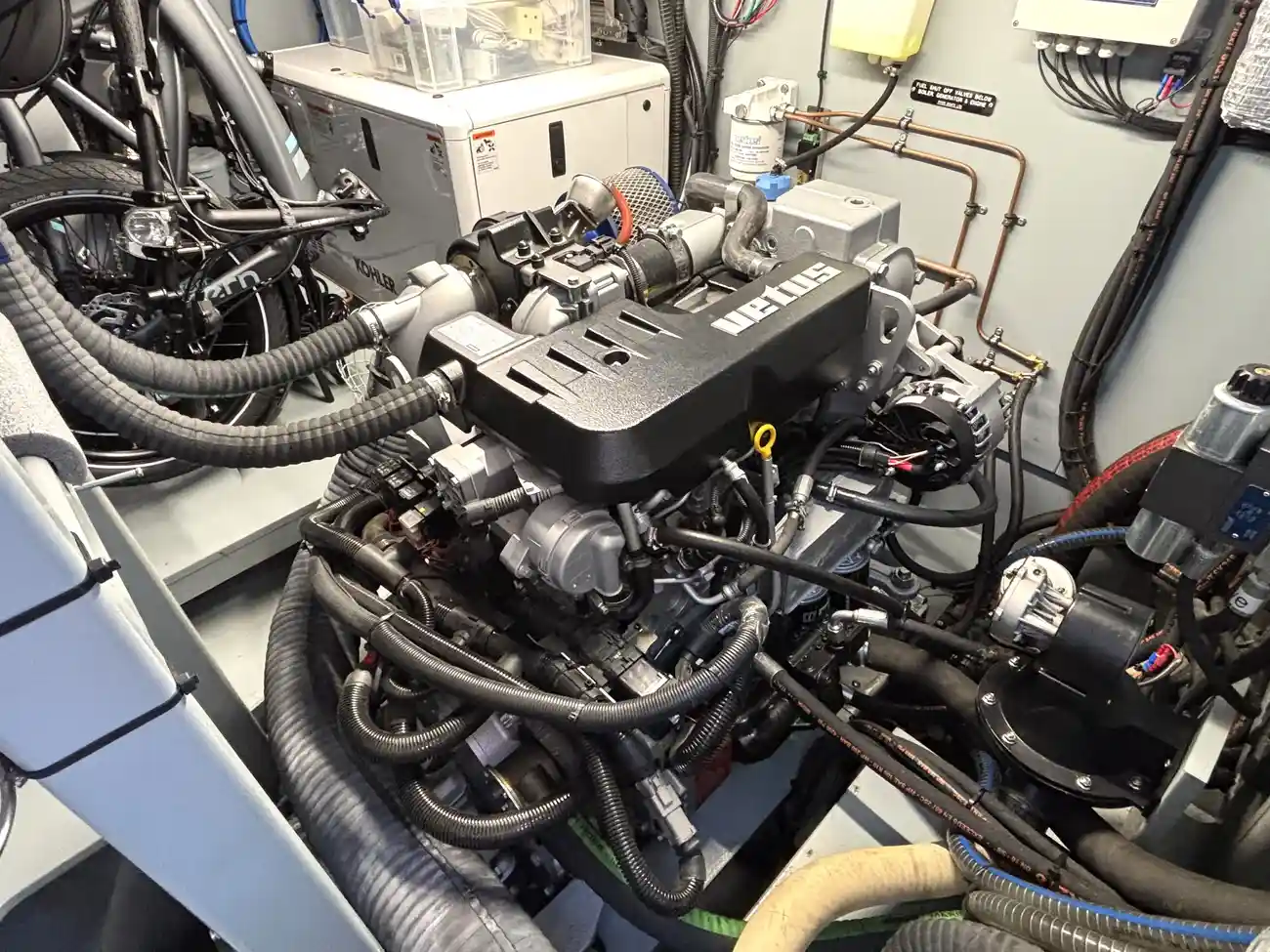

o    Vetus Deutz 140 D-Line 4-cylinder engine (Upgraded from Beta 115) serviced annually (engine hours tbc)
o    Raw water cooling
o    Additional domestic high-capacity alternator upgrade - Mastervolt 130A Alternator

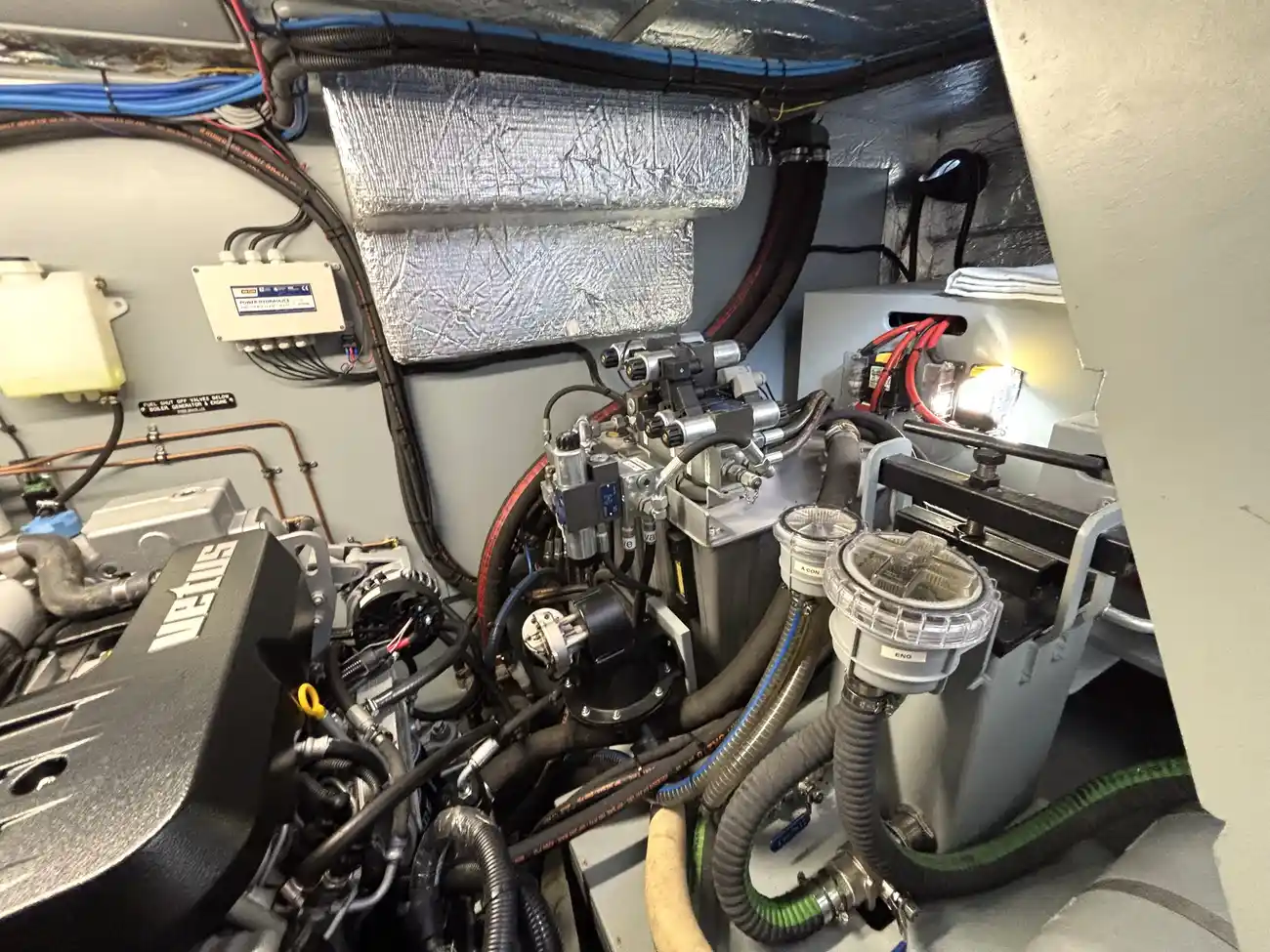

o    Hydraulic engineering fitout upgrade - including bow 160kgf and stern thrusters 95kgf, hydraulic anchor winch and steering
o    Kohler generator soundproofed & enclosed - Kohler 7Kw (wet Exhaust) (Upgraded from 5Kw) serviced annually (generator hours tbc)

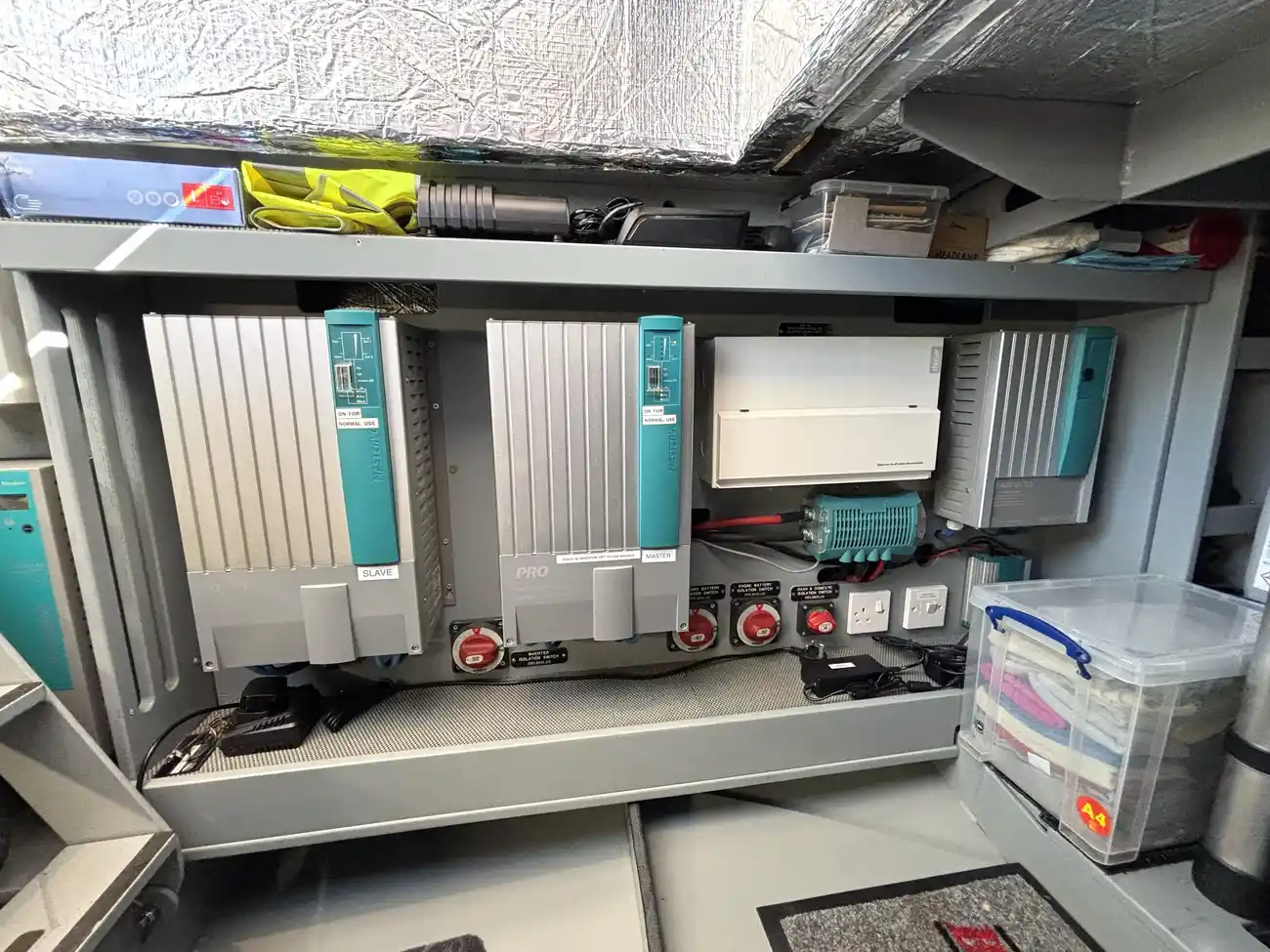

o    Twin inverter charger combi - Mastervolt mass combi pro 2 x 3Kw (Upgraded from 1 inverter charger)
o    Wireless thermostat for central heating
o    Deck wash tap in engine room
o    Additional rear deck lighting

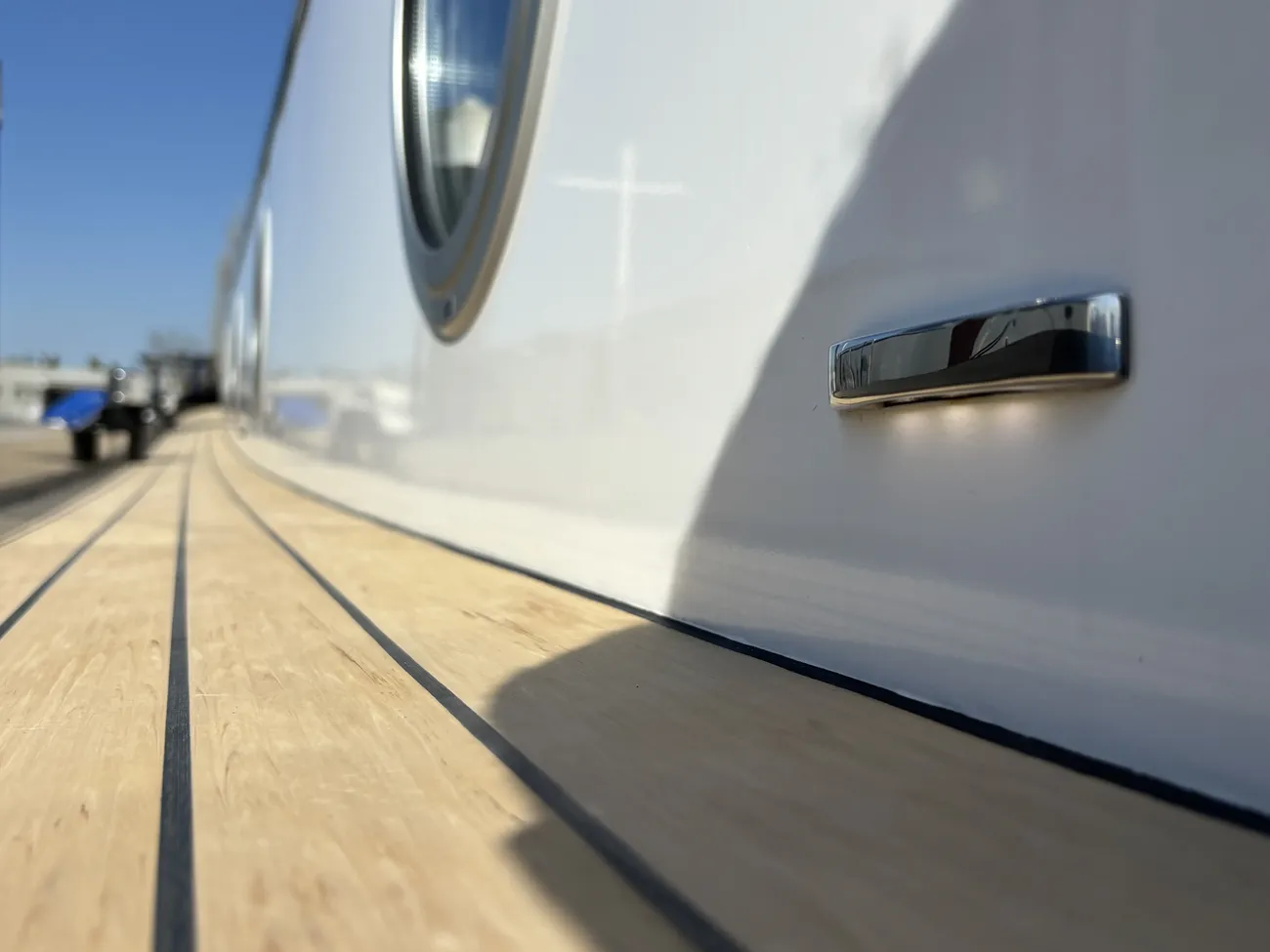

o    Side deck lighting - mounted into cabin sides and bow
o    Retro fitted upgrades
o    2 x Mastervolt MLI Ultra Lithium Ion Batteries 12V / 6000KwH
o    Fitted September 2022 - these are the latest generation leisure batteries at a cost of £14,000 + fitting
o    Mastervolt Masterbus interface USB

Exterior
o    Standard - as per builders' specification

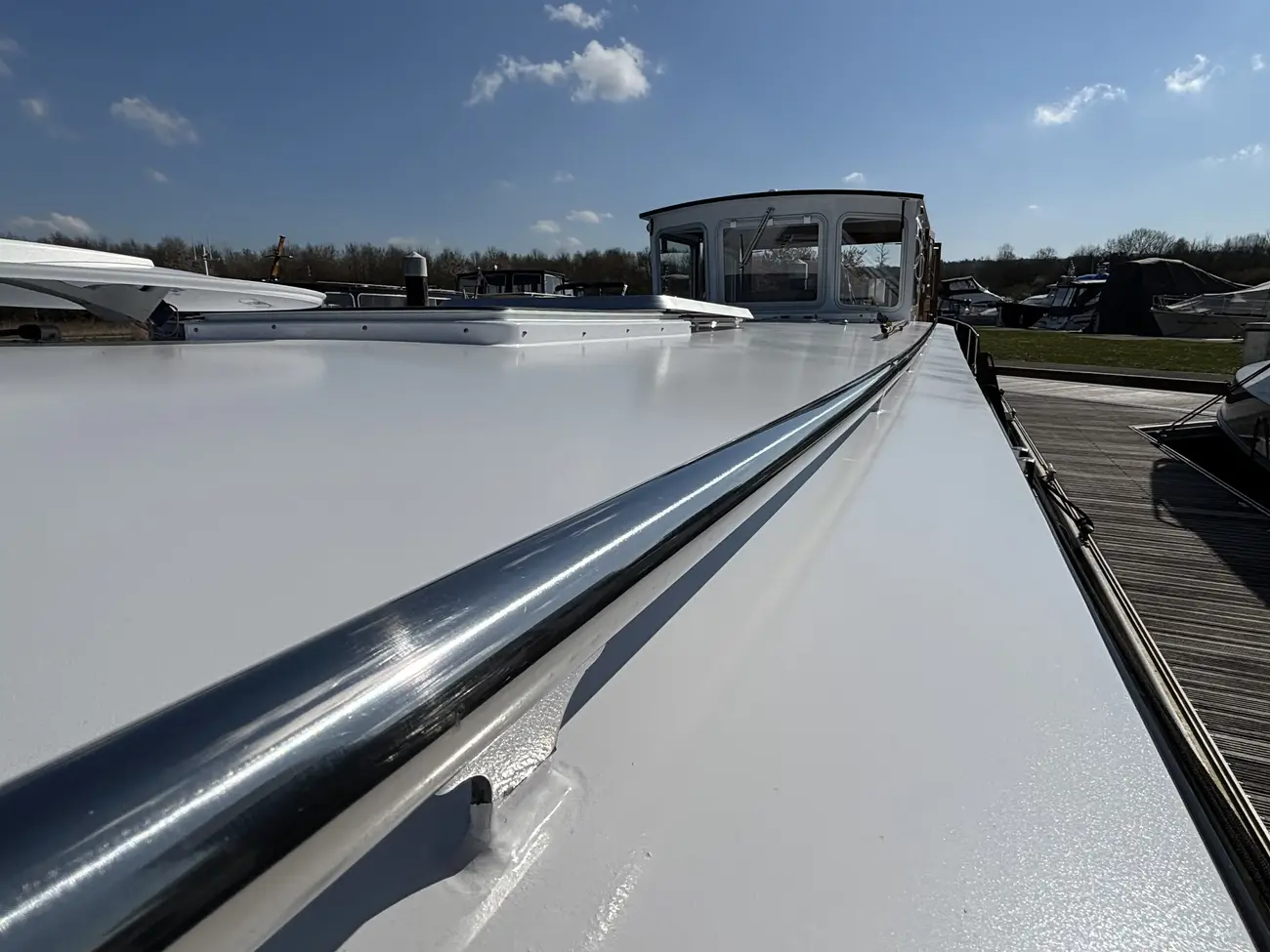

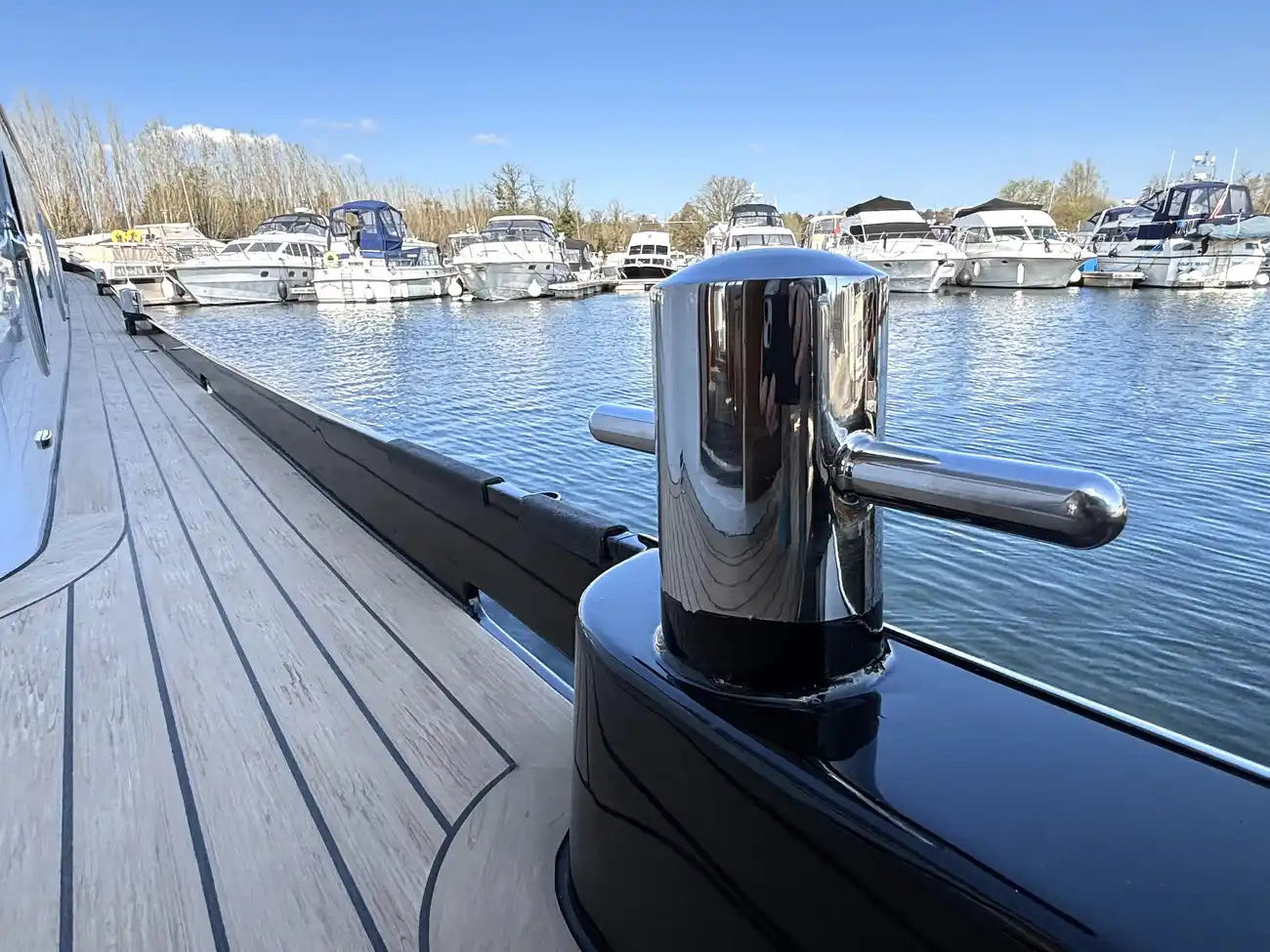

o    Stainless-steel handrails and bollards
o    Jotun approved external marine paint system
o    Double glazed & thermally broke windows to wheelhouse
o    Double glazed & thermally broke widows & portholes to cabin

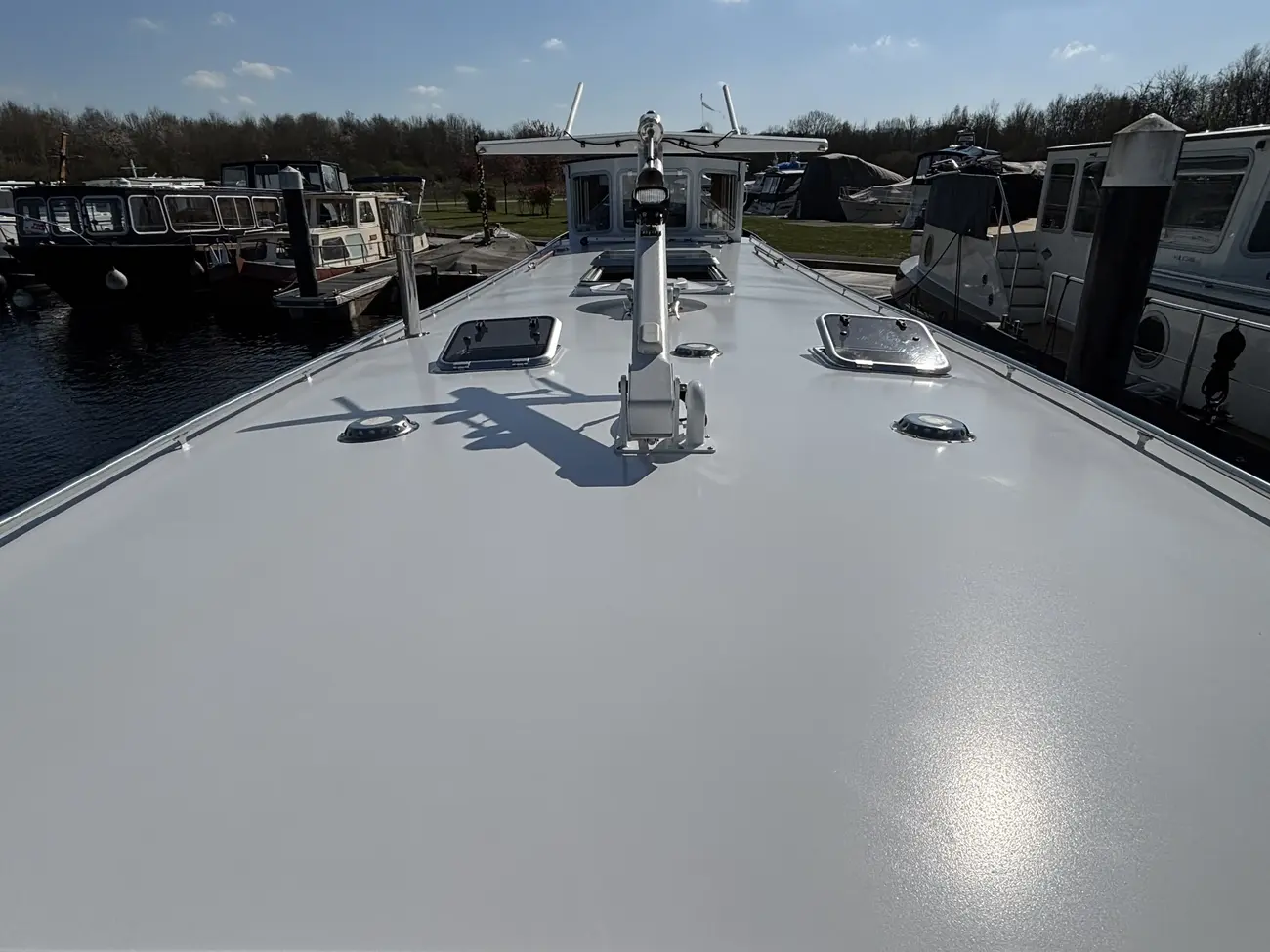

o    Powered high / low painted mast with stainless-steel tabernacle
o    Front barge fender
o    Union 75Kg anchor & 50 metre's of 10mm chain
o    Navigation lights (port, starboard, stern, anchor, steaming) & headlight
Additional build cost options

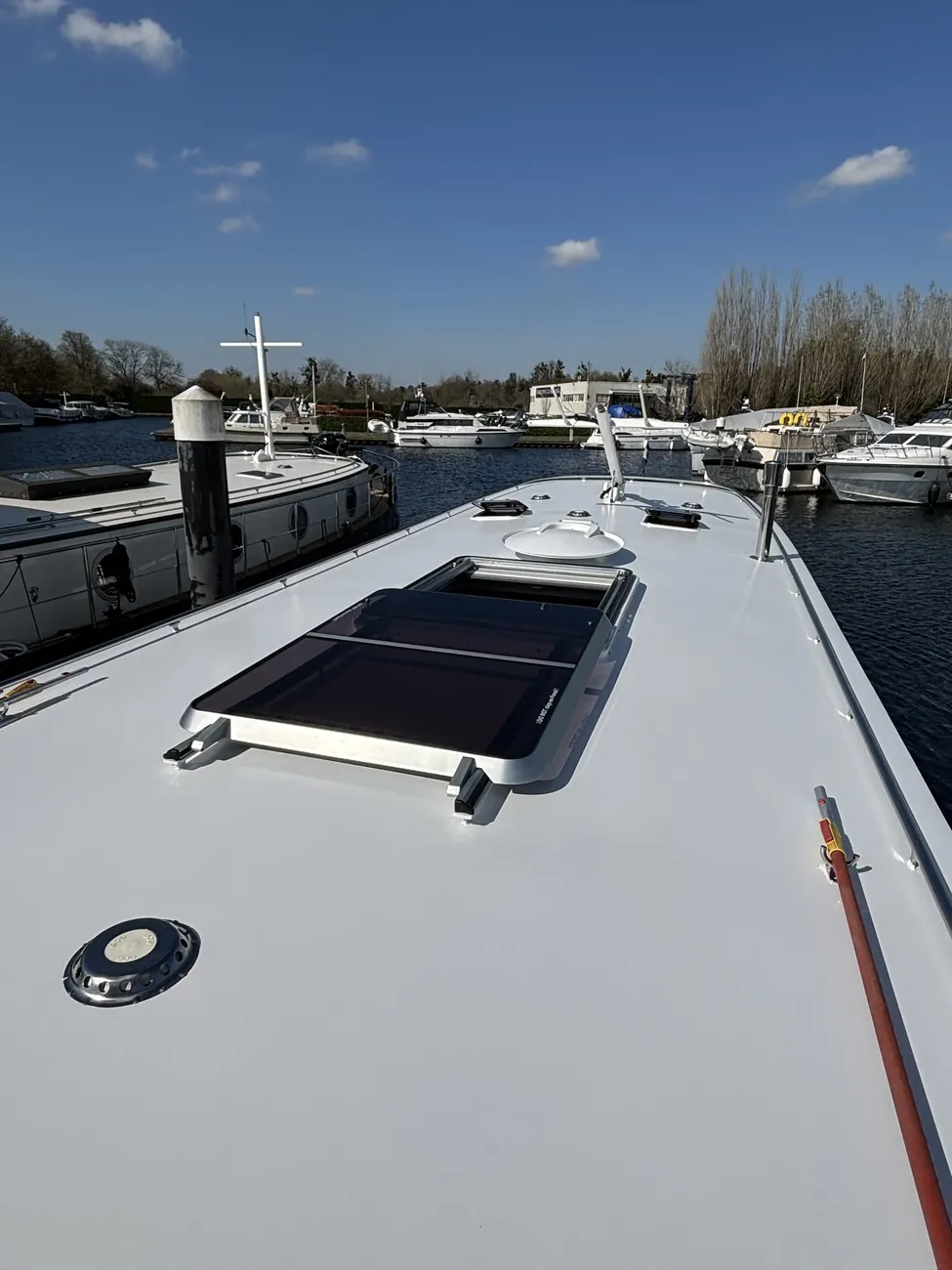

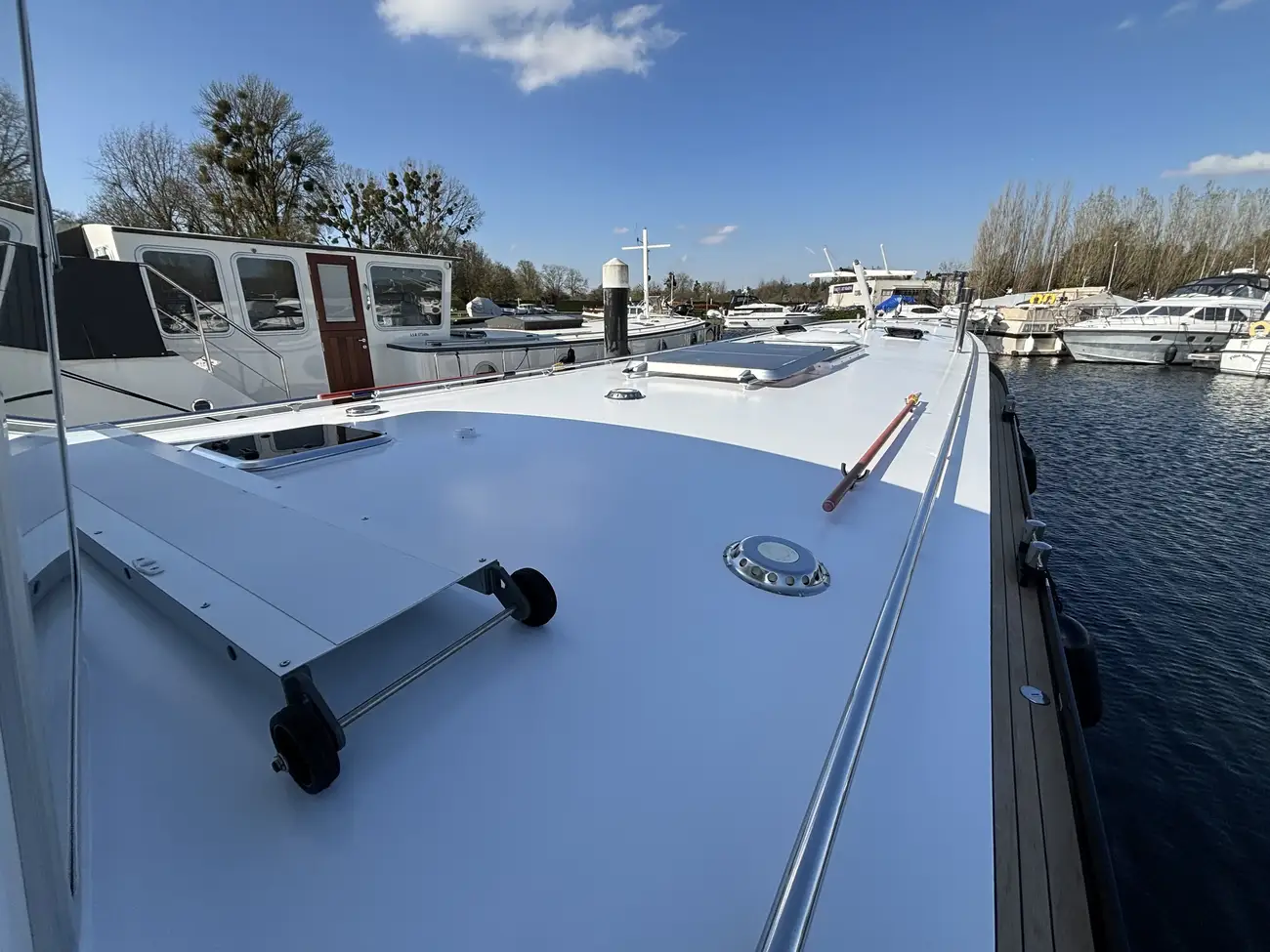

o    Electric sliding sunroof, sunscreen & mozi screen
o    Wired for installation of 4/5g products.
o    Satellite / Freeview system - mast had twin port satellite panel with wiring to back of TV unit in salon and master cabin
o    Oyster satellite system - Oyster V585

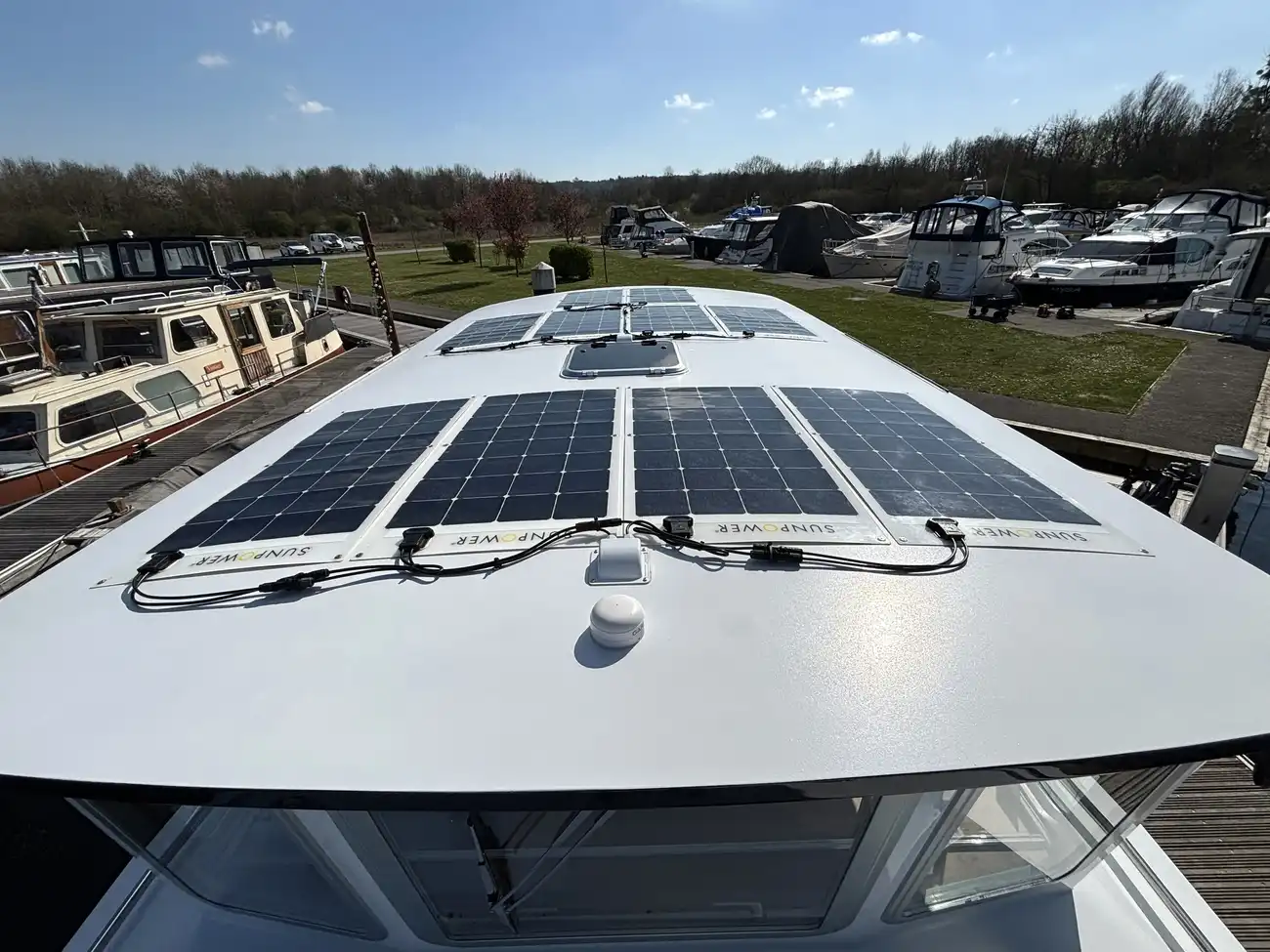

o    10 x Solar panels - Mastervolt solar regulator, +SCM60 100w panels

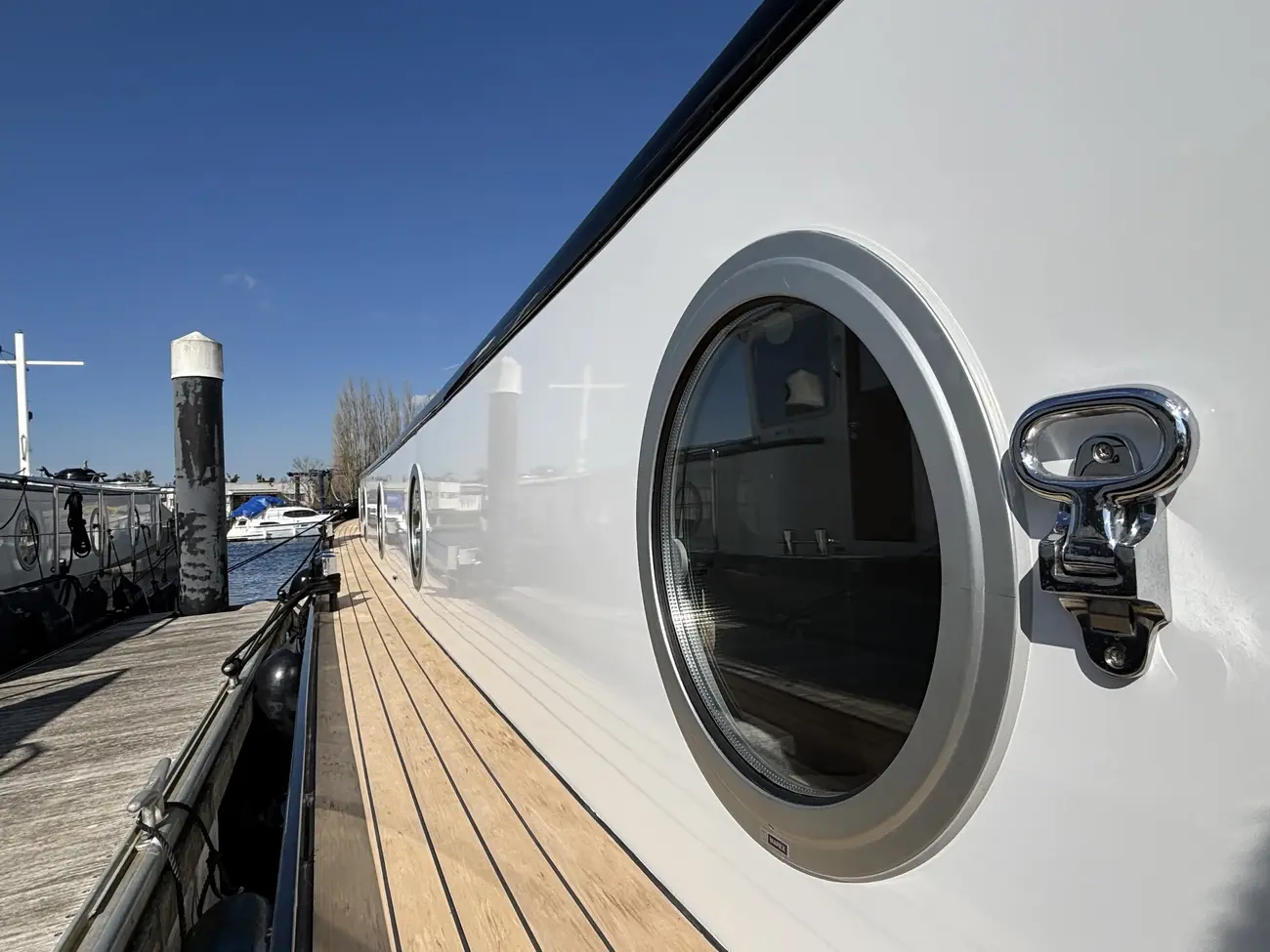

o    12 x 18” portholes - Vetus
o    Painted stripes & D-bar paint detail
o    Coppercoat anti-fouling

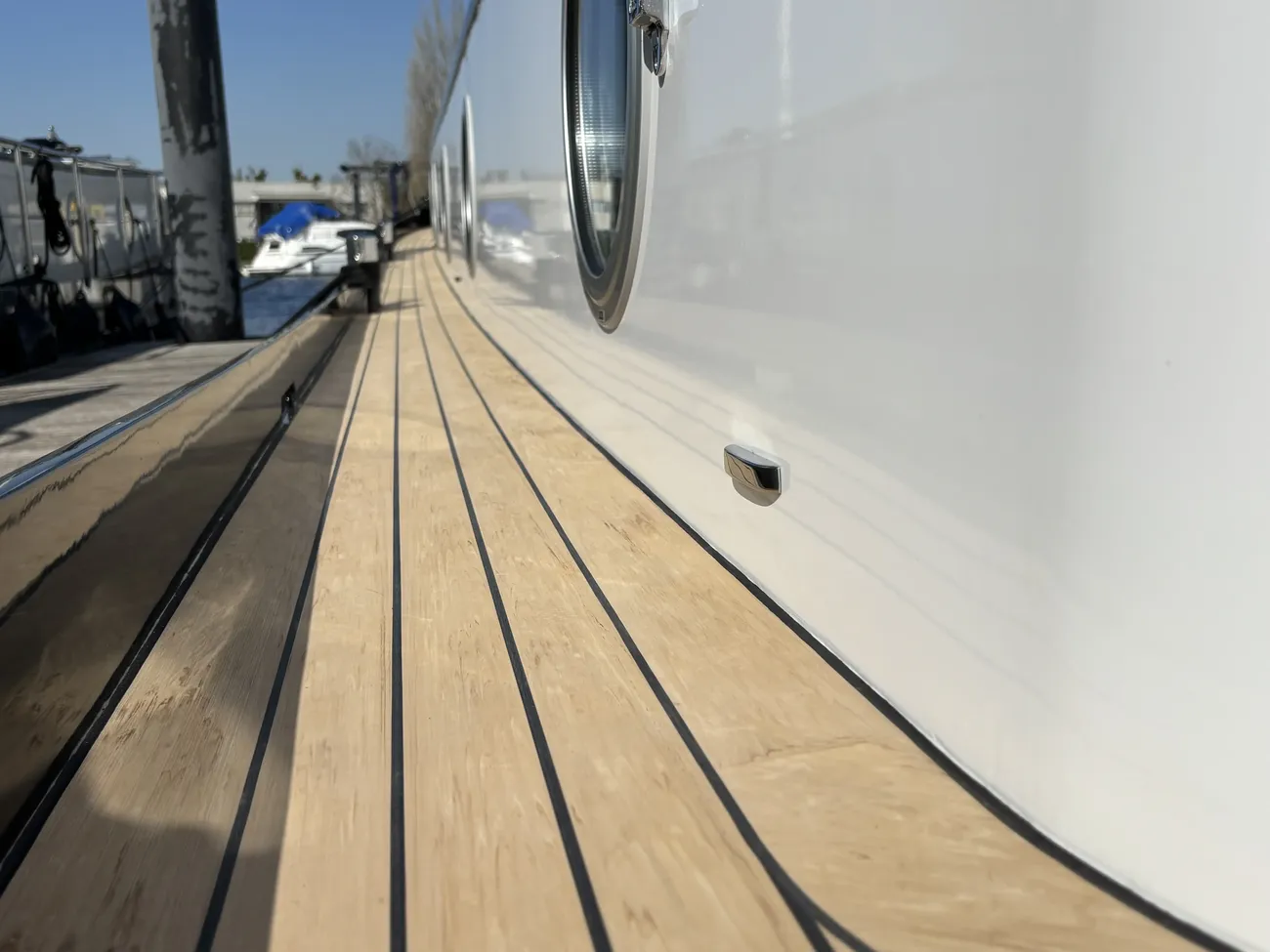

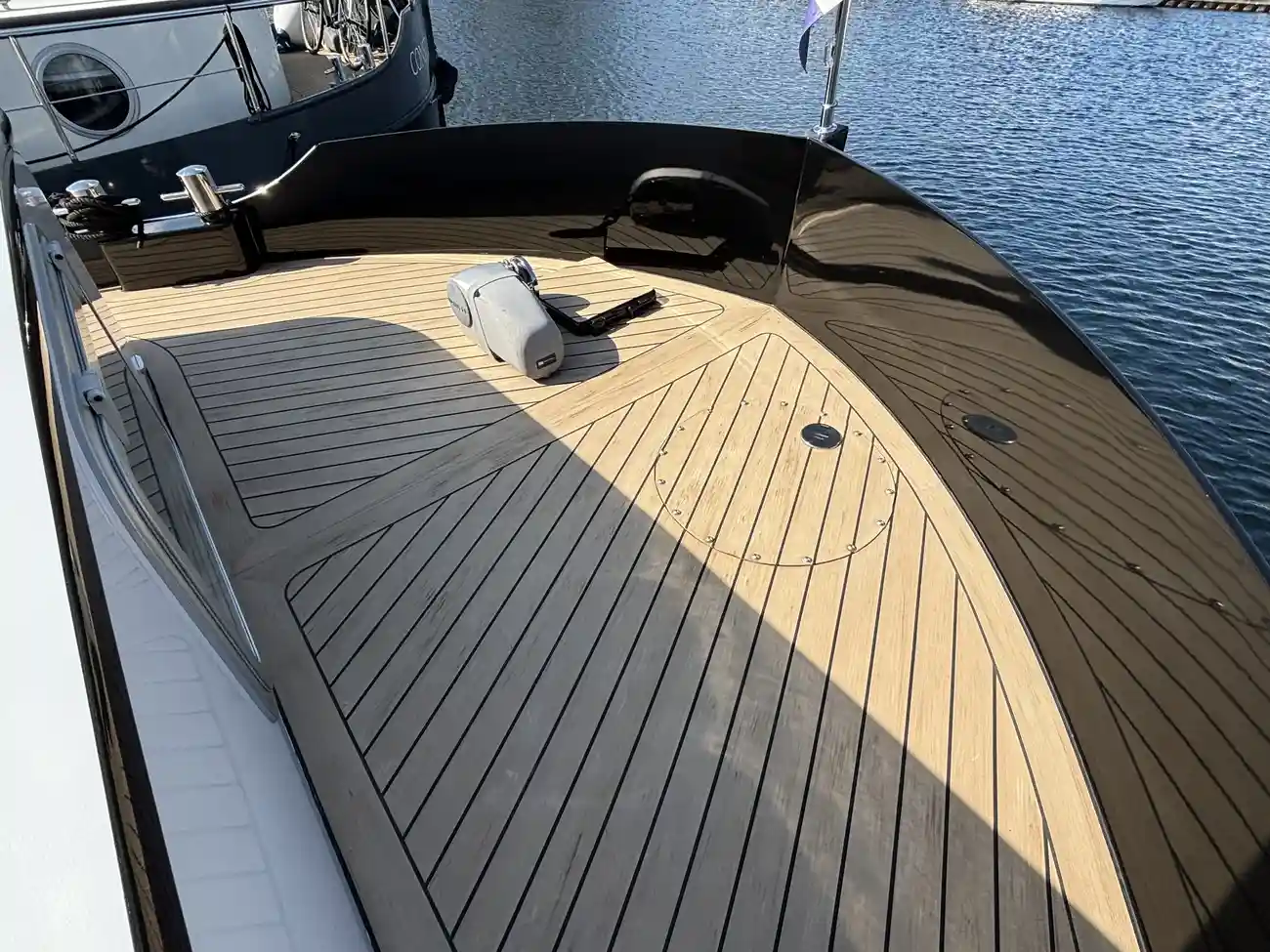

o    Flexiteek - bow, side decks and down sides of wheelhouse
o    Stainless-steel flagstaff for stern
o    Flag pole socket and stainless- steel flagstaff for bow
o    Chrome boathook brackets (2 pairs)
o    We supplied 4G Wifi & router to all areas of the boat
o    Eye plates for fenders on both sides
o    Extra grab handles on wheelhouse
o    Gang plank and brackets x 4
o    Personally supplied items
o    Assorted fenders, warps & mooring stakes
o    Titan boat covers - Spray dodger & sliding roof cover with thermal blanket

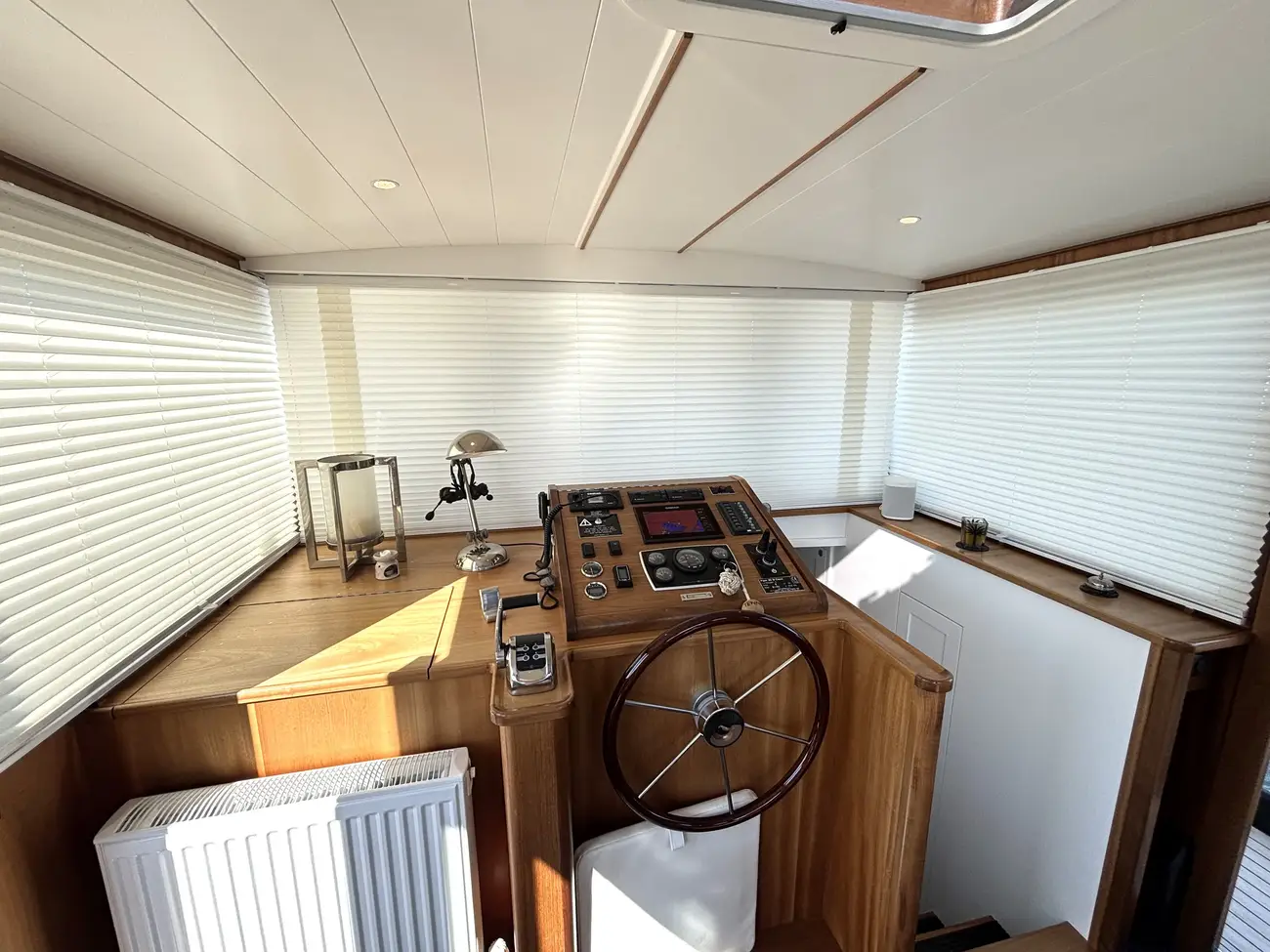

Wheelhouse
o    Standard - as per builders' specification
o    Fixed steel wheelhouse
o    Removable table
o    Seating converts into a double bed

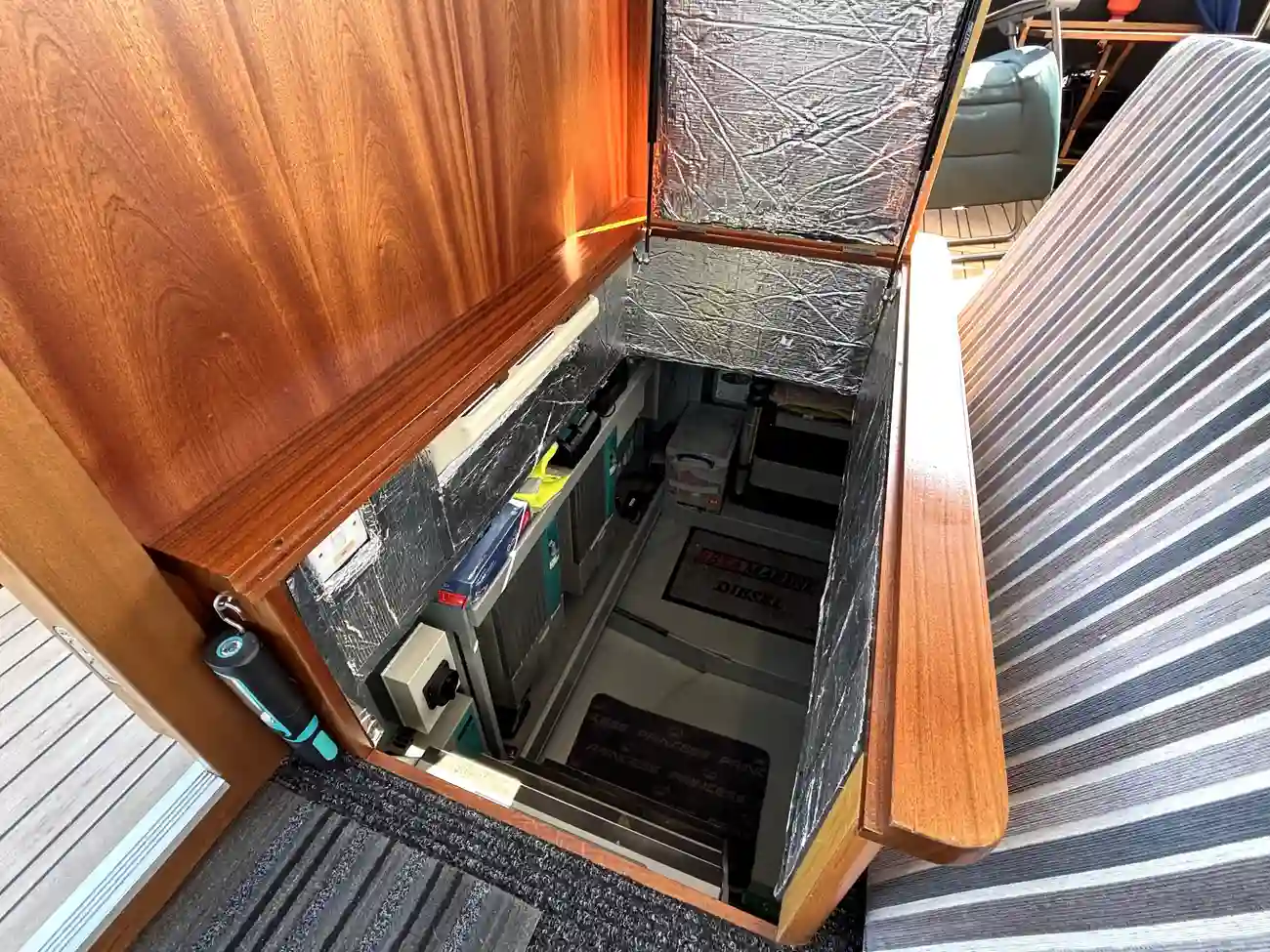

o    Access to engine room
o    RPI - Rudder position indicator

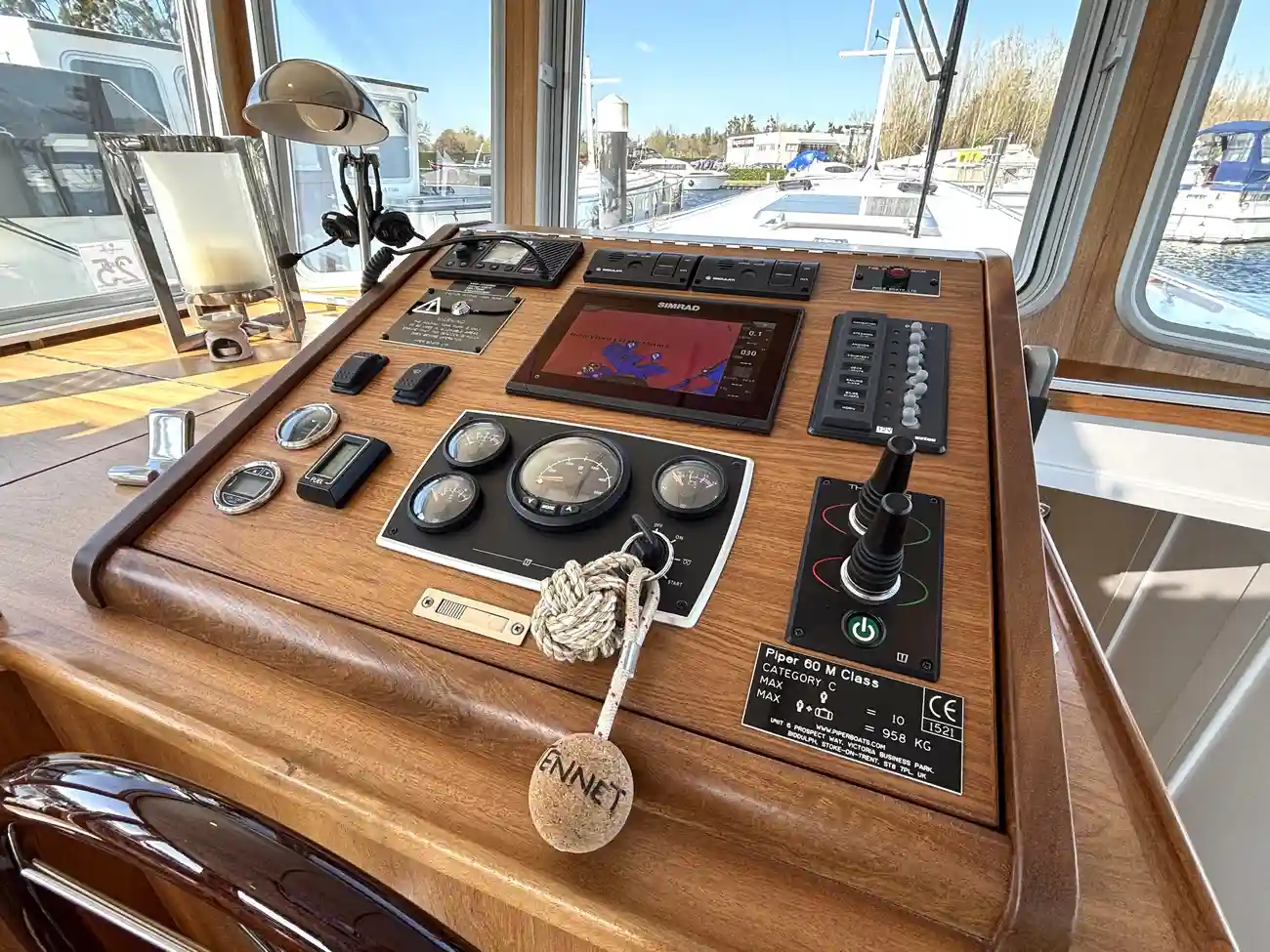

o    Engine panel & controls
o    Thruster controls
o    Manual engine room fire suppression switch
o    Fire extinguisher (manual)
o    Smoke alarm
Additional build cost options
o    Integral blinds to rear bi-fold doors (we supplied electric and manual plisse blinds to remainder of wheelhouse)
o    EDC throttle
o    Chart plotter - Simrad G09 chart plotter with GPS and Wifi
o    Charts - Navionics UK & Northern, Central and West Europe
o    Class B AIS System Simrad NAIS-500 system
o    Twin automatic / manual bilge pumps with alarm
o    Upholstery upgrade + additional cushions (spare set of seat covers for wheelhouse seating)
o    LED lights in wheelhouse
o    LED lights on stairs
o    Removed stair door / cover
o    Freezer in engine room - Vitrifigo VF65P

Interior Fixings
Additional build cost options
o    Door handle upgrade (approx. 80 in total)
o    Wifi router (fitted by Wifi on board)

Windows
o    Additional build cost options

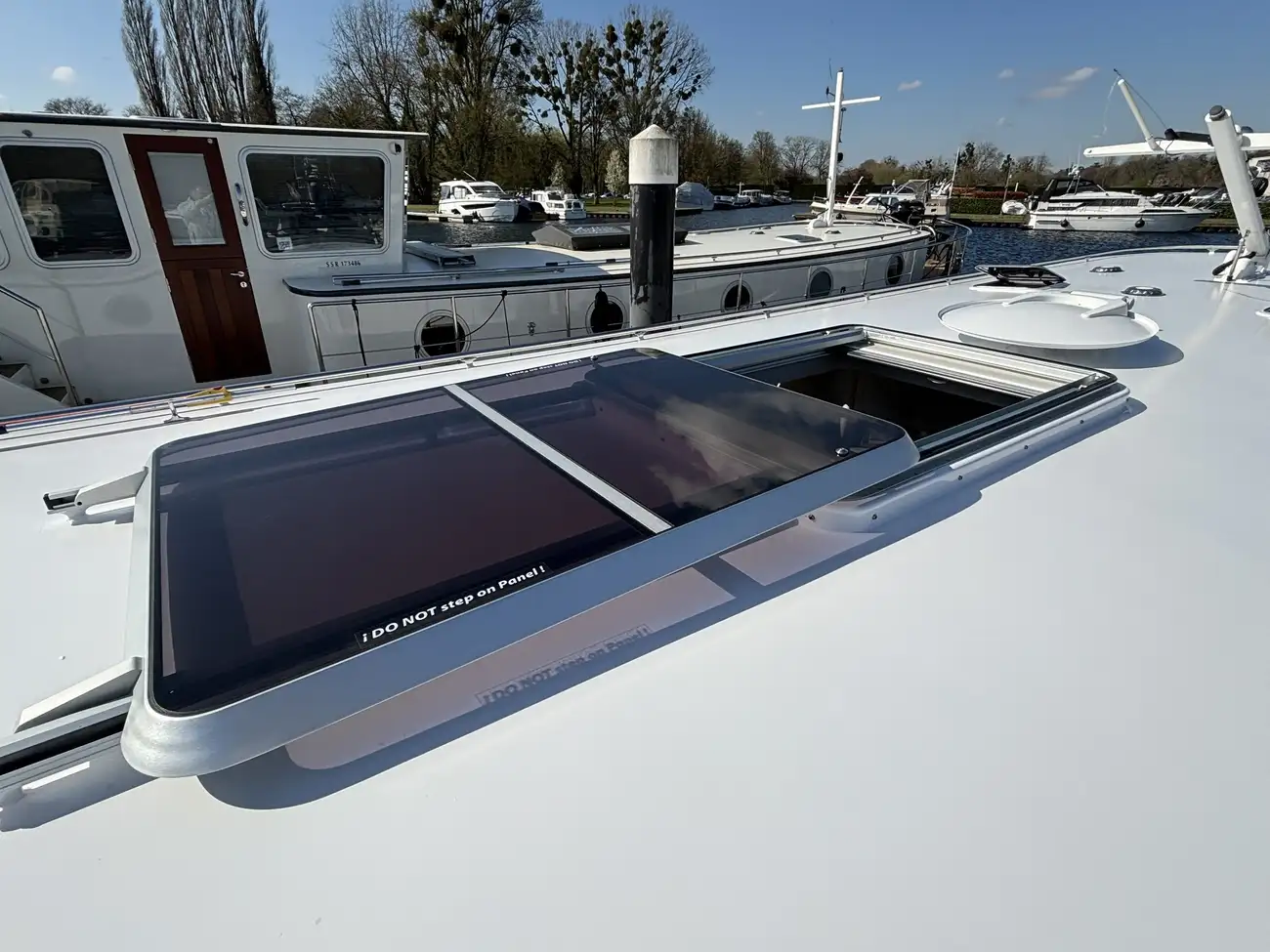

o    Electric sliding roof, sunscreen & mozi screen
o    Mozi screen for all roof hatches
o    Bungs for all roof hatches
o    Shutters to master bedroom escape hatch

Flooring
o    Salon, bedroom, side cabin & galley all upgraded to Oak 130mm plank

Galley
o    Standard - as per builders' specification
o    Fitted with premium oak plywood shaker style doors

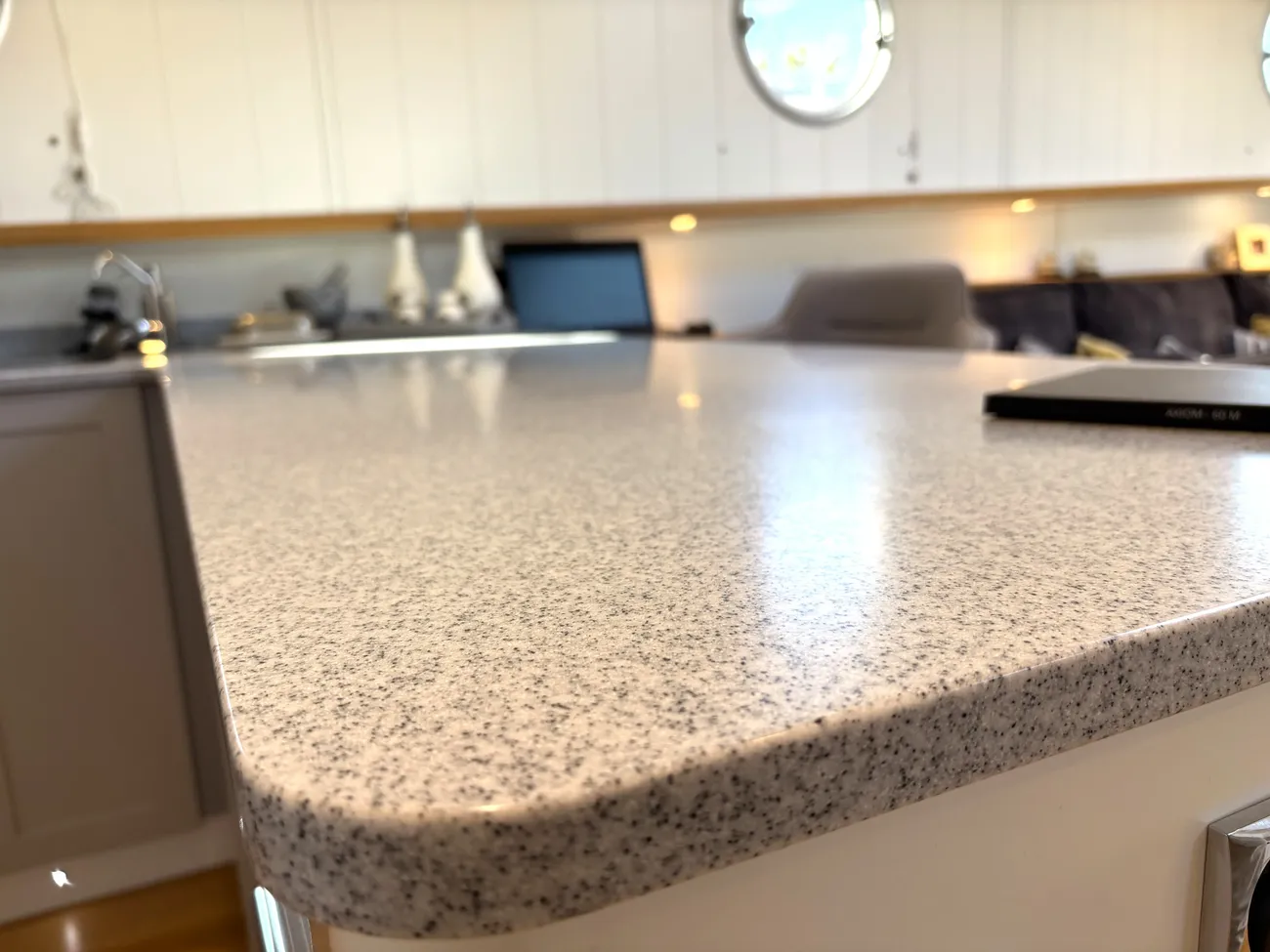

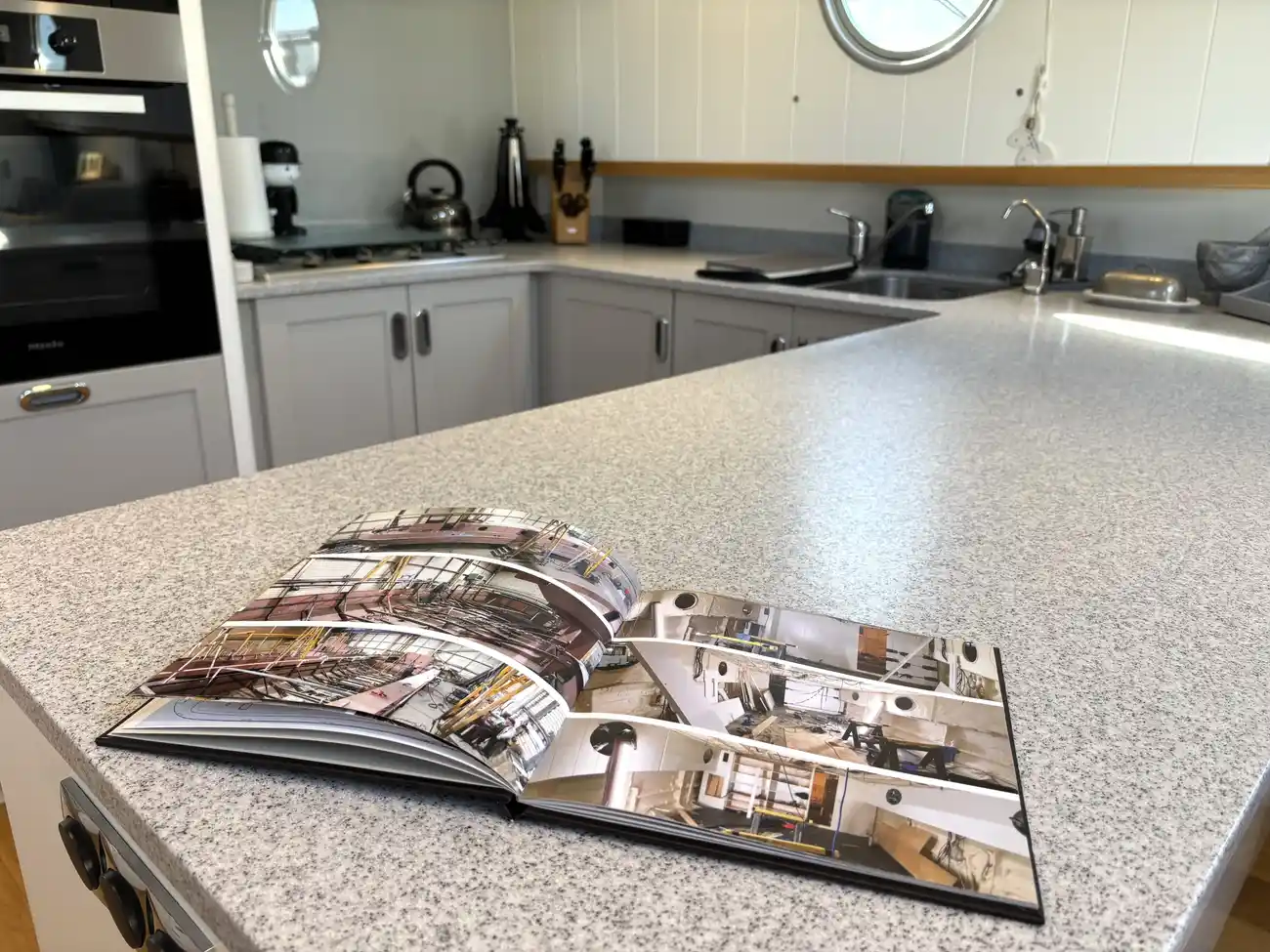

o    Composite granite worktops
Additional build cost options
o    Stainless-steel sink bowl

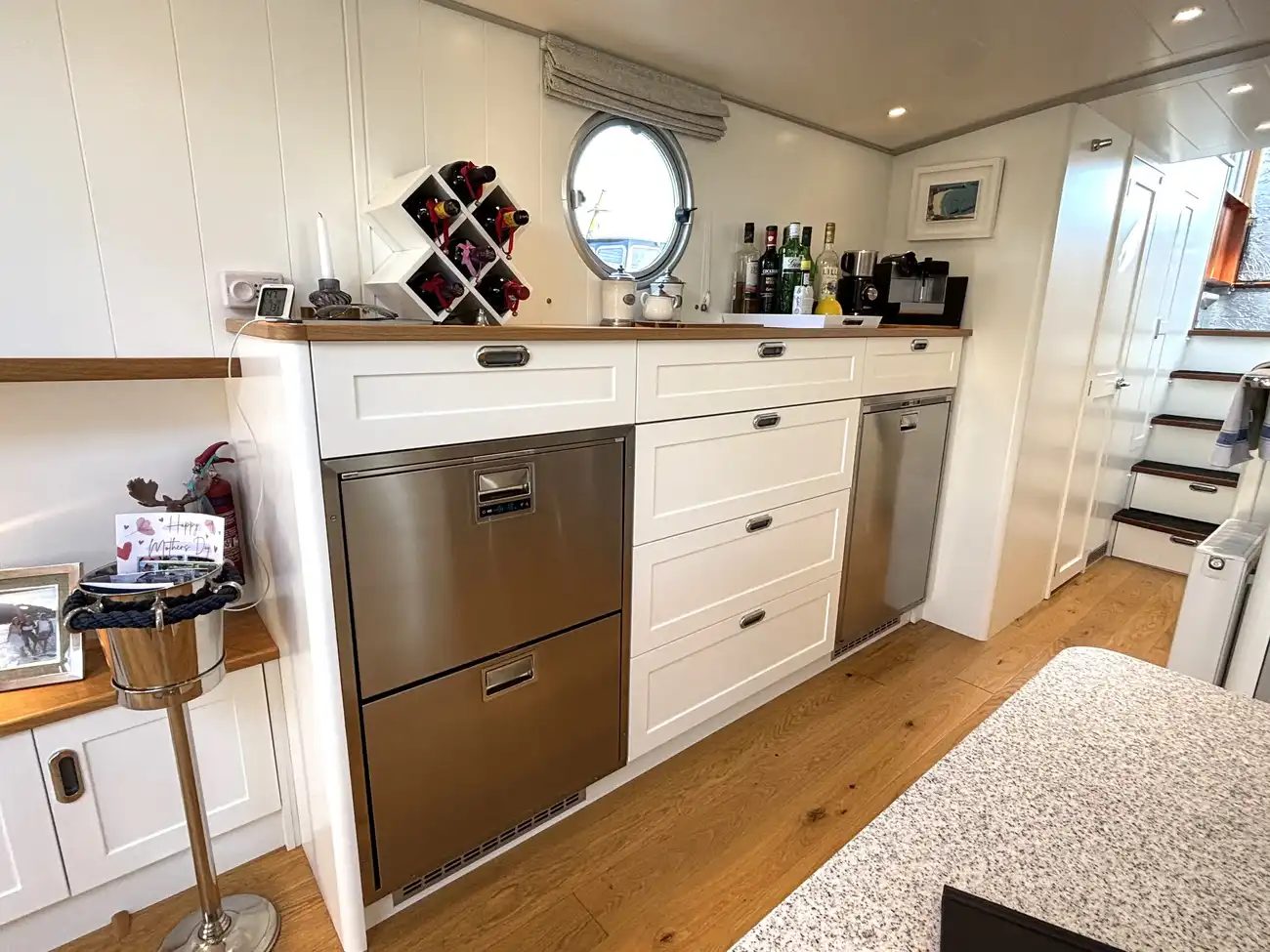

o    Undercounter fridge - Vitrifigo C180 larder fridge
o    Undercounter fridge - freezer - Vitrifigo DW180 Frost free
o    Splashback
o    Integrated kitchen waste bin

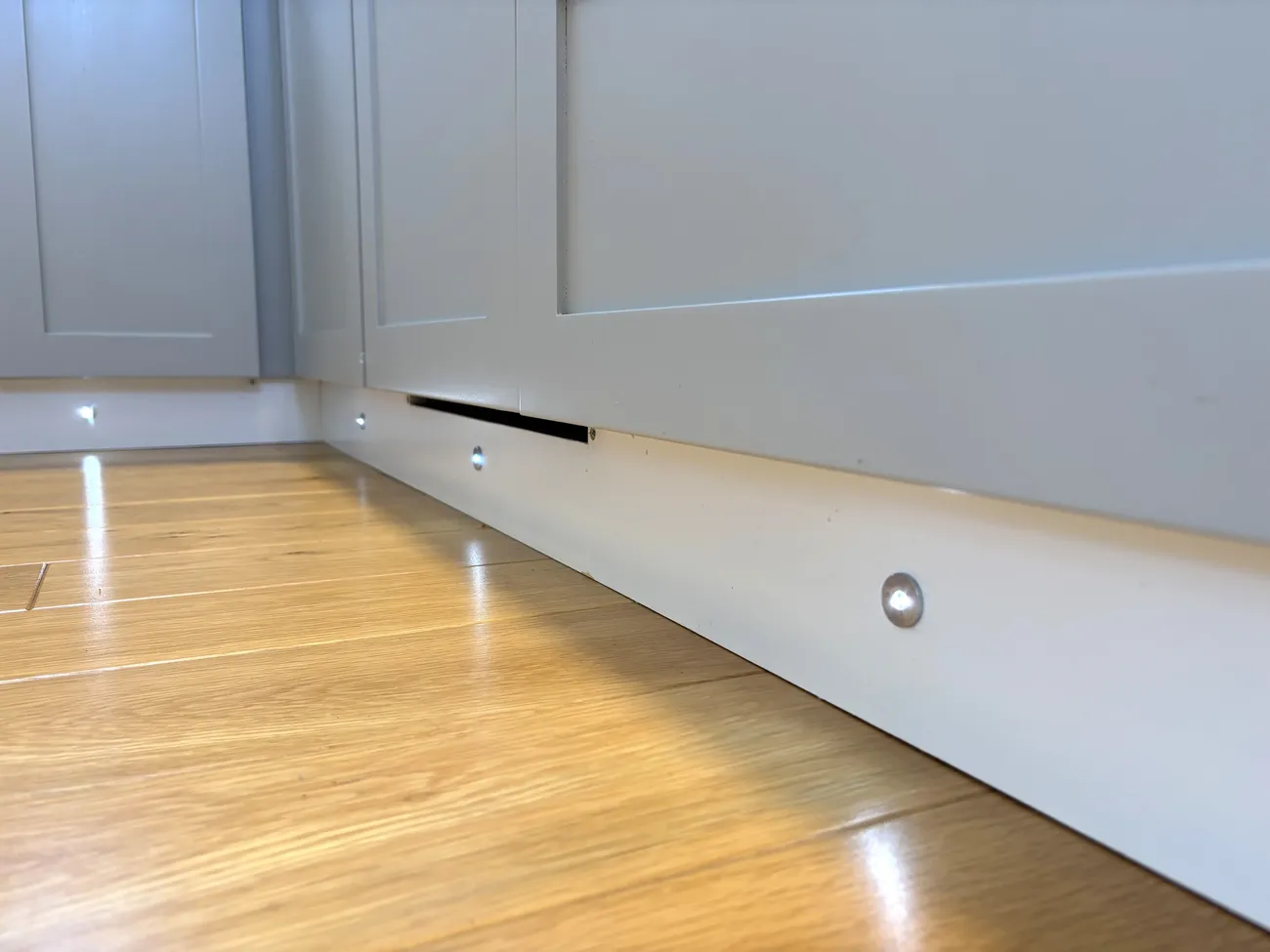

o    LED plinth lighting
o    Penguin water filtration to galley tap
Additional supplied items

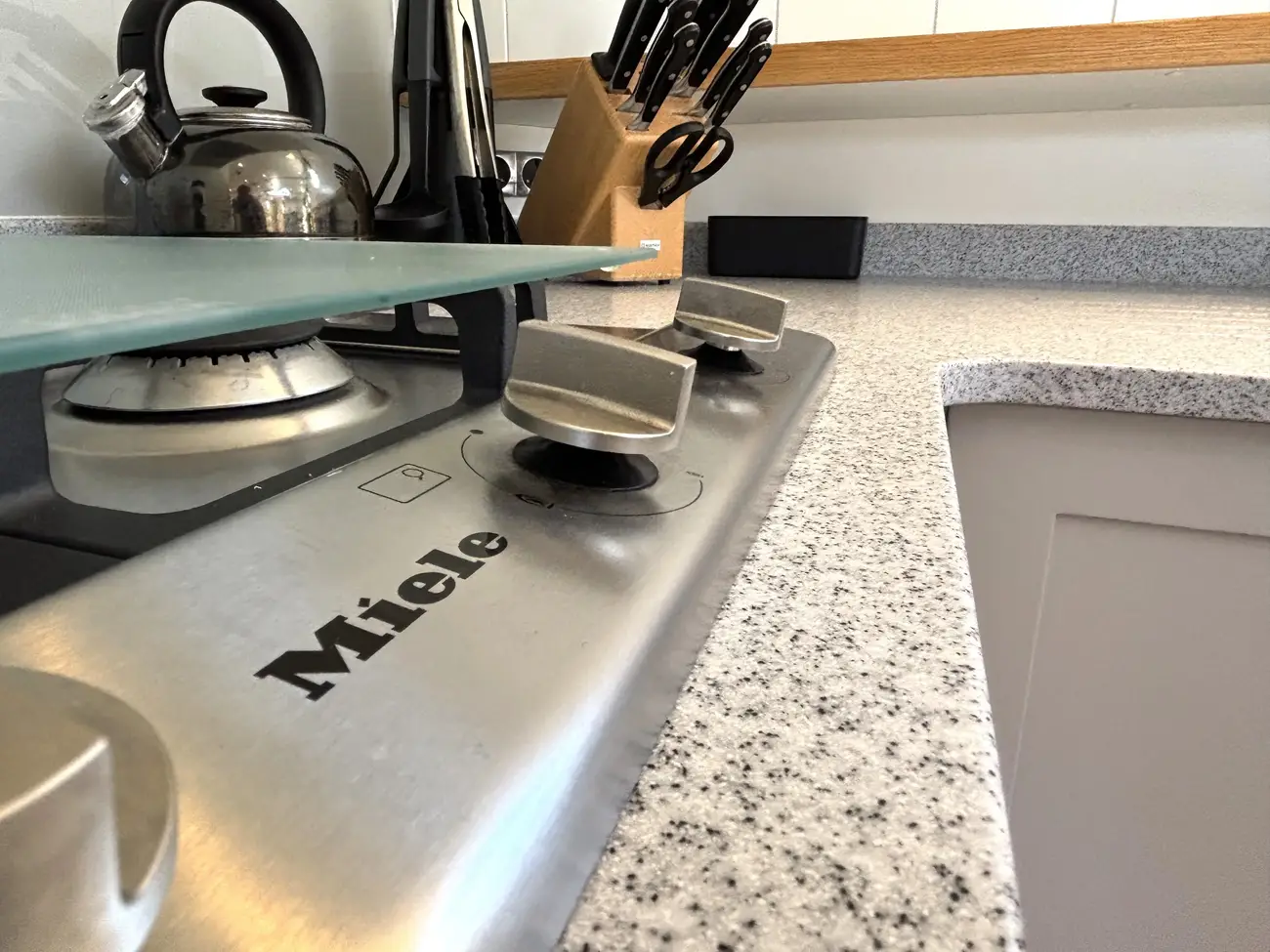

o    Miele gas hob & cooker hood
o    Miele oven
o    Miele microwave
o    Miele slimline dishwasher
o    2 x bar stools

Saloon
o    Standard - as per builders' specification
o    Underfloor roller storage system
o    Smoke alarm & Co2 detector
o    Fire Extinguisher (manual)
Additional build cost options
o    Refleks 2000KT diesel stove
o    Port side unit
o    Bulkhead cupboard - power points & shaker doors

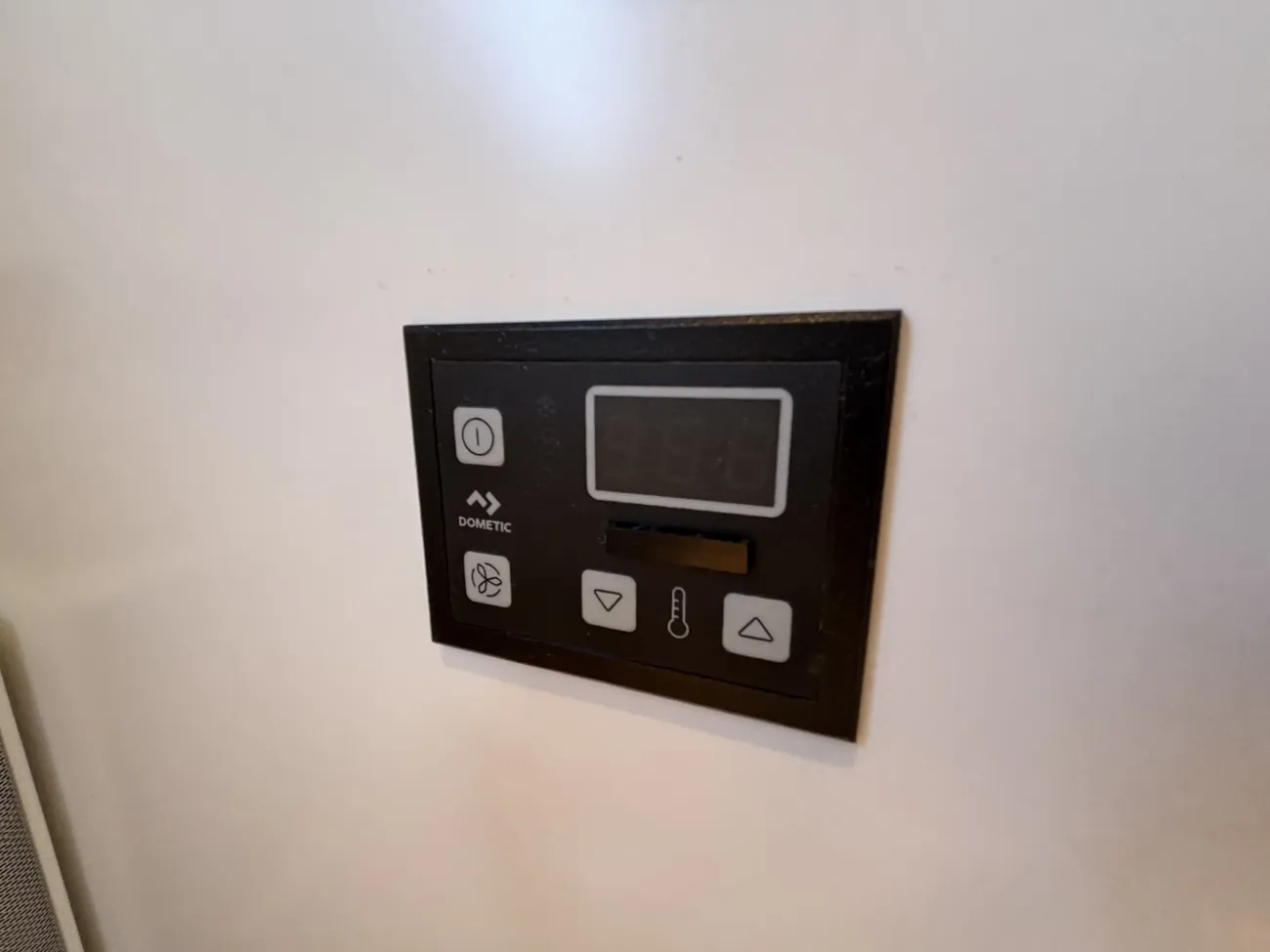

o    Air conditioning - 12,000 BTU with diverter valve between master bedroom and salon
o    Personally supplied items
o    Samsung smartTV
o    Sonos sound system to all areas  - by separate negotiation
o    Fully sprung chaise bed settee - Willow & Hall - by separate negotiation
o    Sisal rug

Coat Cupboard
o    Standard - as per builders' specification
Additional build cost options
o    Vitrifigo safe
o    Power point (i.e. for recharging cordless vacuum cleaner)

Side Cabin
o    Standard - as per builders' specification

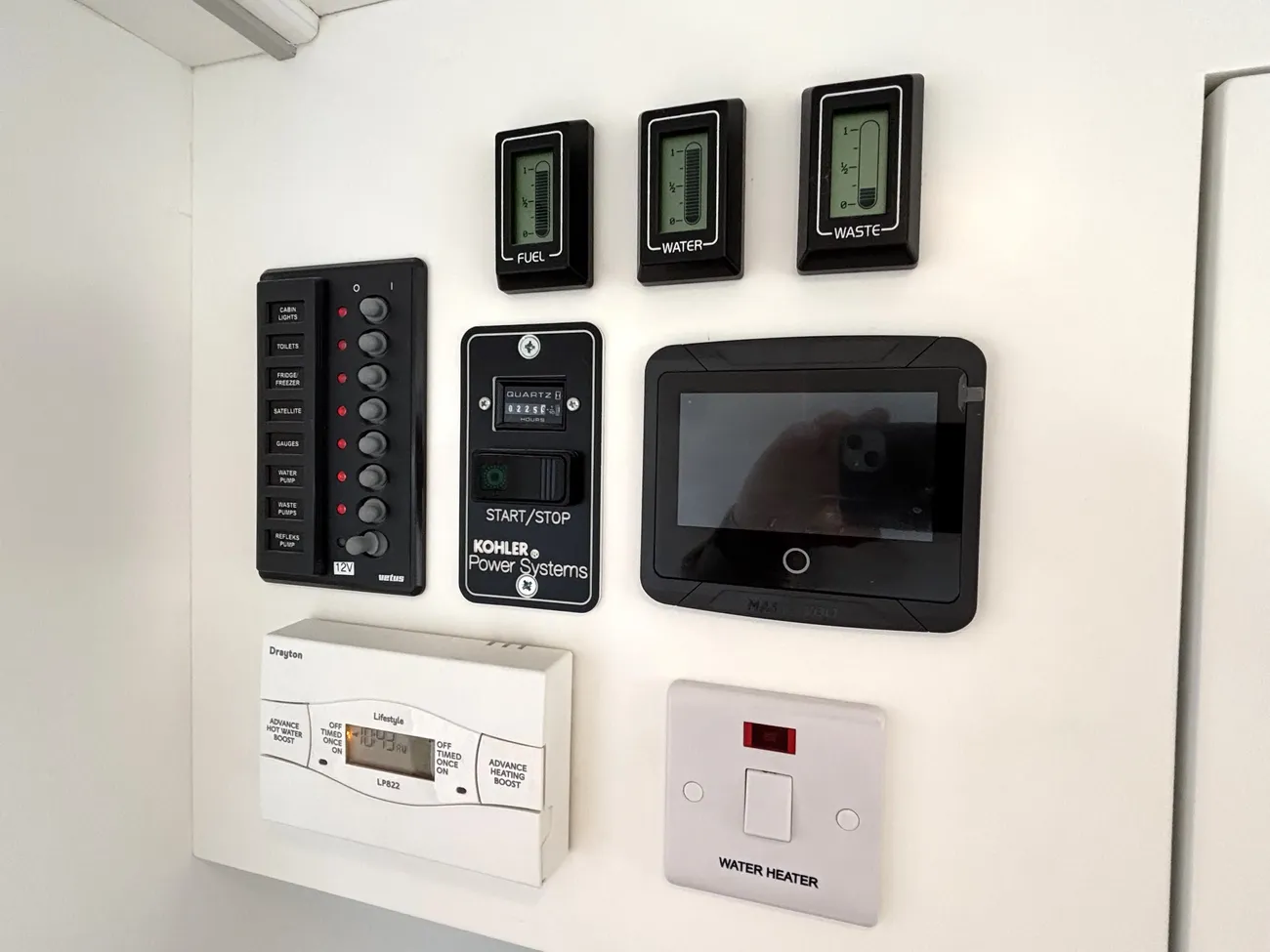

o    Control panels for:
o    Water heater
o    Central heating
o    12V panel
o    Kohler generator
o    Mastervolt easy view control panel
o    Auxiliary fuel gauge
o    Water gauge
o    Waste black tank gauge
o    Single berth overhead lighting
o    Central heating radiator
Additional build cost options
o    Redesign of the cabin layout with additional storage
o    2 x single bed bases & mattress' - 1 desk height with cupboard and fitting for washing machine (we supplied)
o    Personally supplied items
o    AEG Washer / Dryer 7000 series

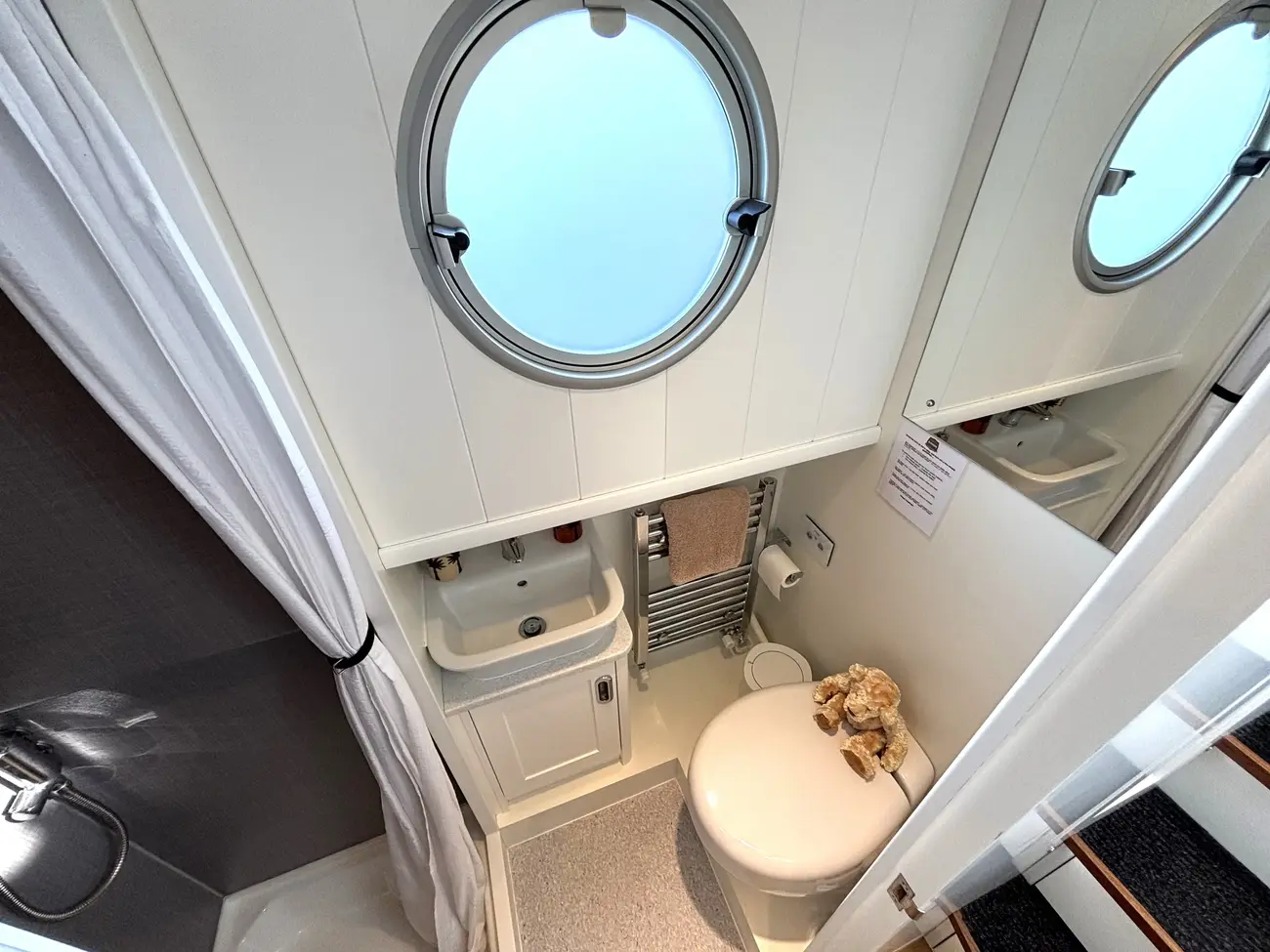

Day Loo
o    Standard - as per builders' specification
o    Recessed wash hand basin
o    Vanity unit
o    Shower
o    Tecma toilet
o    Towel rail
Additional build cost options
o    Toilet Tecma silence plus second generation control unit
o    Shower curtain
o    Bathroom fittings (Personally supplied)
o    Mirror

Master Cabin
o    Standard - as per builders' specification
o    King size bed
o    Cupboards and drawers to port and starboard
o    Full height wardrobe
o    Full length mirror
o    Marine Aircon
o    TV Point
o    Central heating radiator
o    Fire Extinguisher (manual)

Additional build cost options
o    Oak unit to bulkhead - shallow unit, 3 cupboards - radiator moved to beneath bed
o    Air conditioning - see salon
o    Headboard
o    Anti-moisture airmat T
o    Fan - Carframo fan
o    Personally supplied items
o    Vi-spring king size mattress

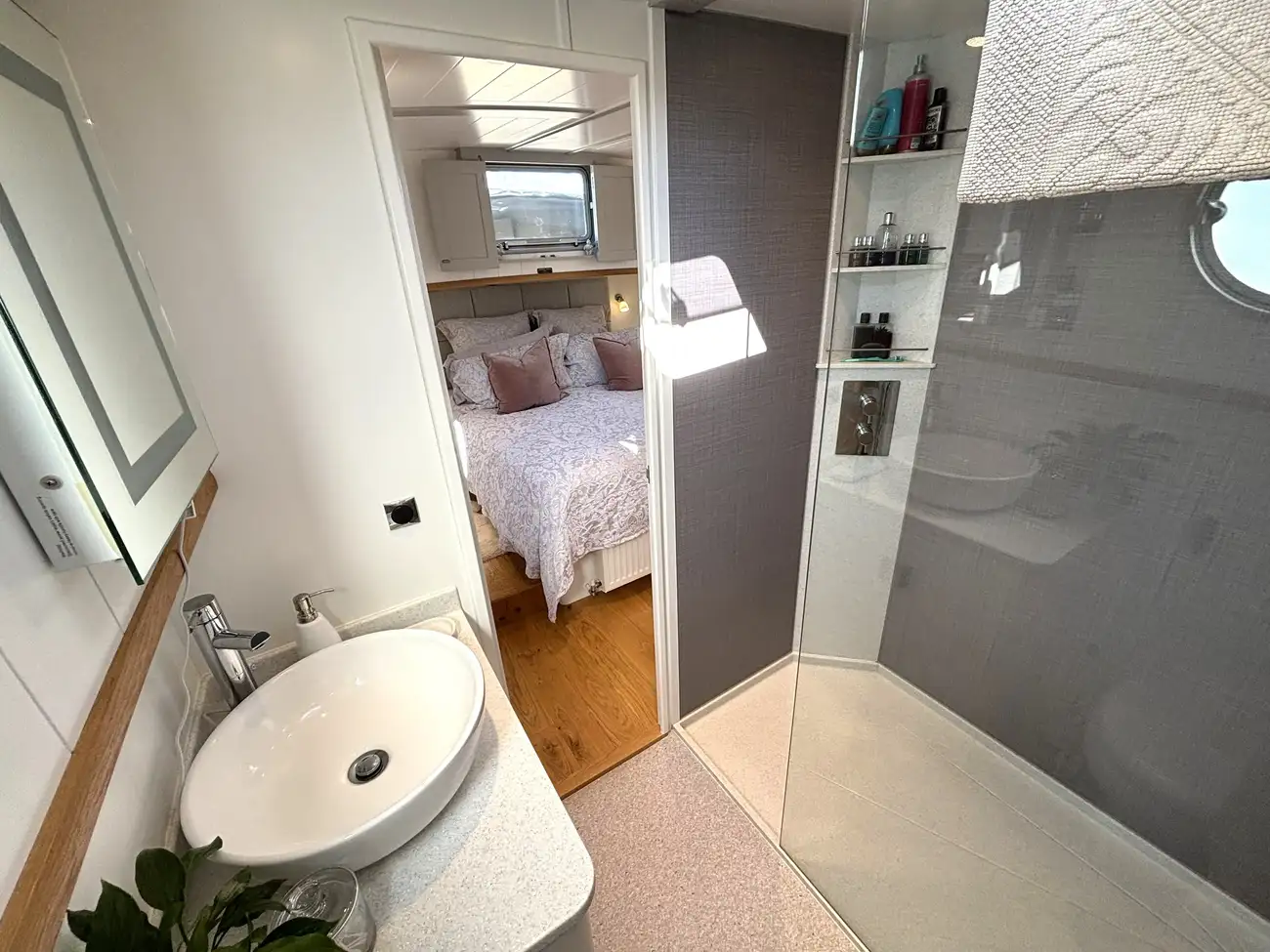

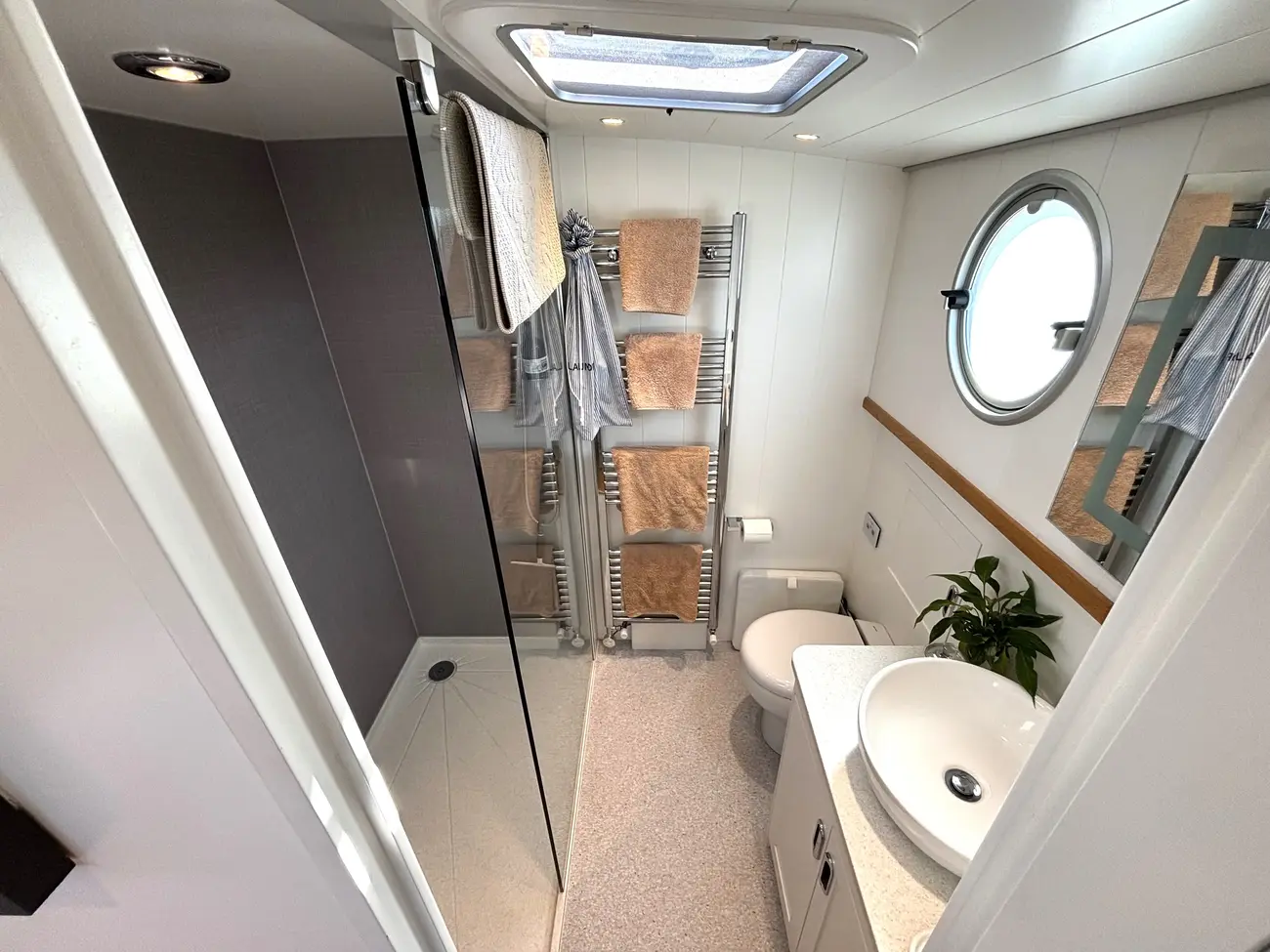

Master en-suite
o    Standard - as per builders' specification

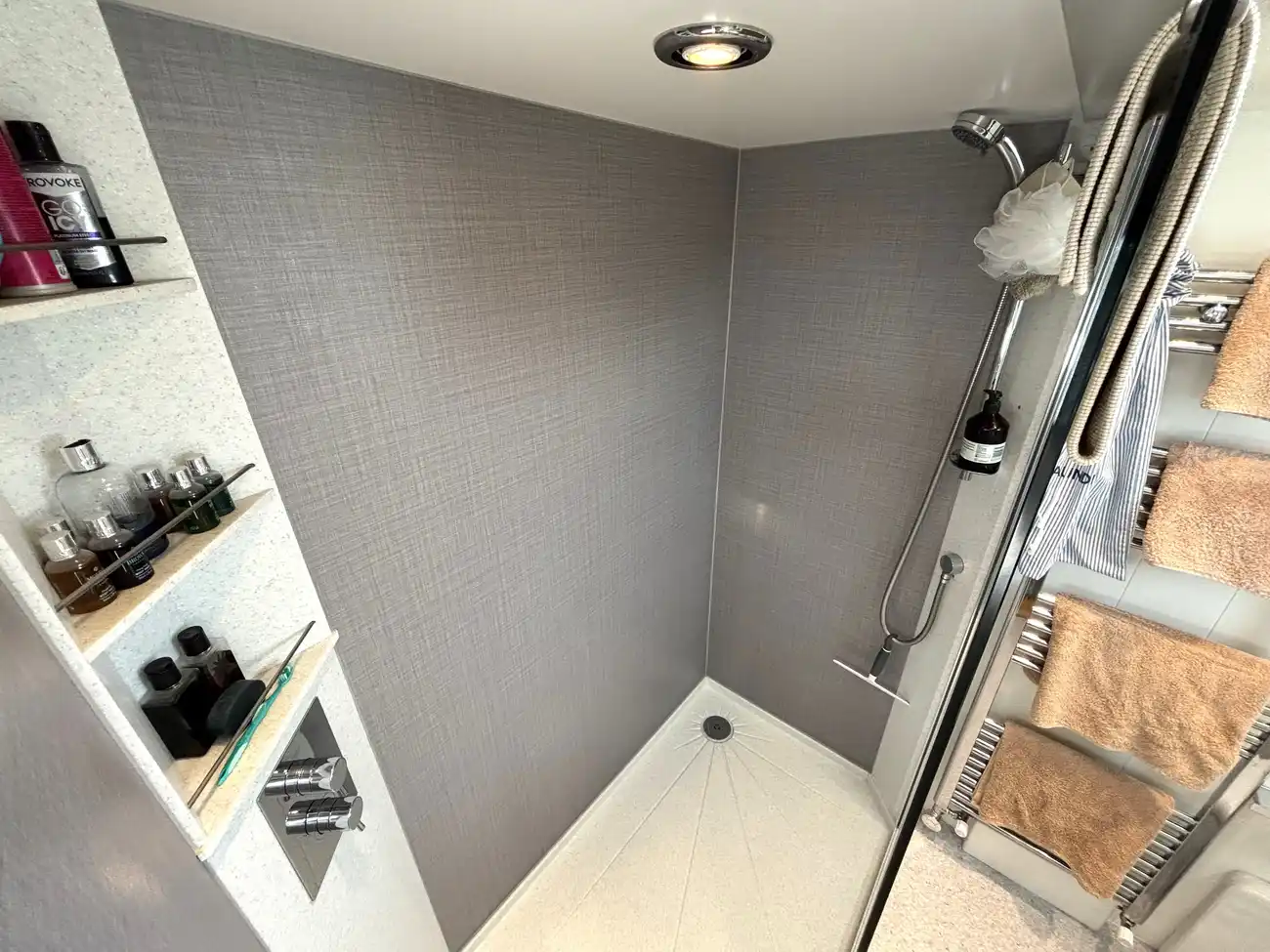

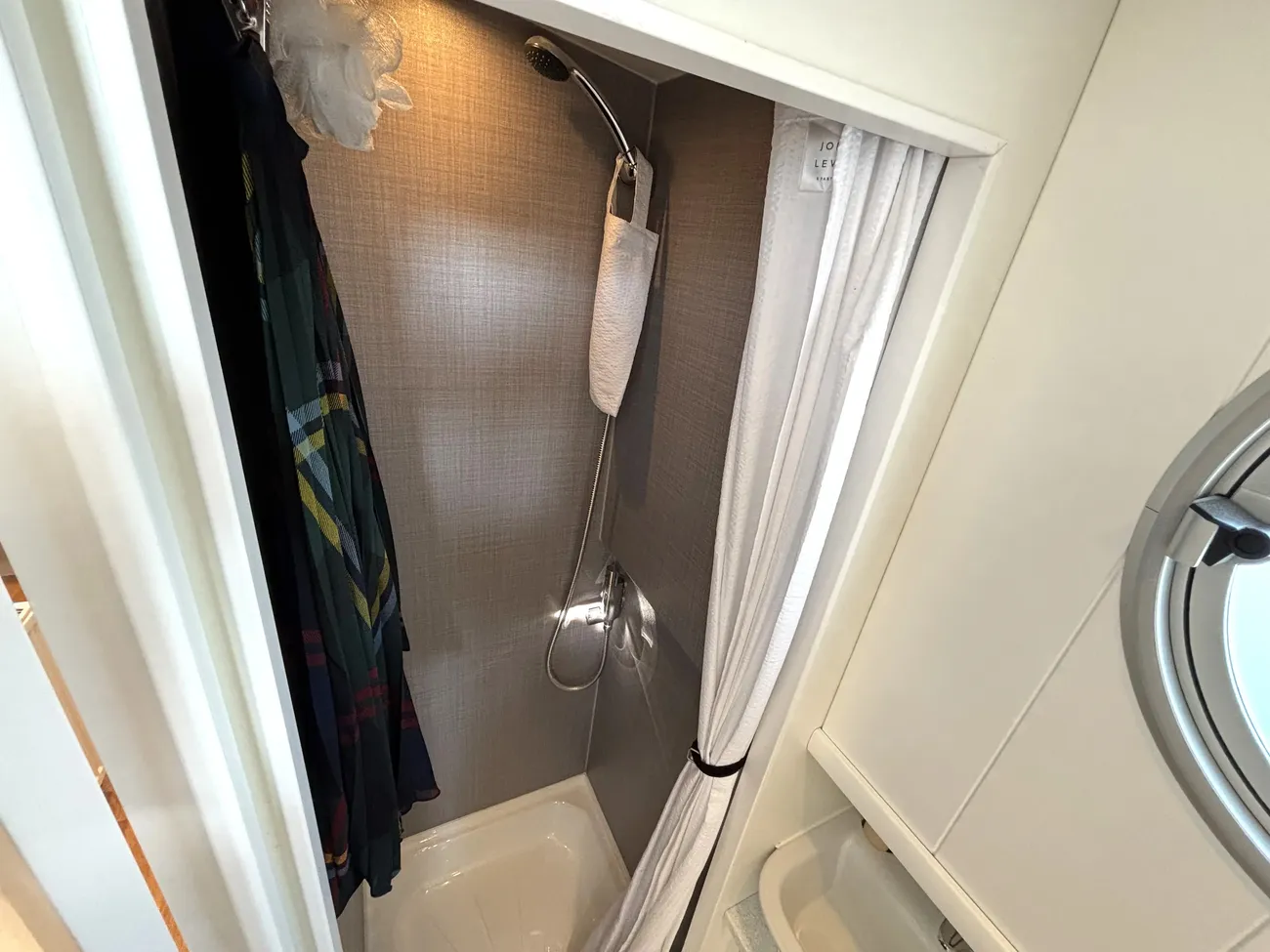

o    Walk in shower room with glass screen
o    Thermostatic shower valve
Additional build cost options
o    Vanity unit - top mounted basin
o    Toilet - Tecma Silence Plus 2nd Generation (upgraded from standard)
o    Towel rail - dual control electric or via central heating (upgraded size and to dual supply)
o    Mirror fitted to inside of bathroom door
o    Personally supplied items
o    Mirror / vanity unit - incorporating light and shaver point

Additional Items
o    Various spares
o    2 x 16amp shore power plug to a 13amp euro socket lead
o    Boarding step
o    Touch-up paints, varnish & wood stain
o    Fuel - both tanks on white diesel
o    All taps, shower and bathroom fittings are upgrades above standard Piper specification
o    Dinghy - Zodiac 2.7m airdeck & boat cover - by separate negotiation
o    Torqueedo electric outboard -   - by separate negotiation
o    SENA SPH 10 Universal intercom

Accommodations

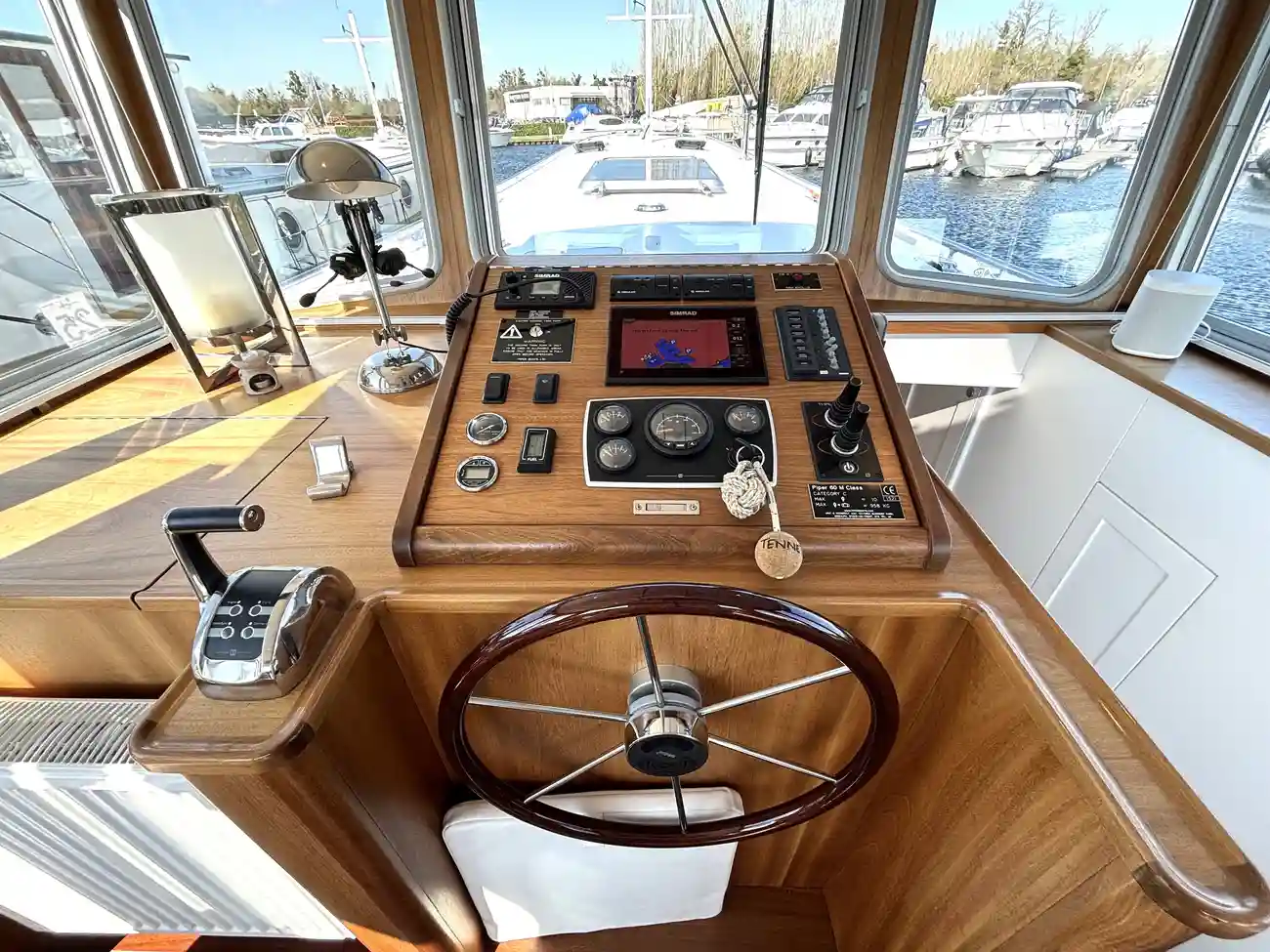

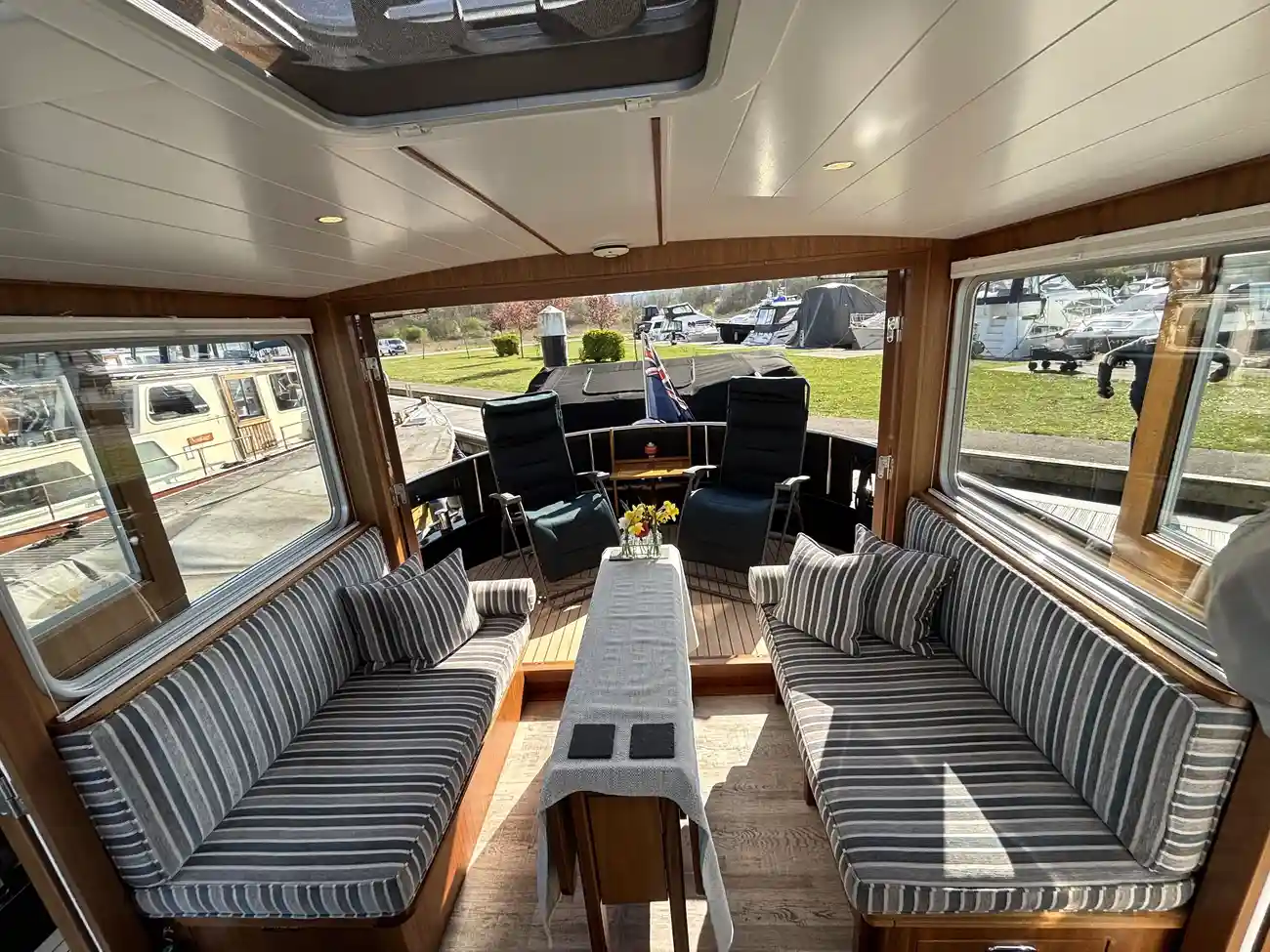

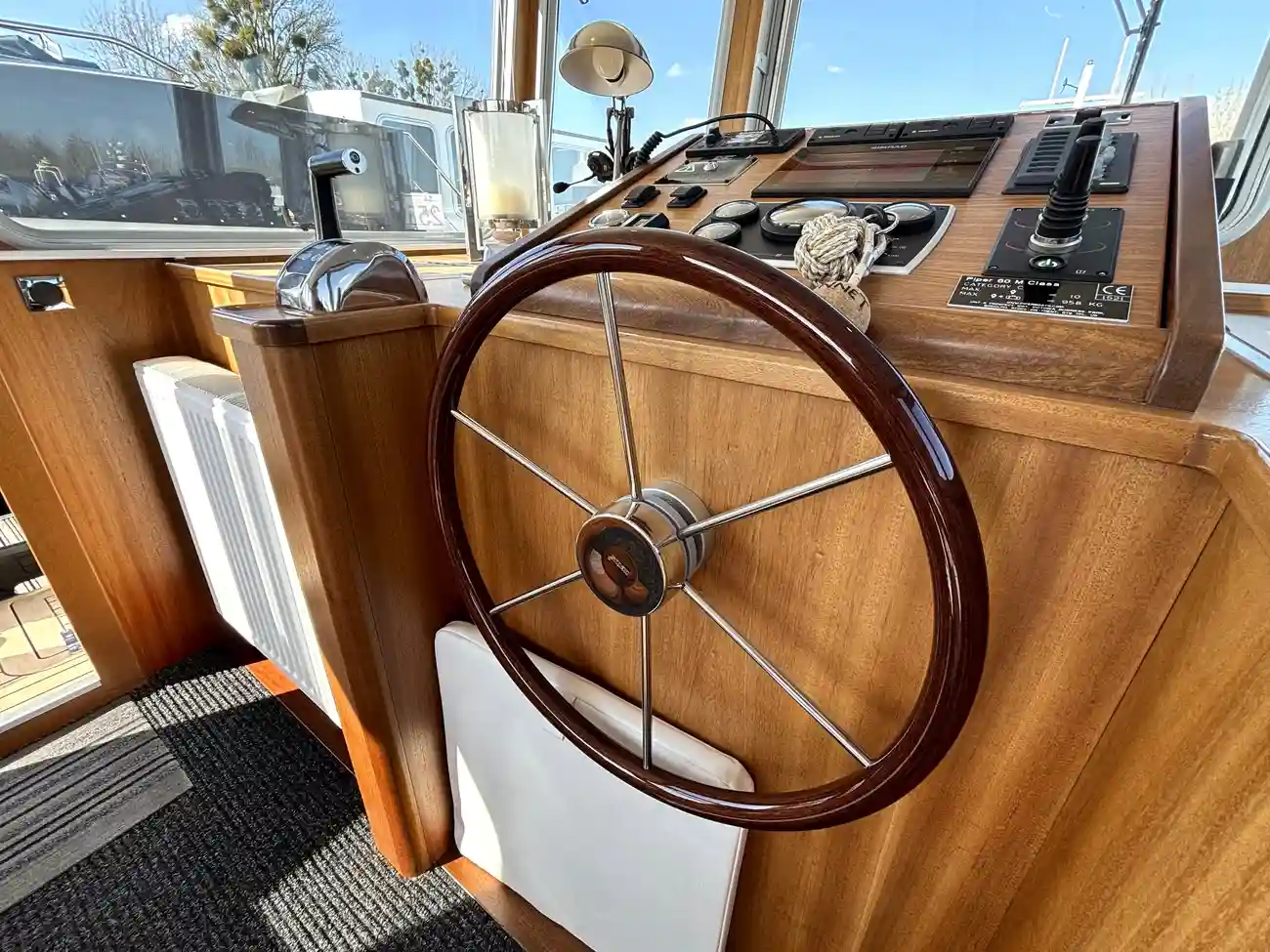

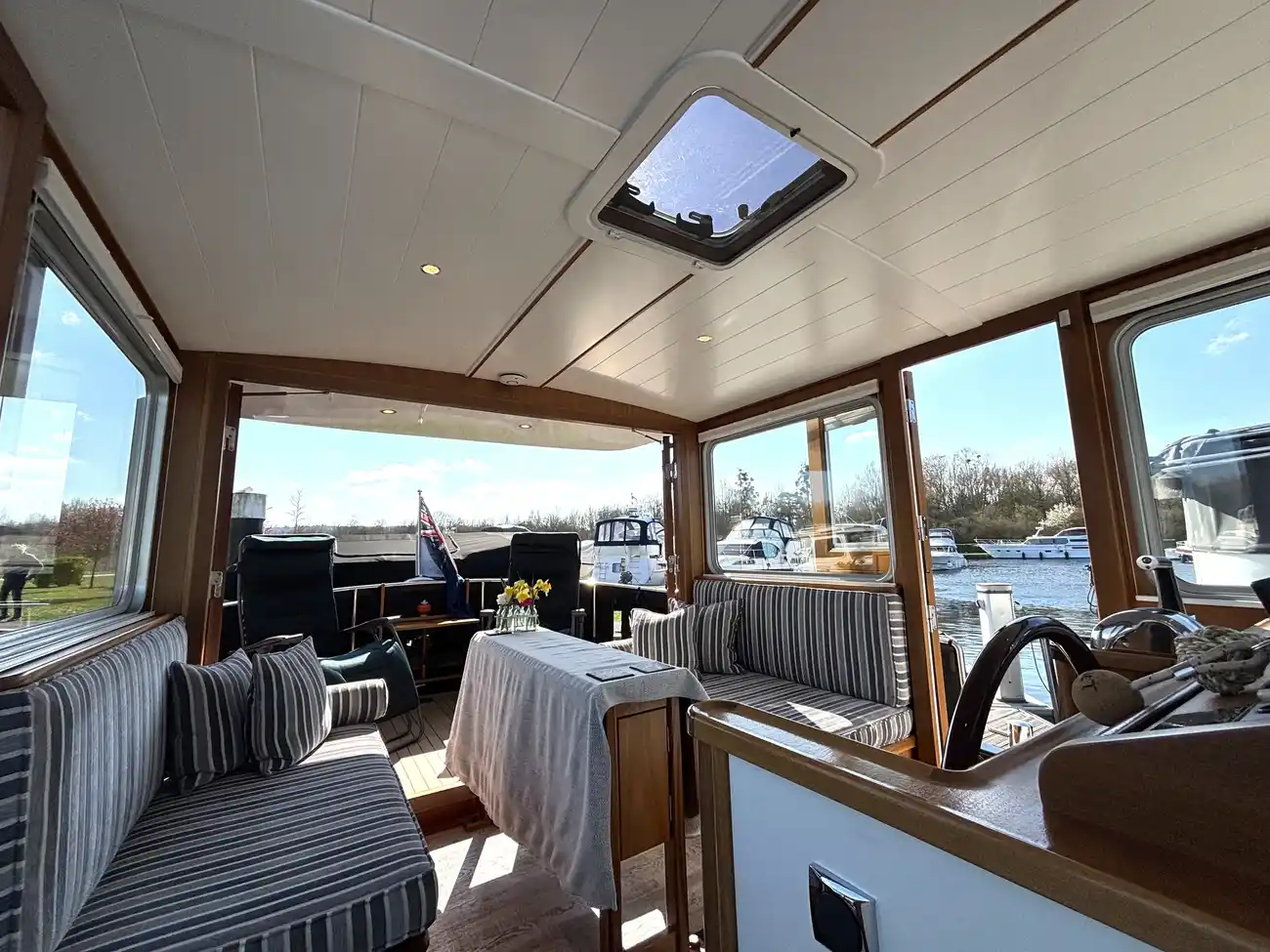

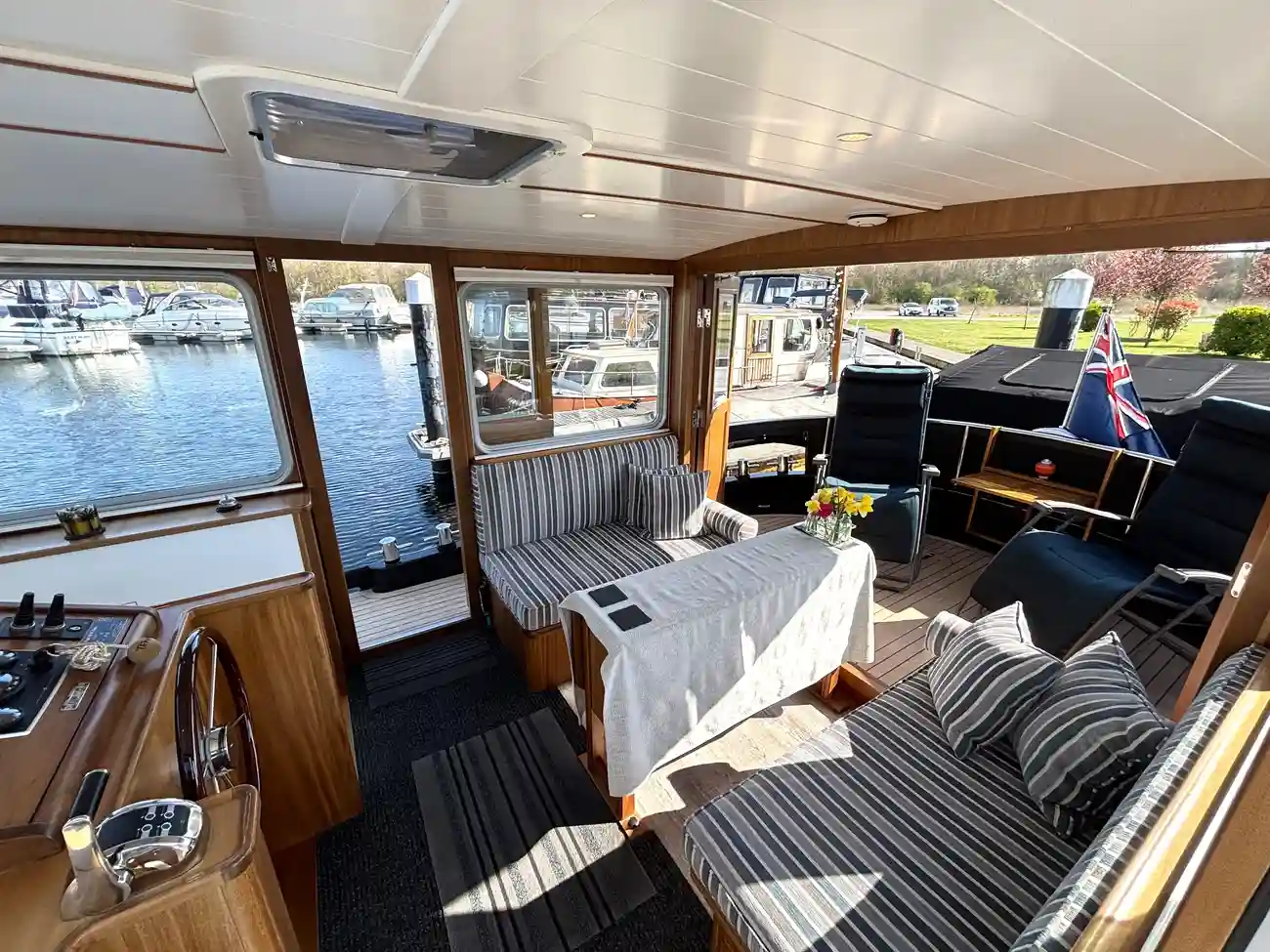

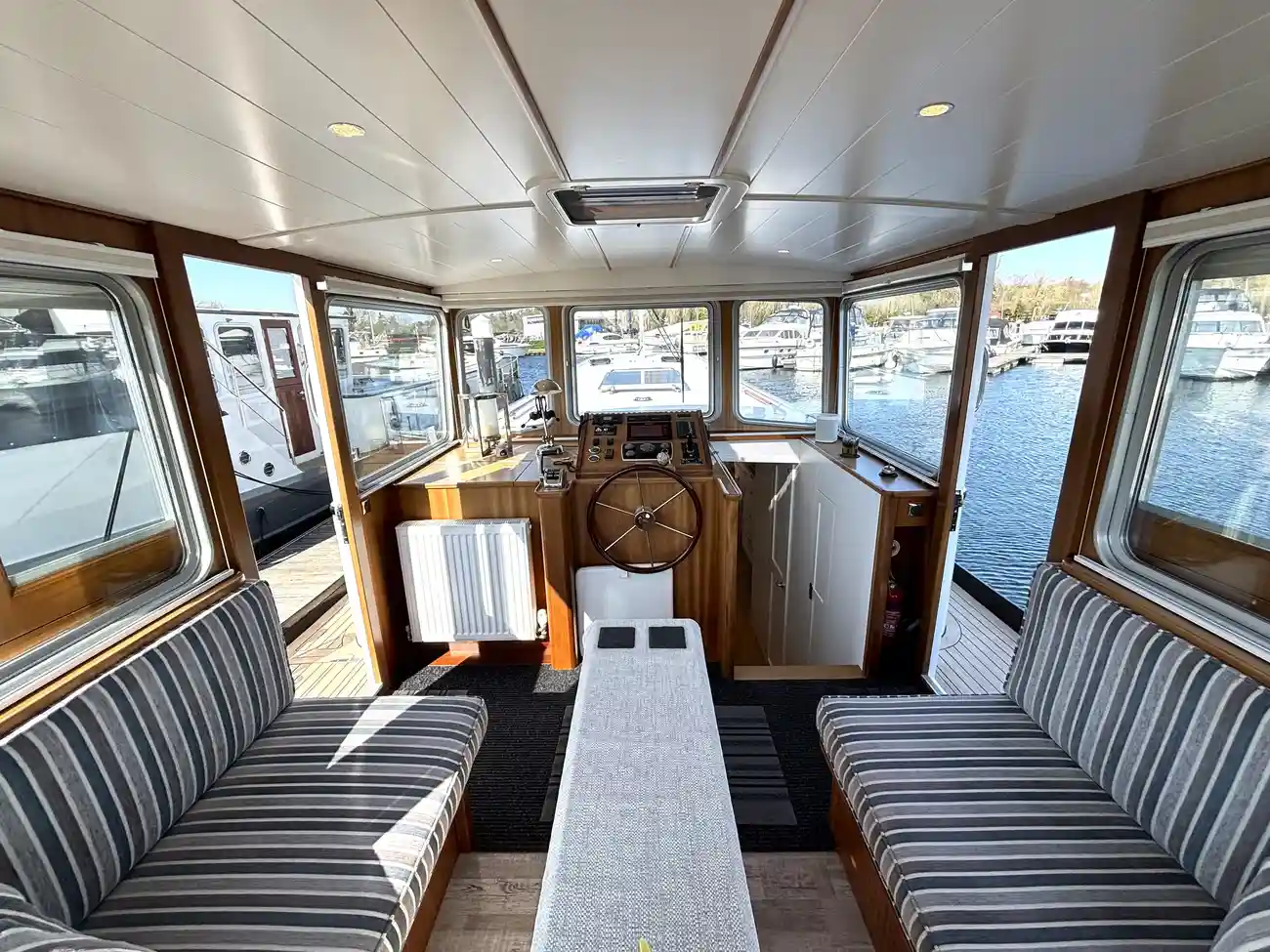

• Wheelhouse

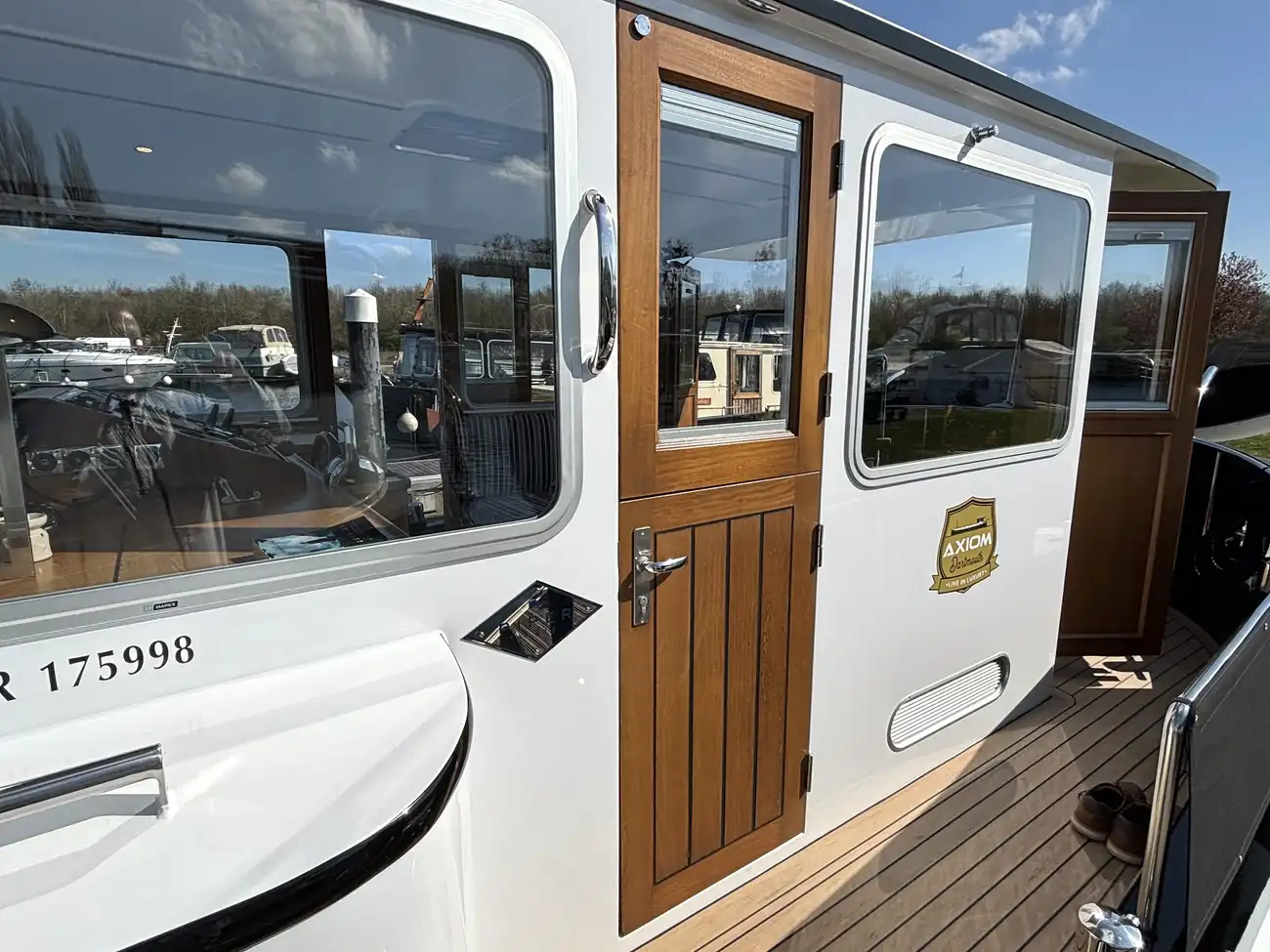

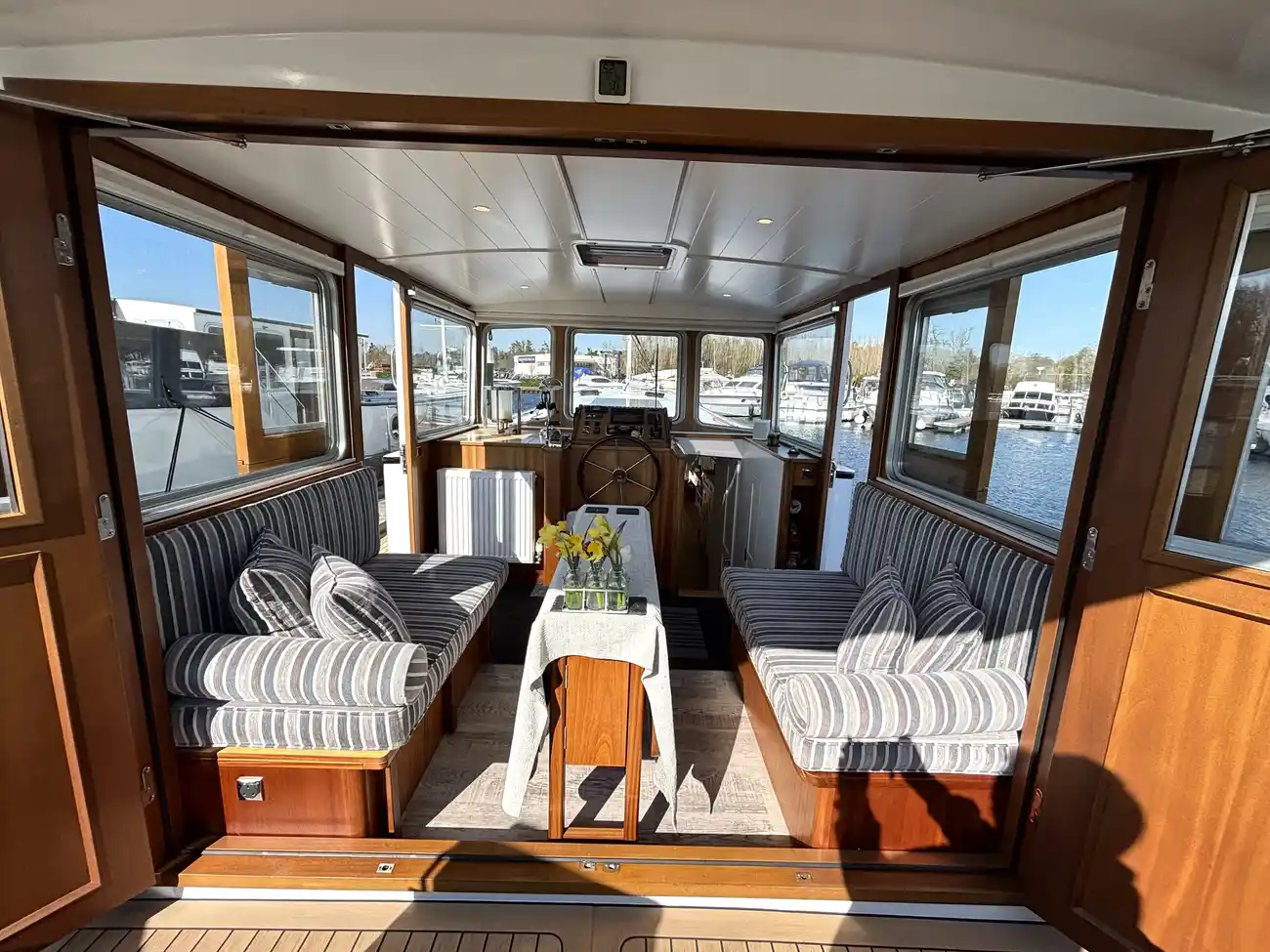

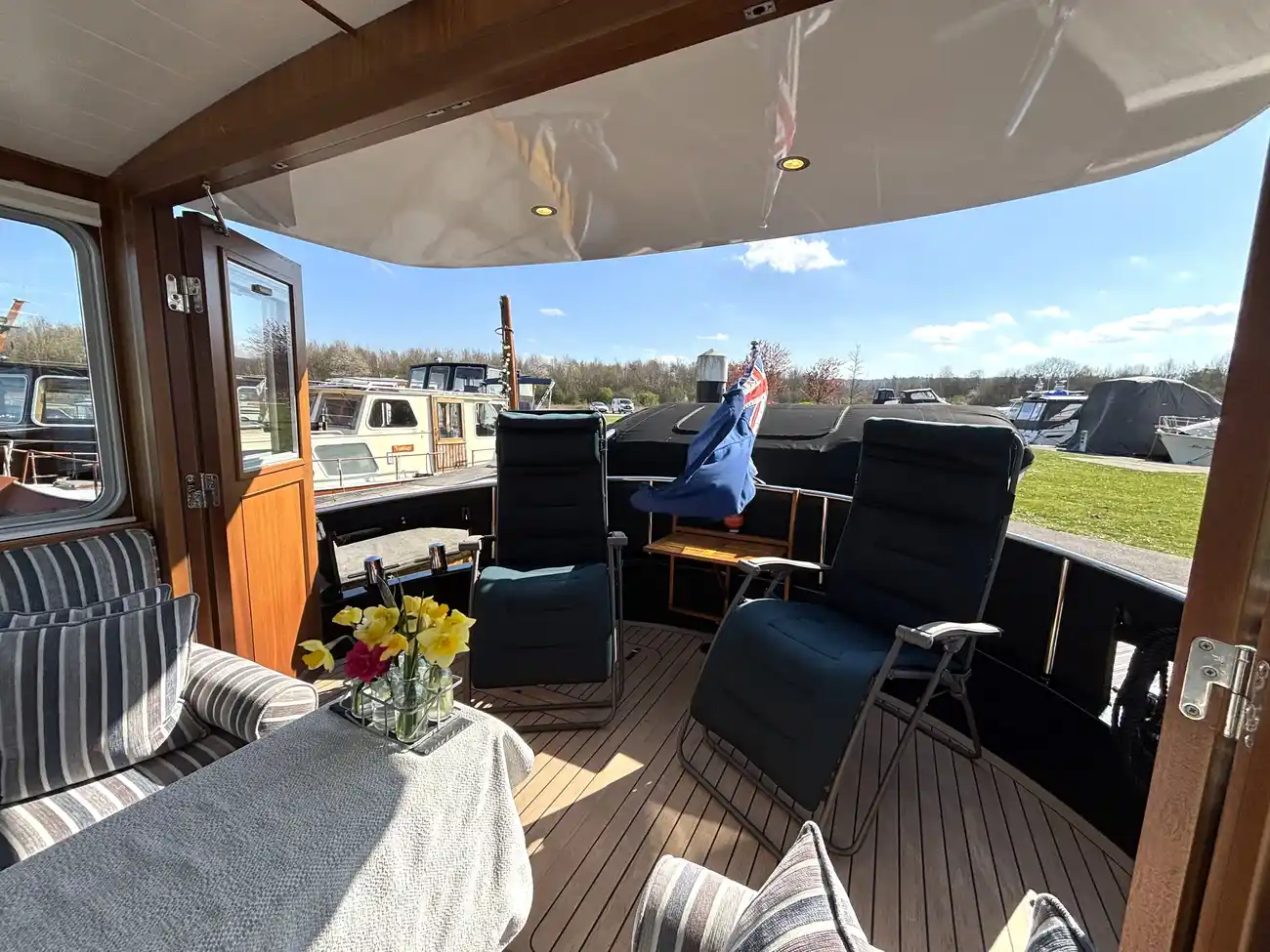

With Access to both sides of the deck via side doors, the wheel house boasts a central helm, twin bench seats which convert to a double berth and Sapele bi-fold doors allowing the space to flow onto the rear deck.  The entire wheelhouse is surrounded by double glazed Vetus glazing, complete with integrated blinds to offer complete privacy.

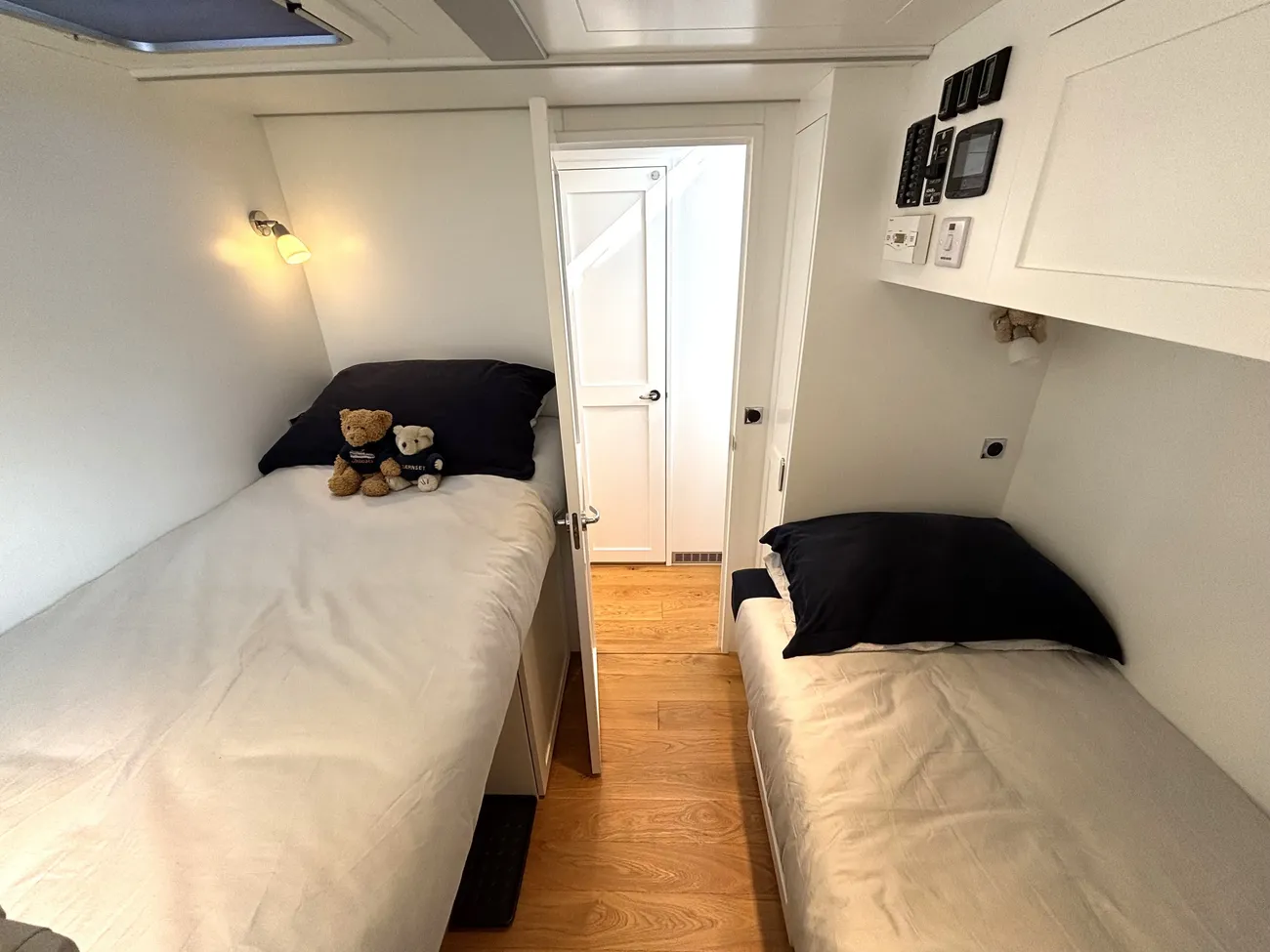

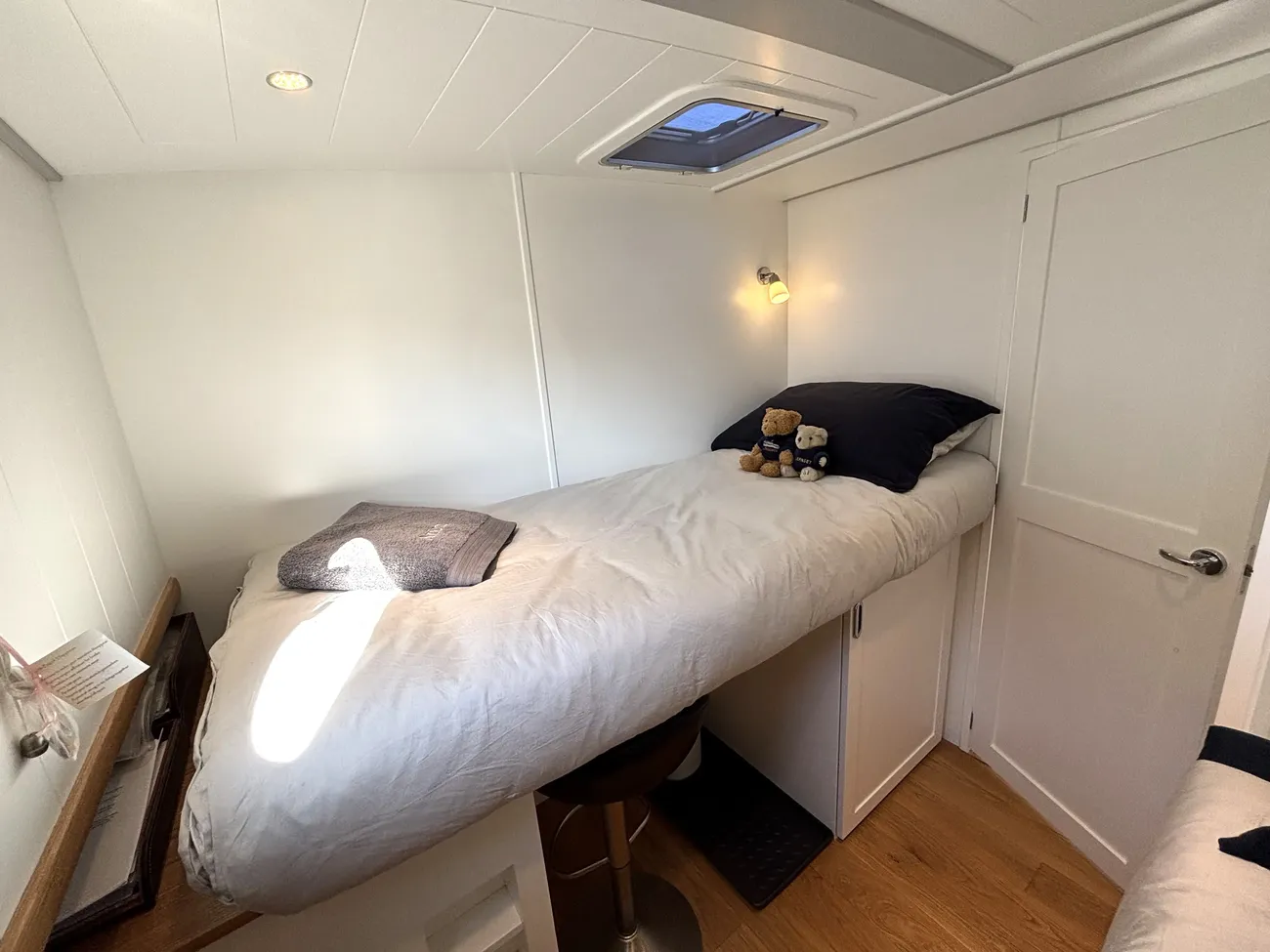

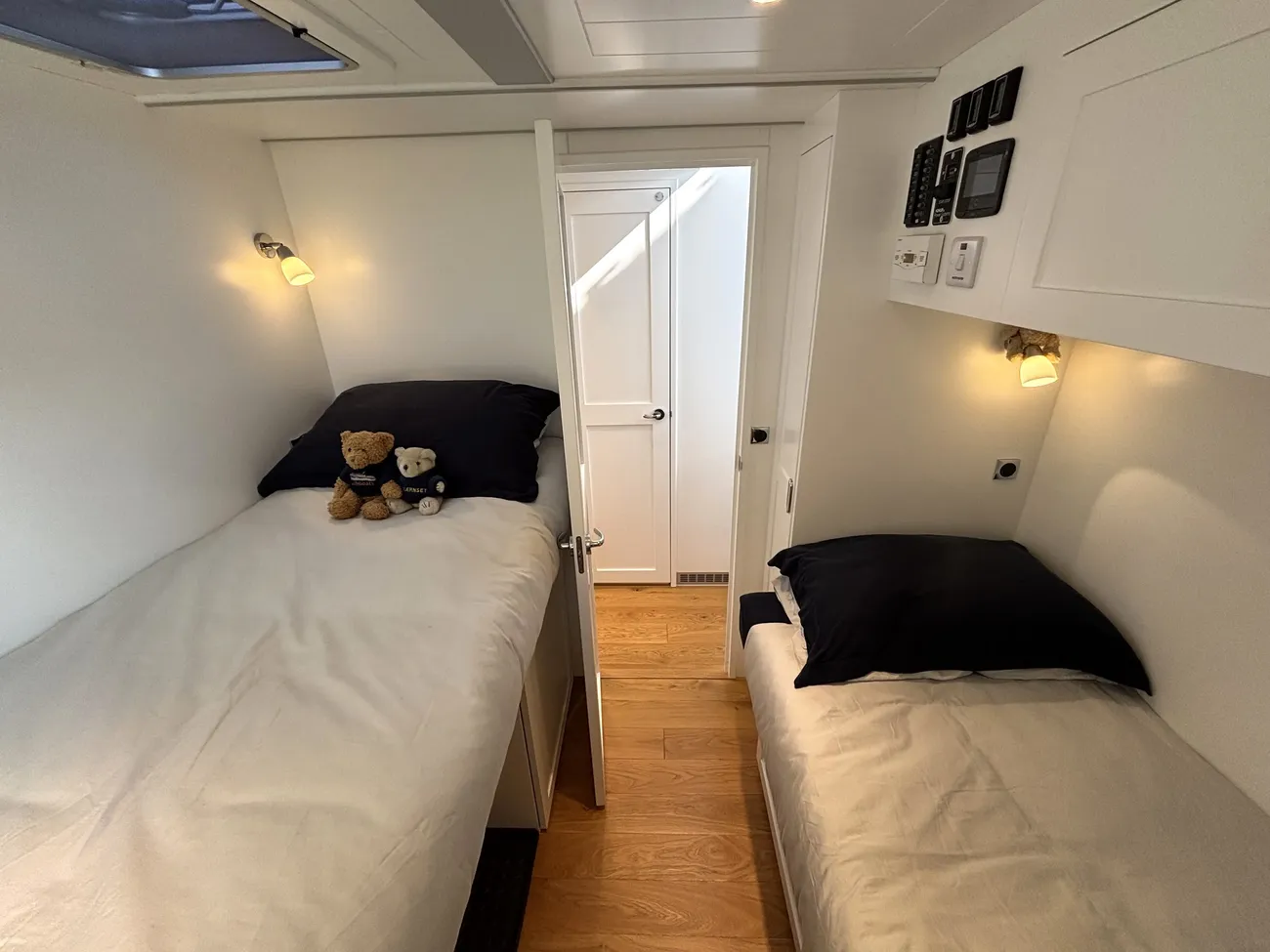

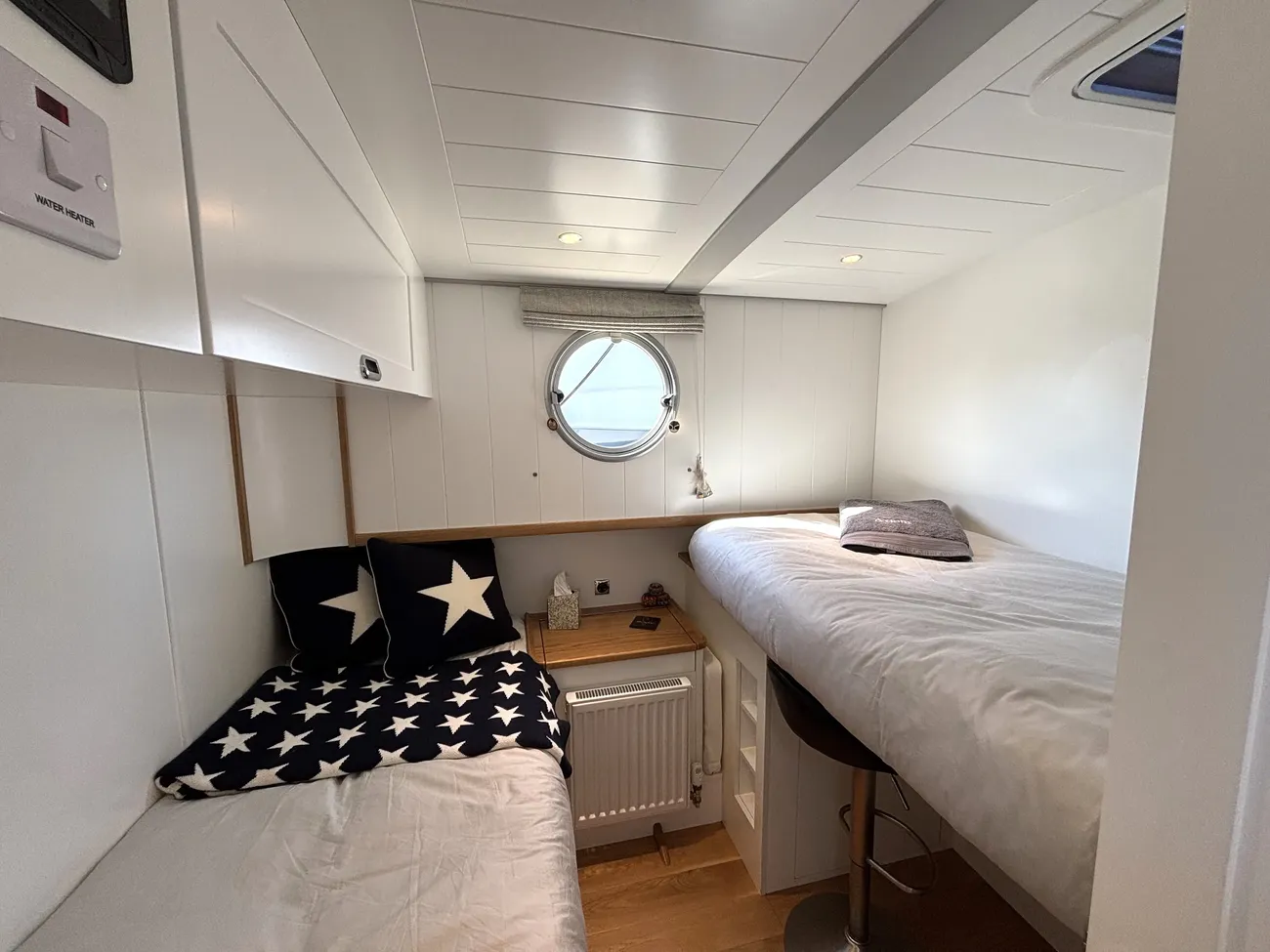

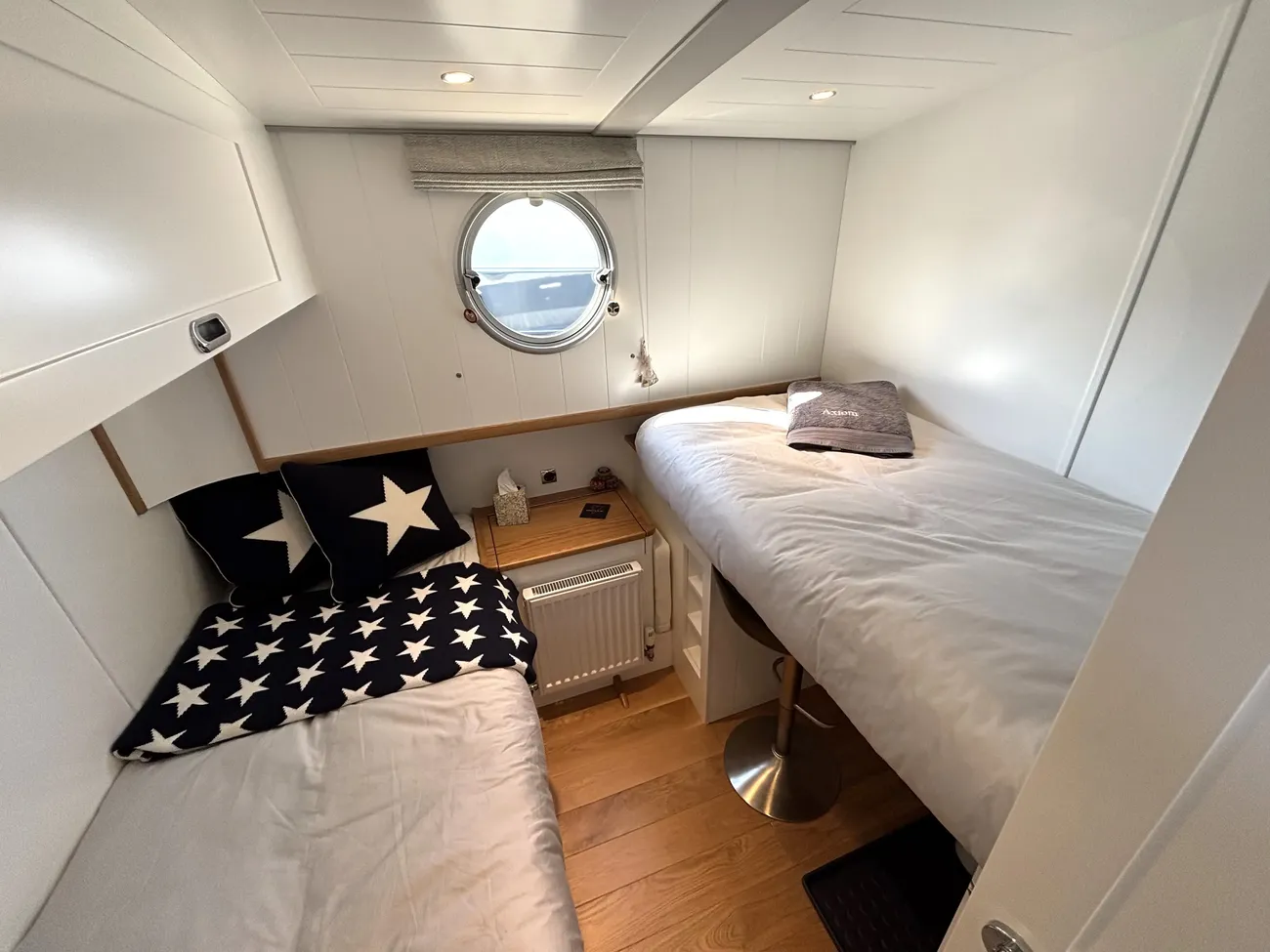

• Mid-Cabin

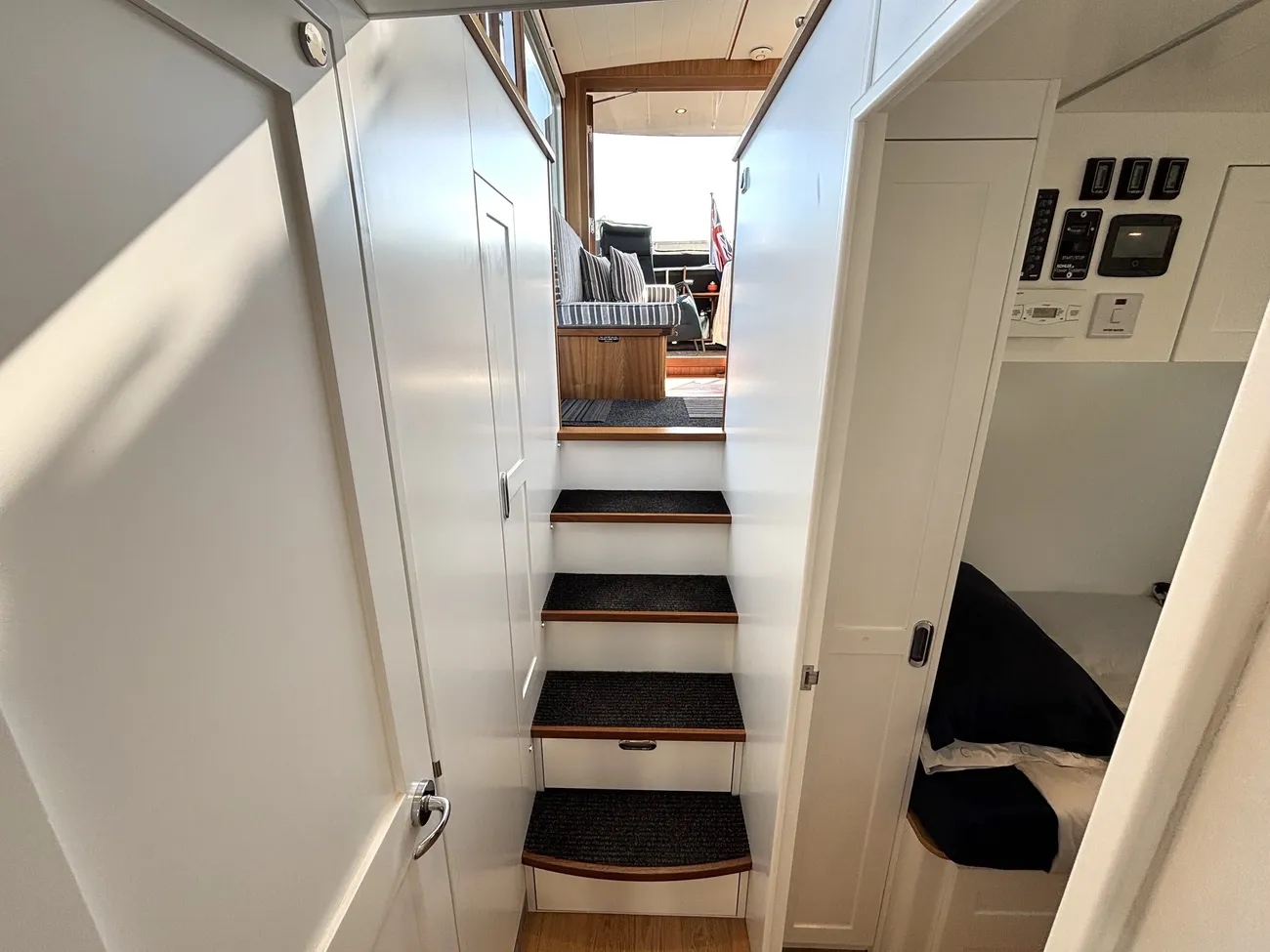

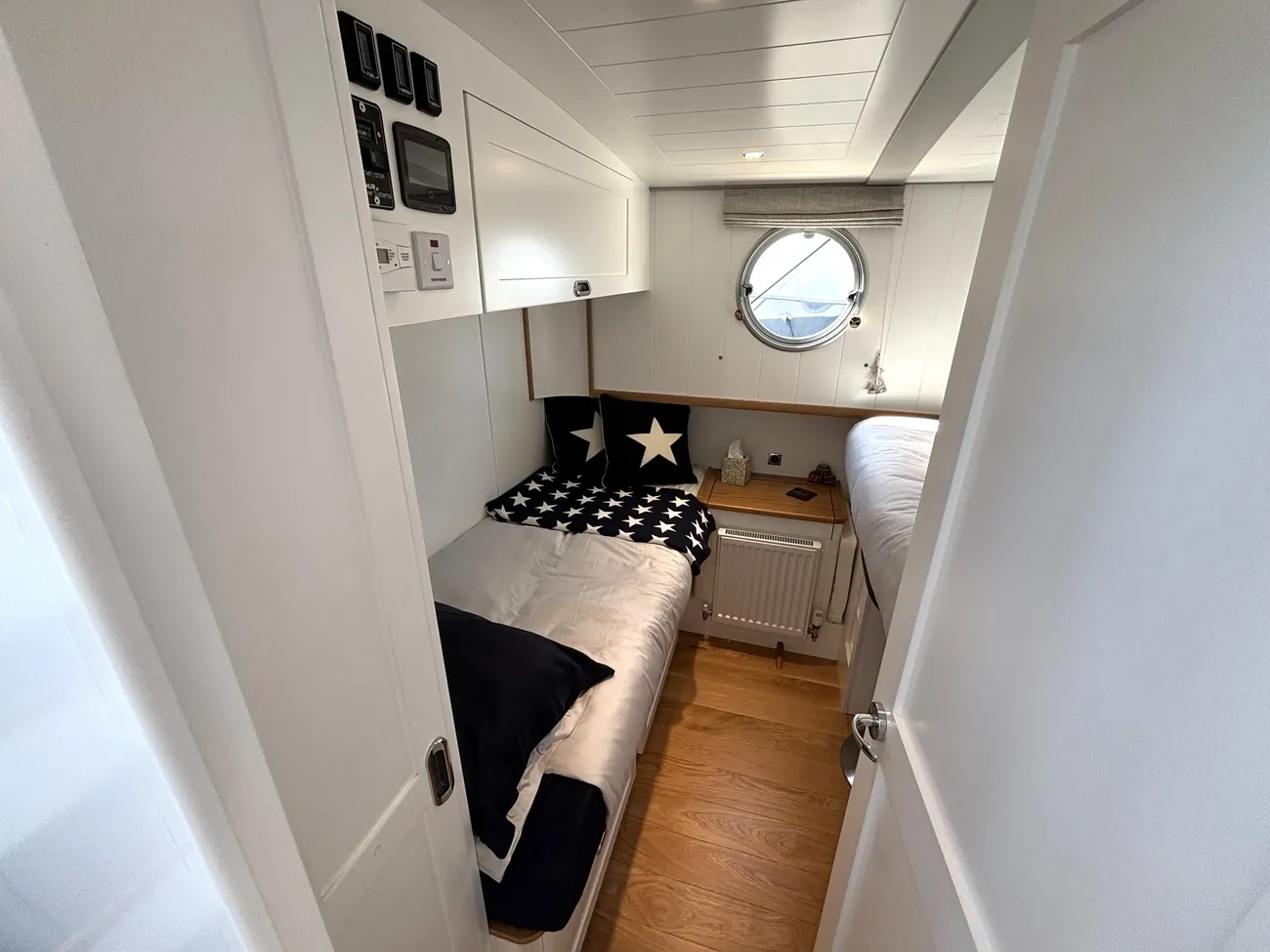

Stepping down 4 steps from the wheelhouse, to starboard is the guest mid-cabin which can be used as two single berths or an office with a convertible desk.  Opposite the mid-cabin across the corridor is the day-loo allowing guests to have their own facilities while staying aboard.

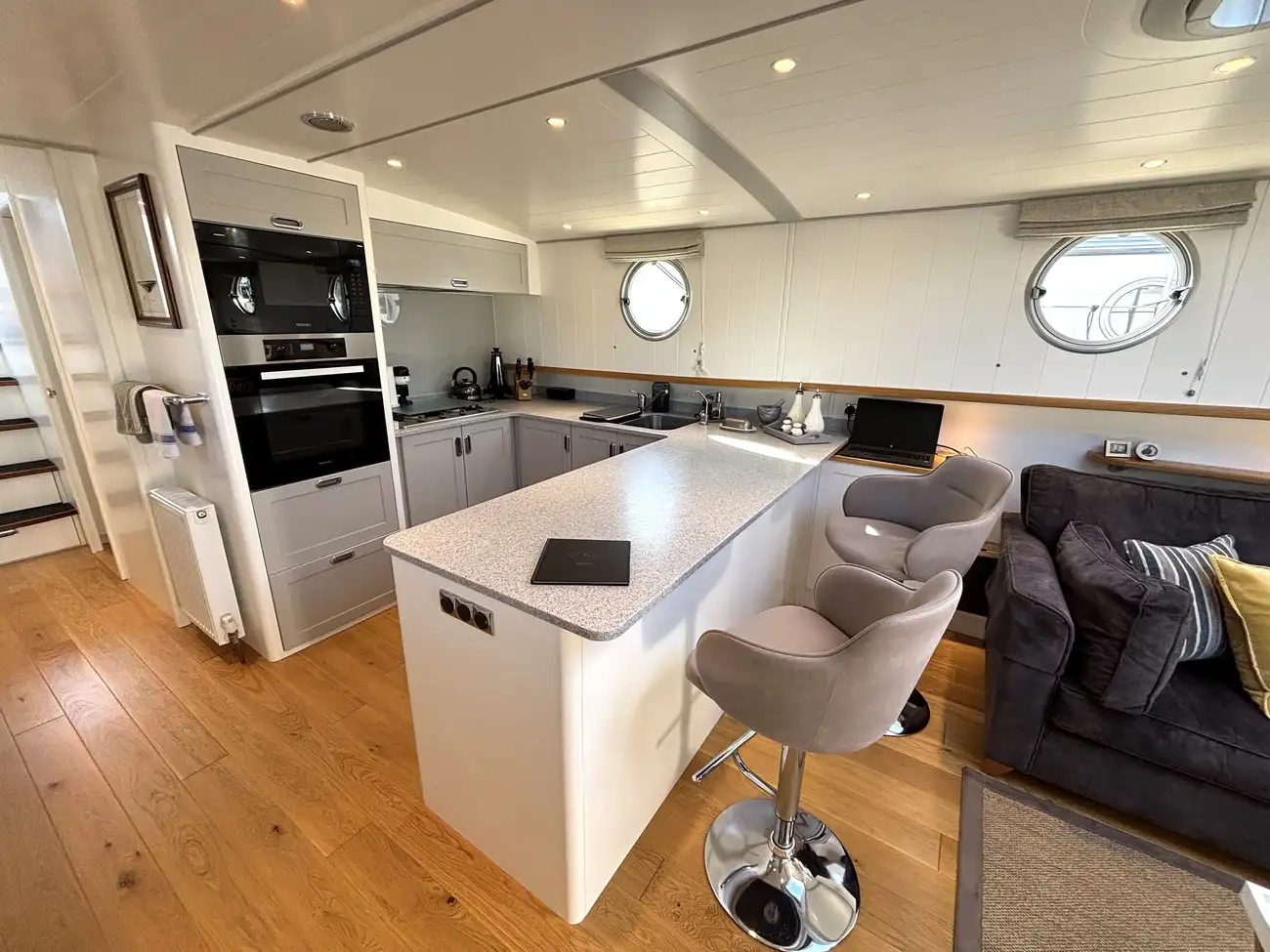

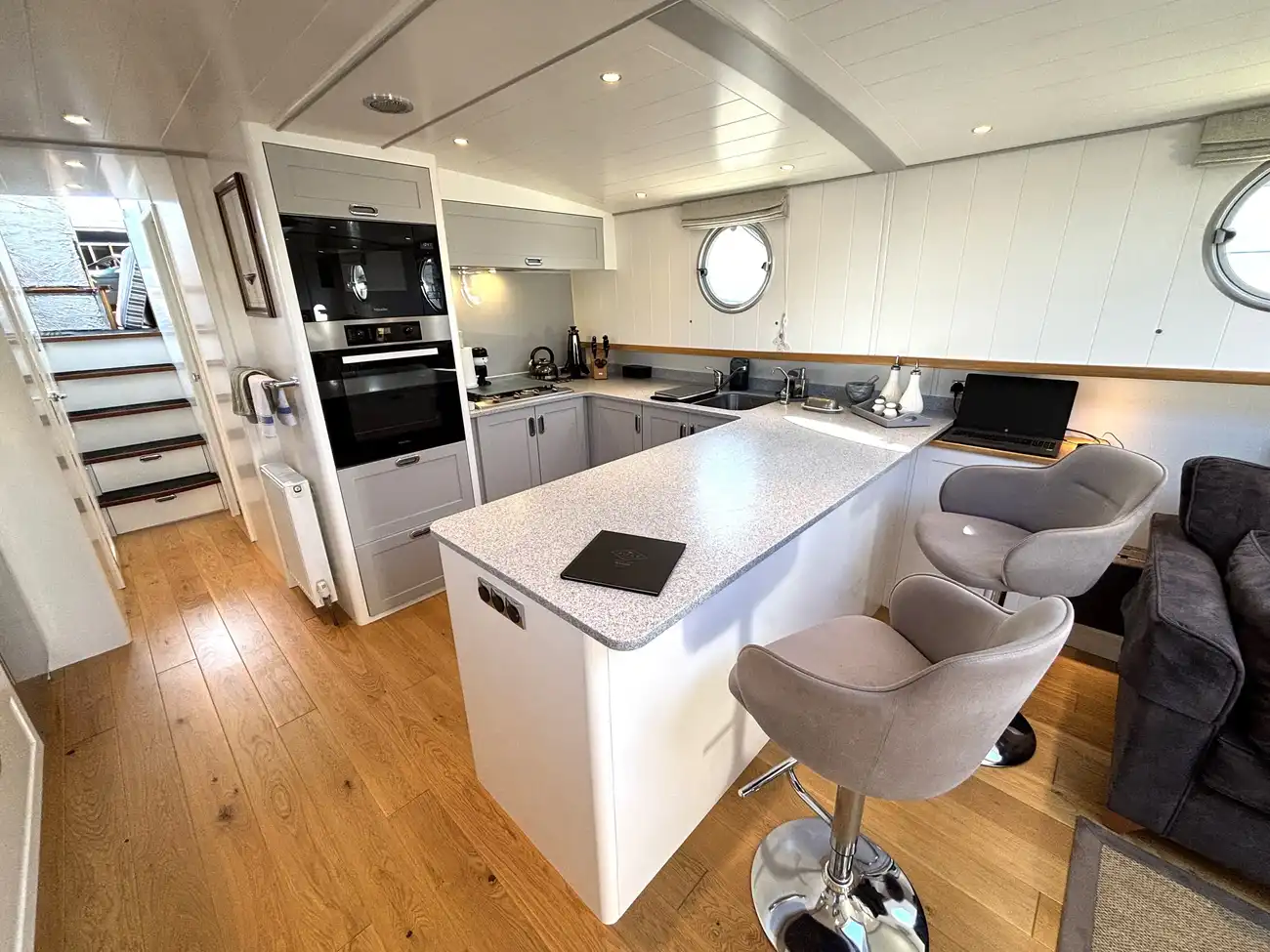

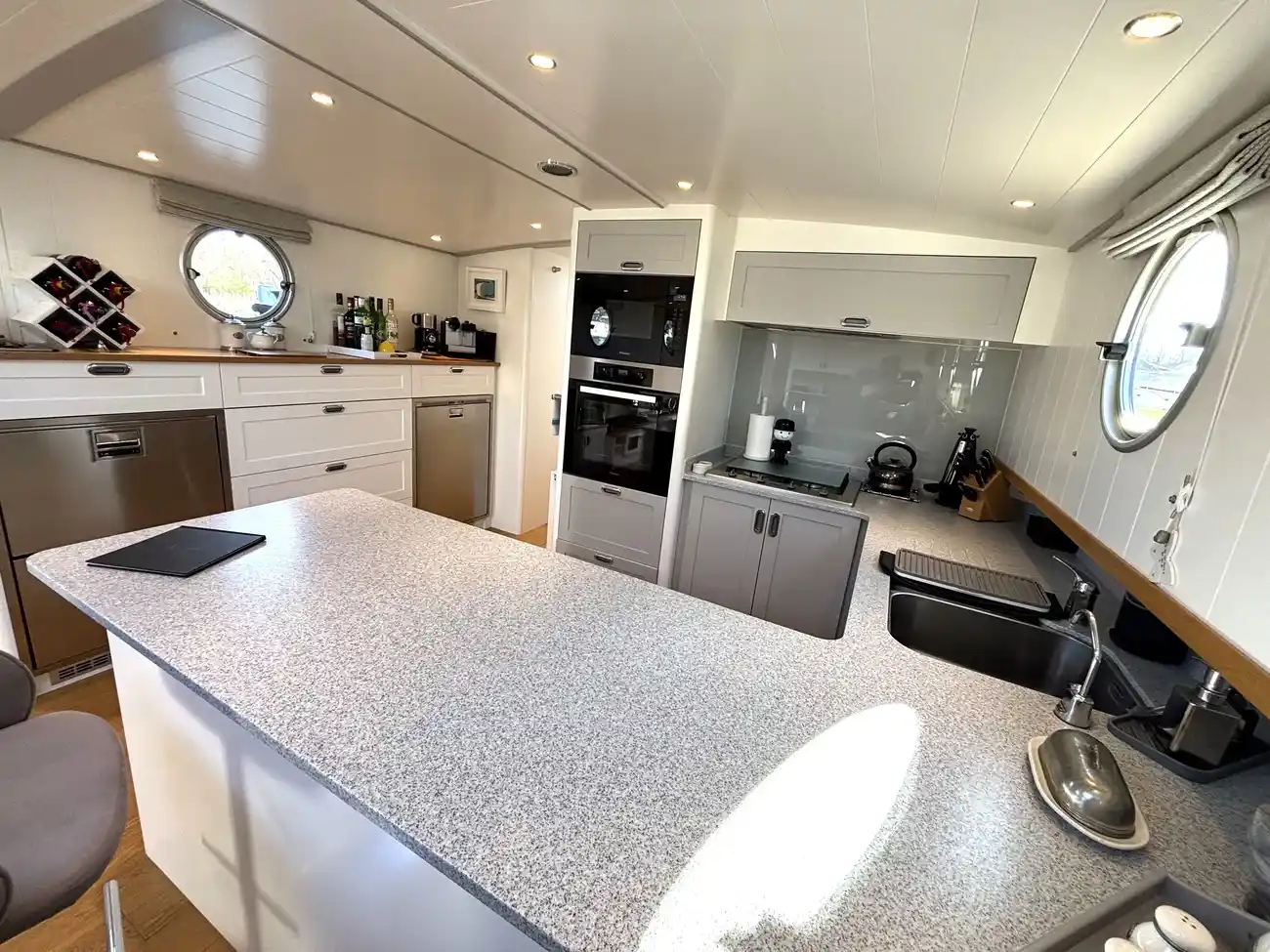

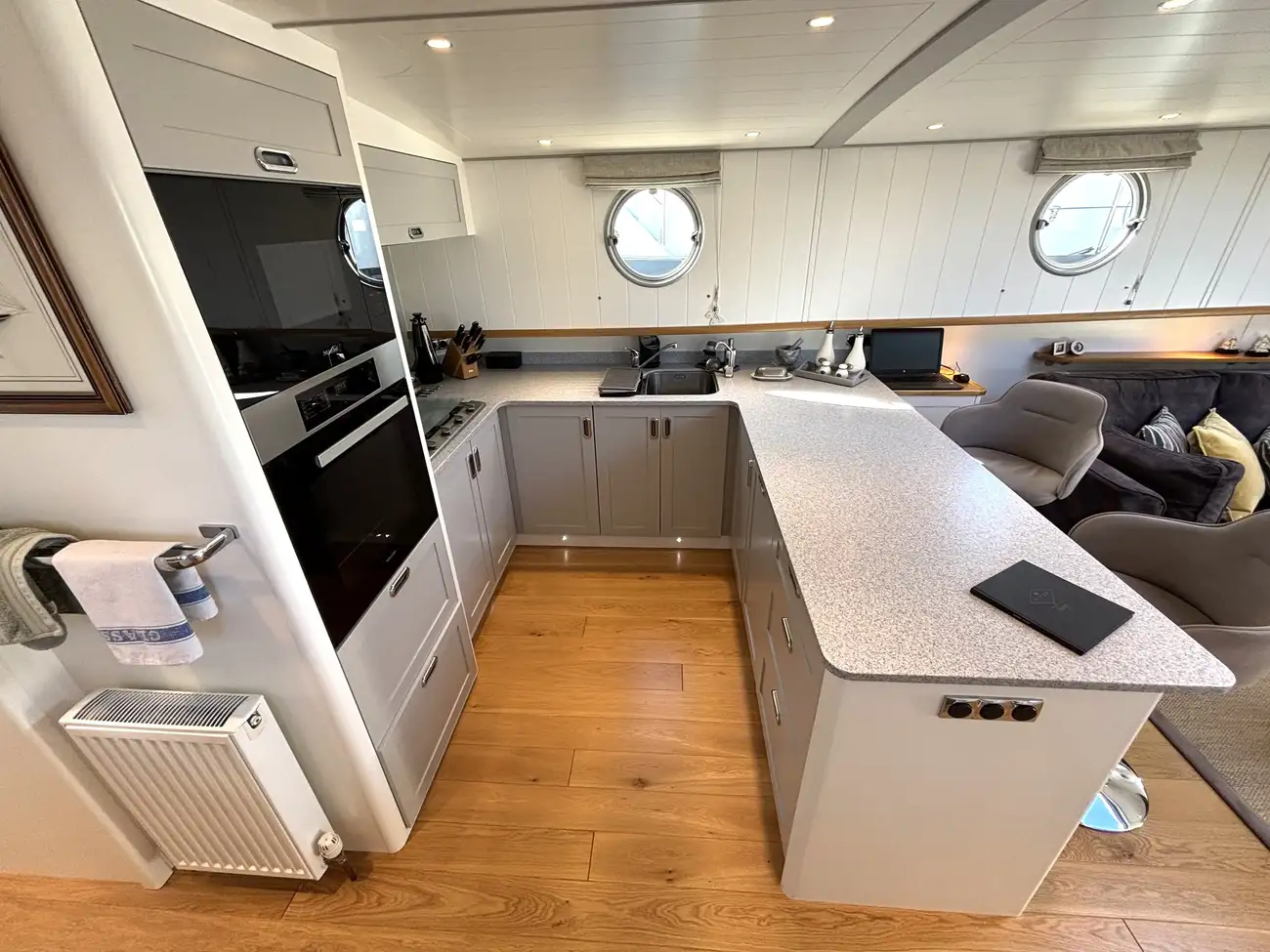

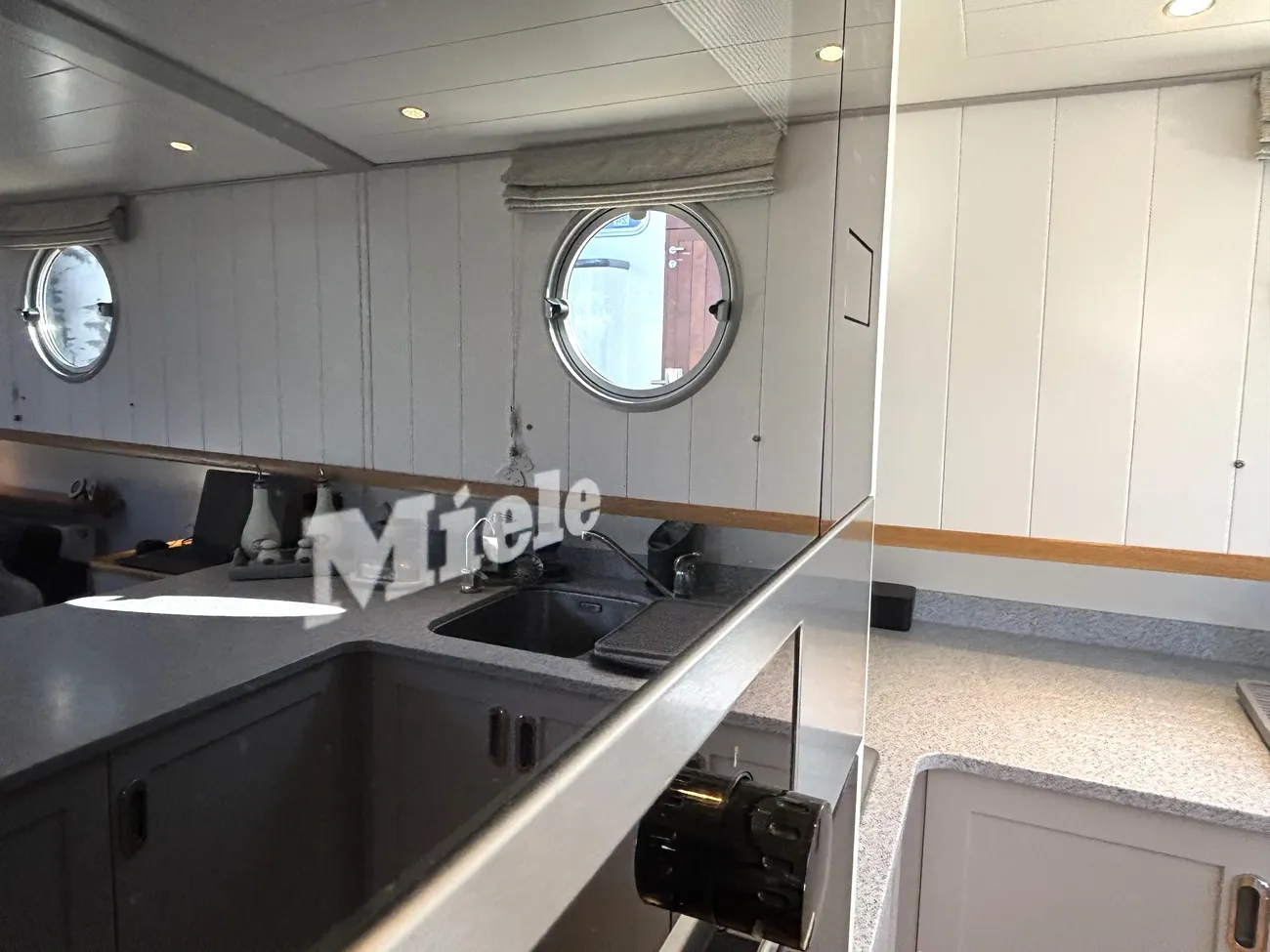

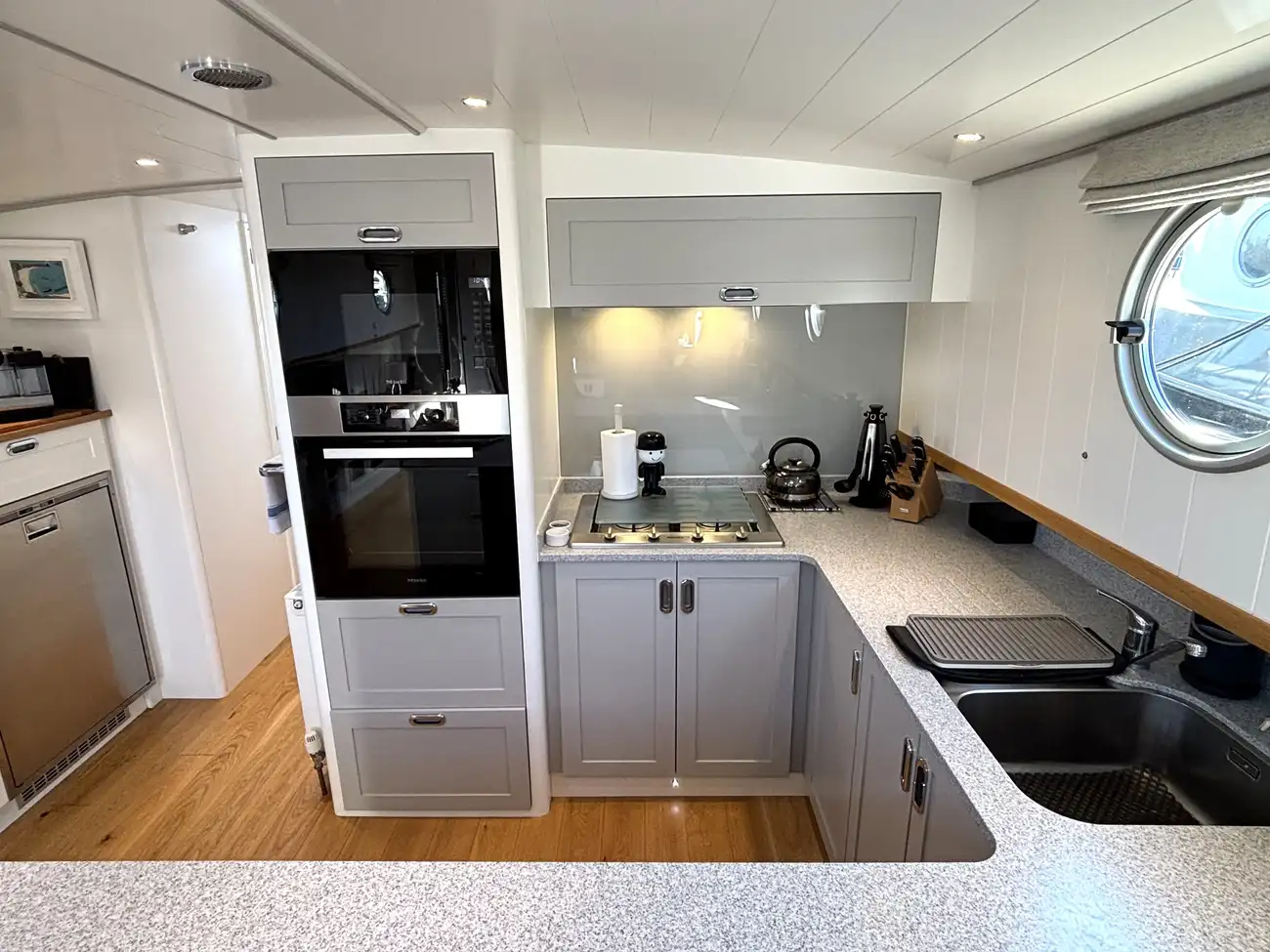

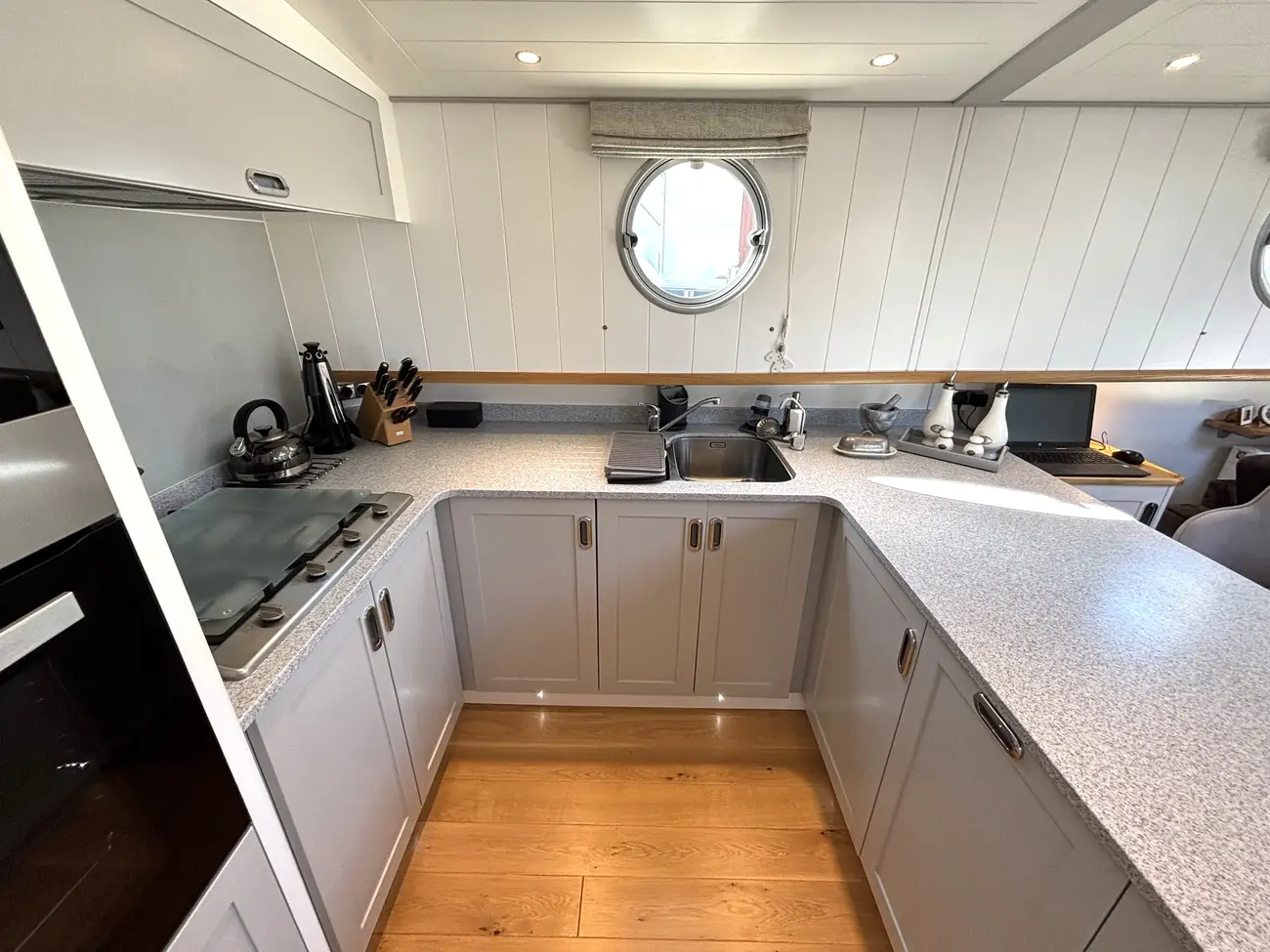

• Galley

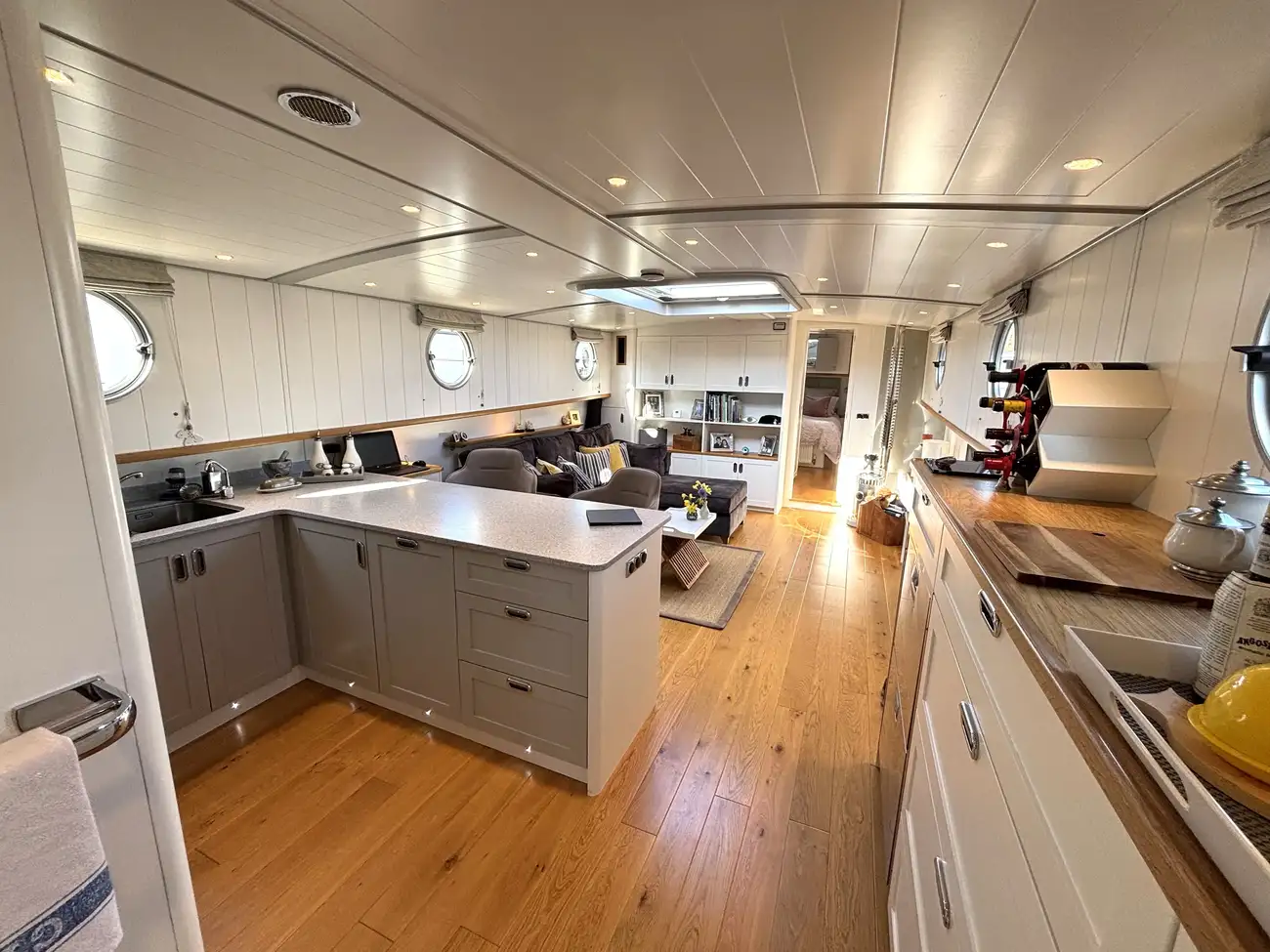

Moving forward, to starboard you are greeted by a very grand galley which comes complete with composite granite worktops, Miele appliances throughout, twin large Vitrifigo fridge freezers, sit up breakfast bar, ambient lighting and much more.

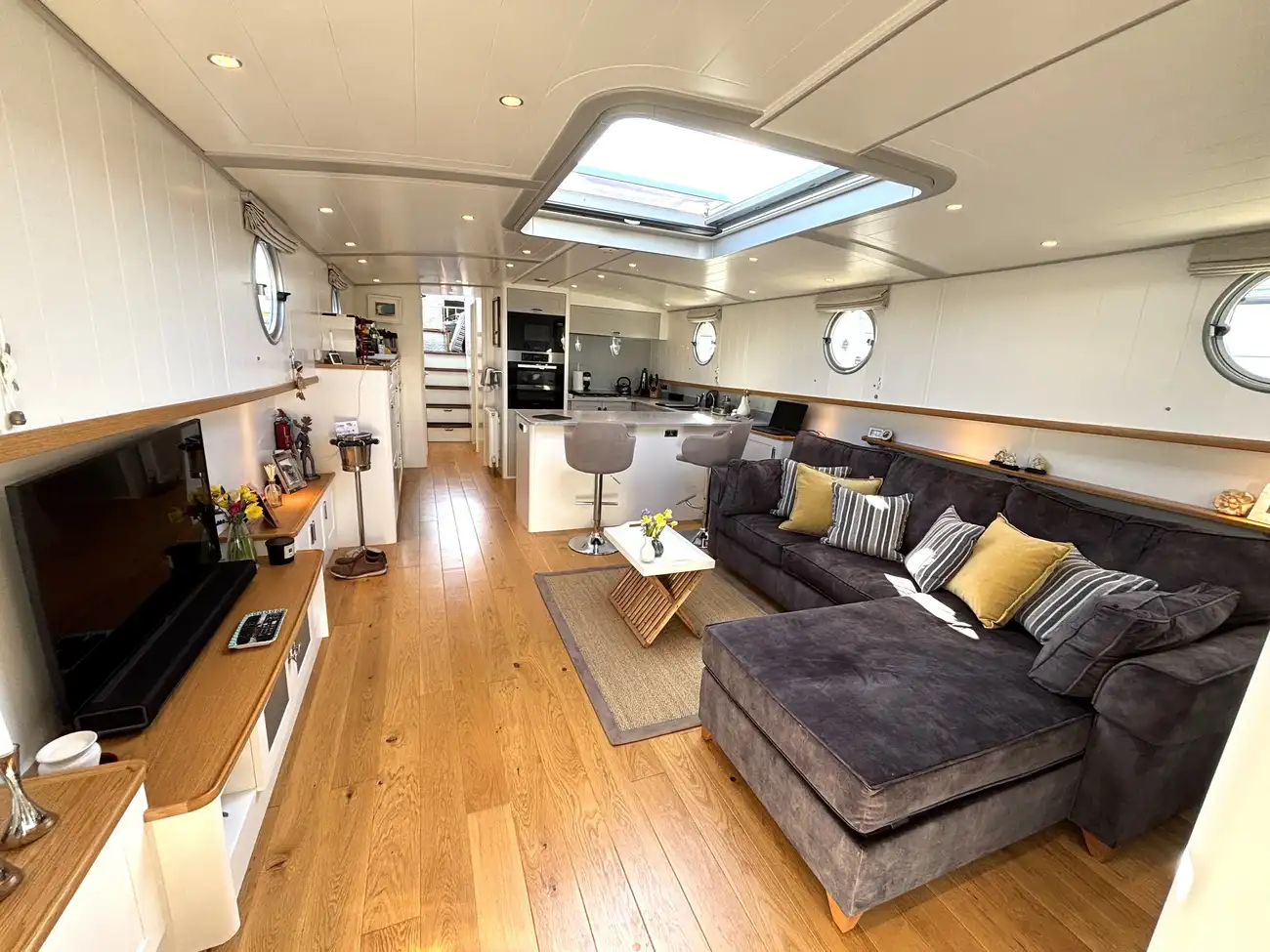

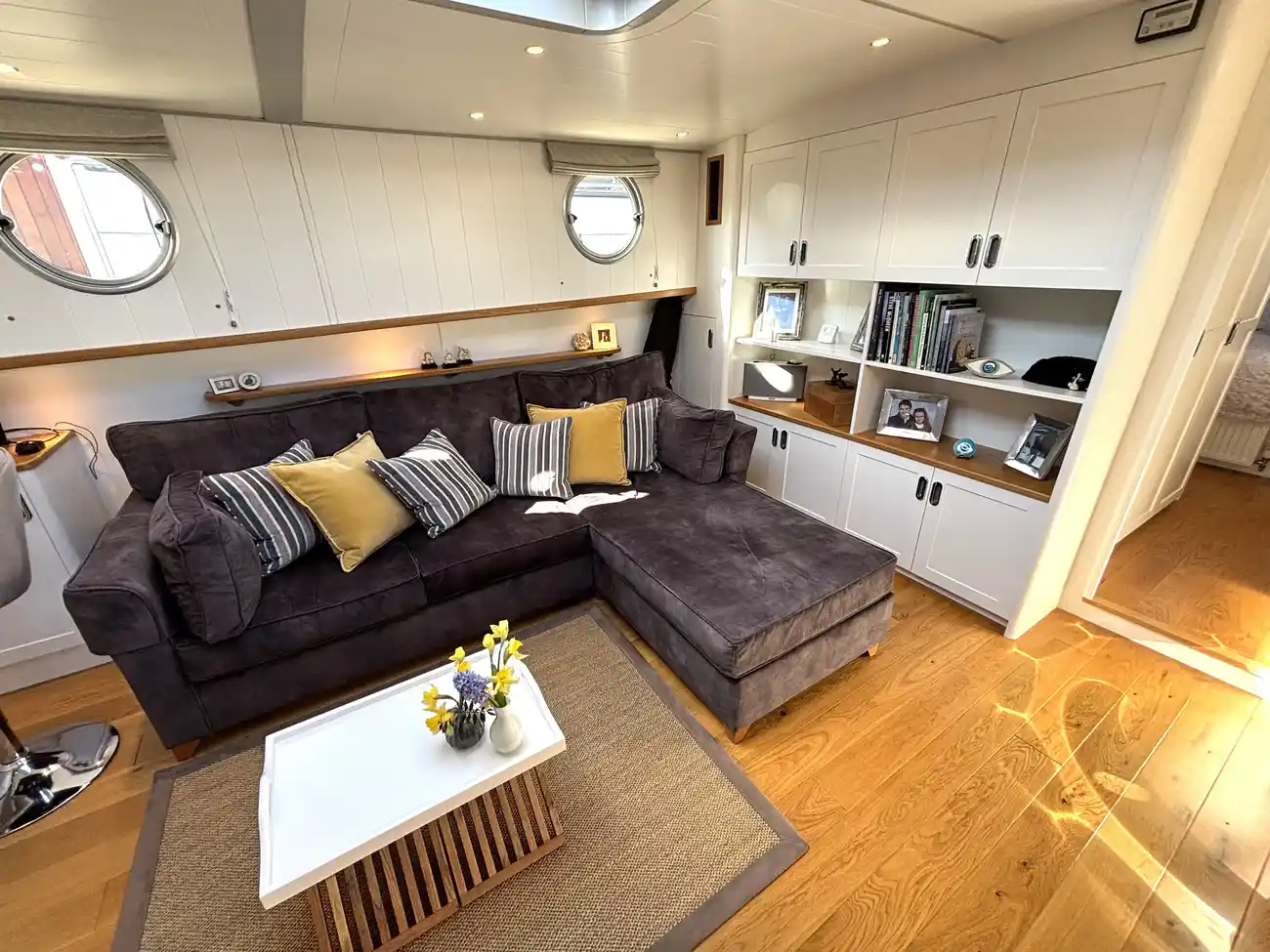

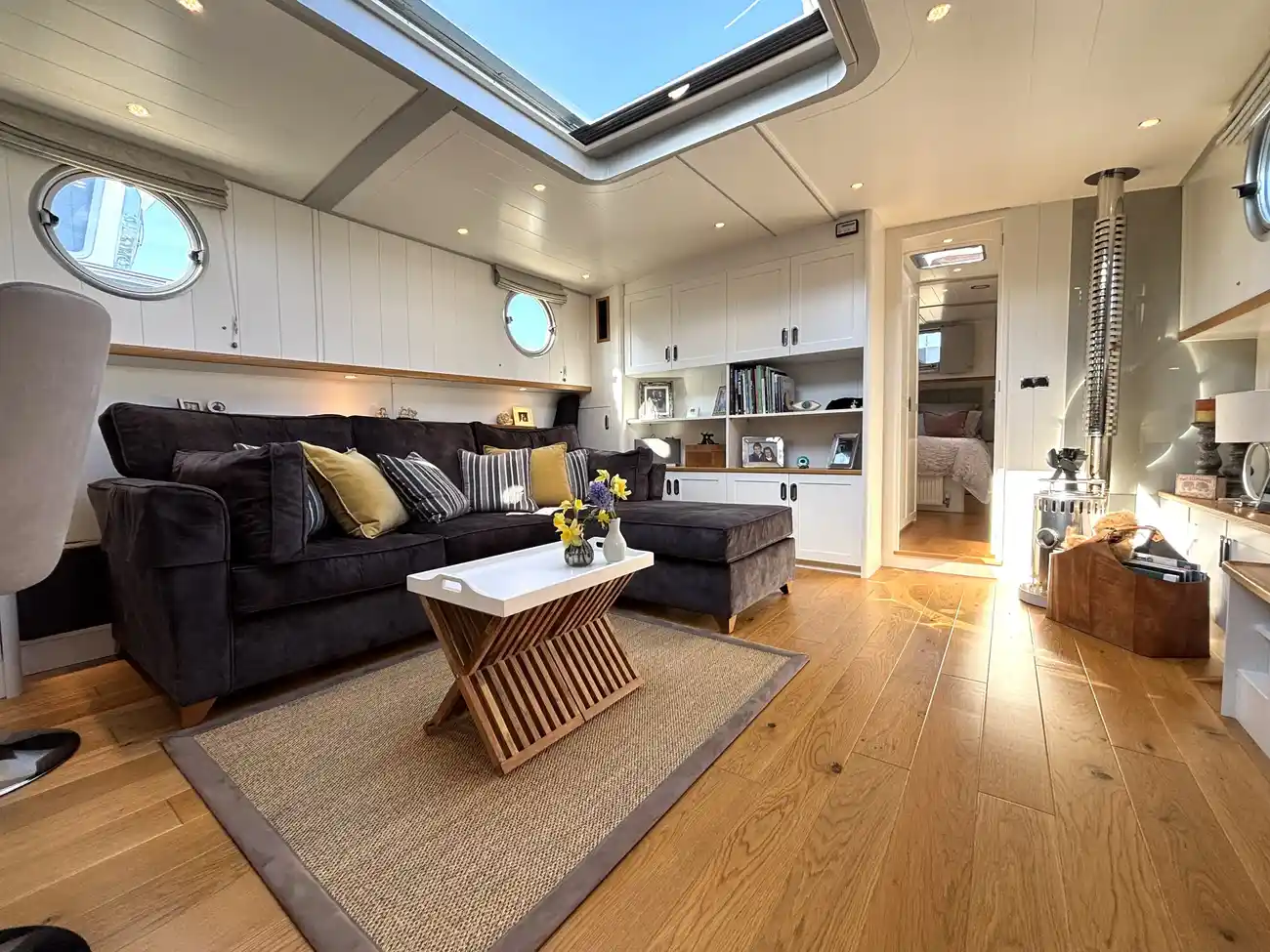

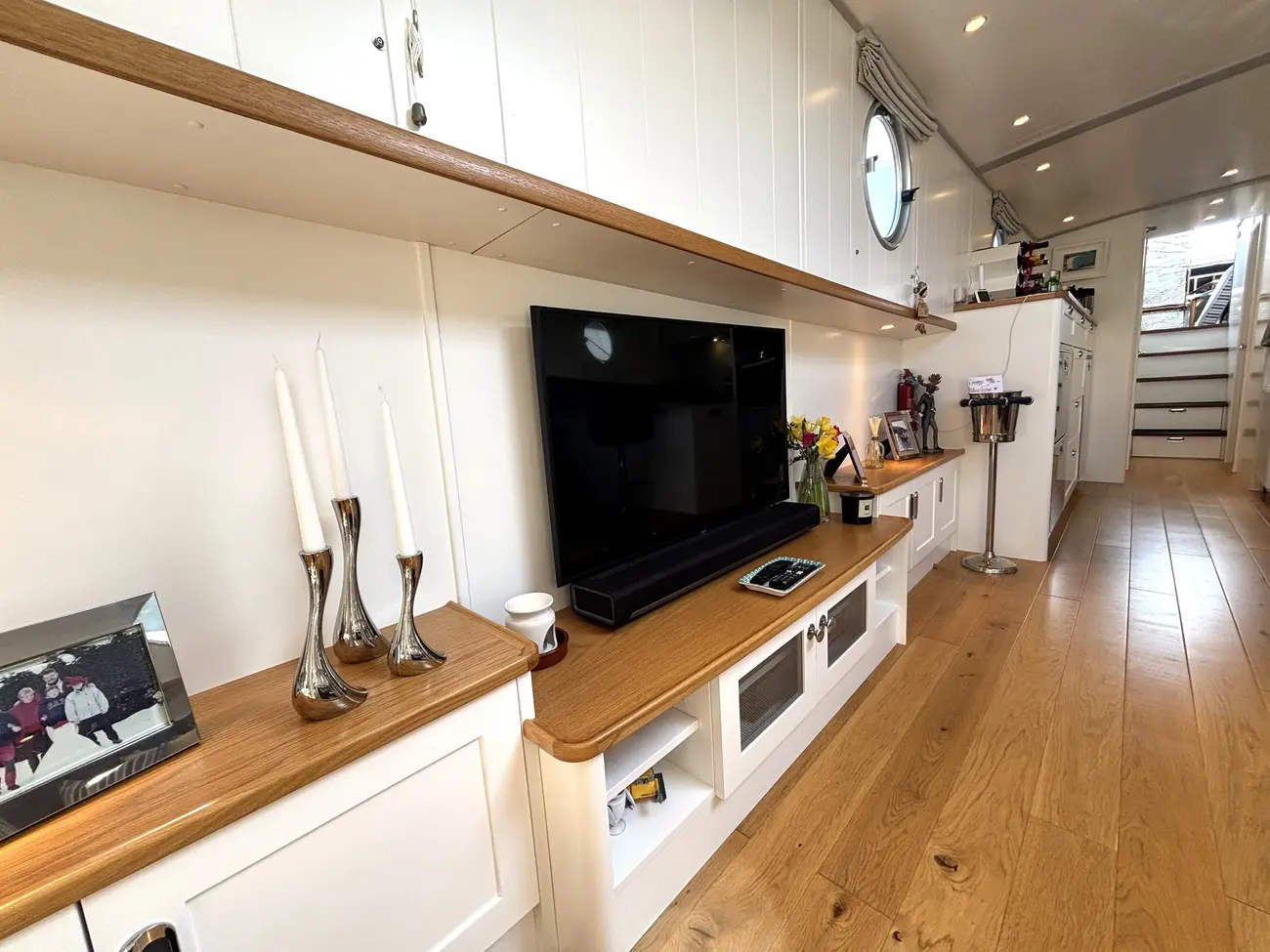

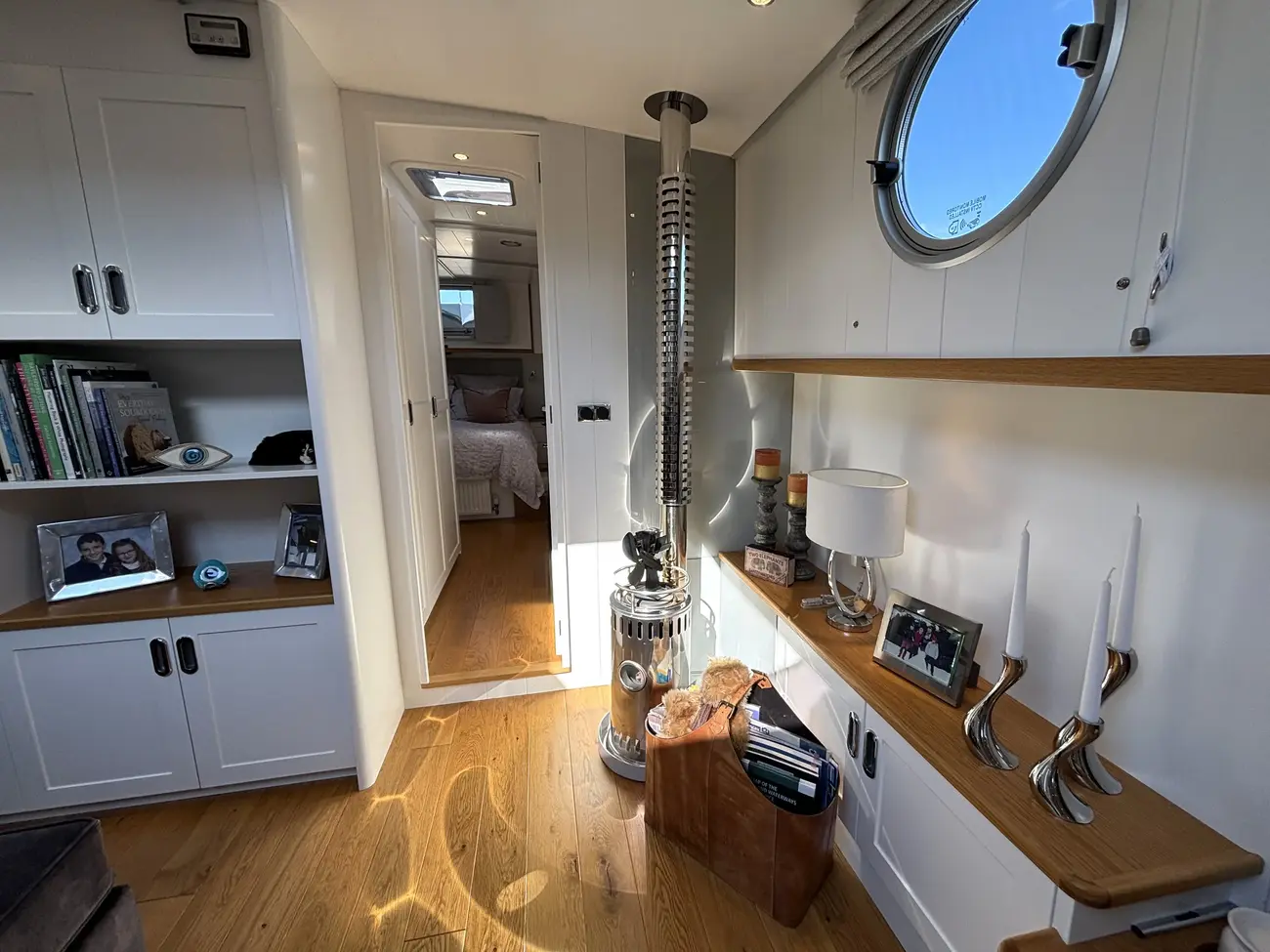

• Saloon

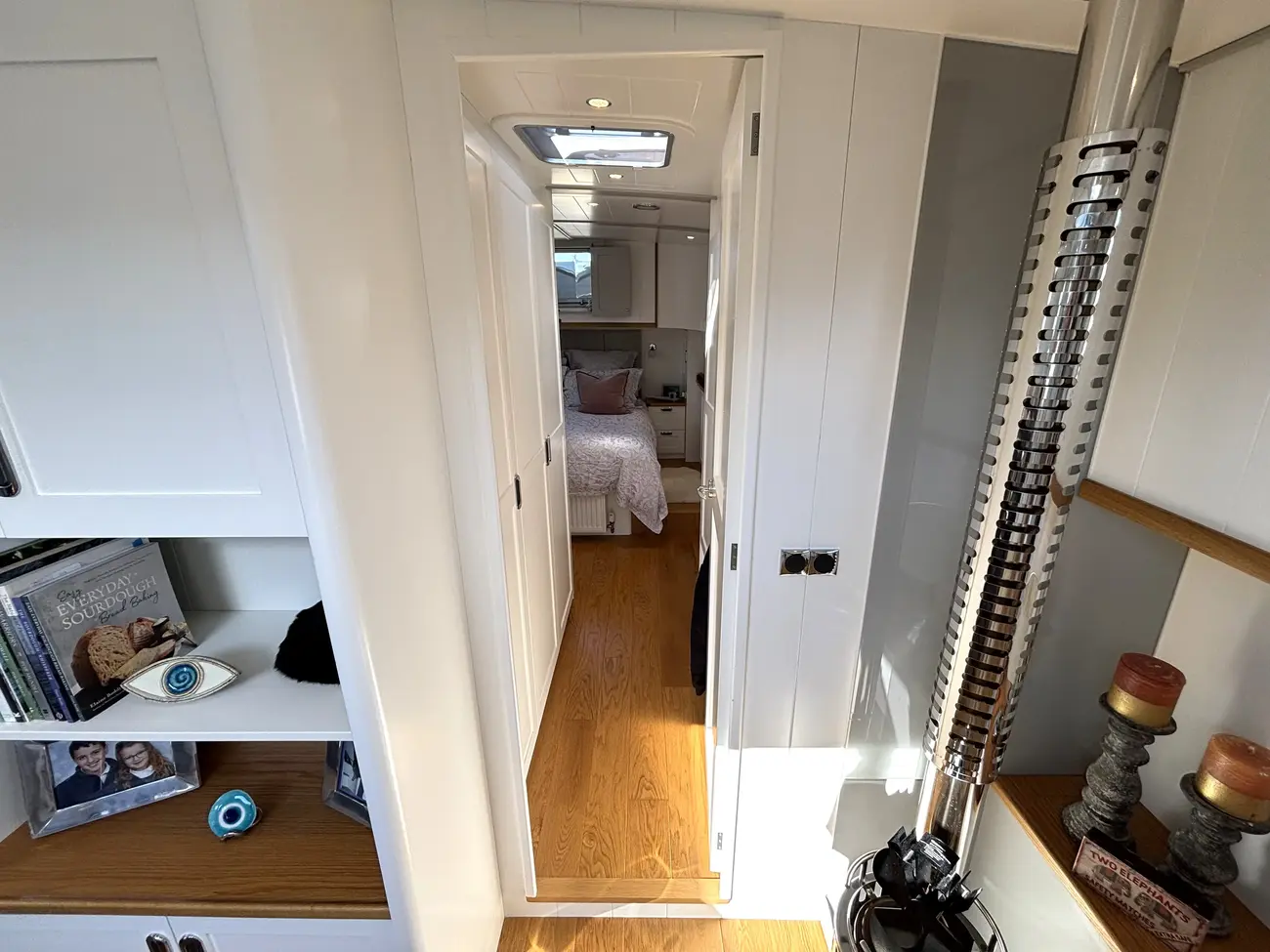

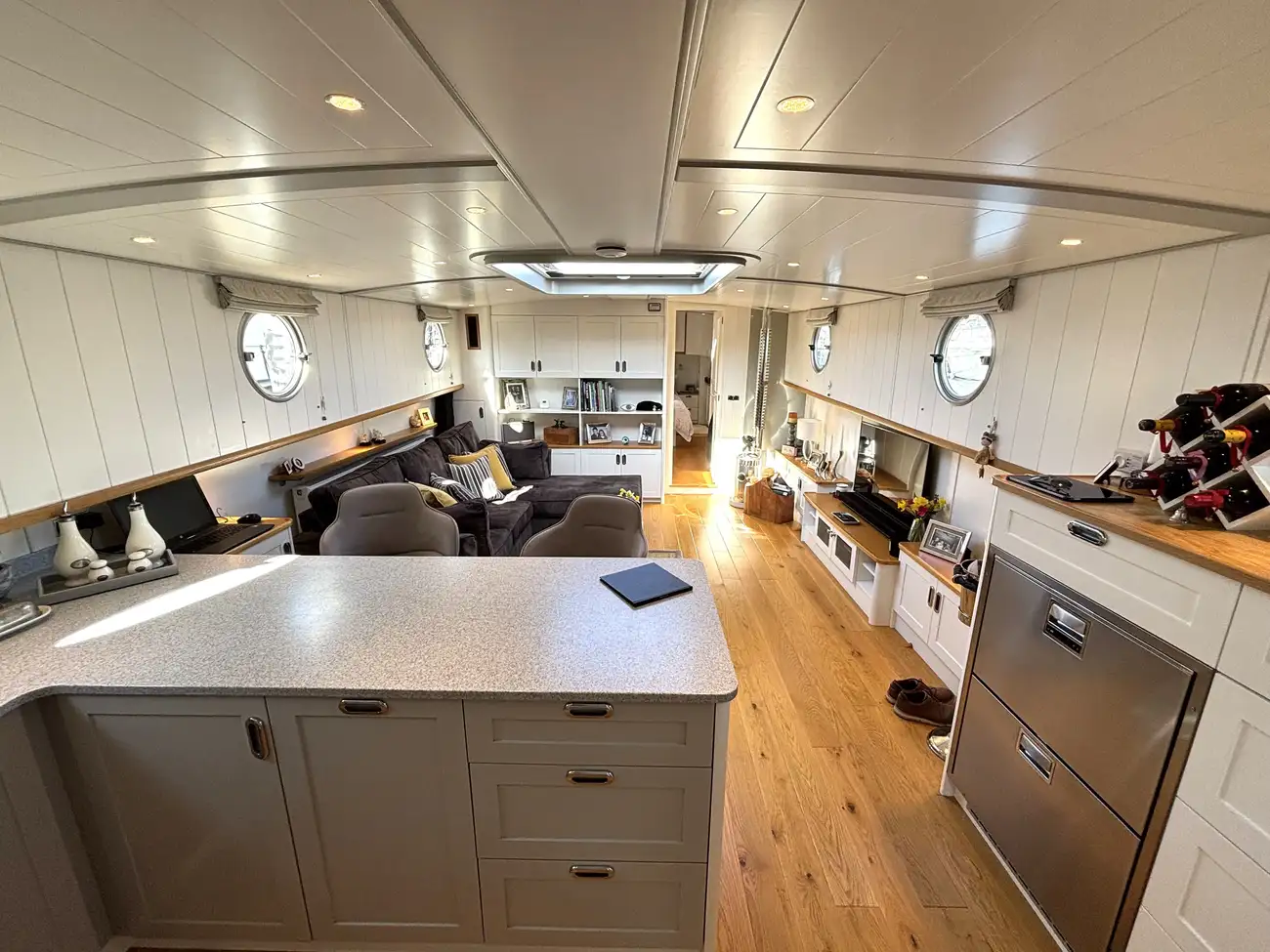

As you progress forward of the galley, you move into the saloon which is the Utopia of the vessel. Here you have a large L-Shaped, diesel fired burner ensuring you a warm, comfortable spot to make you feel like you feel like you are at home. Each side are 3 large port holes and up top is a large electric opening skylight, flooding the space with natural light, all port holes and skylight have blinds to ensure complete privacy.

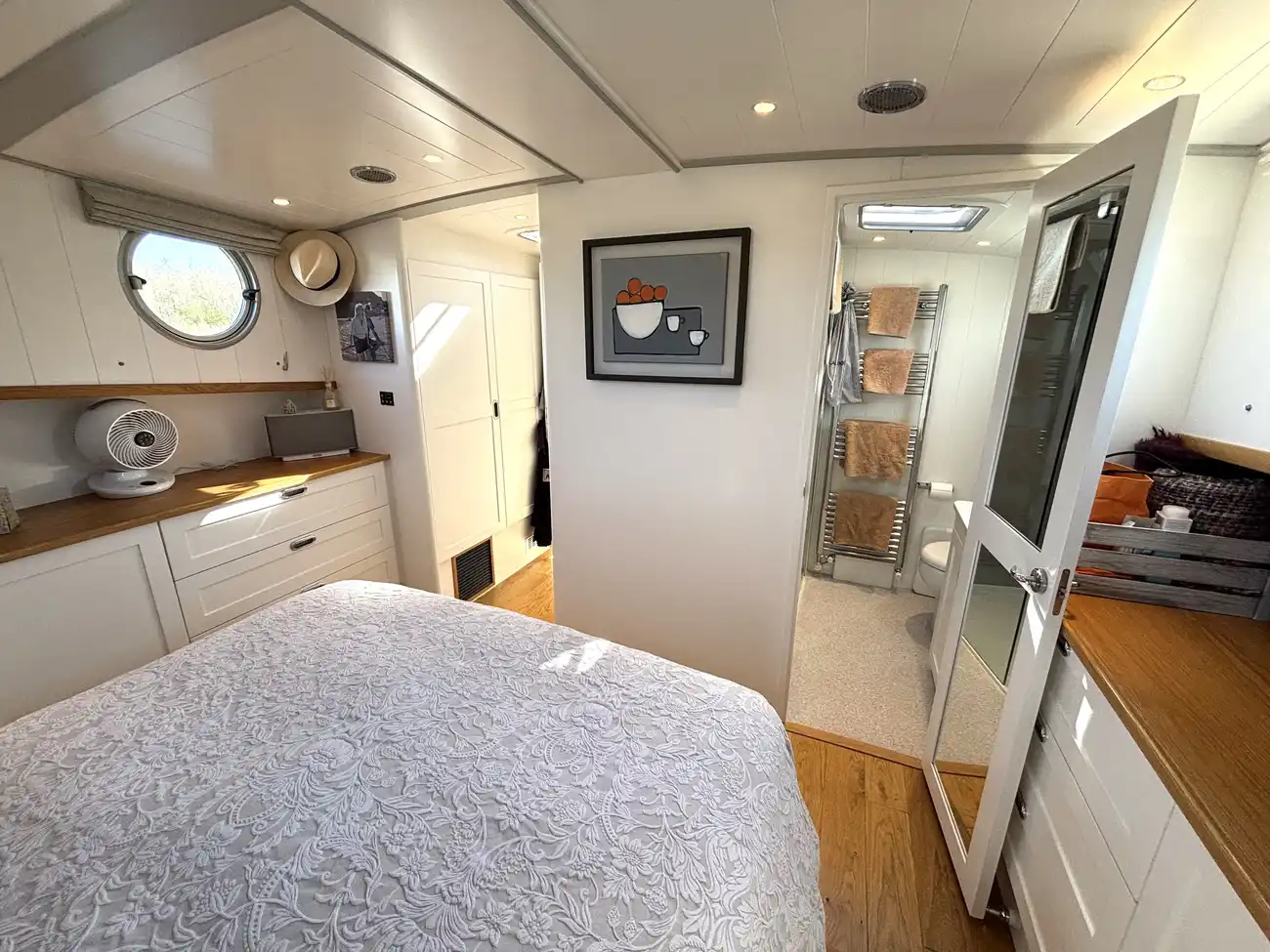

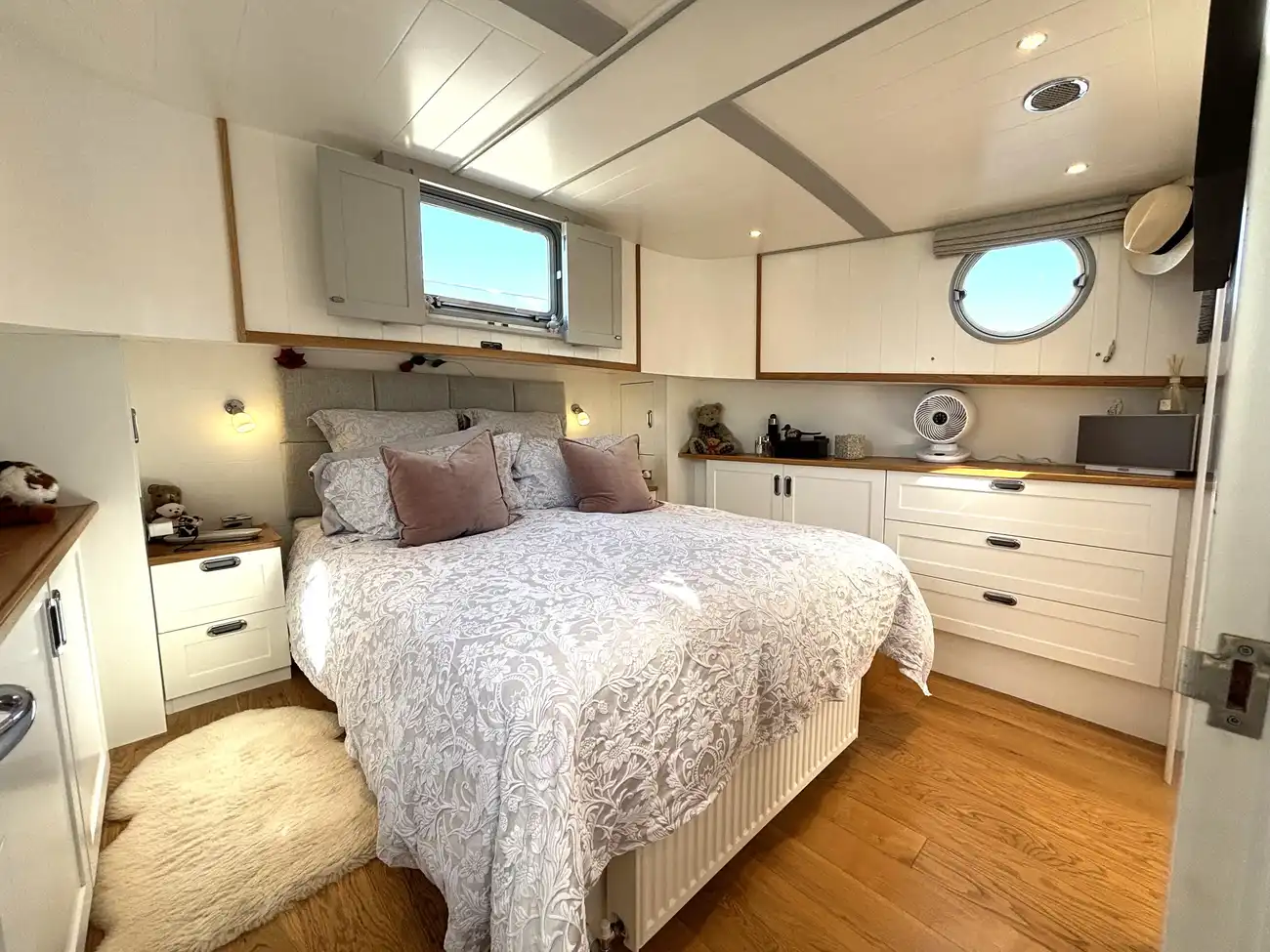

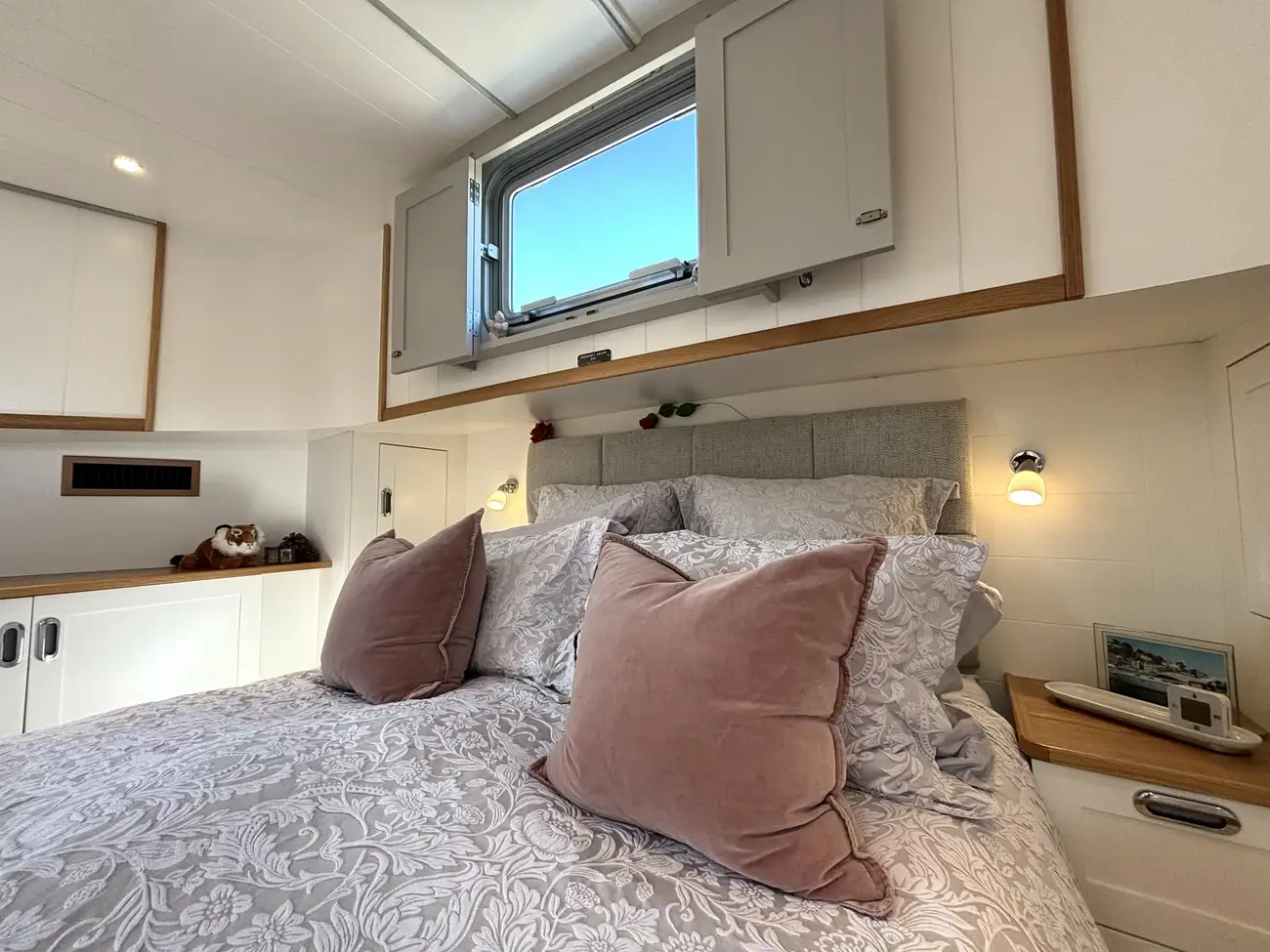

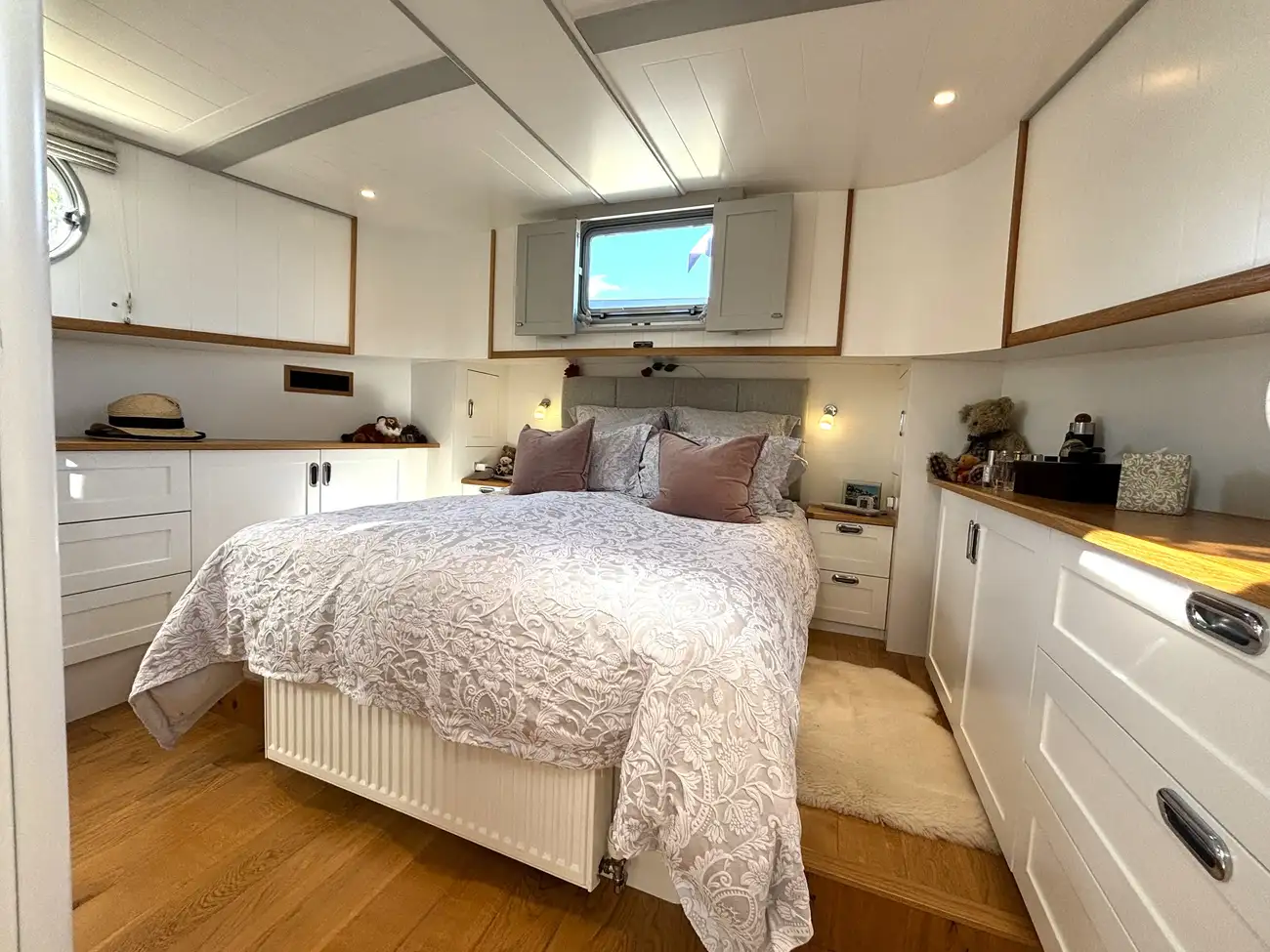

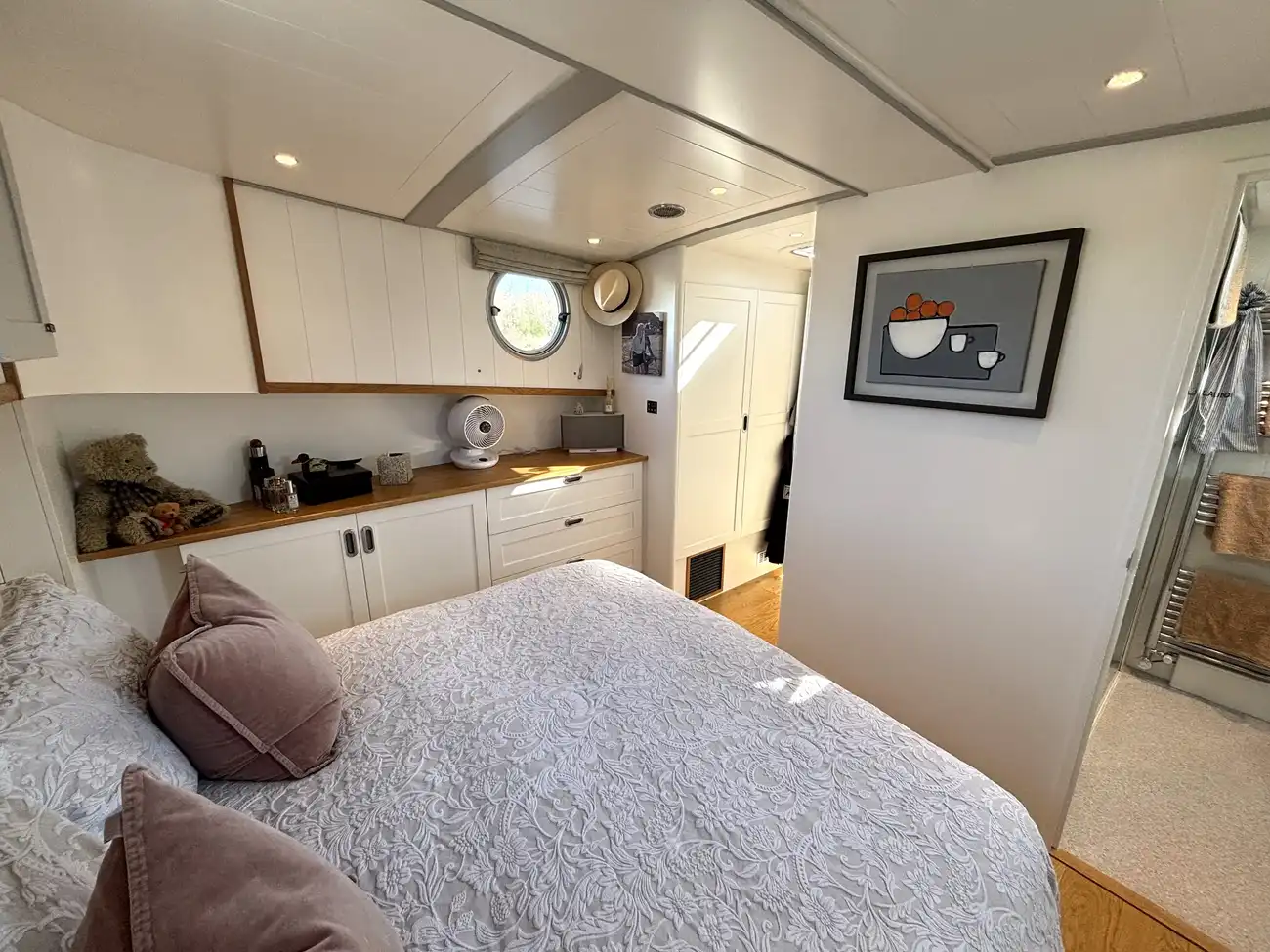

• Master Cabin

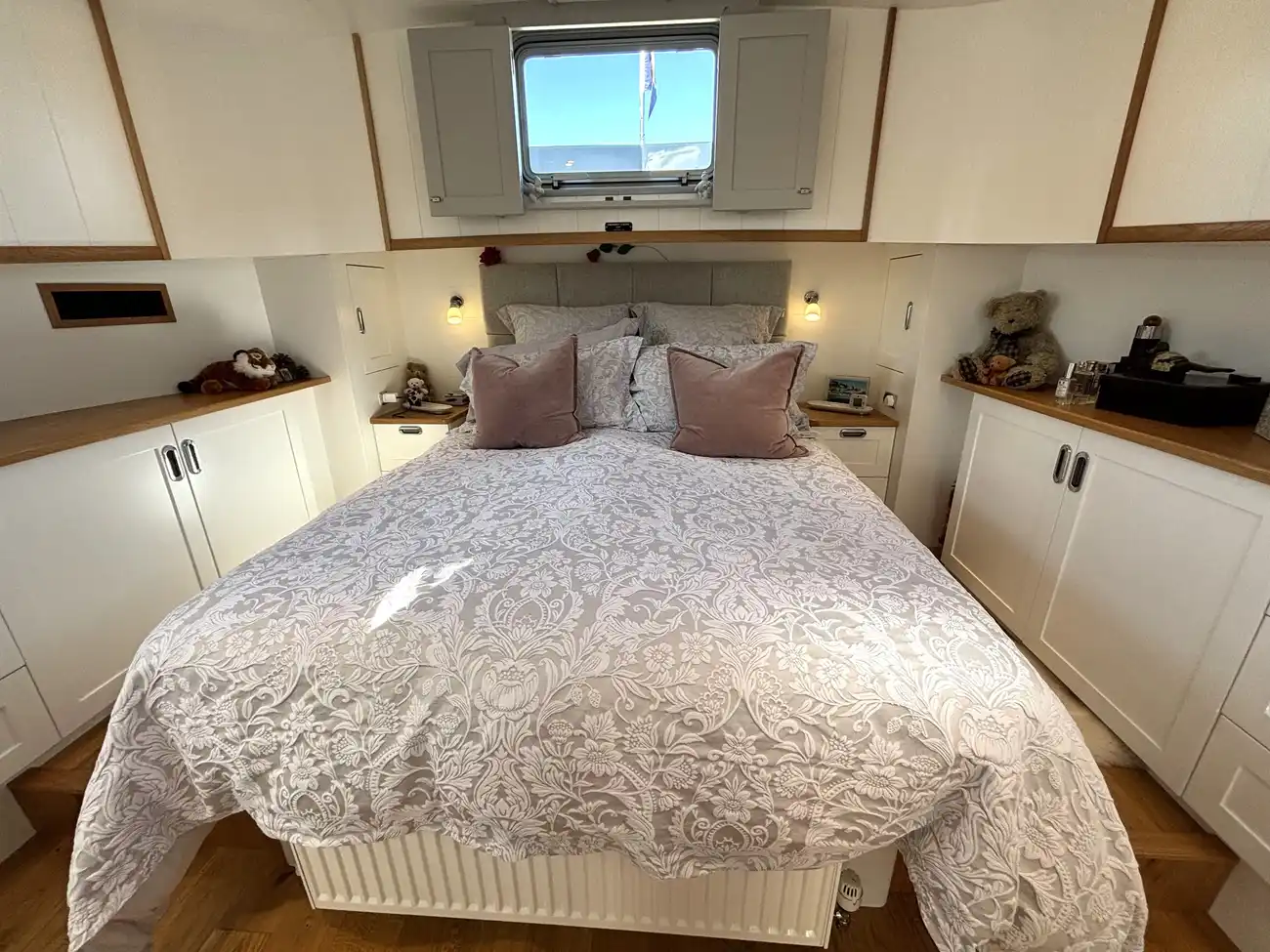

Further into the bow of the vessel takes you into the extensive master cabin suite. Located centrally is a large king size bed fit for royalty. This cabin also boasts a marine air-con system, central heating, TV point and en-suite complete with a large walk-in shower, toilet & wash basin.


Additional Information

Engine: Vetus Deutz 140 D-Line (Shaft Drive)
Engine Hours: 240
Equipment: Generator, Heating, Bow & Sternthruster
Berths: 6
Last Engine Service:  2024 (Serviced Annually)
Last Antifouled:  Copper Coated From New
Air Draft: 2.97m
Draft:  1.2m
Boat Safety Certificate:  Valid
