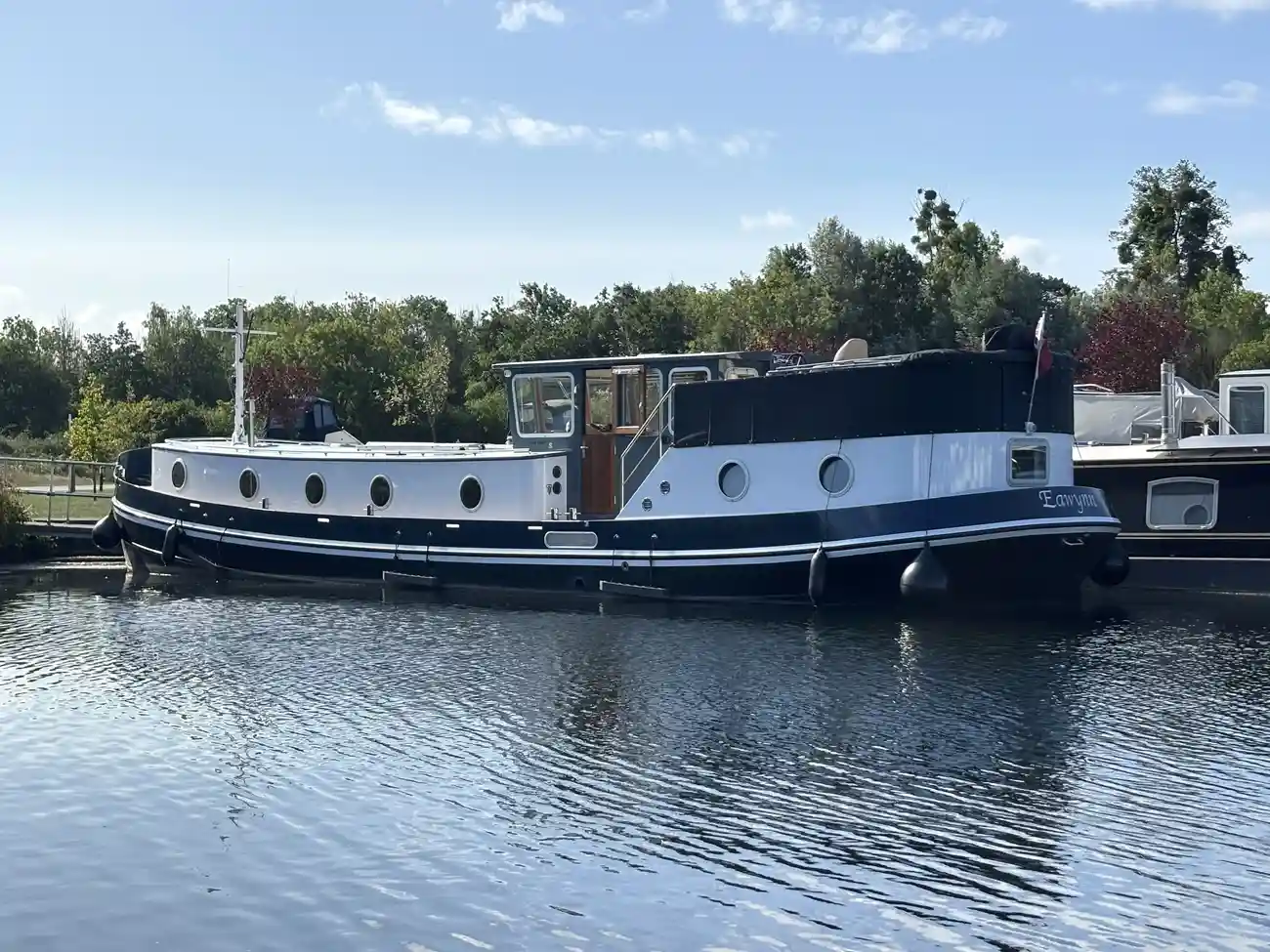

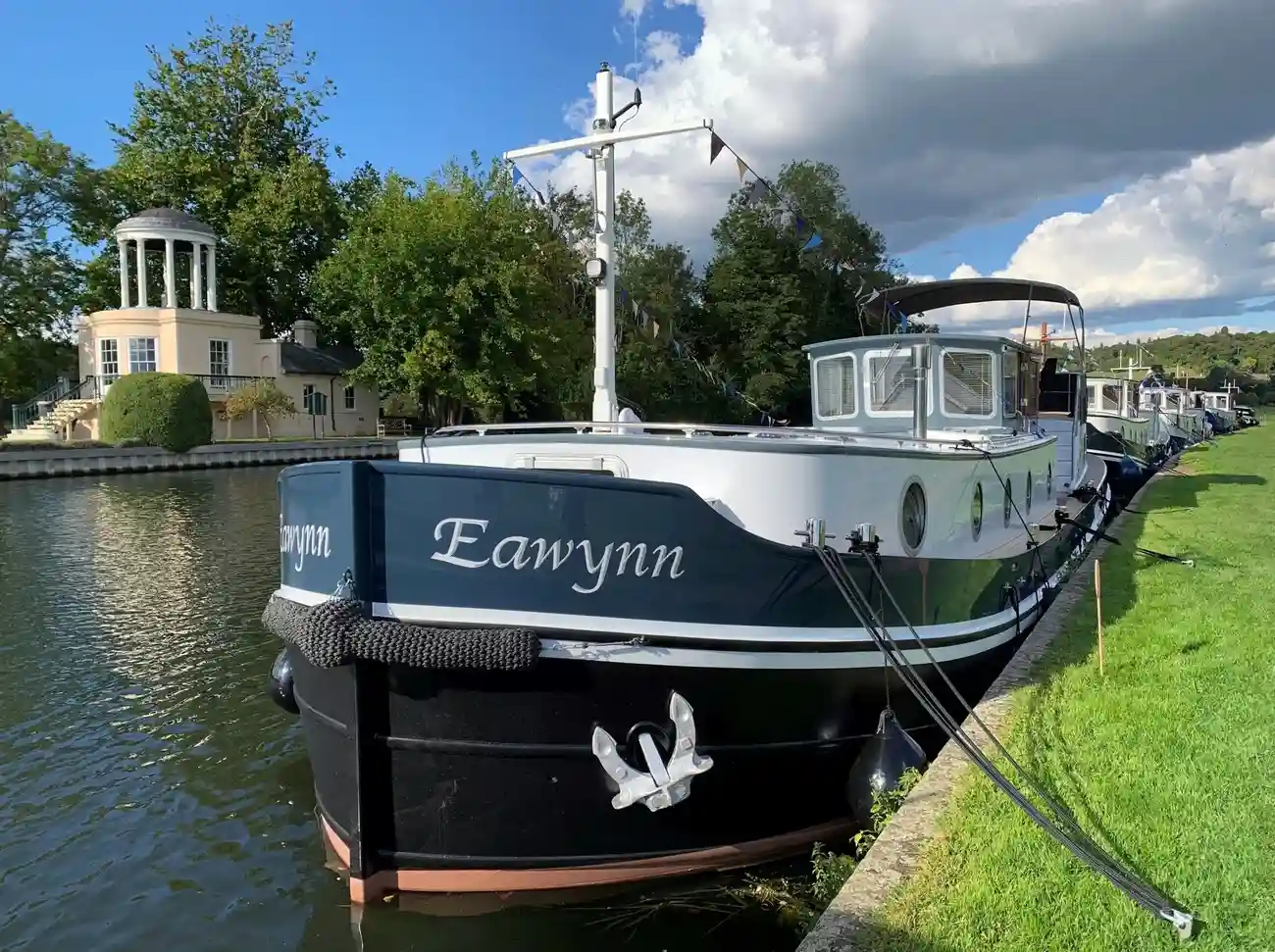

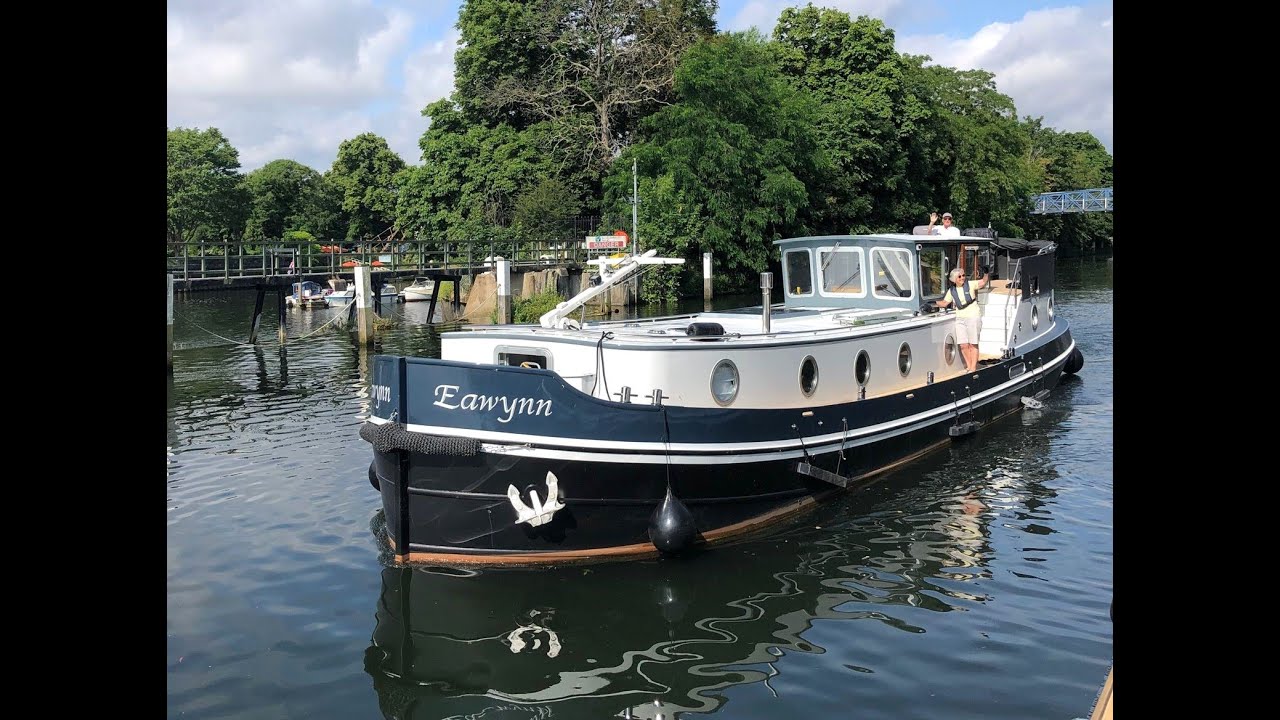

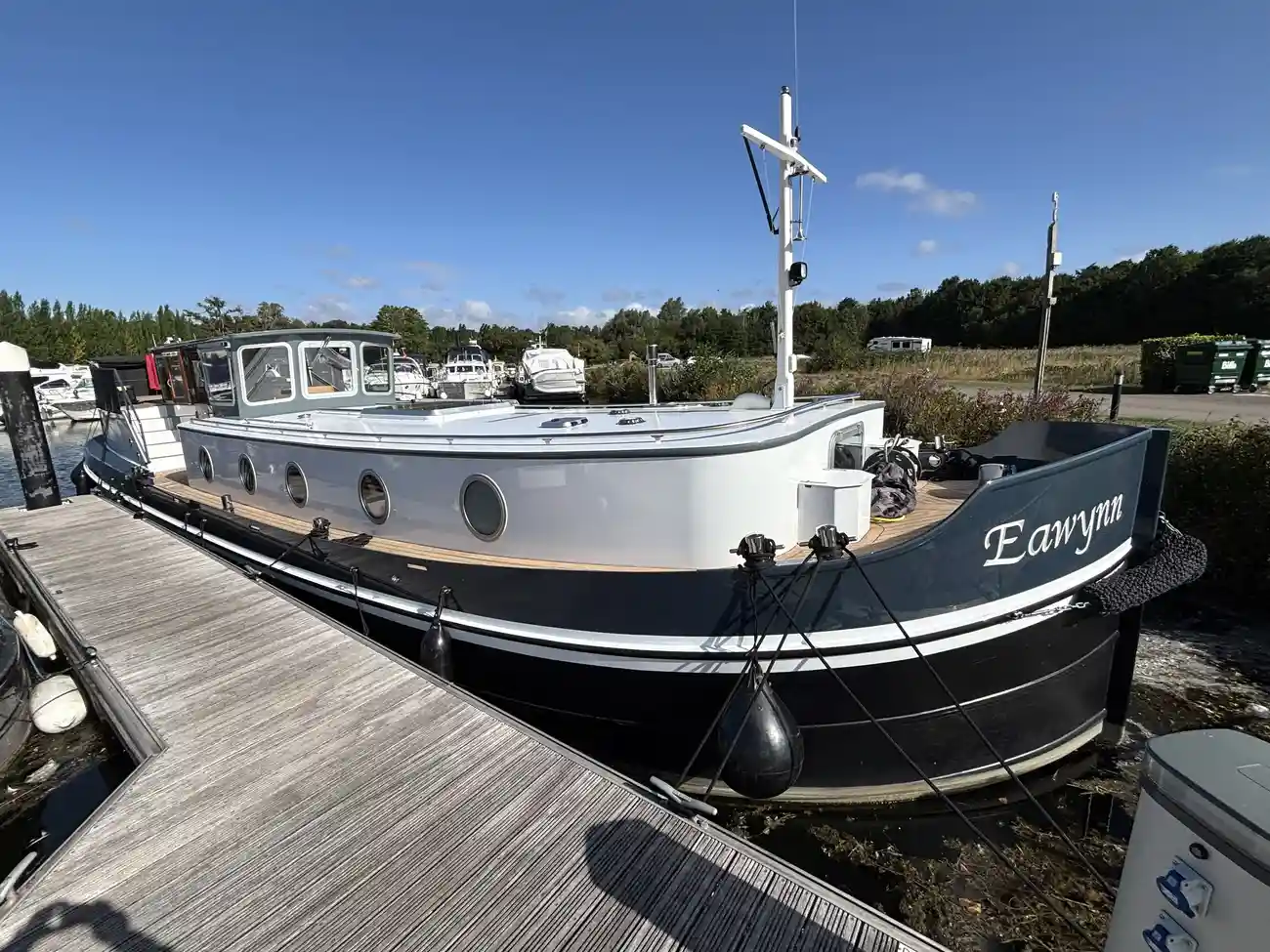

PIPER 55L 2022

Want a like new Piper 55L Dutch Barge without the wait plus with the option to take on the mooring at Harleyford Marina? This one owner boat from new has been cherished since the day she was launched and having only covered 125hrs since new, she presents extremely well. She boasts a very high specification such as upgraded engine, generator, paint design, synthetic decking and much more. This is a very rare opportunity to secure yourself a Piper 55L at such a prestigious marina on the river Thames.

Viewing by appointment only ' vessel lying offsite

Mooring at Harleyford Marina available with this vessel

Inventory

ADDITIONAL OPTIONS LIST:

• Upgraded Vetus 140hp Inboard Diesel Engine
• Alternator Upgrade Balmar XT170A
• Upgraded Mains Water Pump DAB ESYBOX MINI 3
• Isolation Tranformer 7000W
• Electric Water Tank Value (Switch in Bedroom)
• Forced Ventilation to Engine Room
• Extra Shorepower Socket at Bow

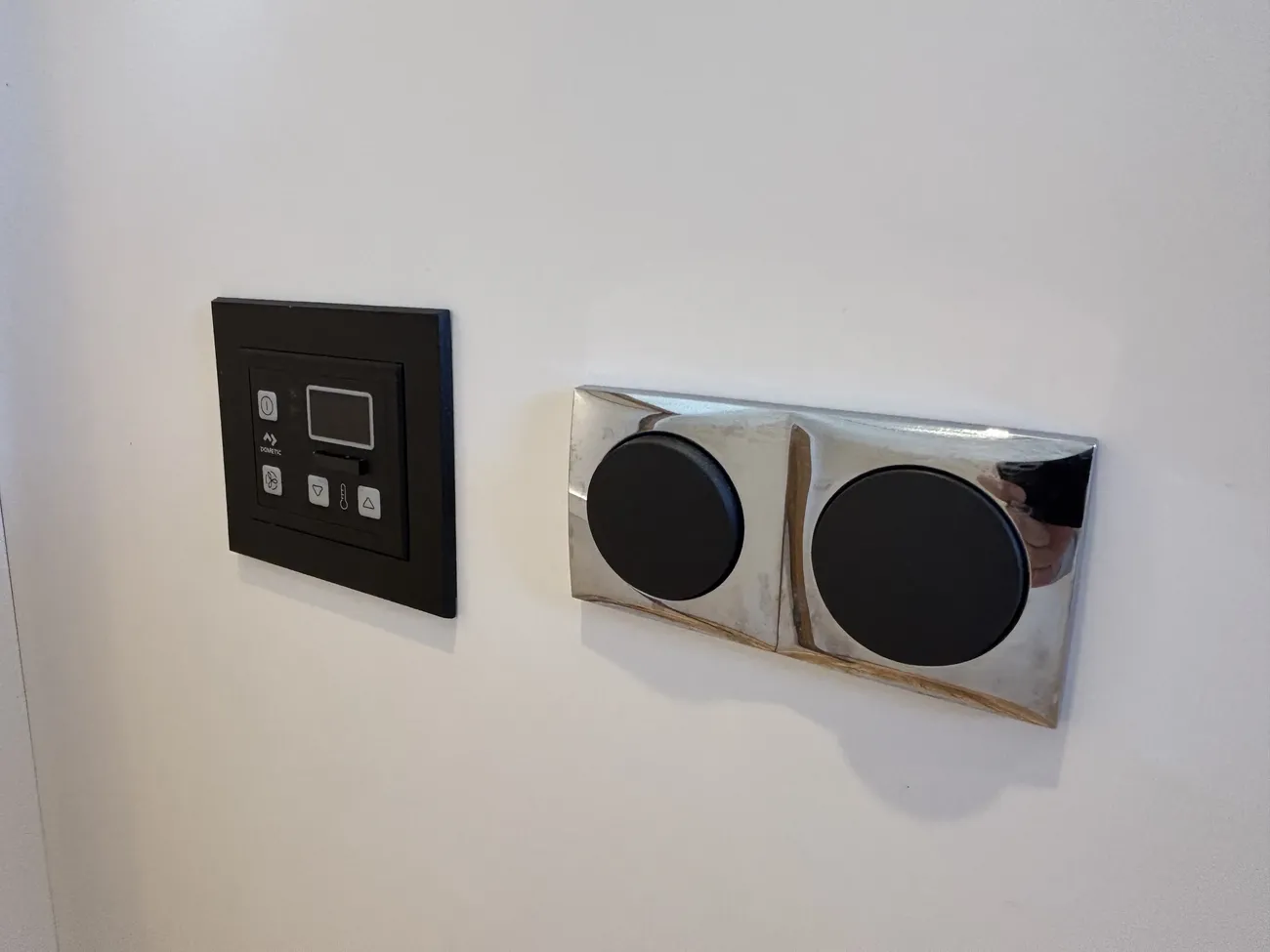

• Central Heating Controller
• Wifi System
• Double Glazed 18" Portholes in Cabins
• Upgraded Exterior Paint Options
• Fender Eyes

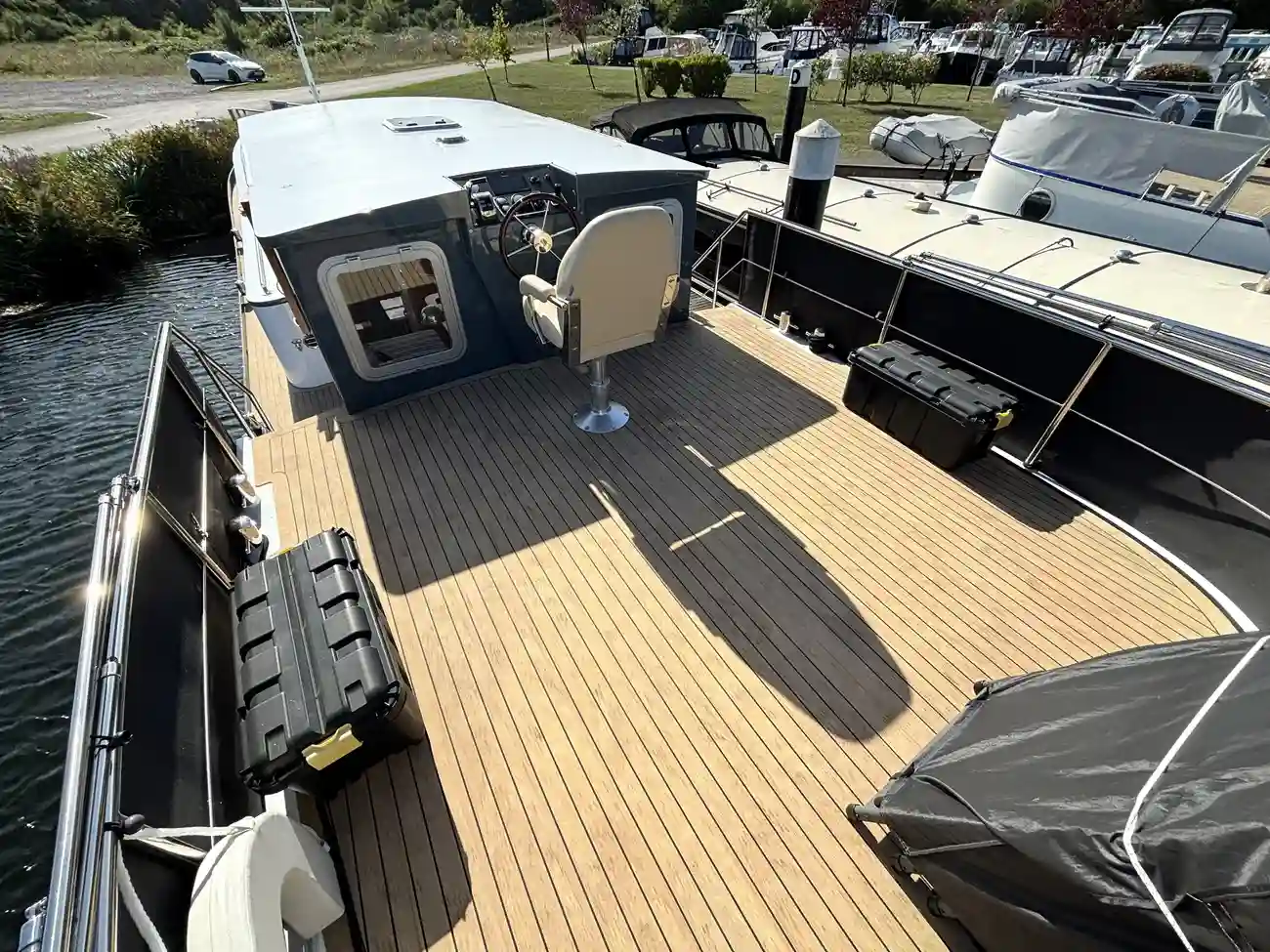

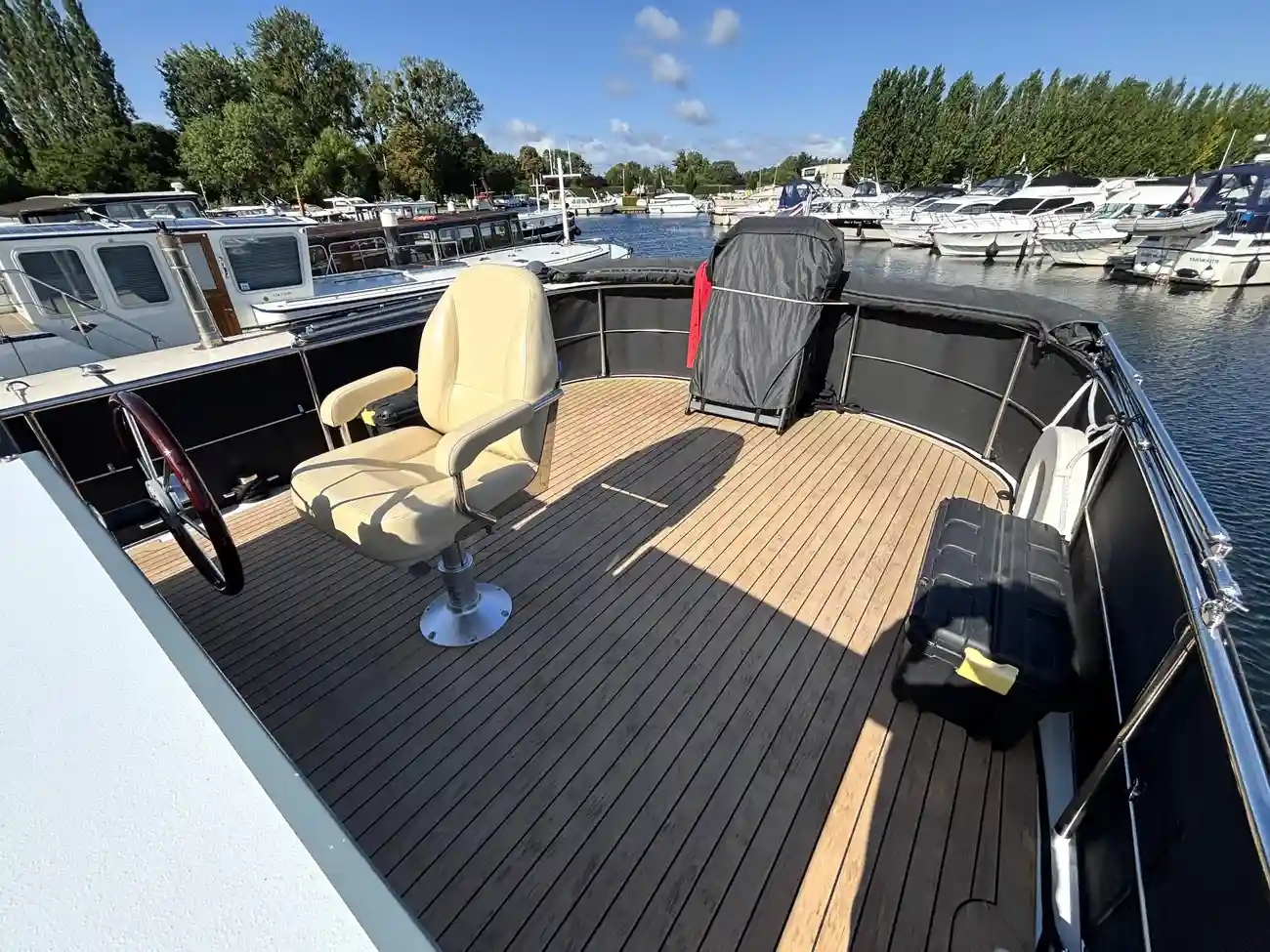

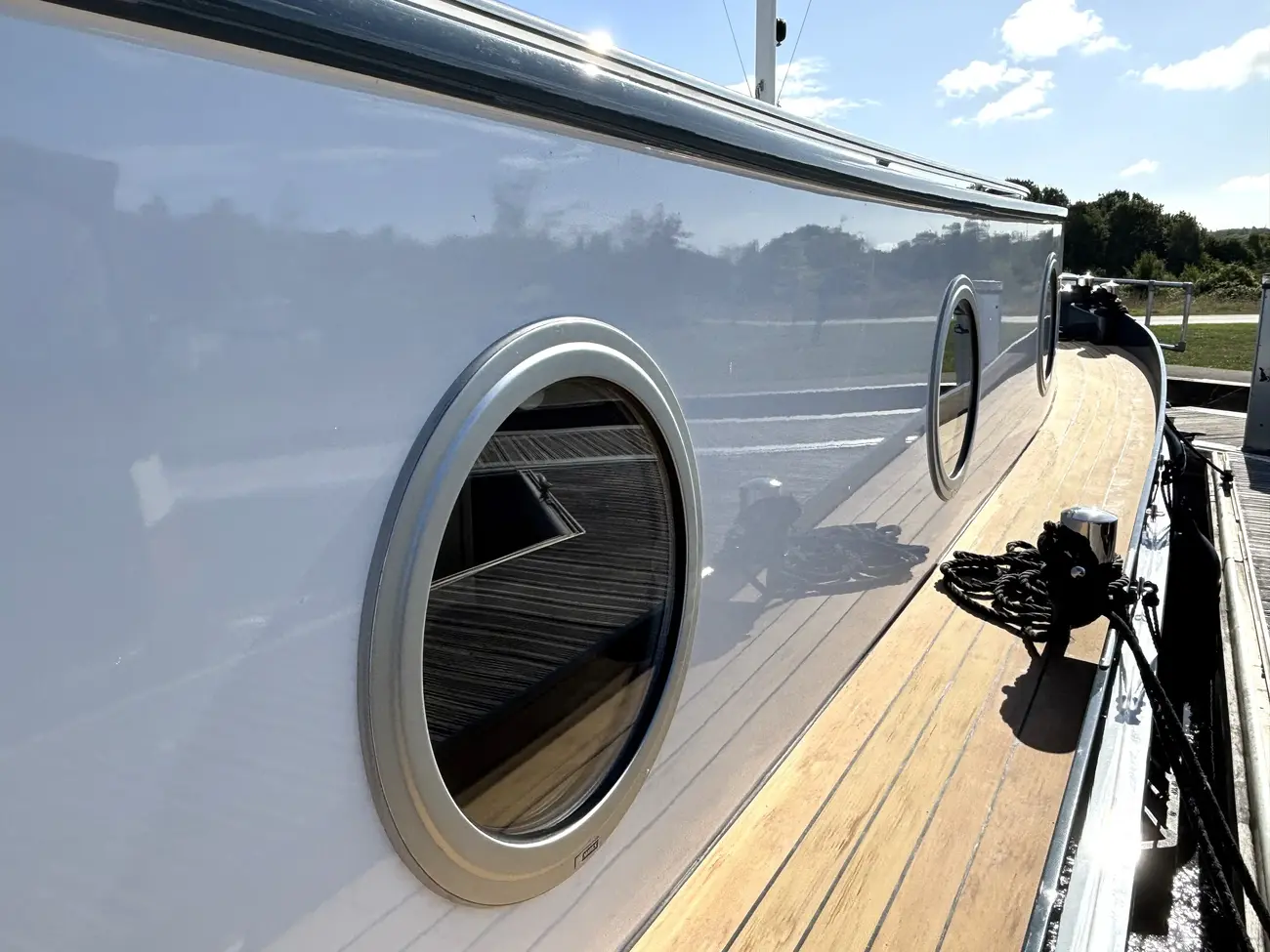

• Full Exterior Flexiteek to Decks, Aft & Bow Deck

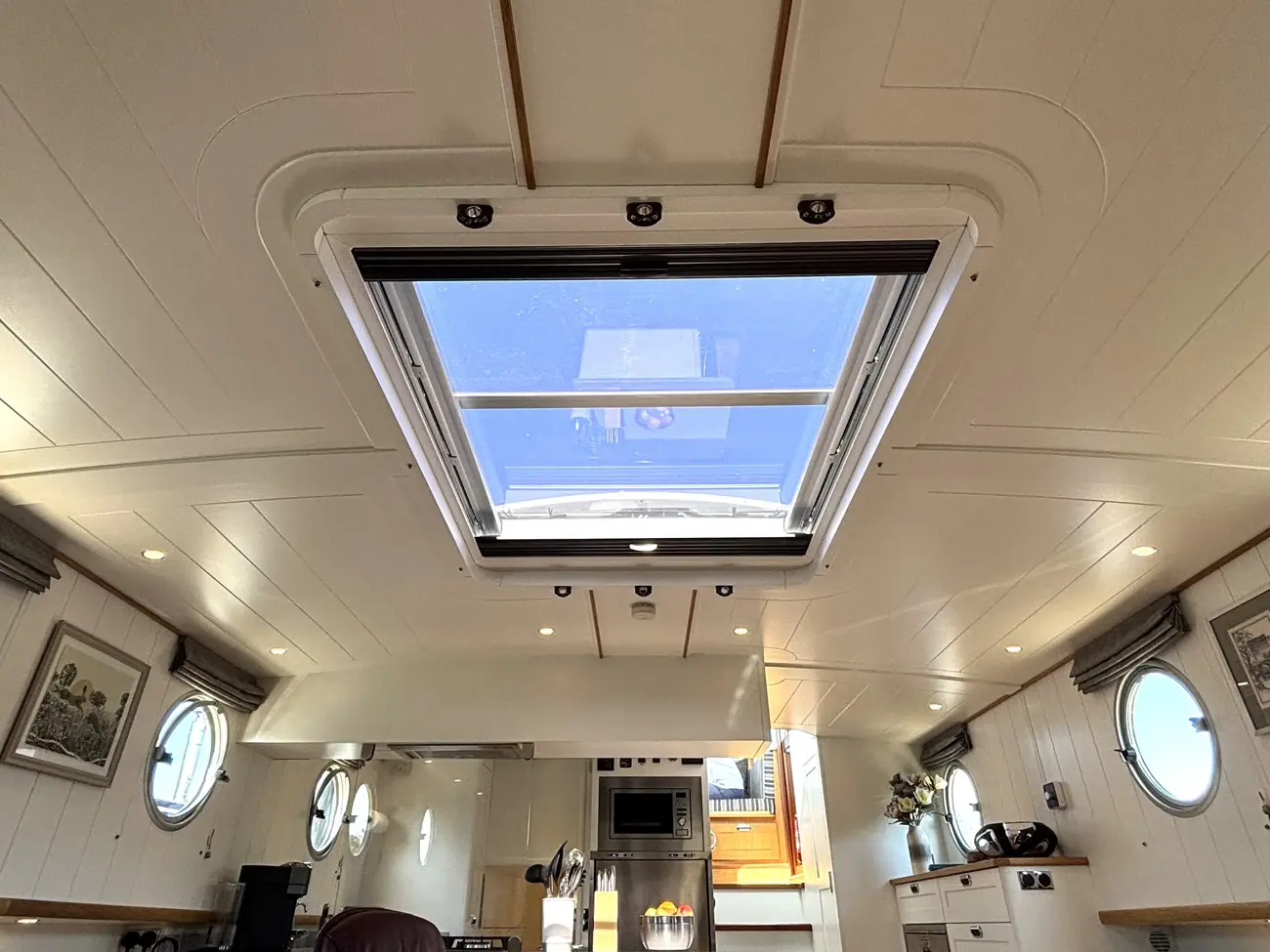

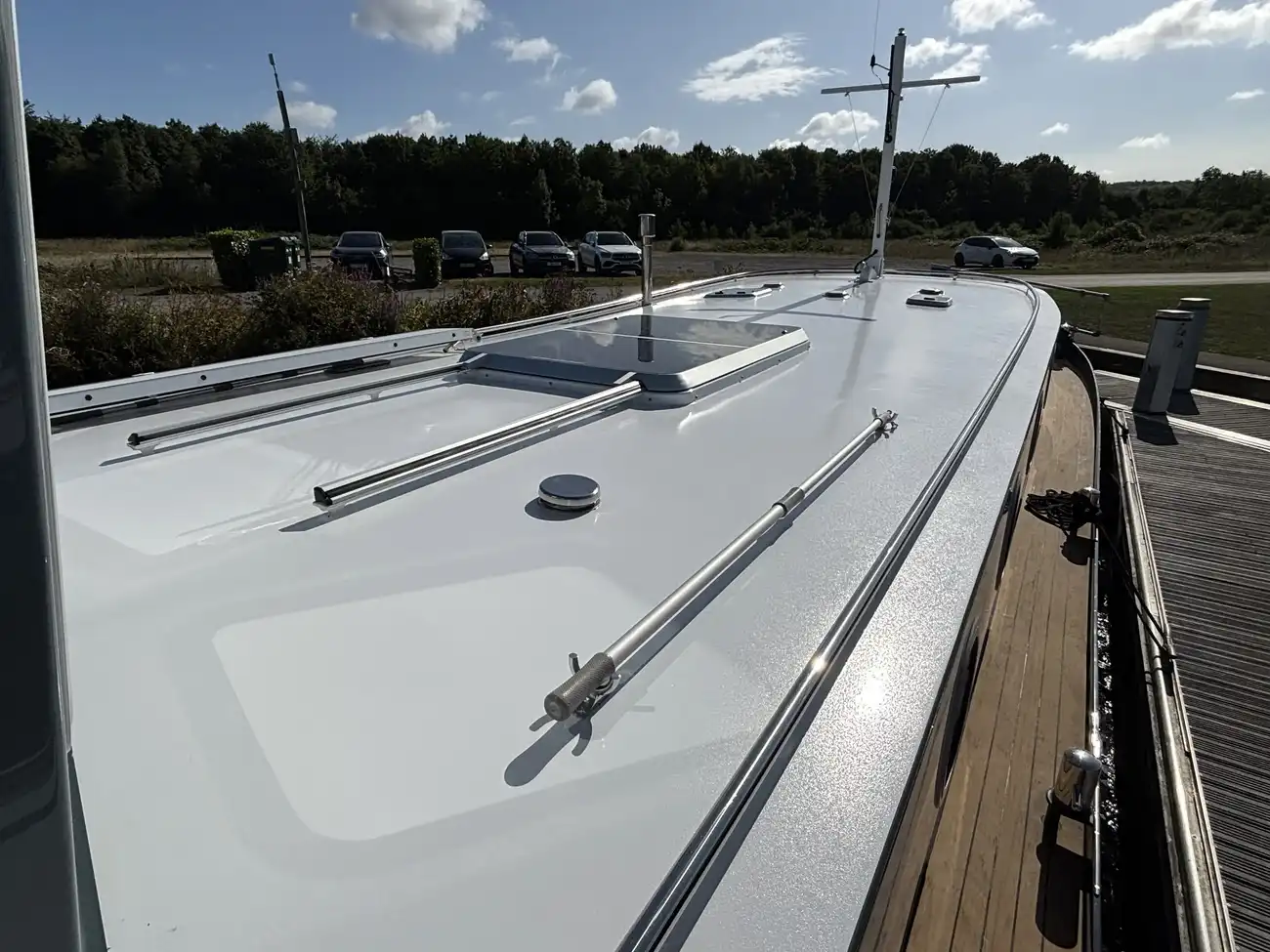

• Electric Sliding Roof Webasto 60 Series
• Manual Sliding Roof Blind
• Gang Plank complete with Storage Brackets

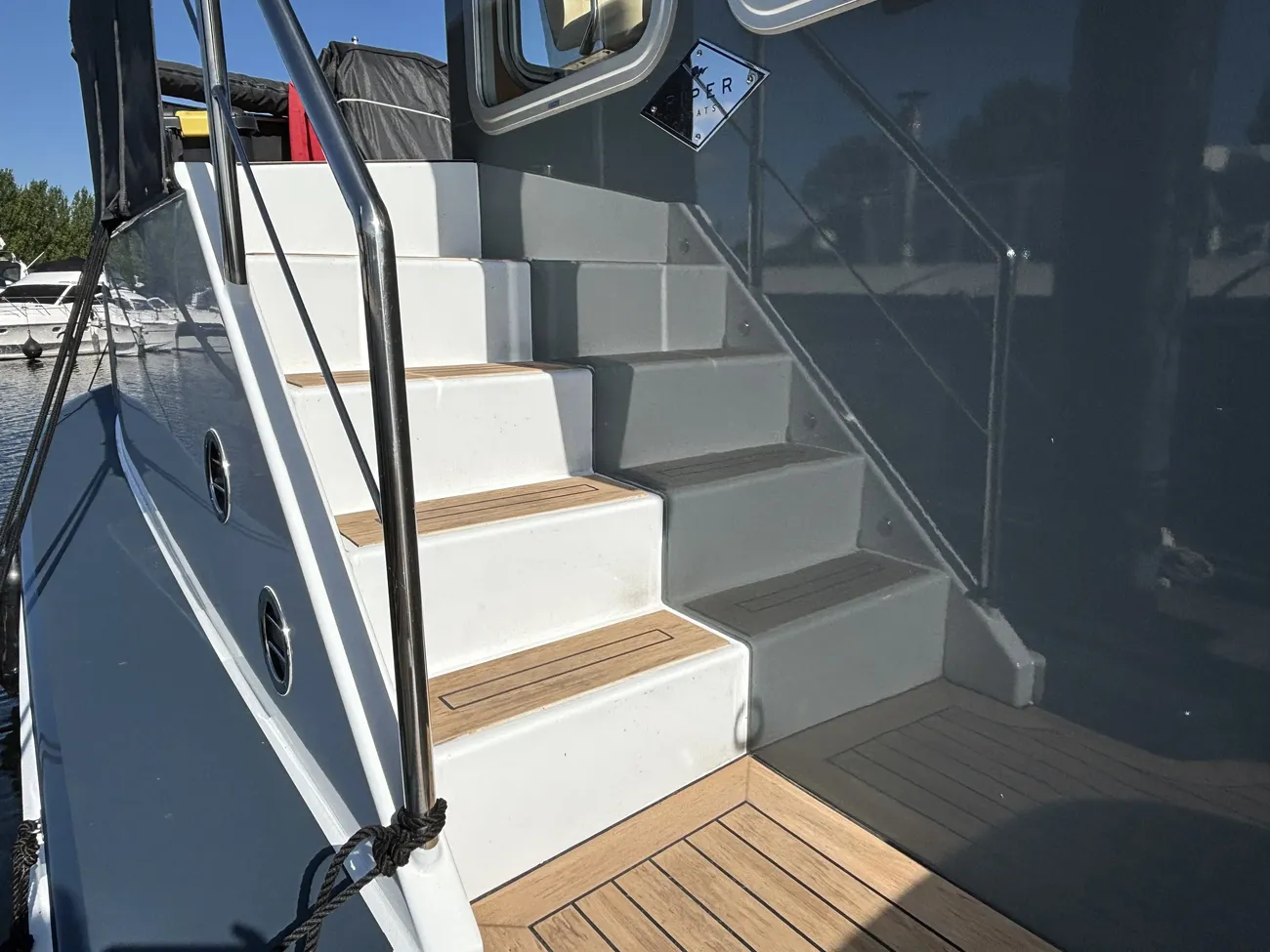

• Toe Steps to access Cabin Roof
• Stainless Steel Rubbing Strips
• Copper Coat Antifouling
• Mosquito Screen for Roof Hatch
• Black Out Bungs for Roof Hatch
• Venetian Blinds to Wheelhouse

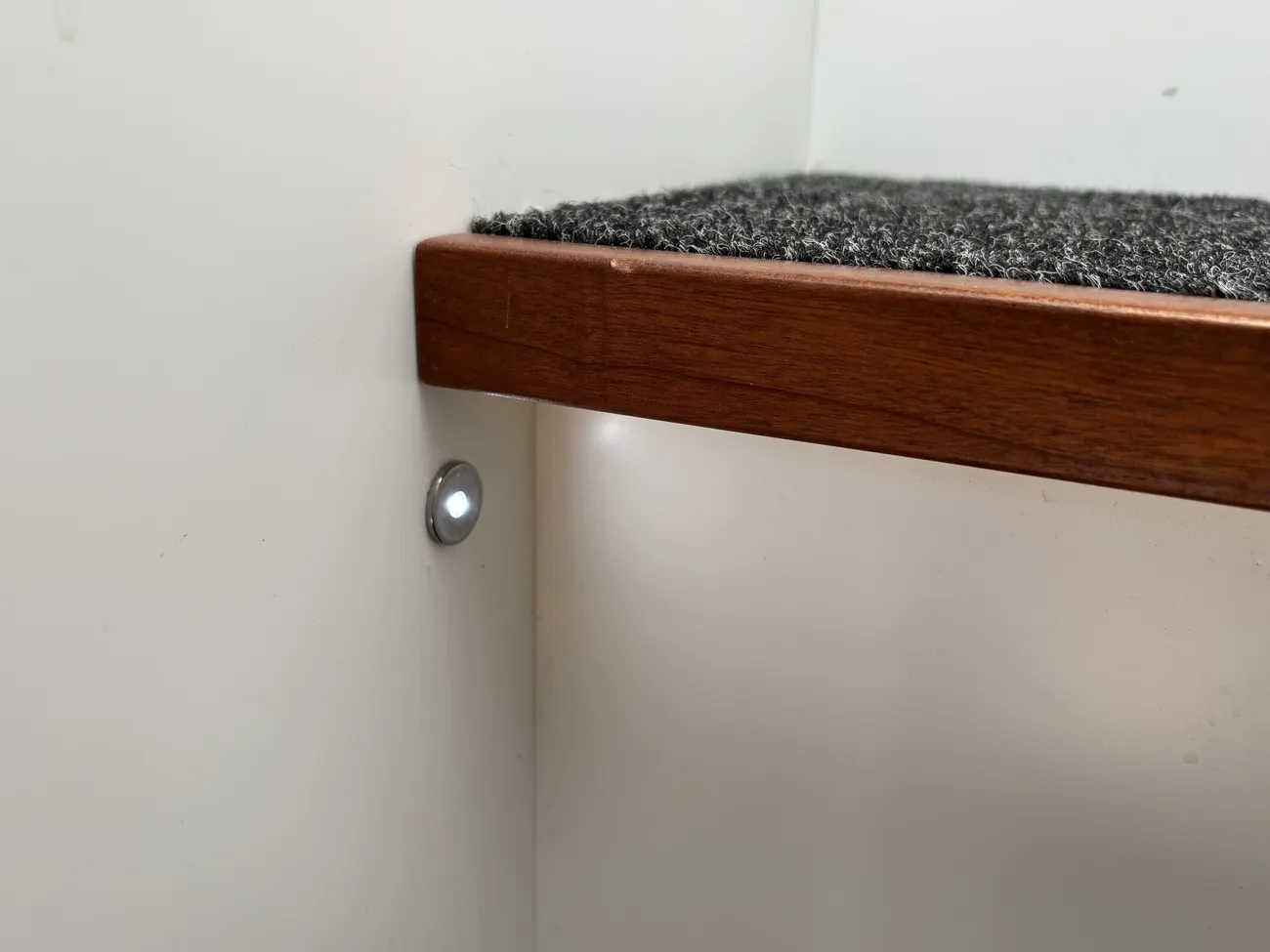

• LED Stair Lighting
• Handle on Portside of Steps to Wheelhouse
• Navigation Camera's
• Raymarine Ray 63 VHF Radio
• Raymarine Ray 90 Wireless VHF Handset
• Vetus Adjustable Helm Seat
• Upgraded Door Handles
• Breakfast Bar
• Stainless Steel Sink
• Upgraded Water Filter

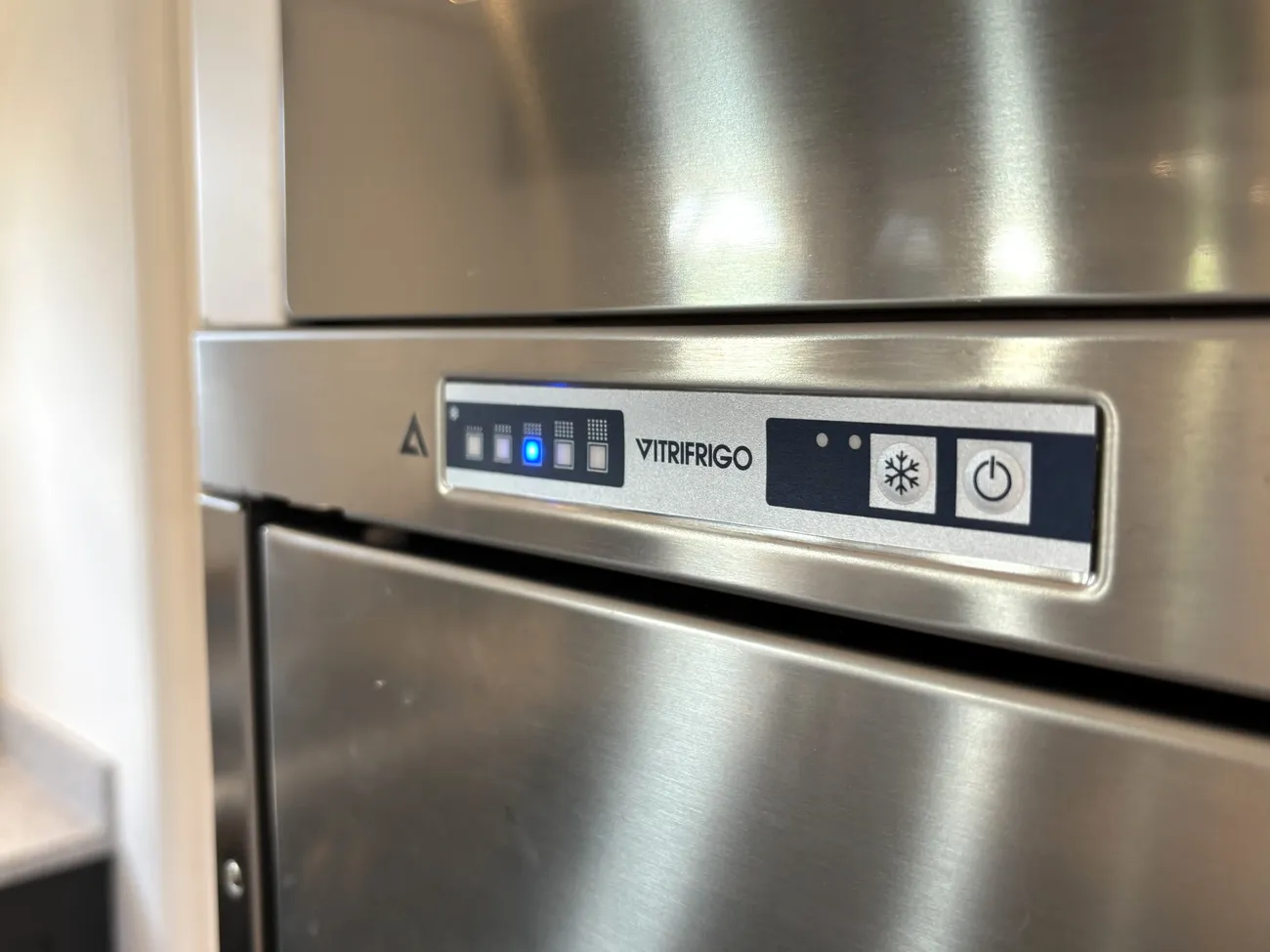

• Upgraded Vitrifrigo Fridge Freeze
• Upgraded Vitrifrigo Fridge Drawer
• Gas Detector for accomdation
• Glass Splash back
• Front Ensuite Mirrors
• Rear Ensuite Mirrors
• Engine Service Kit
• Generator Service Kit
• 32Amp Shorepower Lead
• Fenders & Mooring Lines
• Boarding Steps
• 1240L Main Engine Diesel Tank
• 230L Generator & Heating Diesel Tank

STANDARD PIPER 55L SPECIFICATION

HULL

• Shipbuilding Quality Grade A steel plate according to EN10204 / 3.2 LRS
• Shipbuilding plate blasted to SA 2.5 and primed by Dutch supplier
• Spray foam insulation
• 12mm keel plate
• 8mm chines & hull sides
• 6mm decks
• 5mm superstructure
• 1750L water tank with level indicator
• 1170L main propulsion fuel tank with level indicator
• 230L gravity auxiliary fuel tank with level indicator (if refleks stove installed)
• 800L black waste tank with level indicator
• 16L grey waste buffer tank with pump (divertible to black tank)

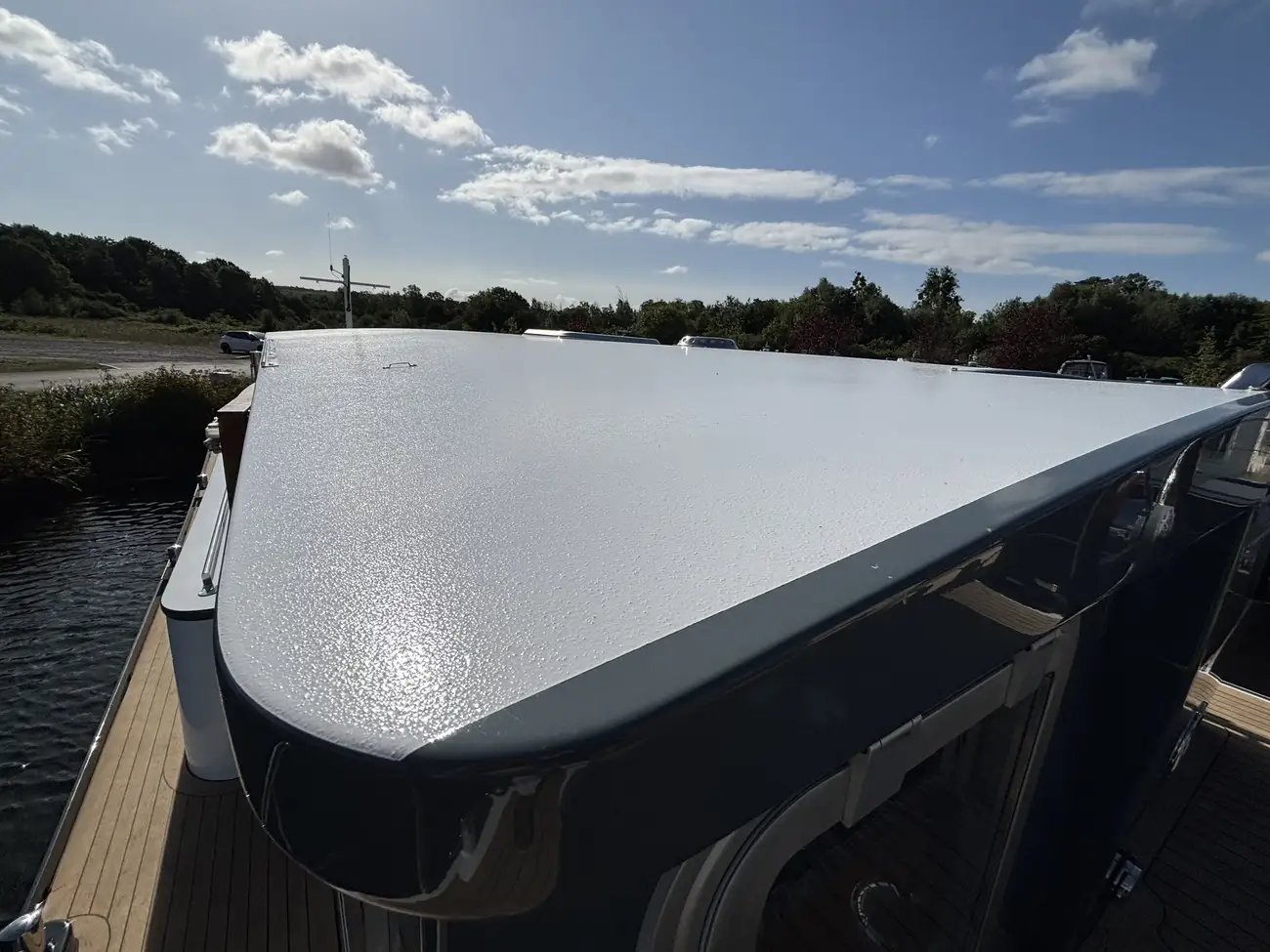

EXTERIOR

• Stainless steel hand rails and bollards
• Jotun approved external marine paint system
• Double glazed & thermally broke windows to wheelhouse
• Double glazed & thermally broke windows & portholes to cabin
• Automated hardwood mast with powder coated stainless steel tabernacle
• Welded steel dog box with hardwood lining & canvas cover
• Front barge fender
• Navigation lights (port, starboard, stern, anchor,  steaming) & headlight
• Basic mooring lines 14mm thick x 15m long

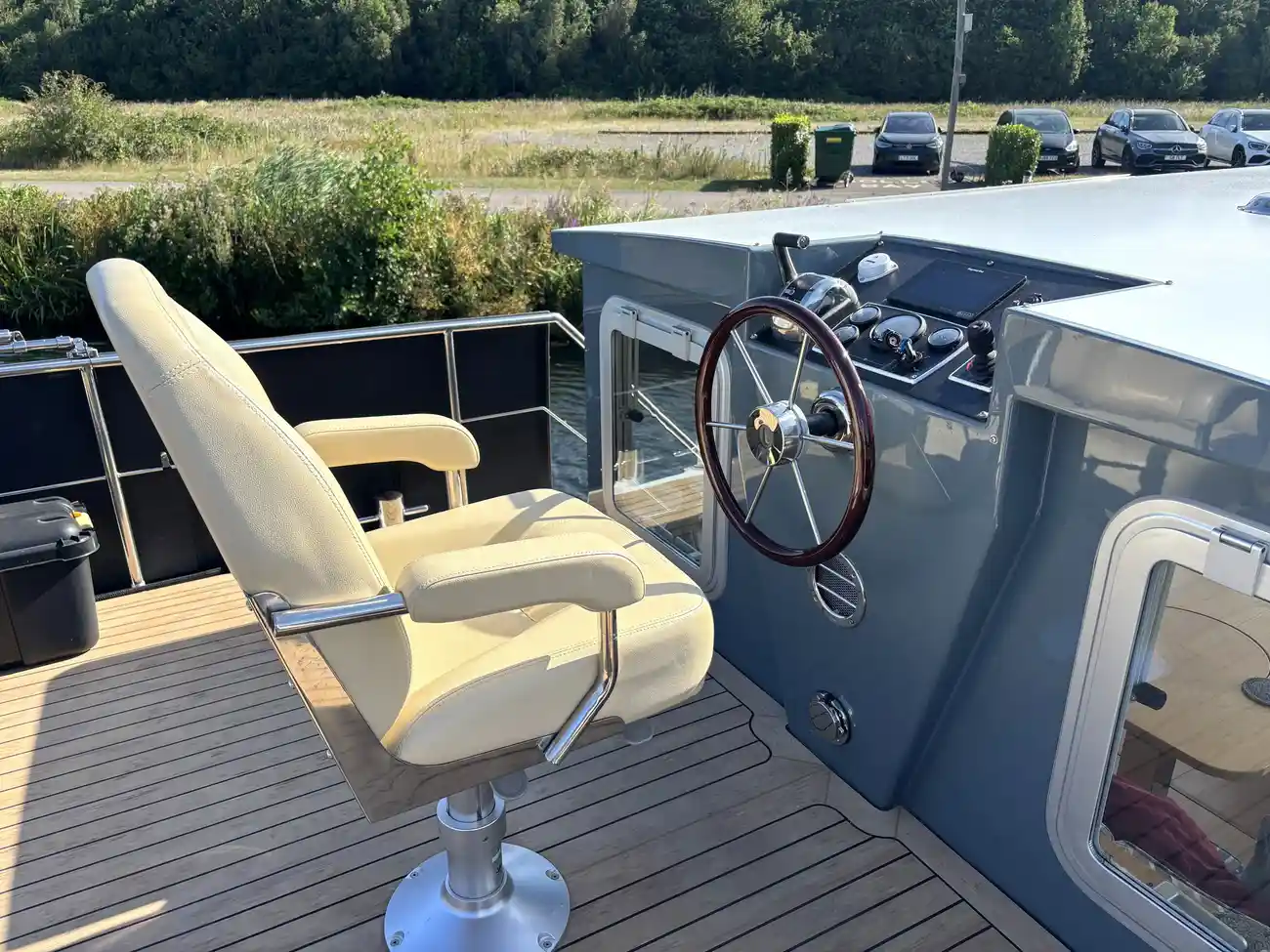

• Secondary helm position

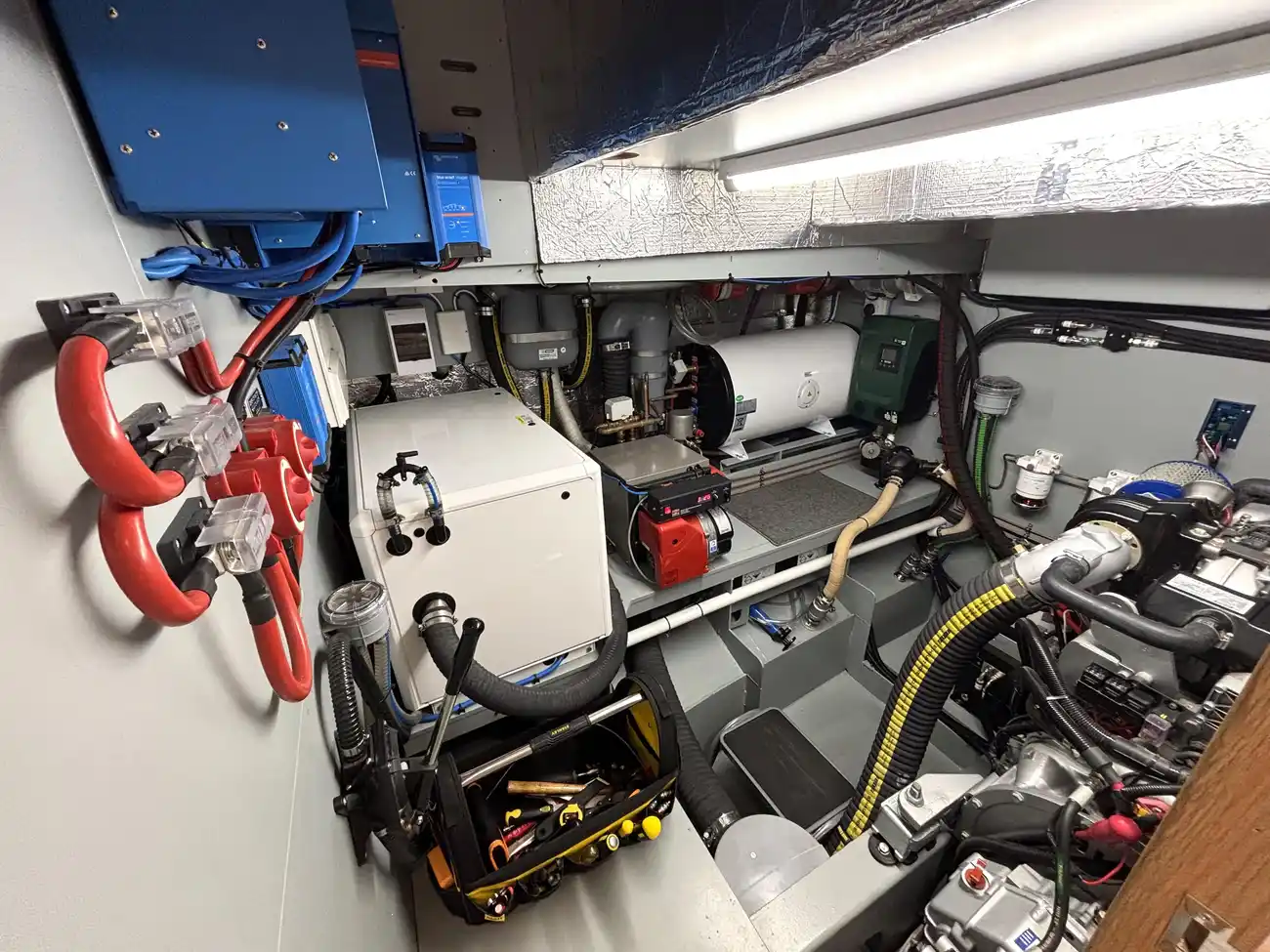

ENGINE, GENERATOR & HEATING

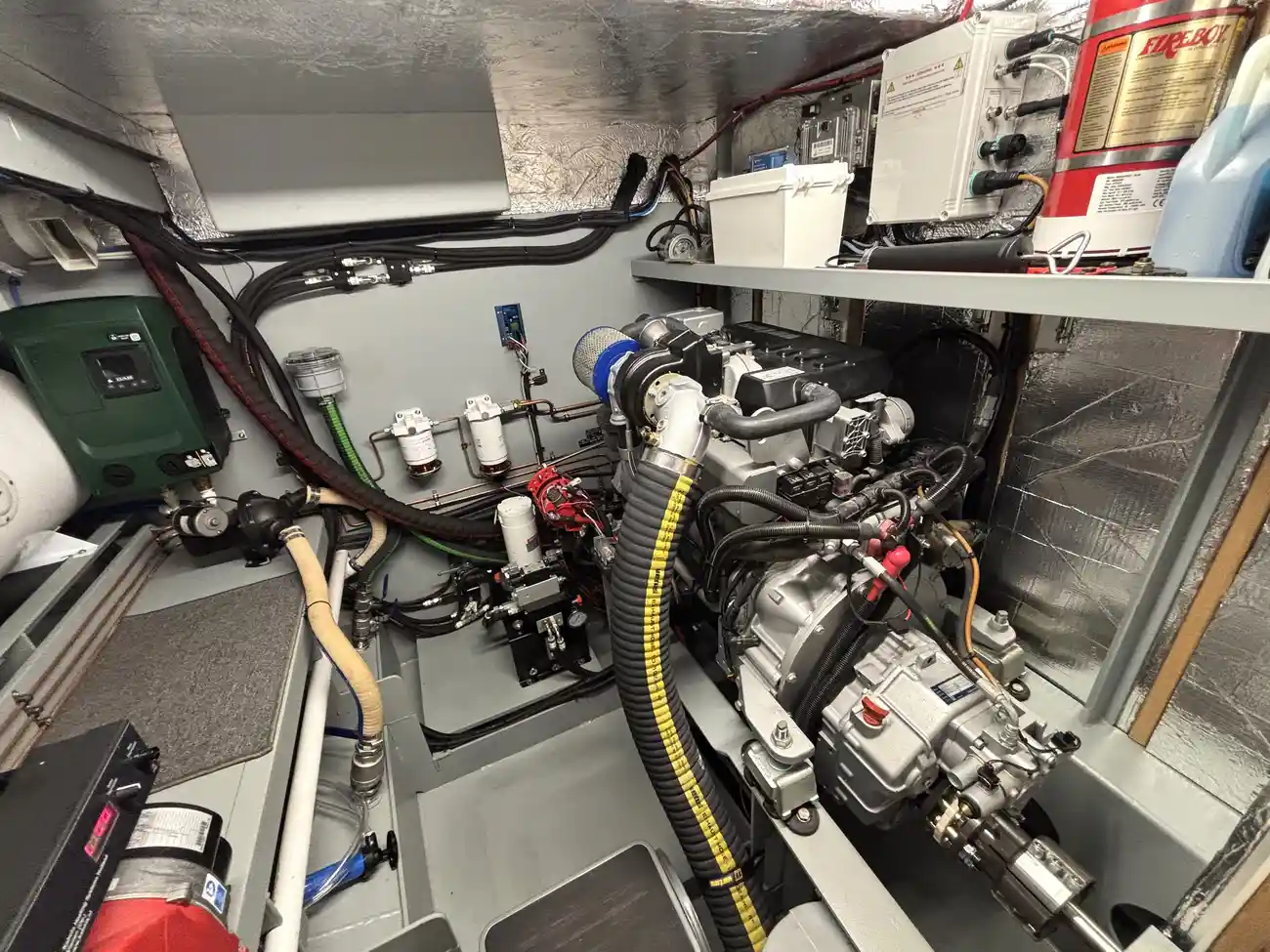

• Vetus engine with ZF45 gearbox raw water cooled
• Kabola pressure jet central heating boiler
• 75L calorifier
• 1.5kw immersion heater
• Heating via radiators

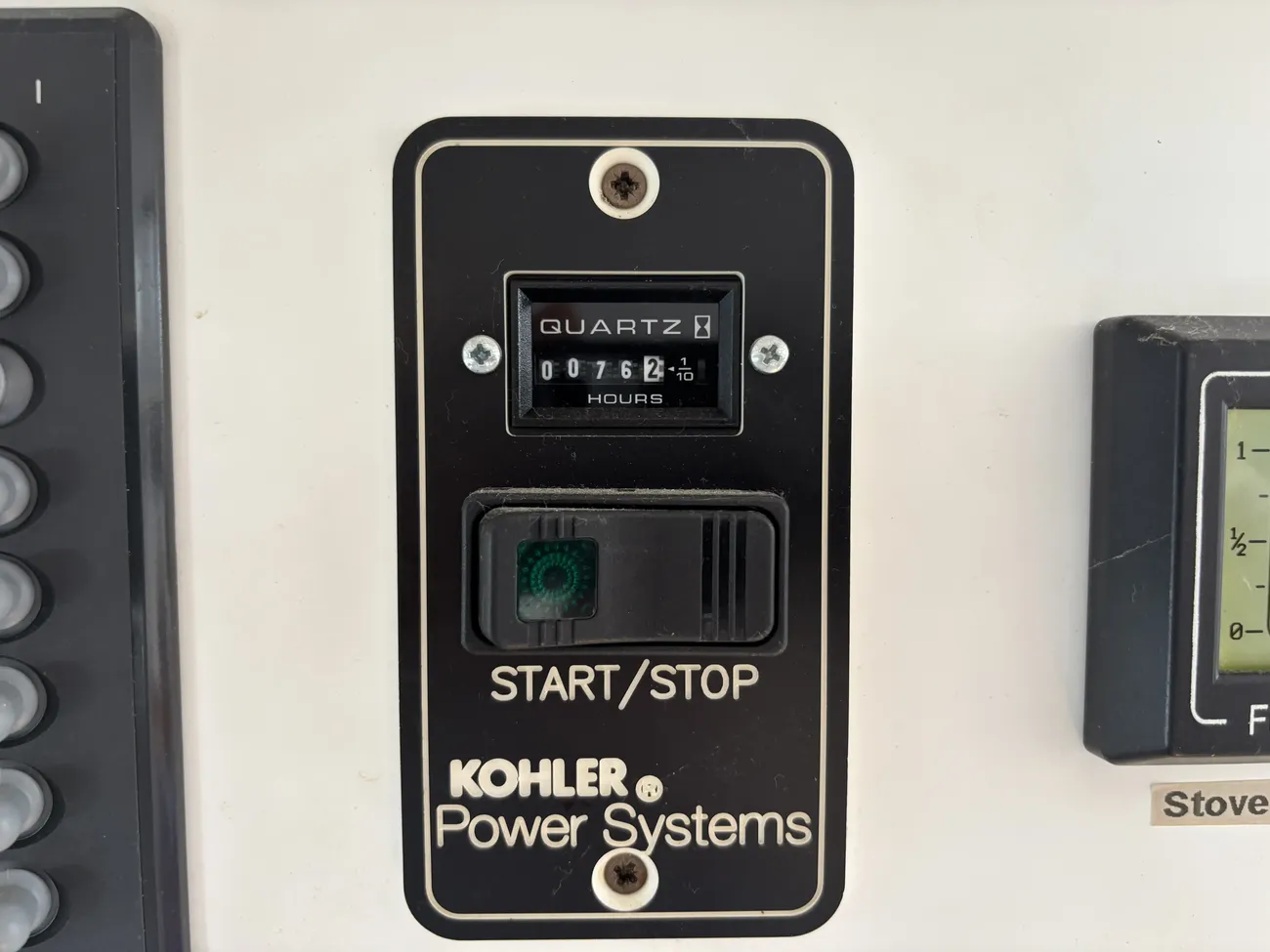

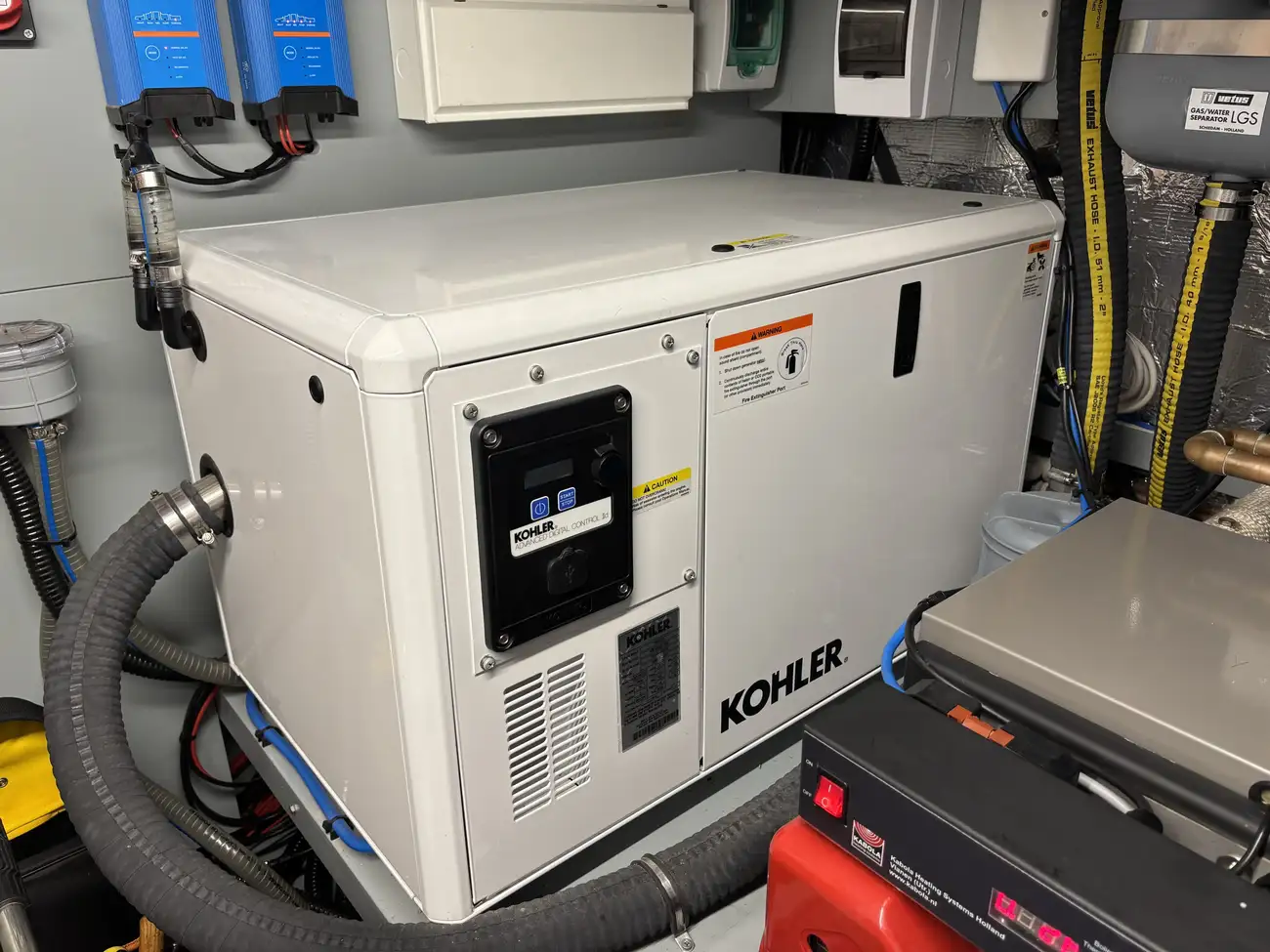

• 5kVA soundproof enclosed marine generator
• ROLLS AGM 2'volt cells in excess of 1150 a/hr (c20 rate)
• VETUS AGM batteries for thrusters & engine start

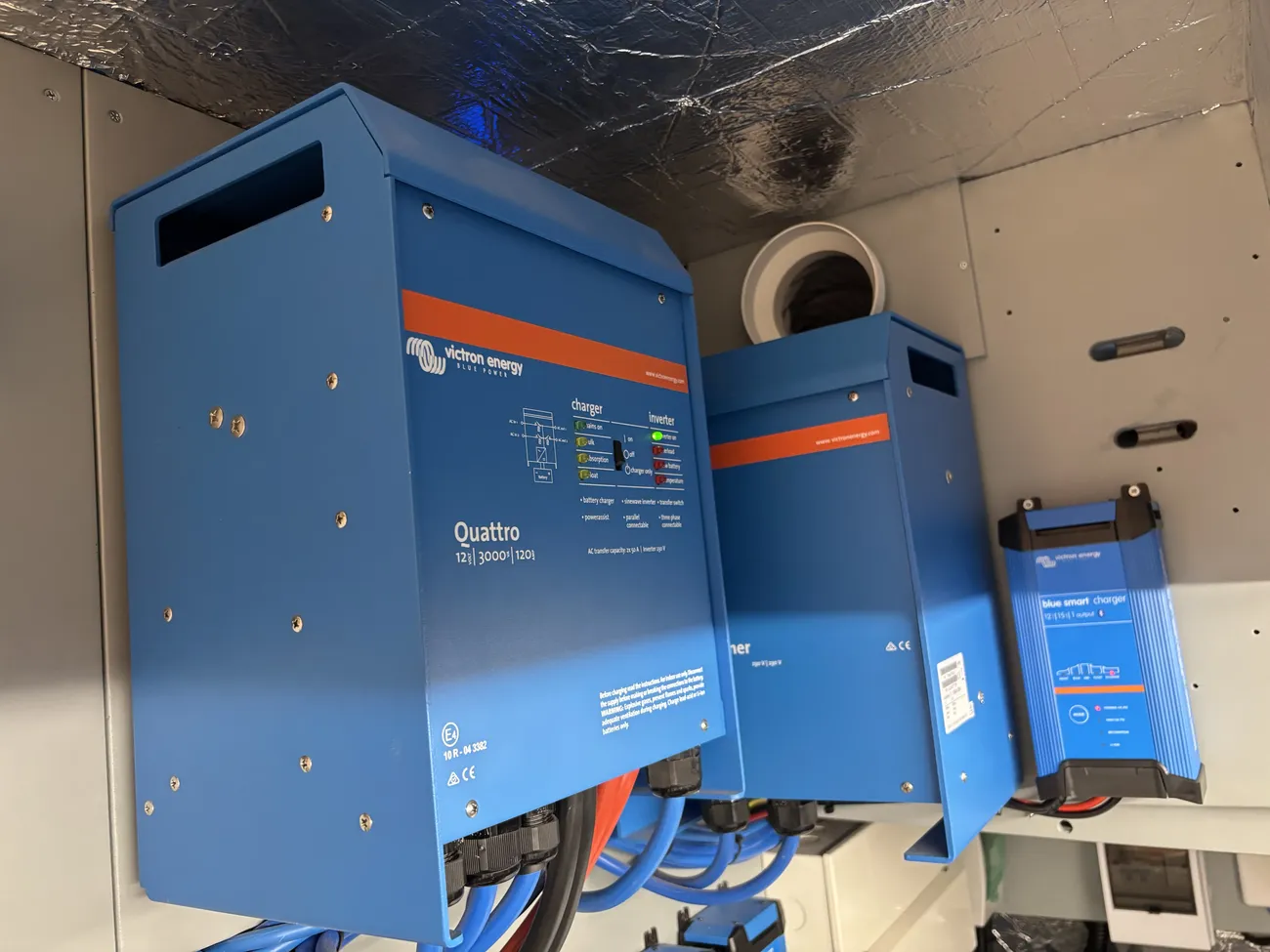

• 3kW Victron Quattro inverter/charger
• Victron Isolation Transformer 3.6kW
• 150kg.f proportional electric bow thruster
• 90kg.f proportional electric stern thruster
• Electric Anchor Winch • Electro'hydraulic power steering

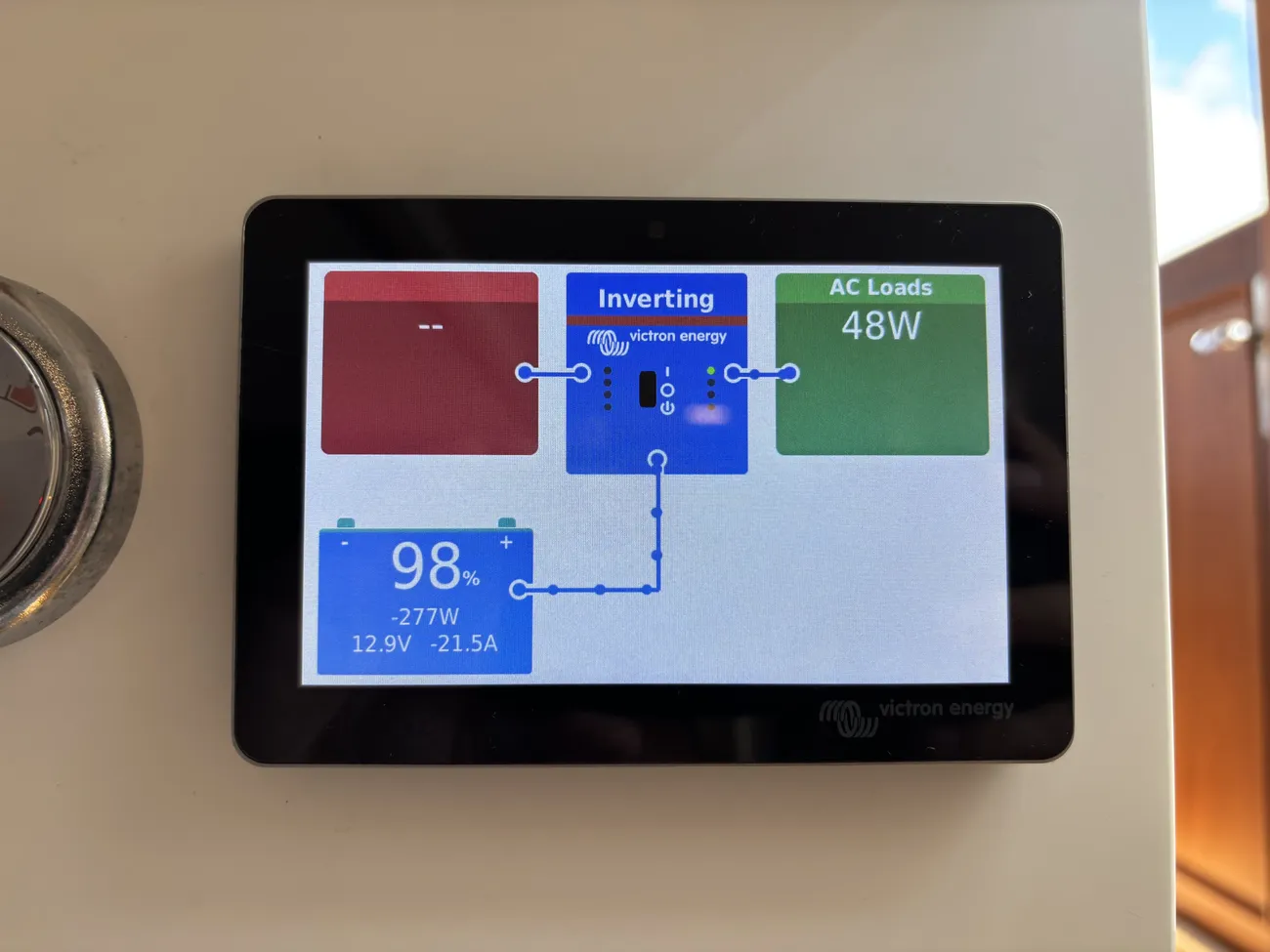

• Victron Battery and Remote Management system with touchscreen panel
• Twin Alternators 12V

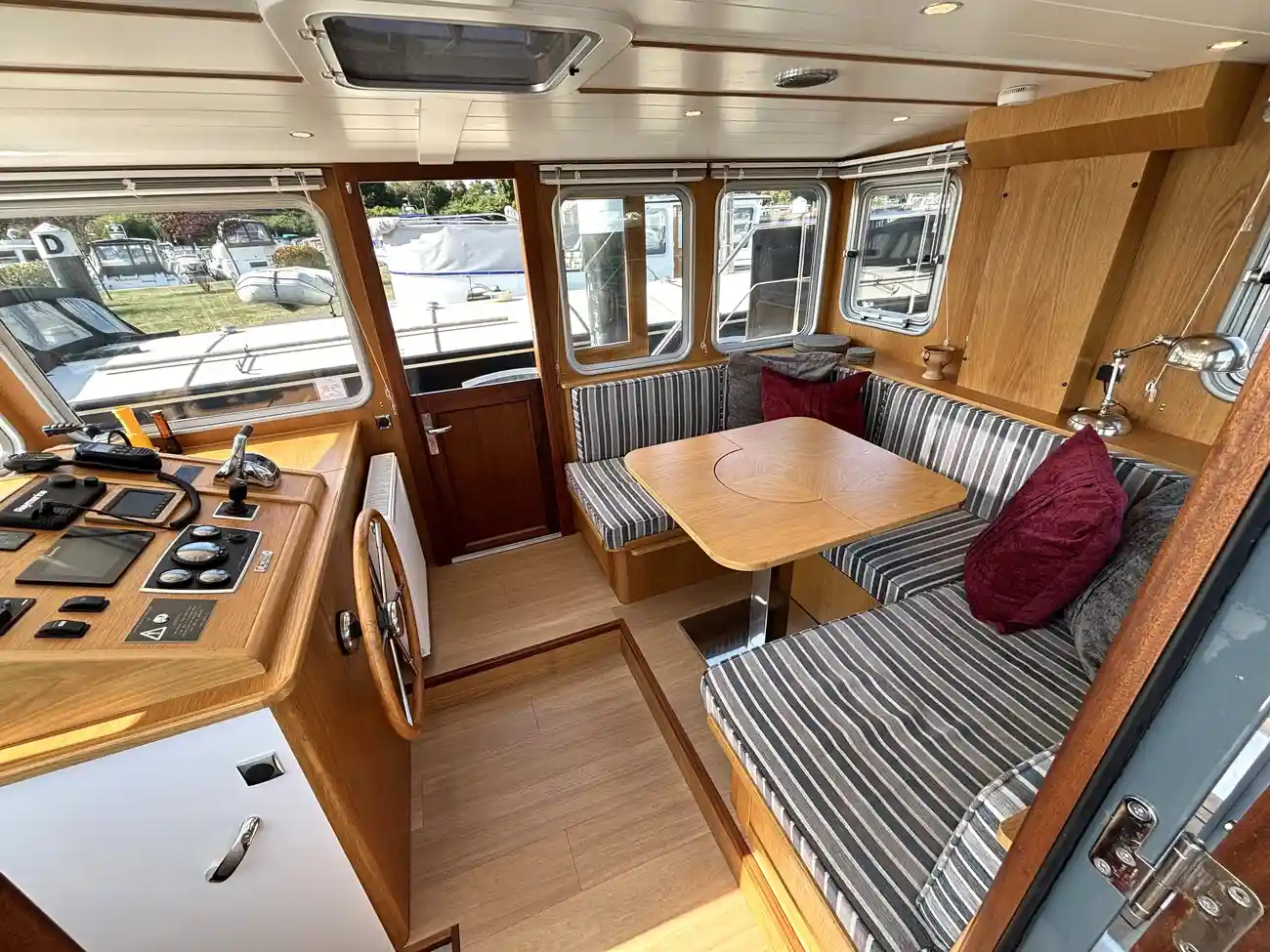

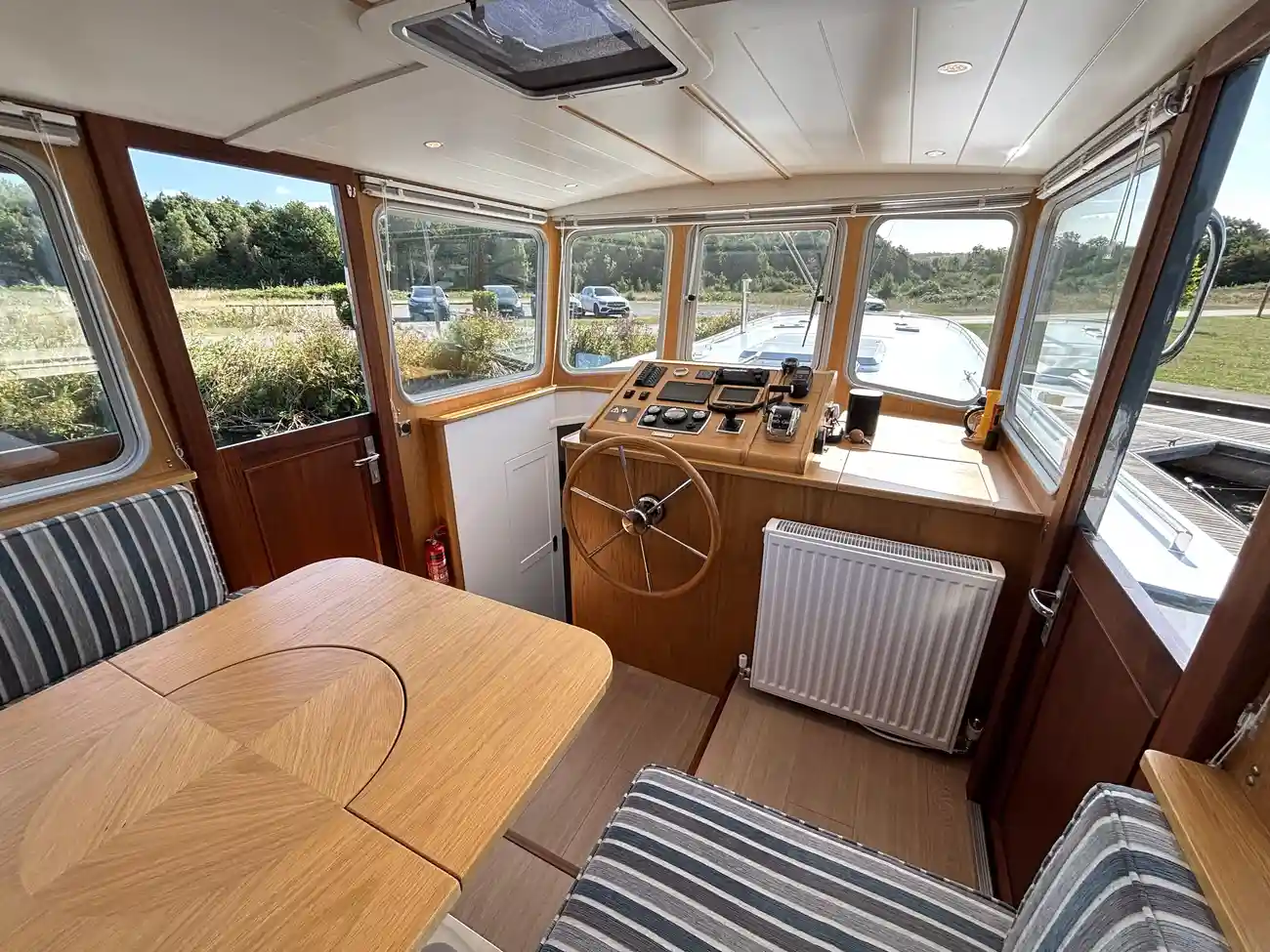

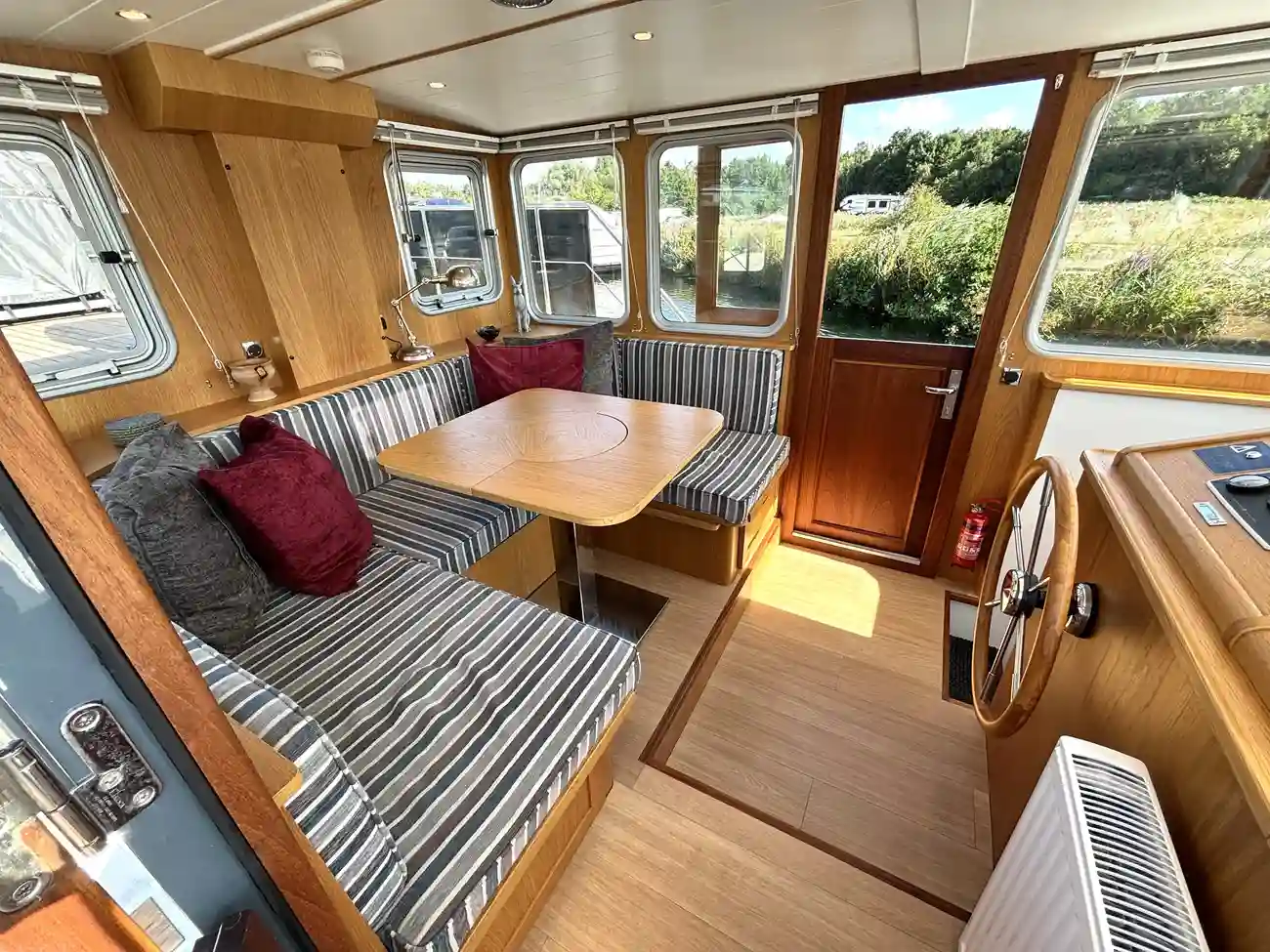

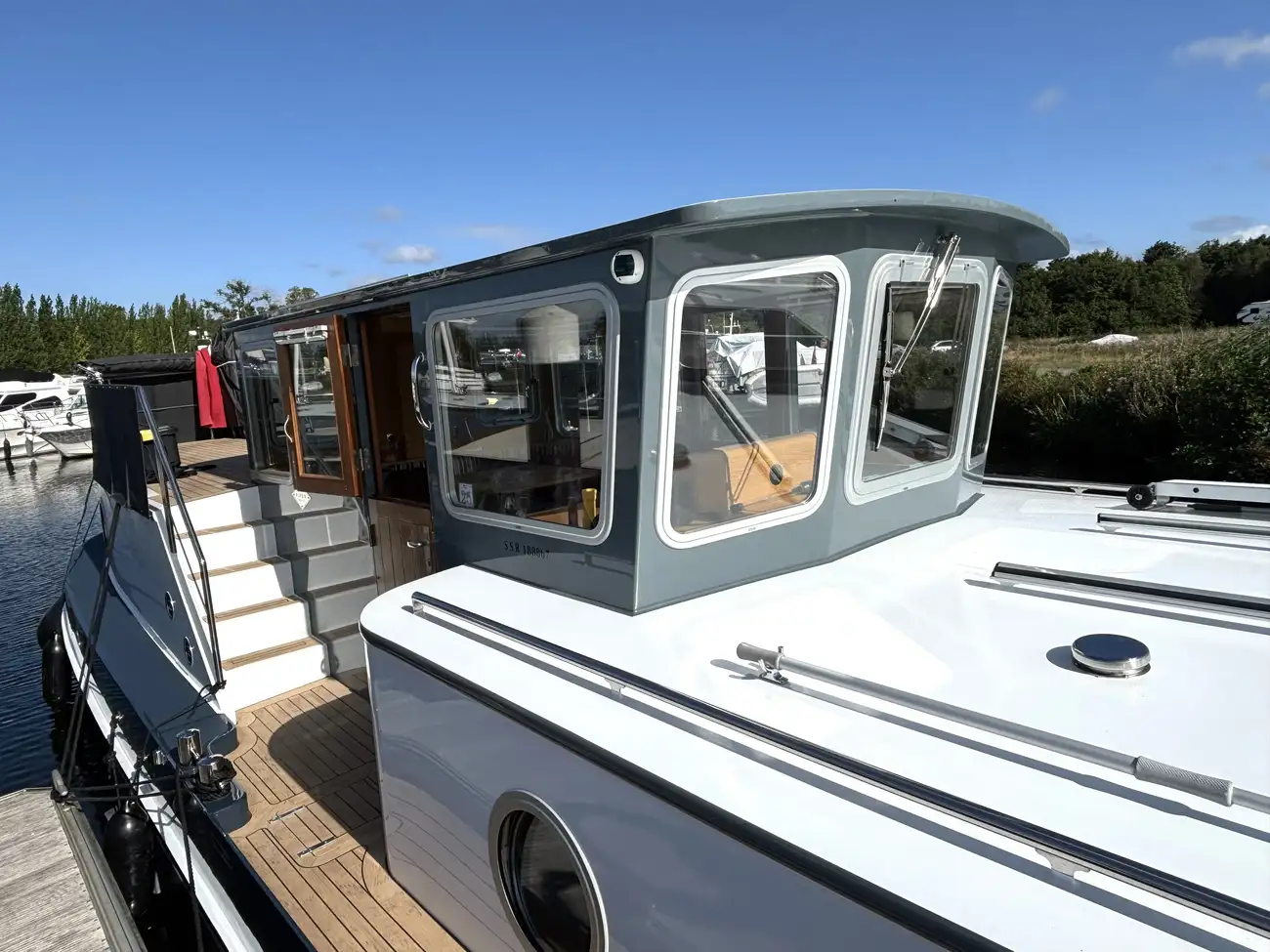

WHEELHOUSE

• Fixed steel wheelhouse
• Lined with sapele
• Removable table with drop down leaf converts into a double bed
• Seating for 4 people
• Access to engine room via passageway under wheelhouse

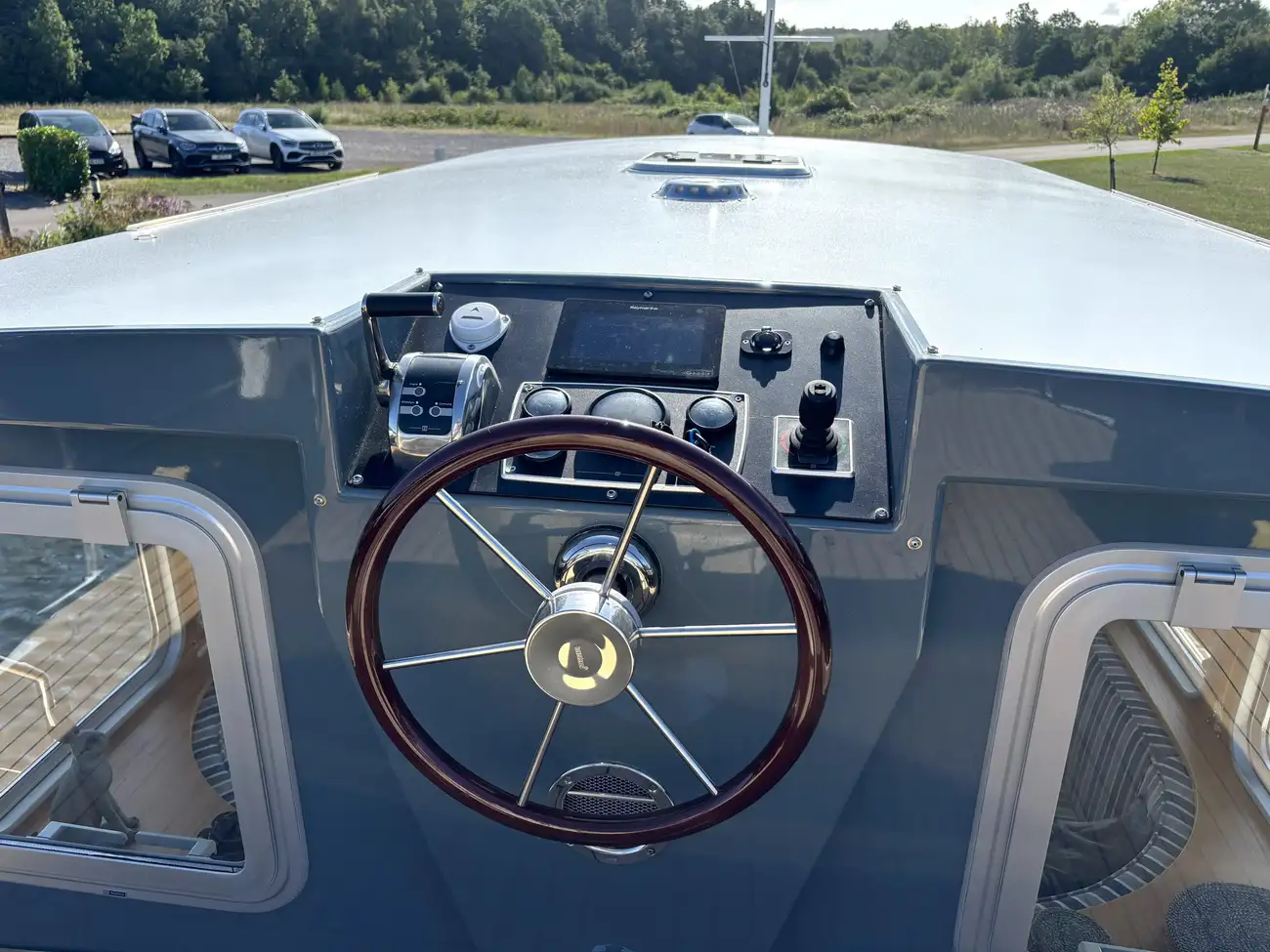

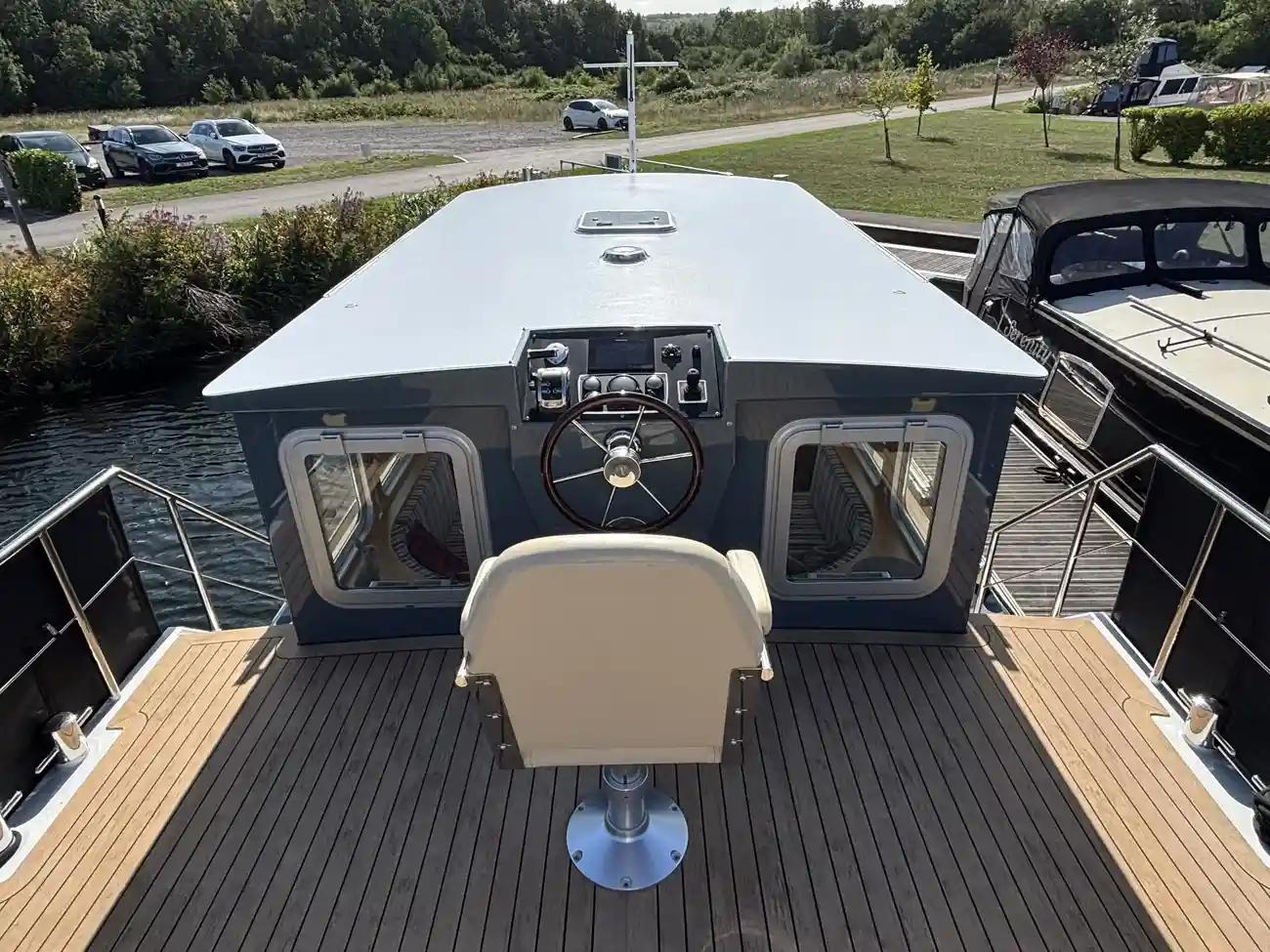

UPPER HELM

• RPI (Rudder Position Indicator) + Depth Gauge
• Engine panel & controls
• Joystick proportional thruster controls
• Raymarine 7” chart plotter with basic mapping

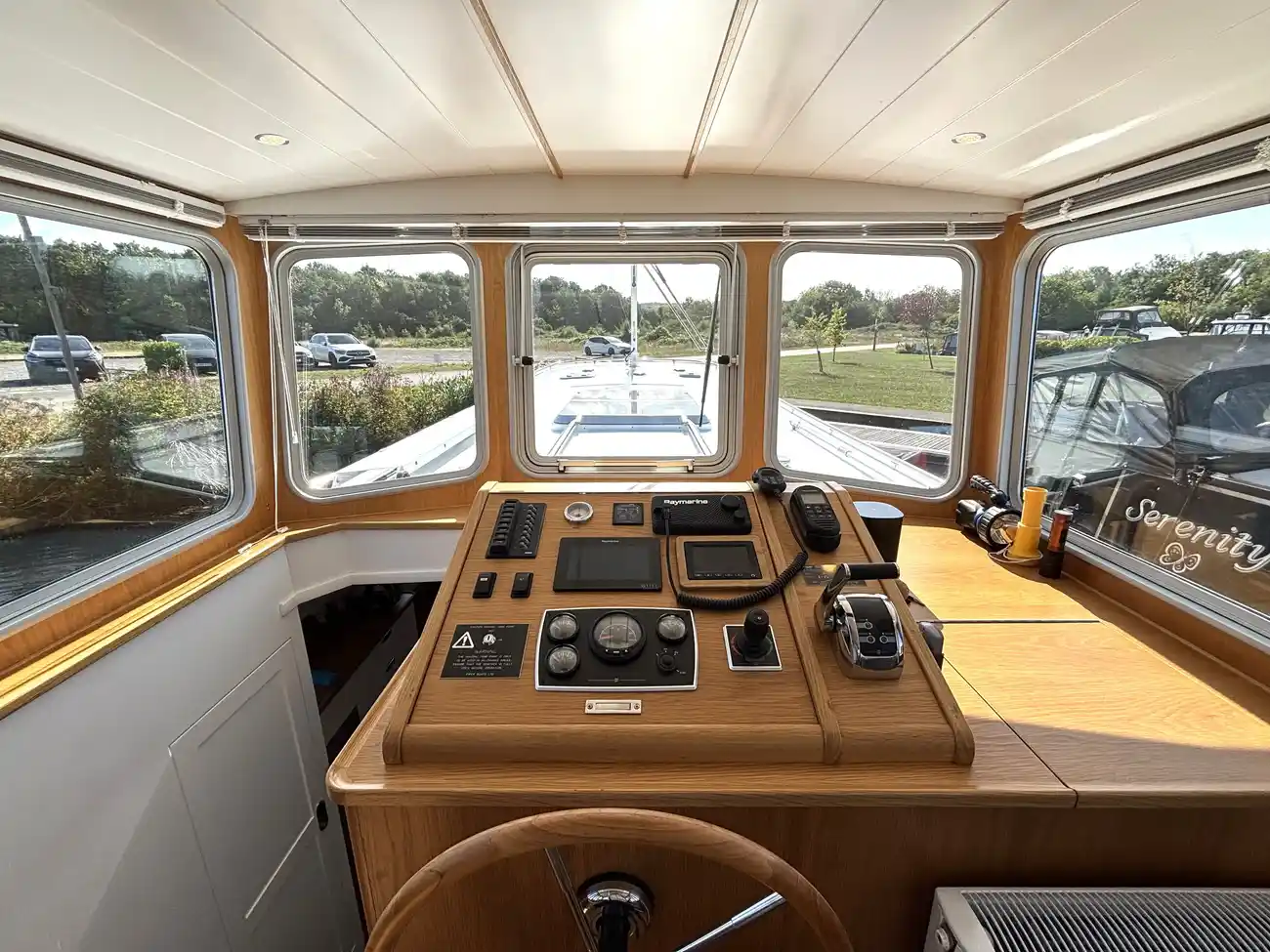

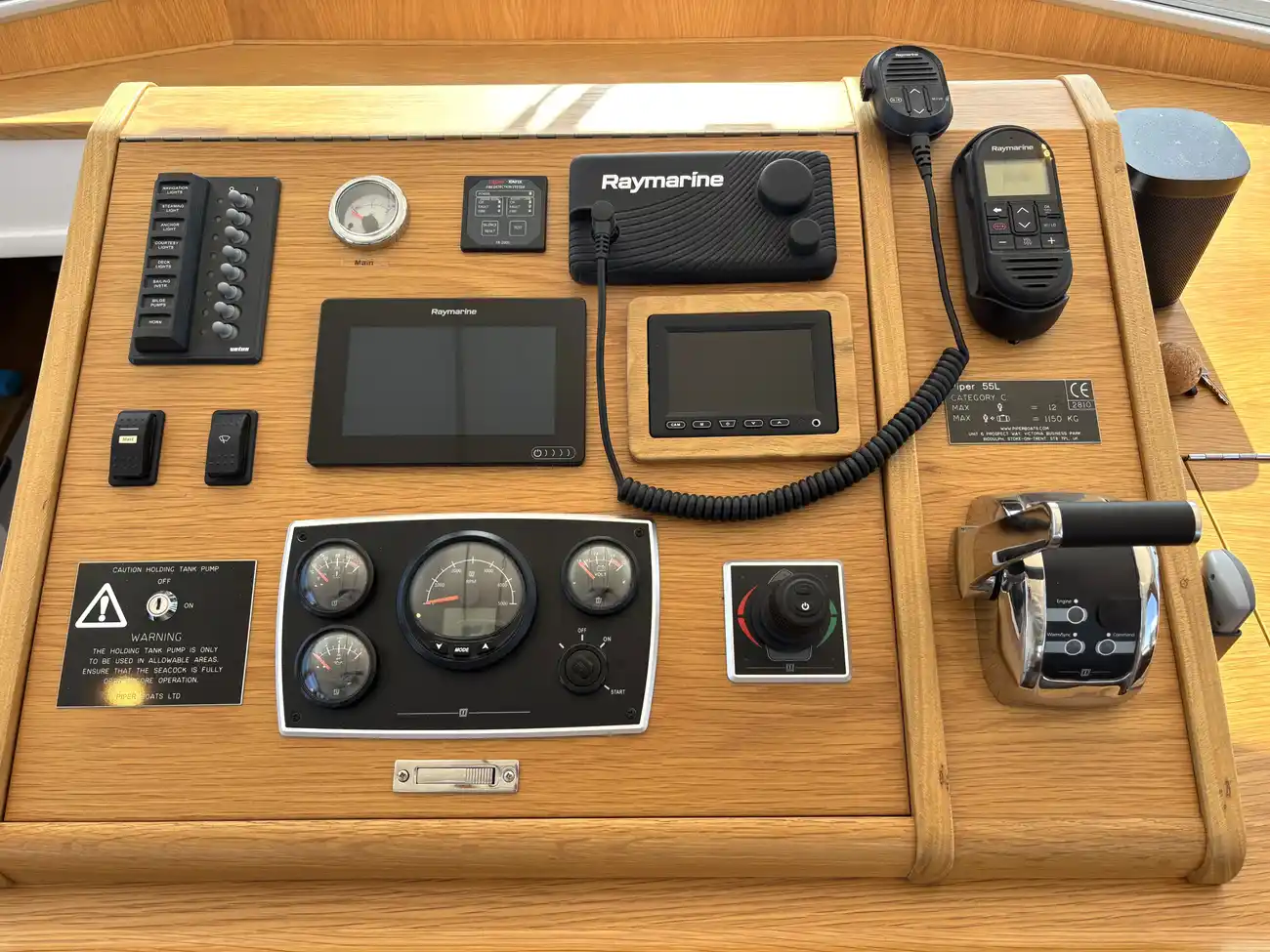

DASHBOARD

• Raymarine 7” chart plotter with basic mapping
• Raymarine VHF Radio DSC
• RPI (Rudder Position Indicator) + Depth Gauge
• Engine panel & controls
• Joystick proportional thruster controls

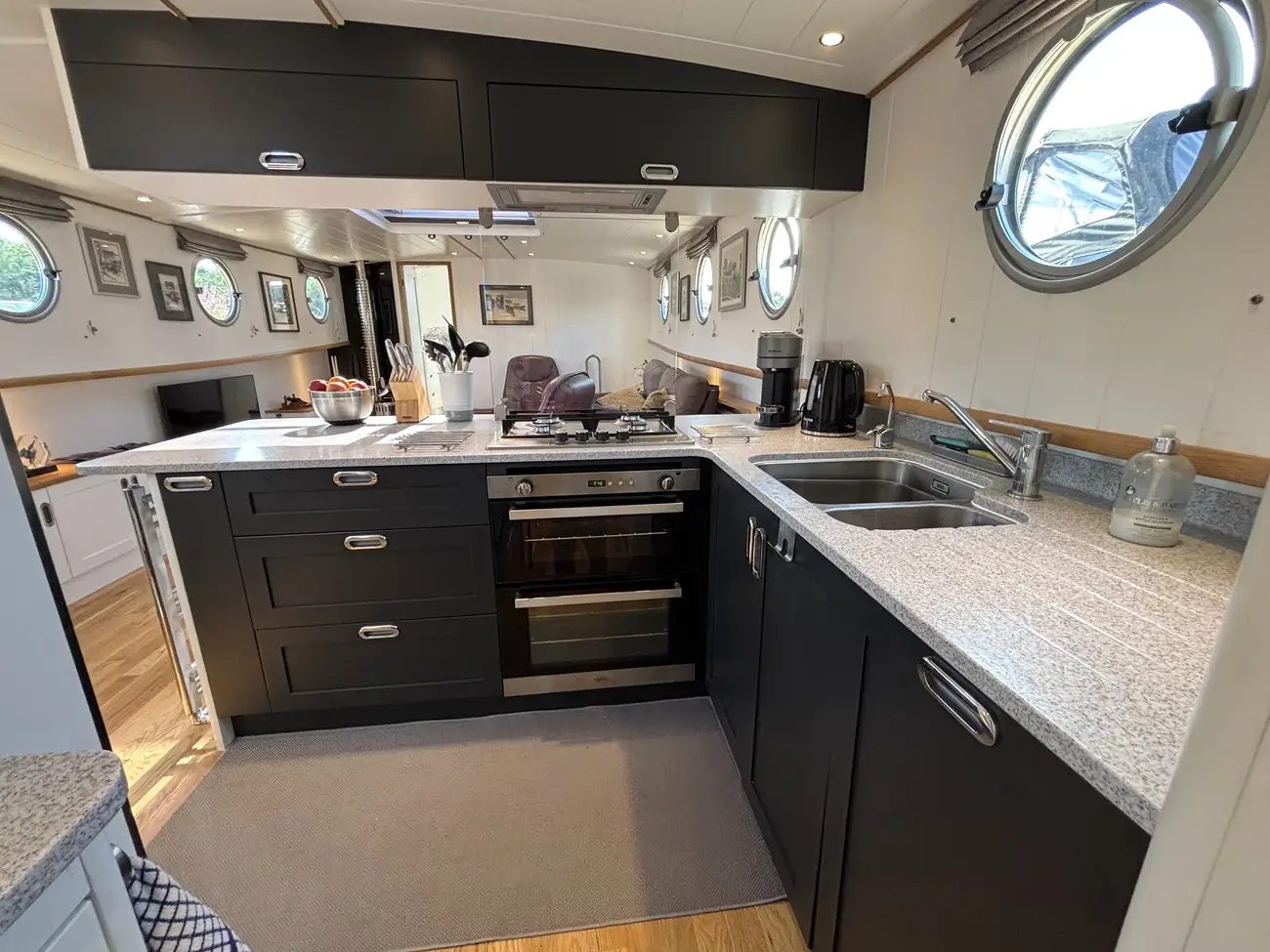

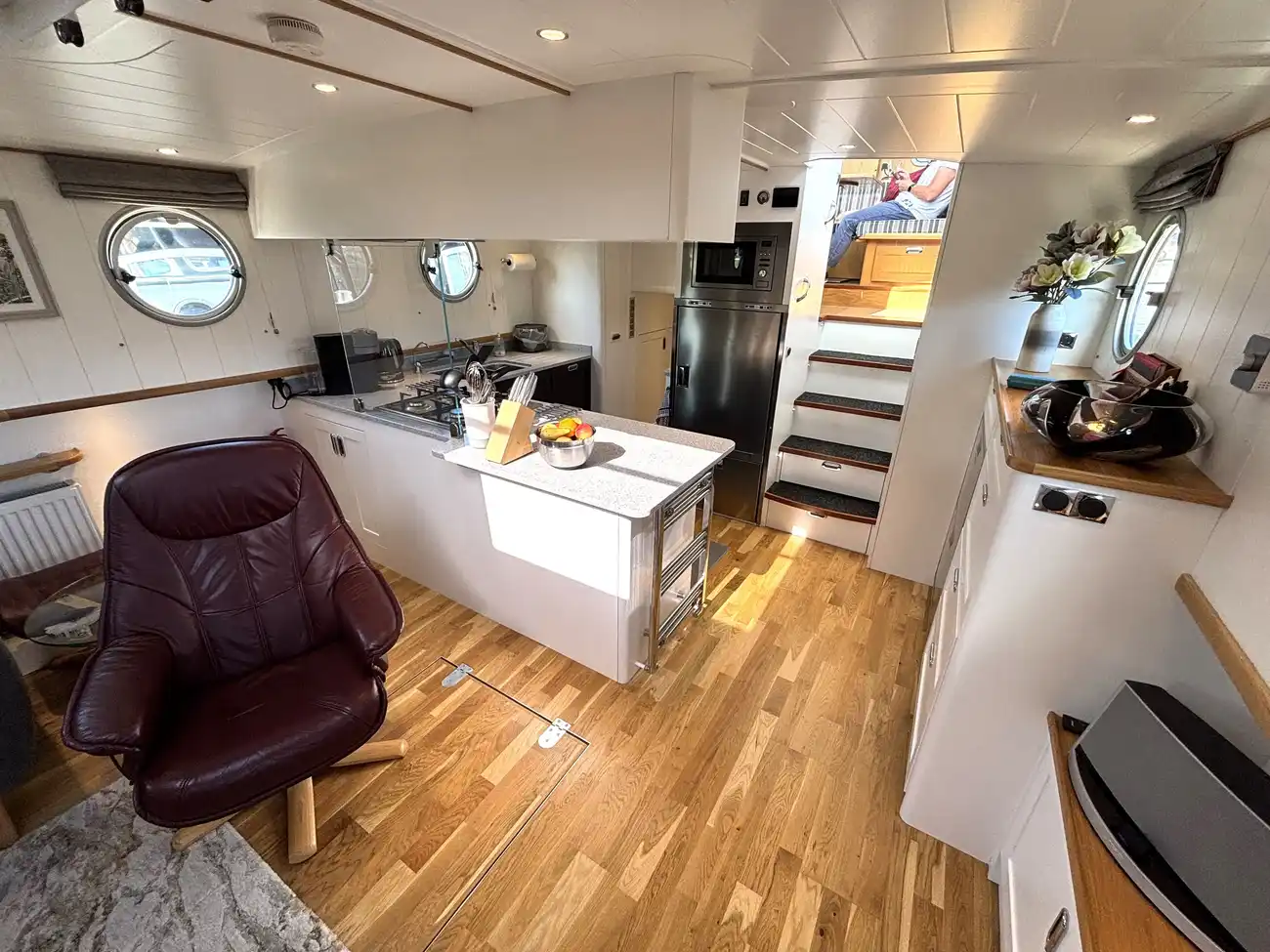

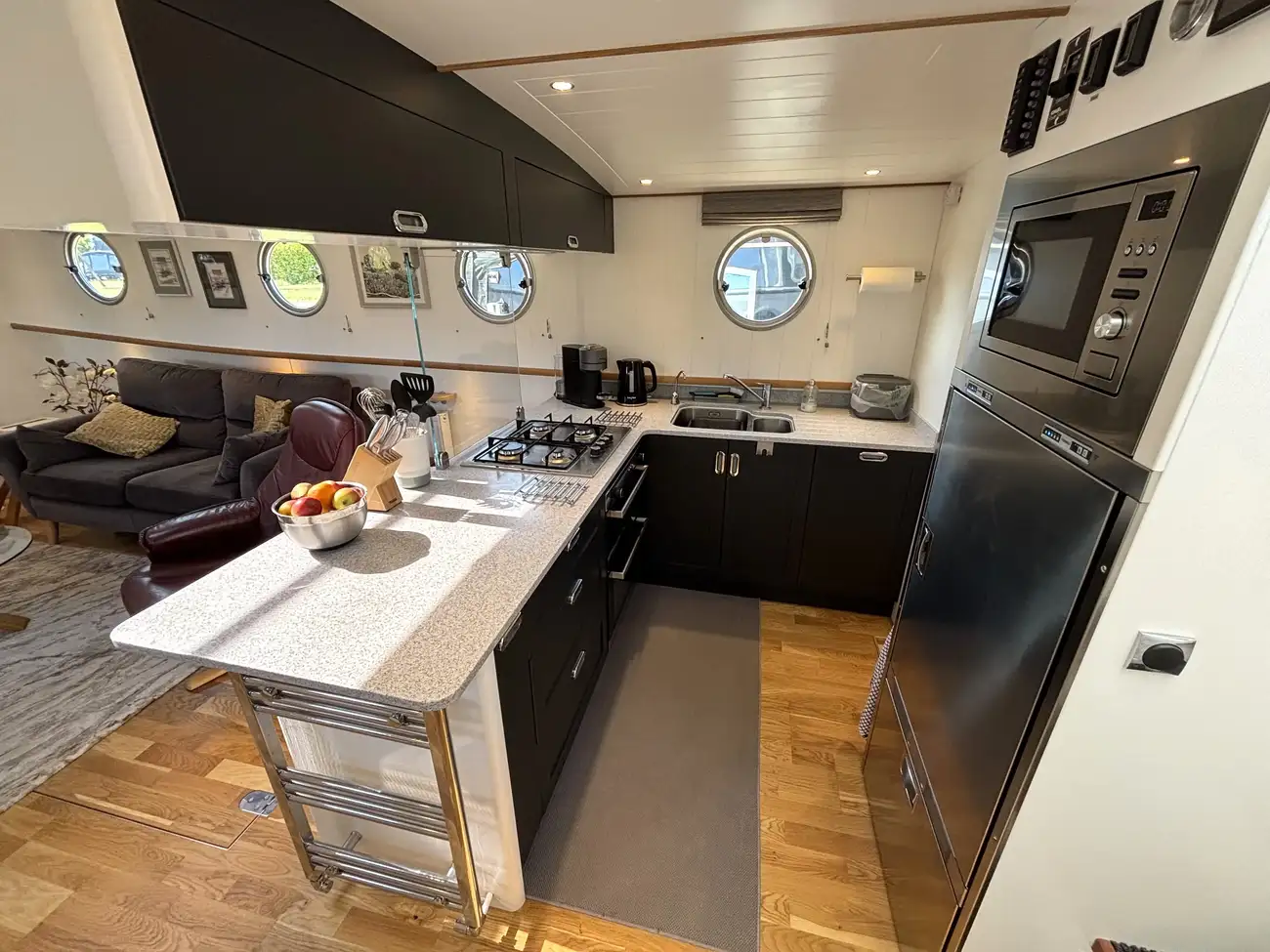

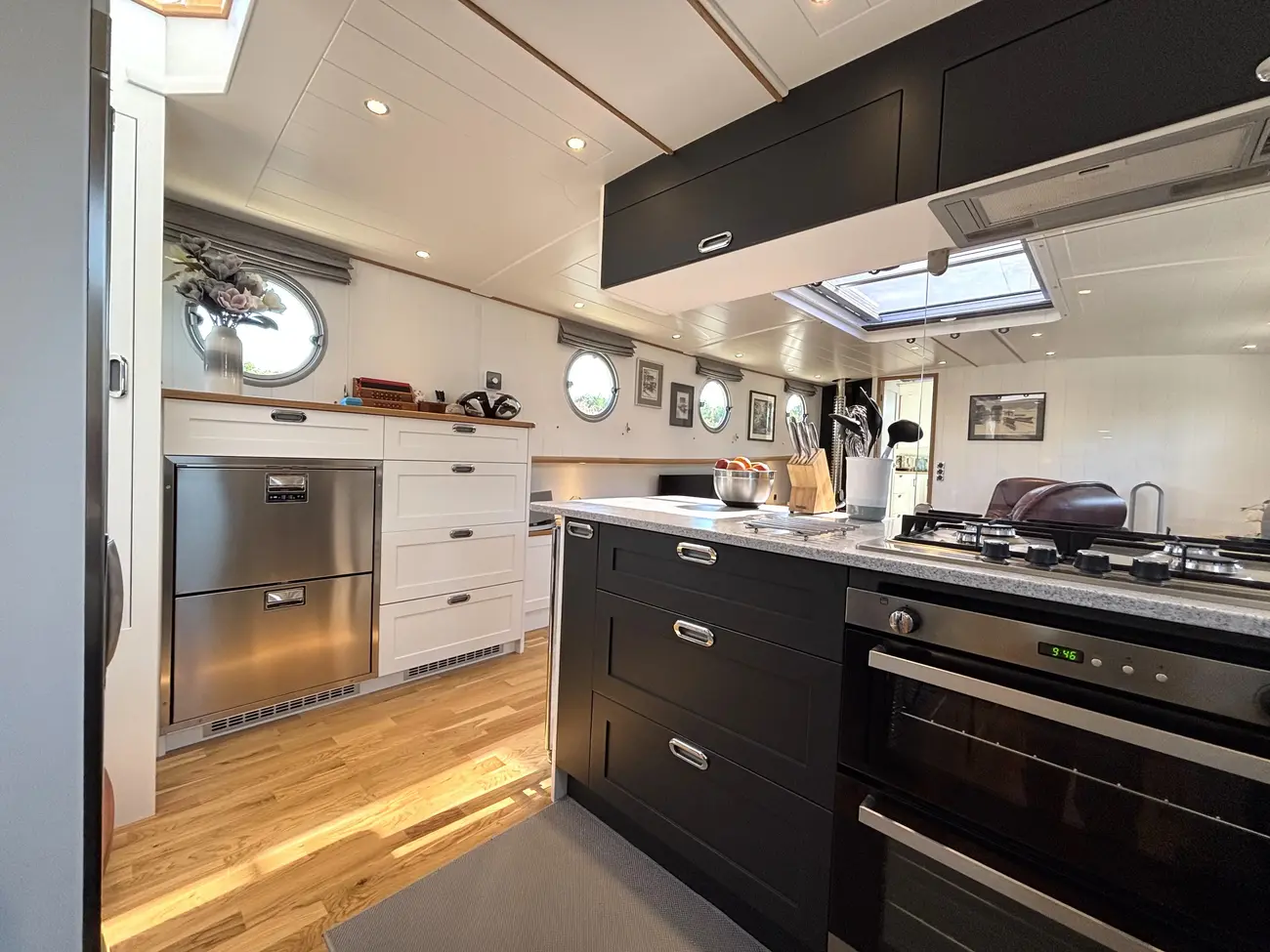

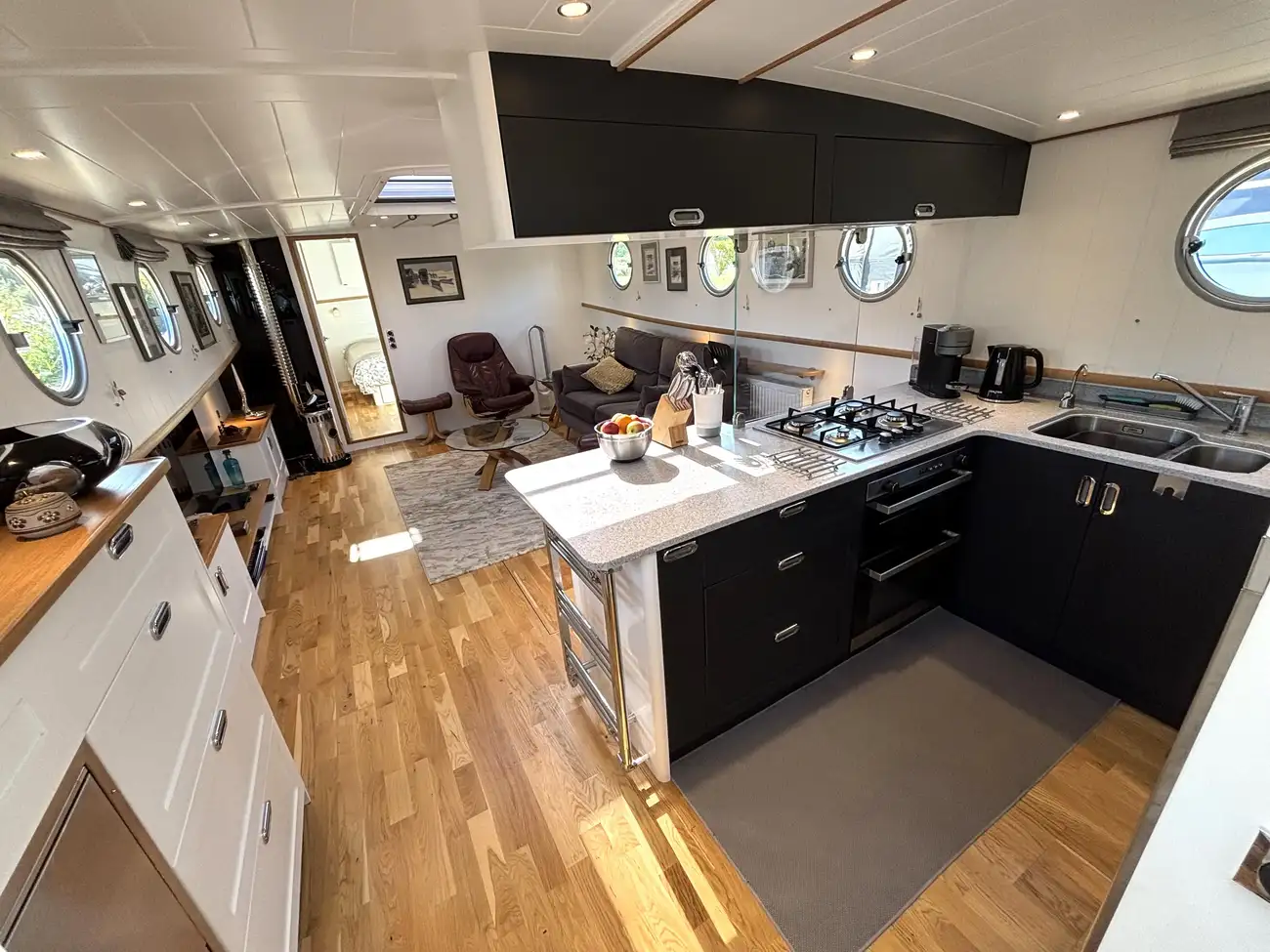

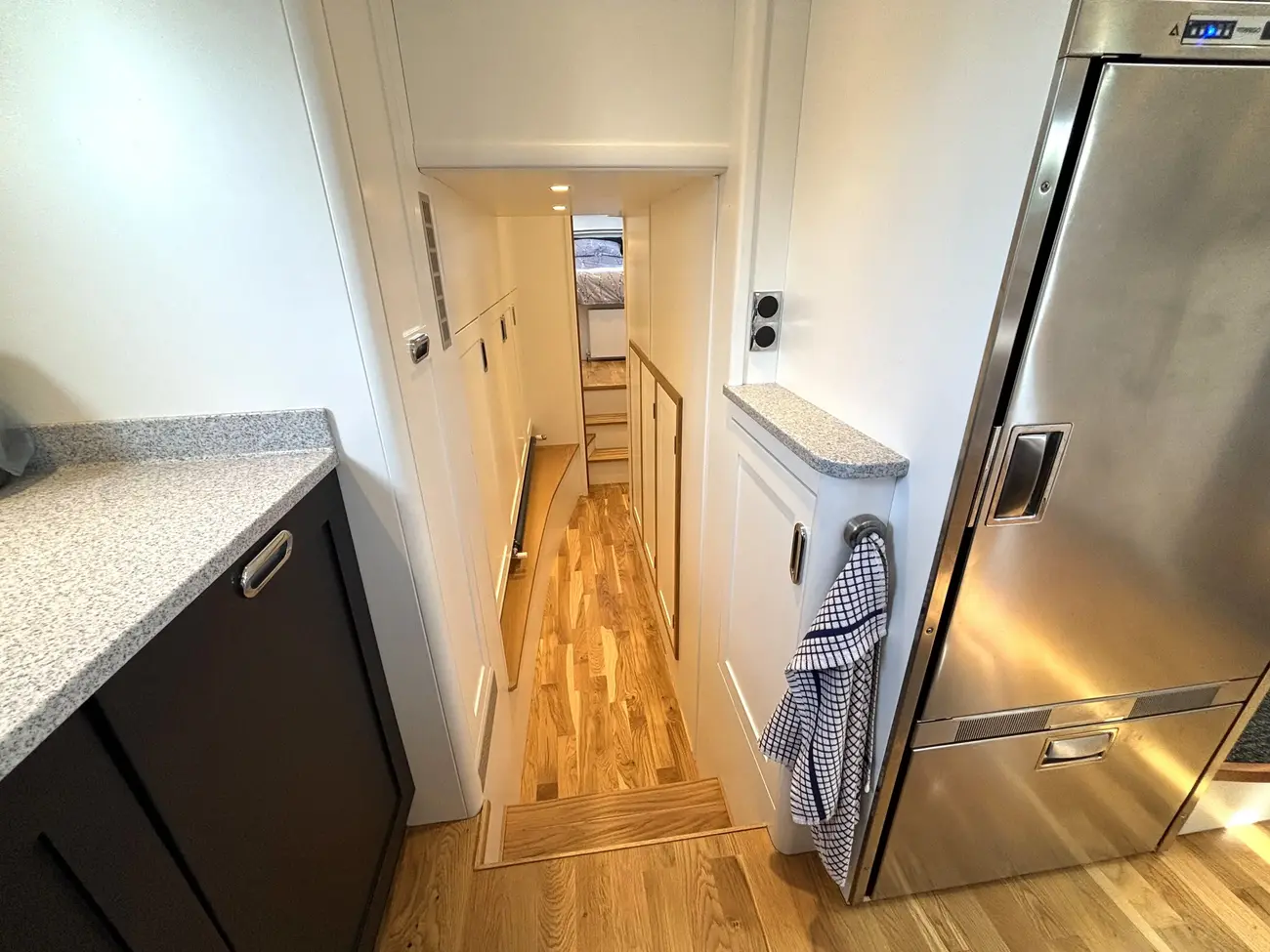

GALLEY

• Fitted with premium oak plywood
• Shaker style hardwood oak doors
• Composite work tops with waterfall edges
• Stainless steel inset sink

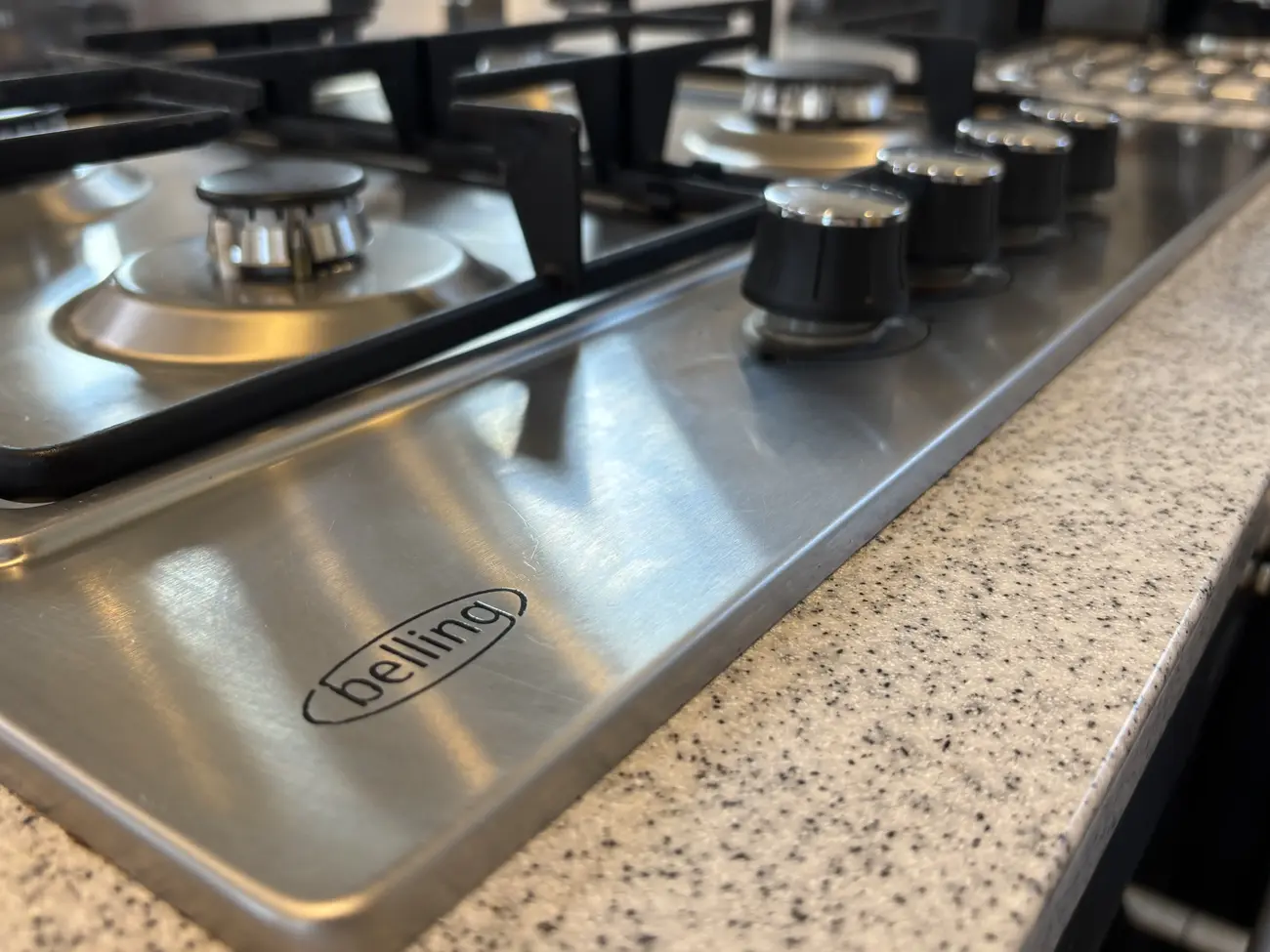

• Gas hob and oven with an extractor hood
• Built in microwave
• Vitrifrigo marine fridge freezer 12v
• Slimline Dishwasher
• Washer/dryer
• Engineered wooden flooring

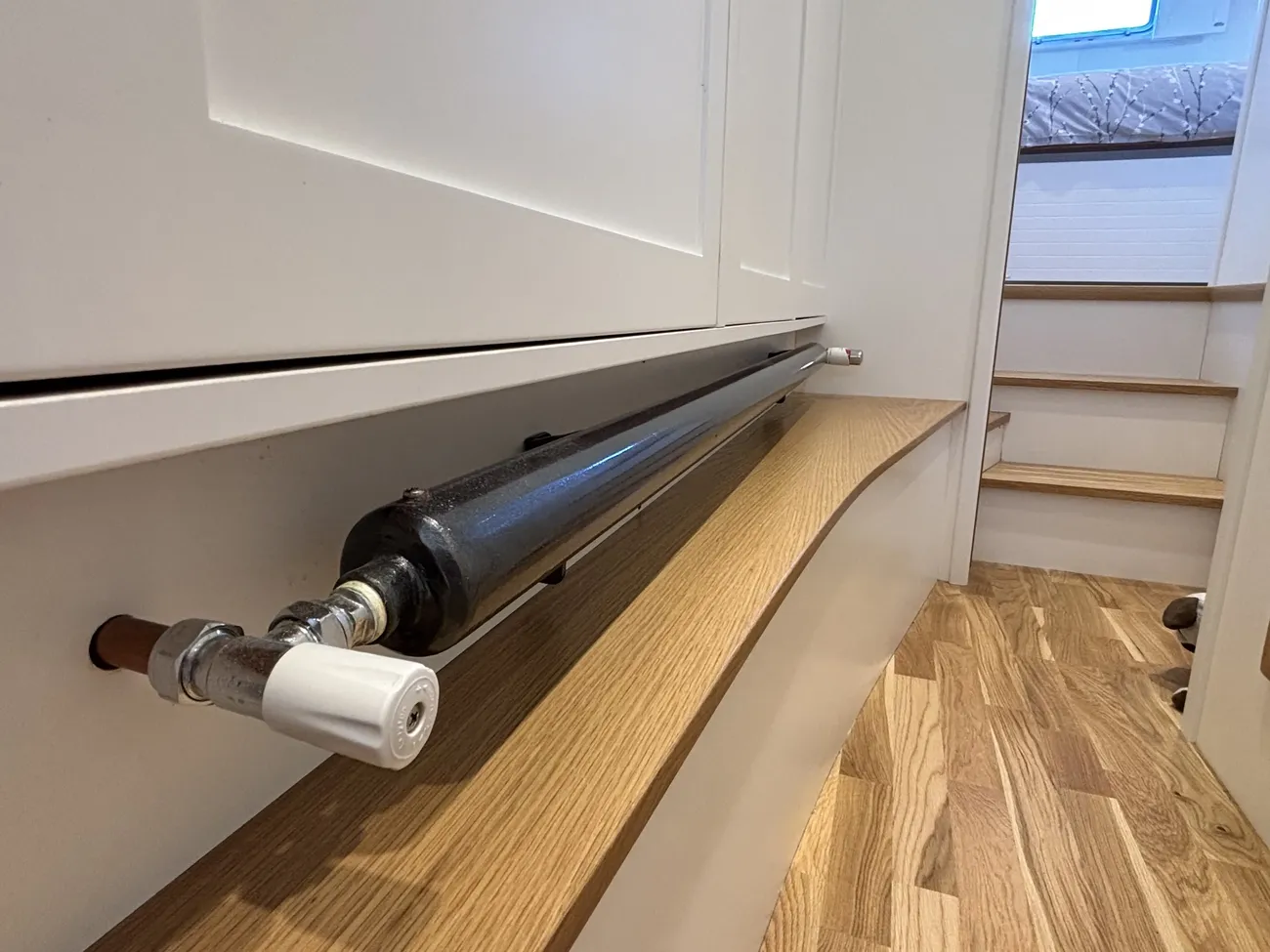

• Central heating plinth heater

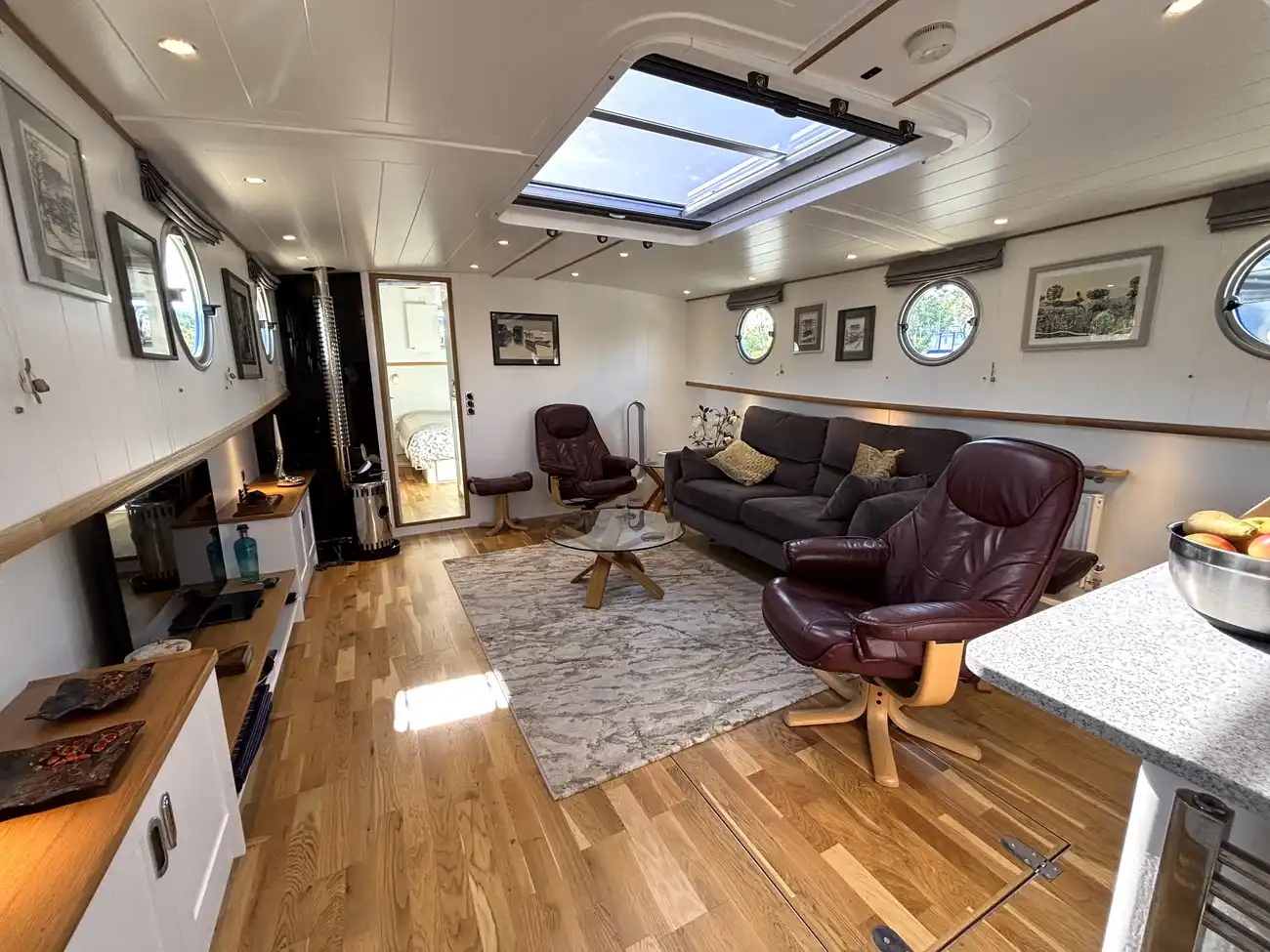

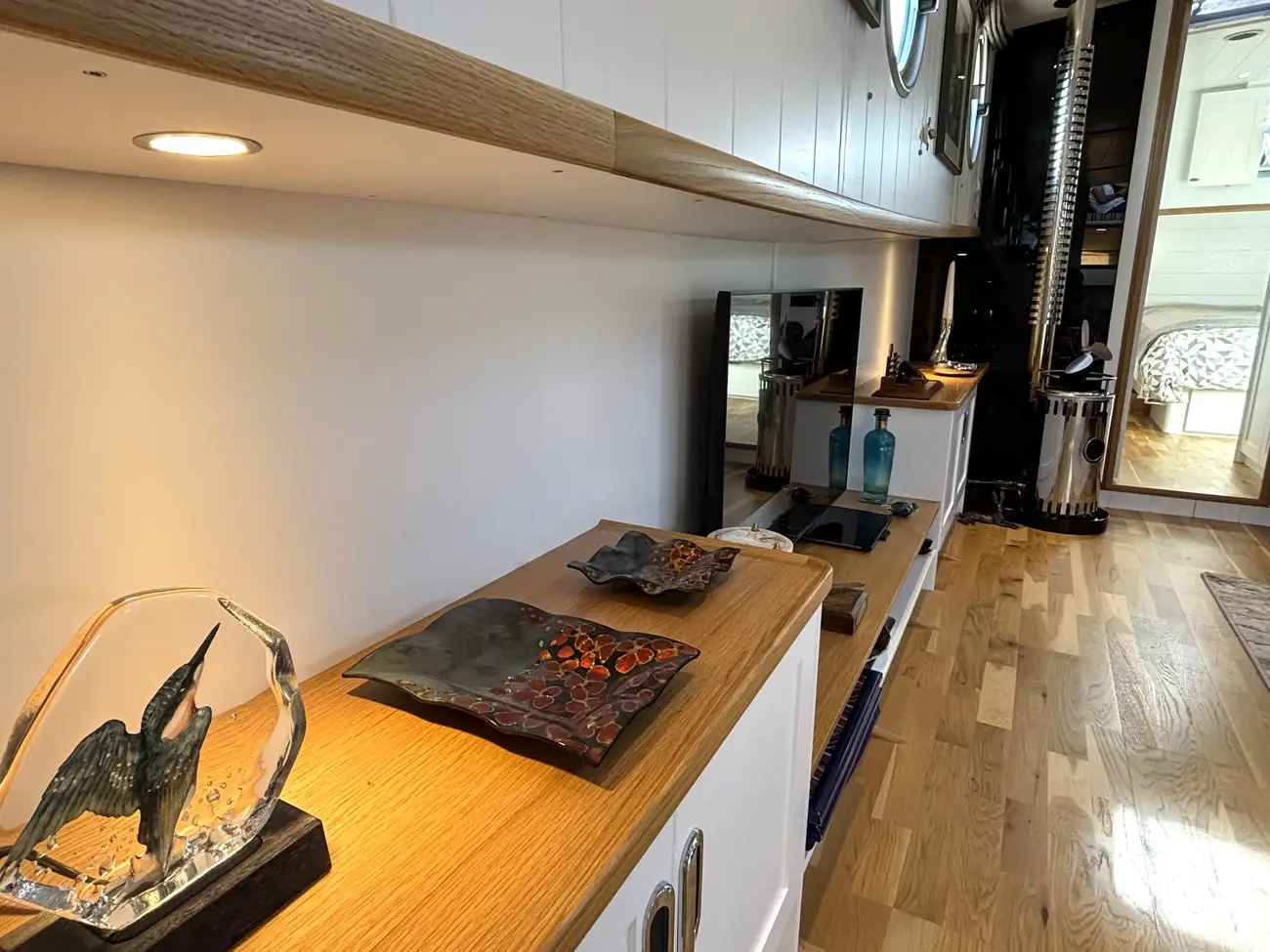

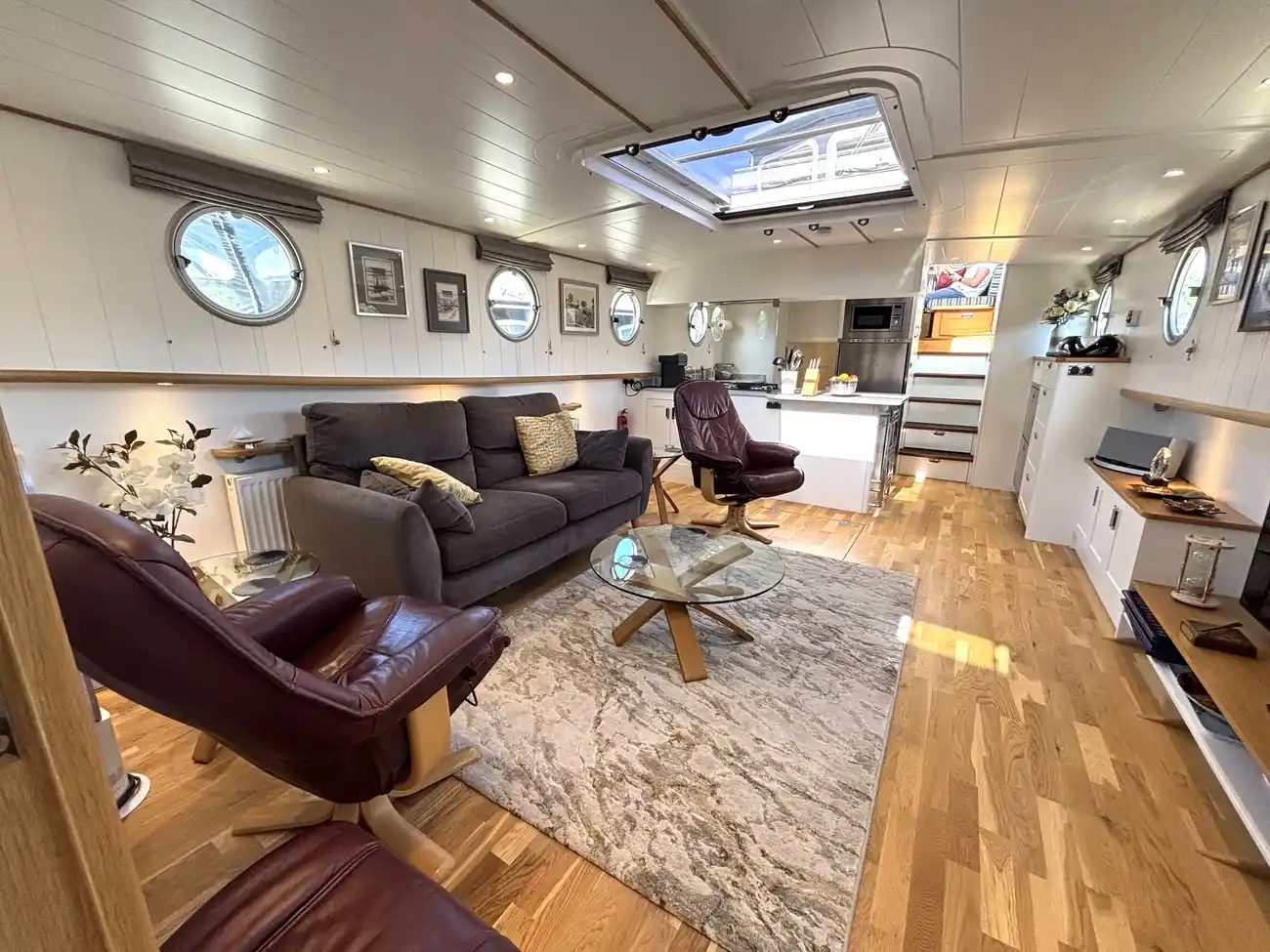

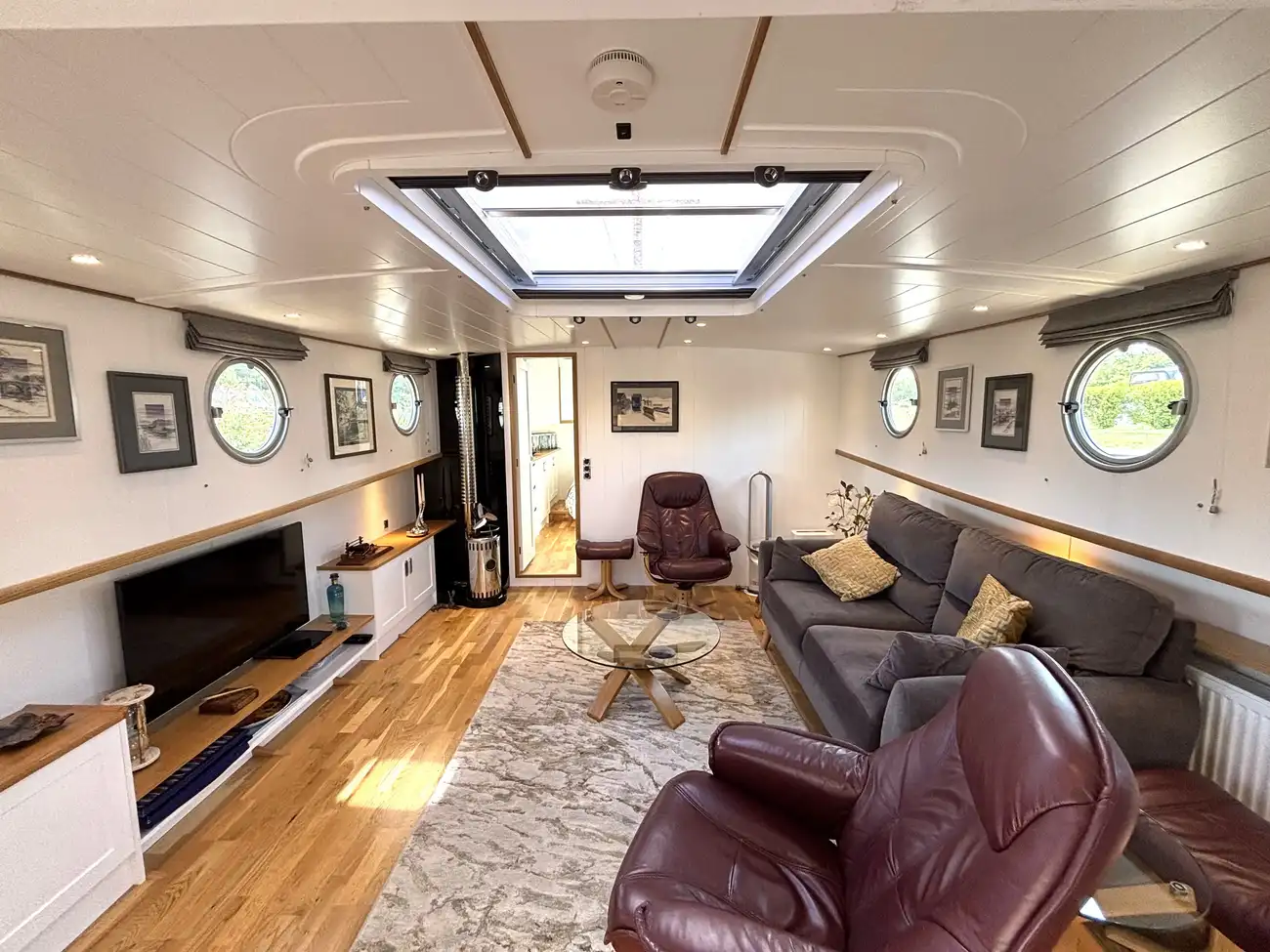

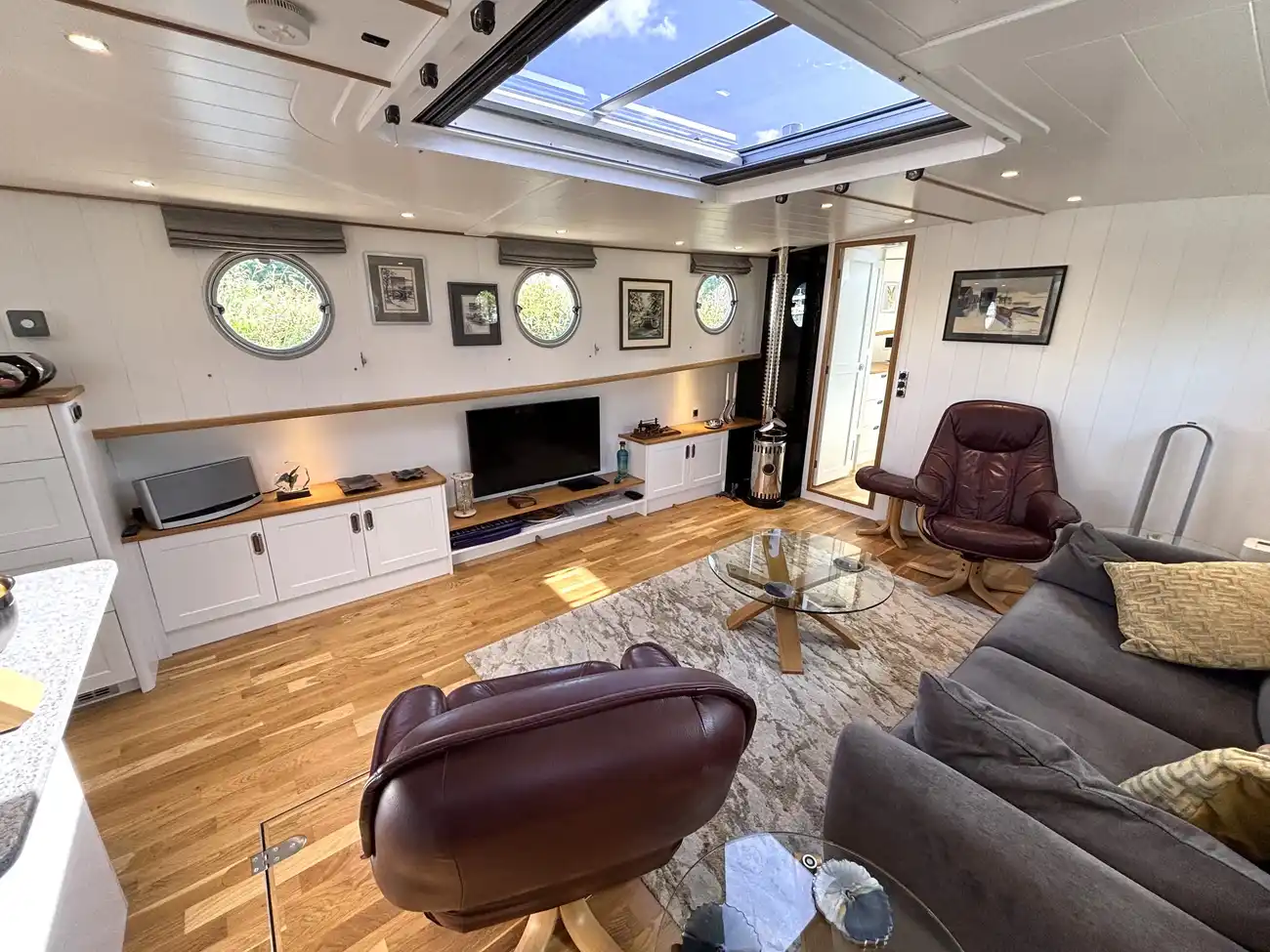

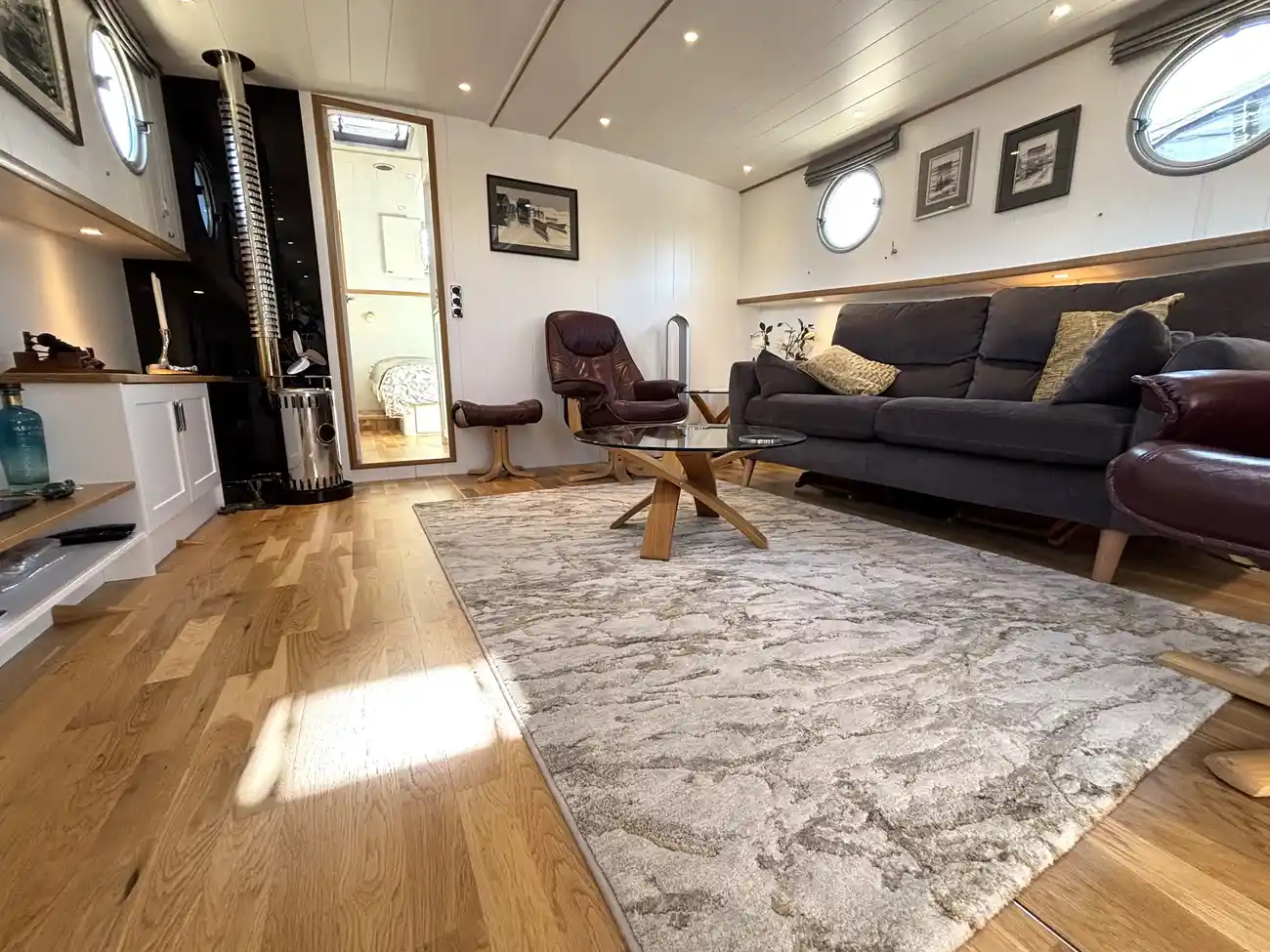

SALOON

• Under floor storage/cellar
• Engineered wooden flooring
• Refleks 2000KT diesel stove
• TV & Audio
• Large central heating radiator

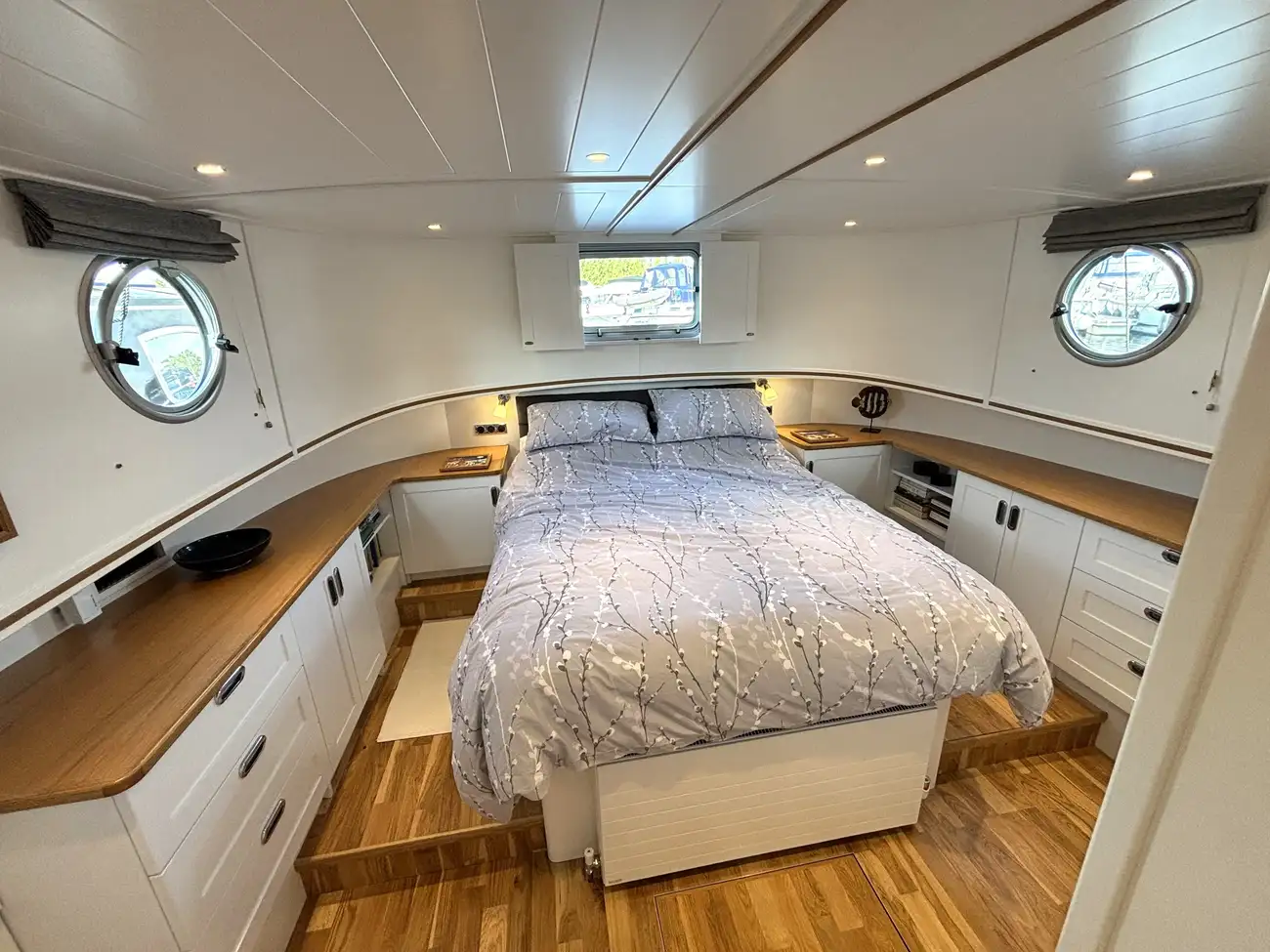

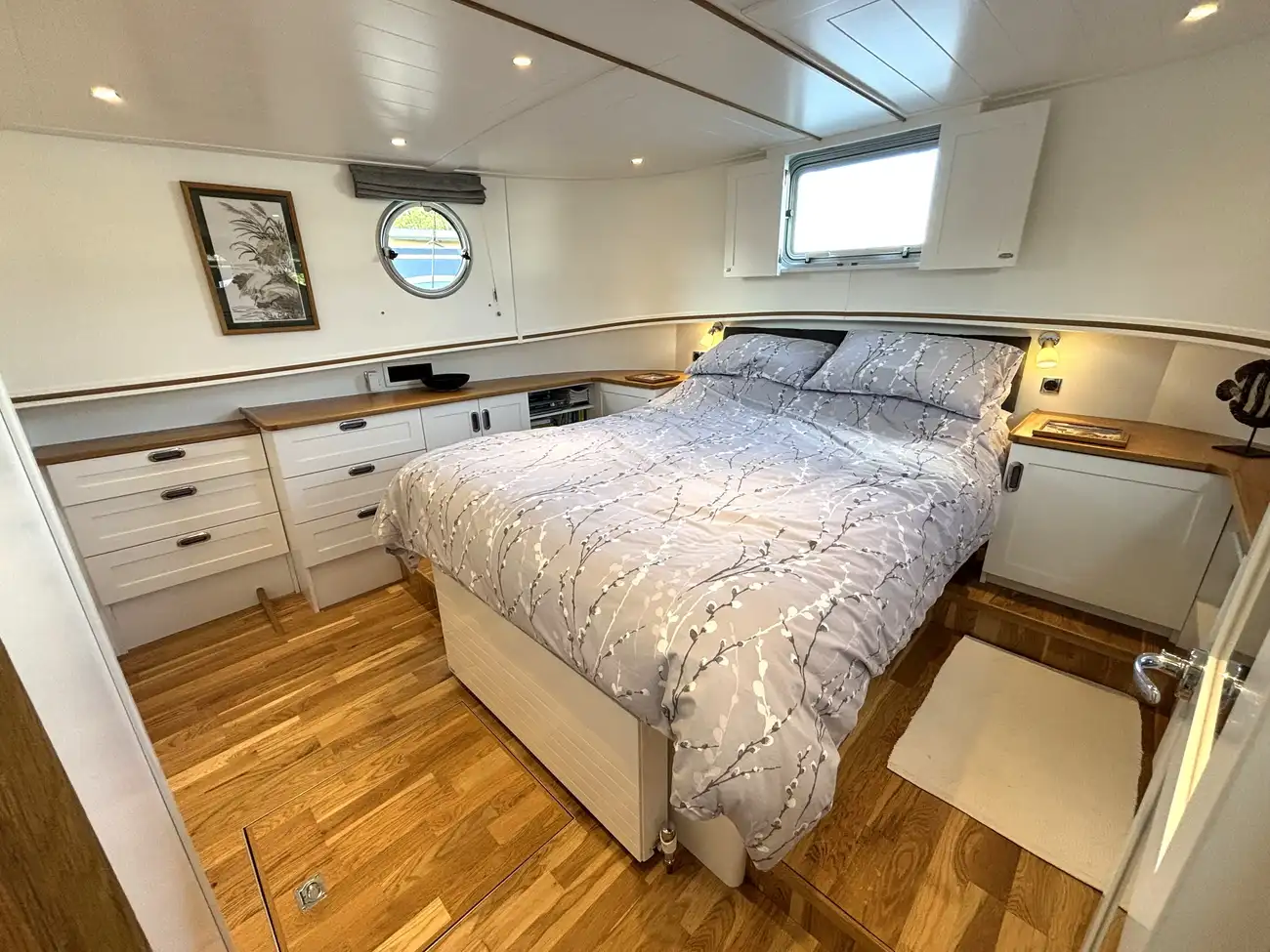

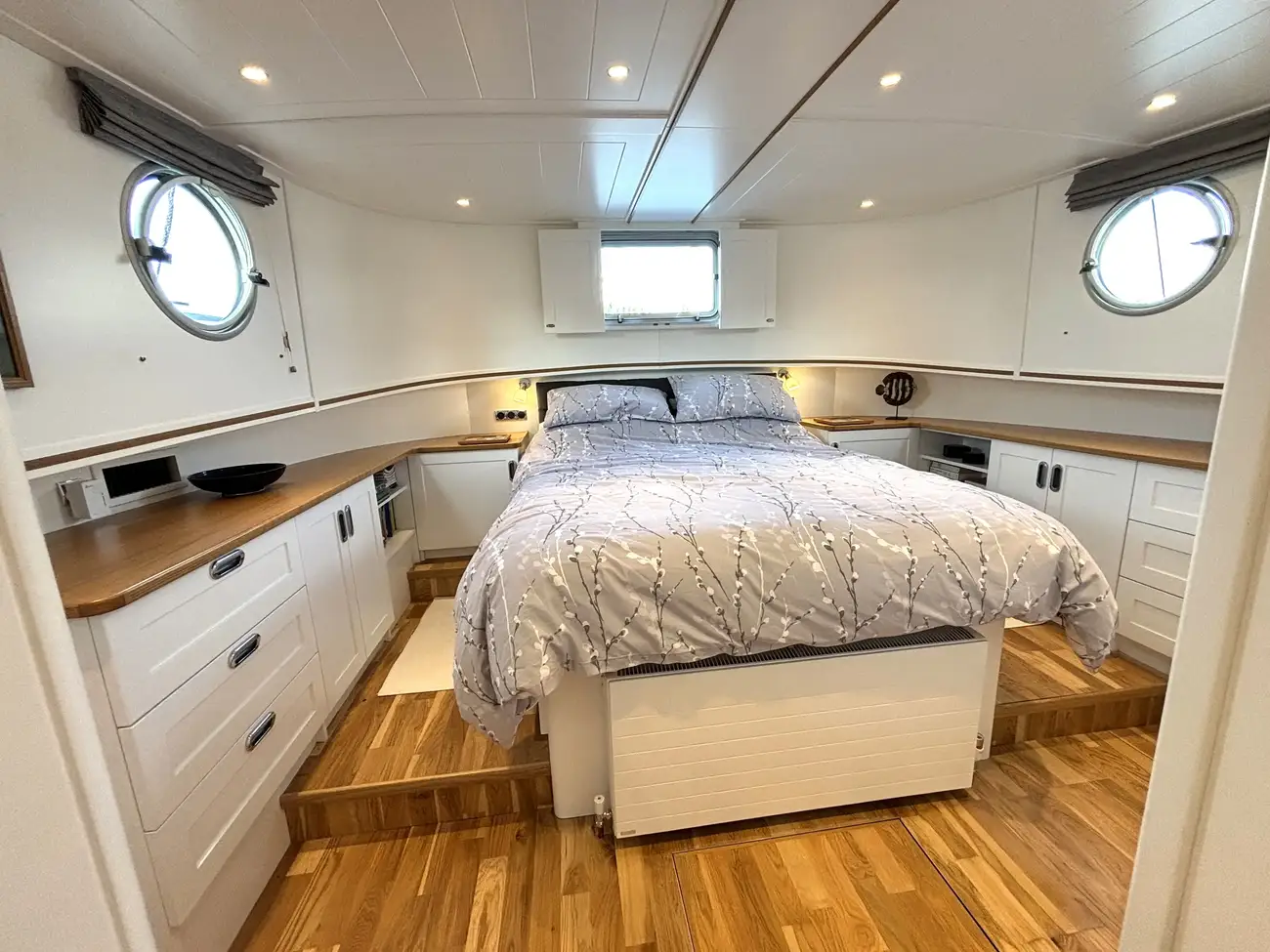

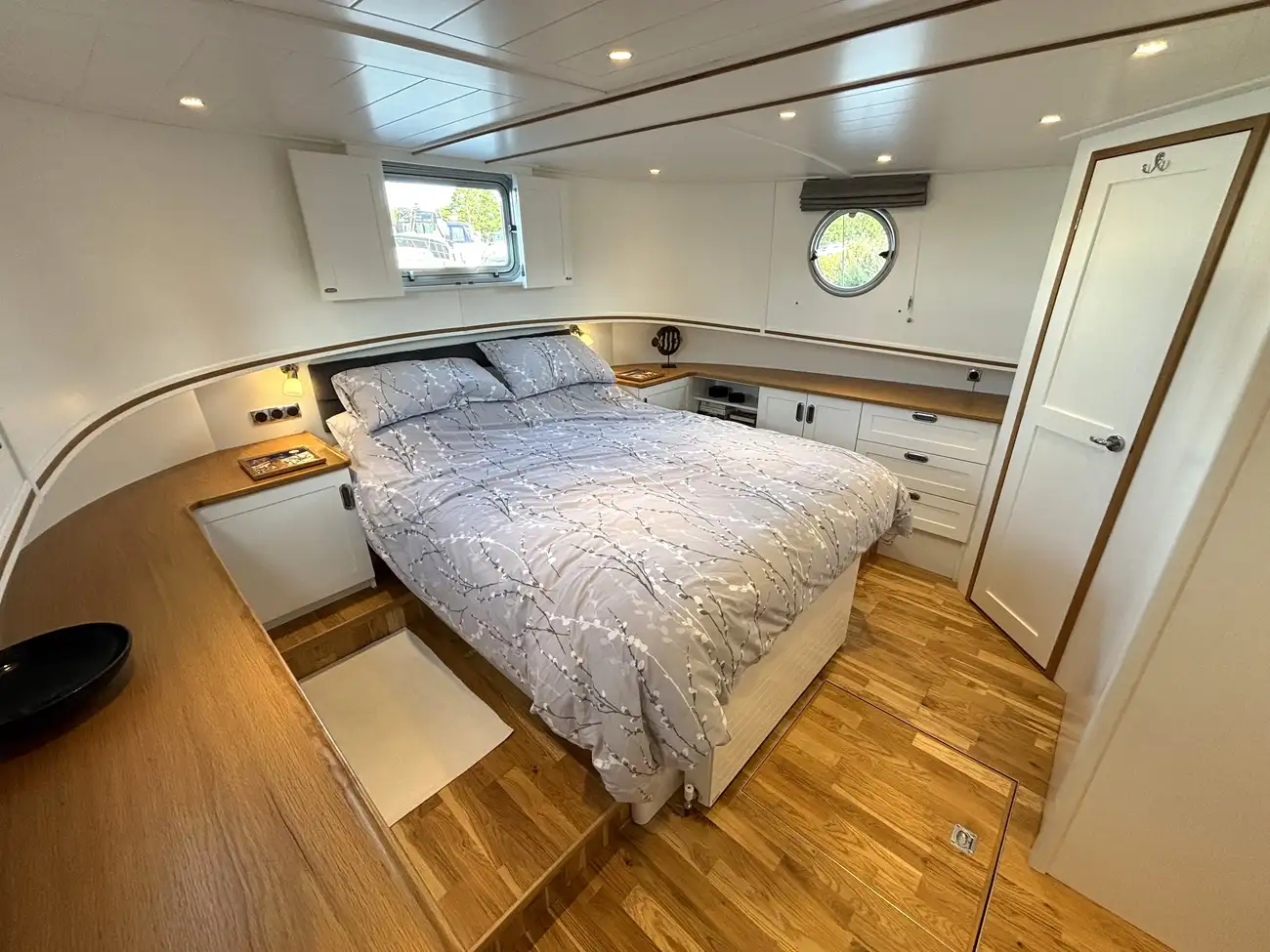

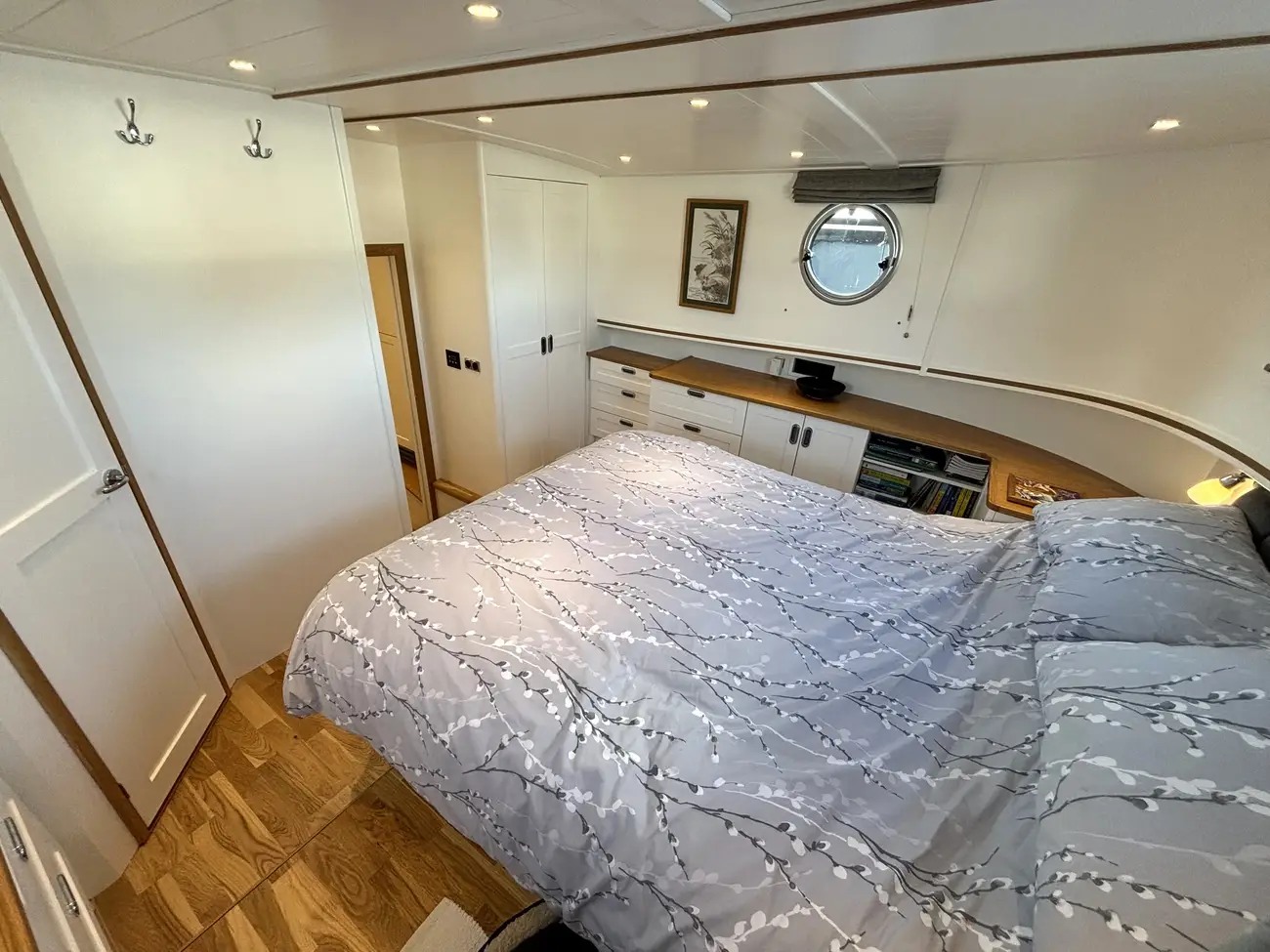

MASTER BEDROOM

• European King size bed
• Cupboards and drawers to port and starboard

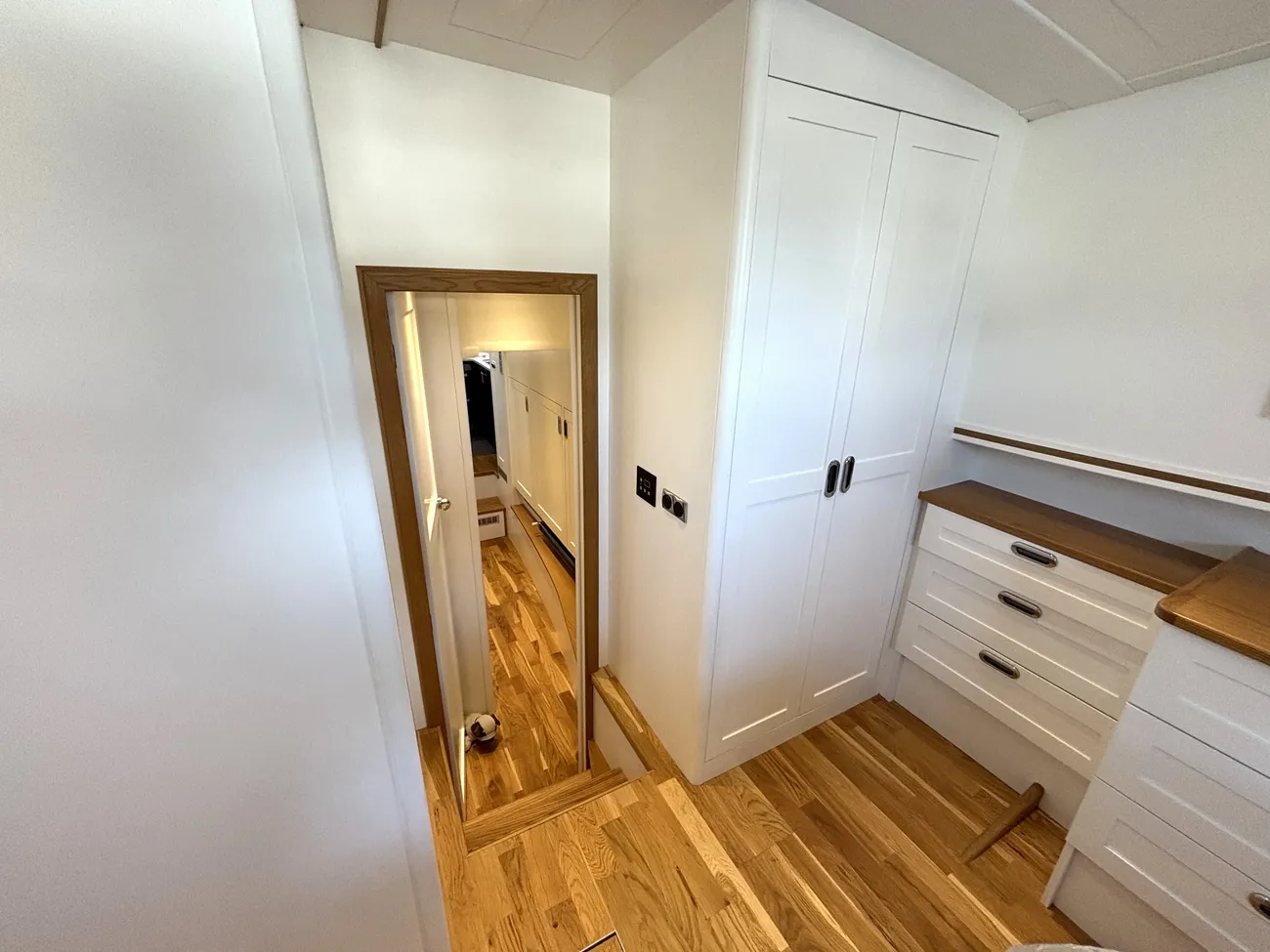

• Full height wardrobe
• Marine Aircon
• TV point
• Central heating radiator
• Engineered wooden flooring or carpet

SECOND BEDROOM

• European King size bed
• Full height wardrobe
• Cupboards and drawers to port and starboard
• Marine Aircon
• TV point
• Central heating radiator
• Engineered wooden flooring or carpet

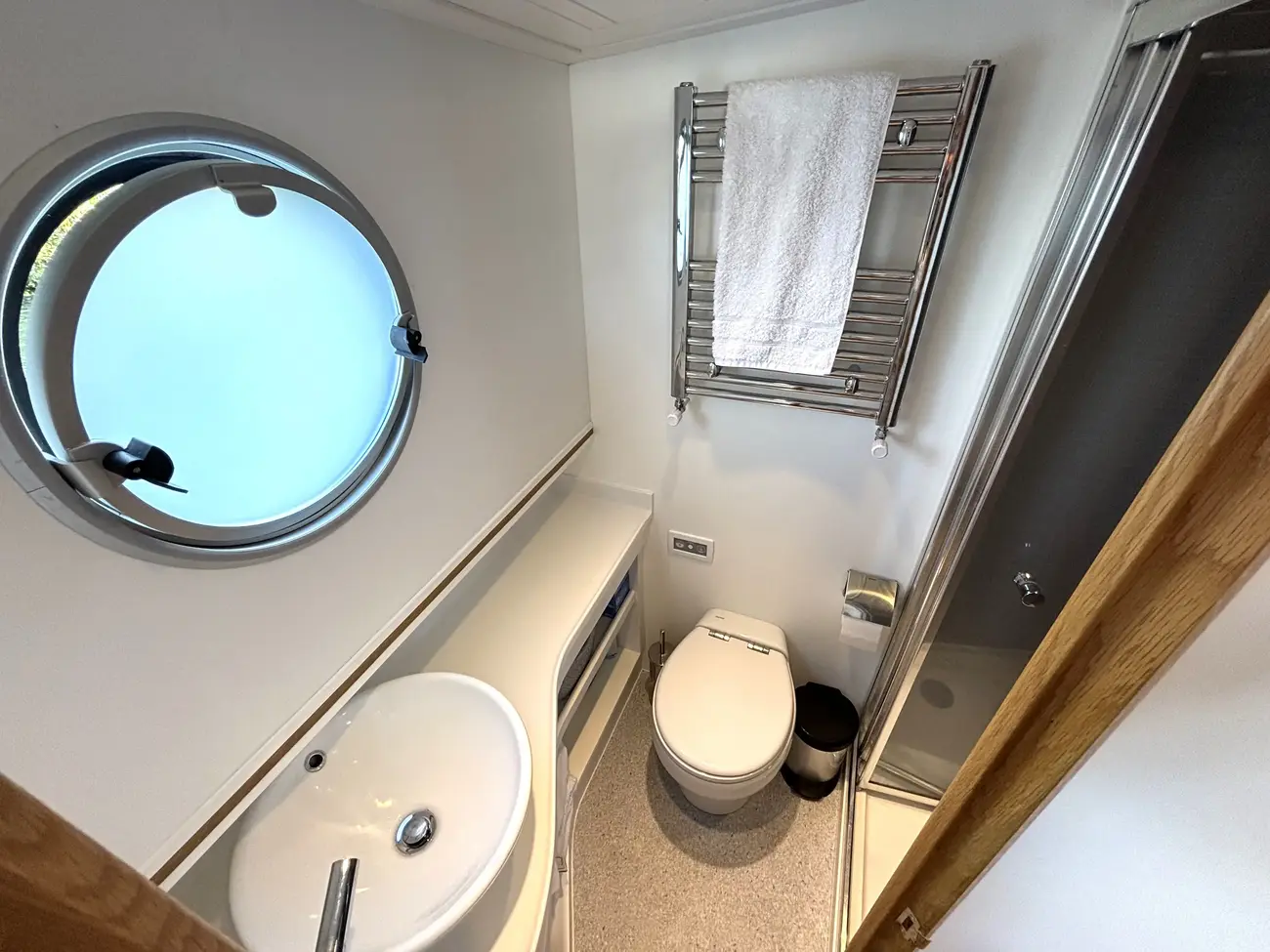

ENSUITE TO MASTER BEDROOM

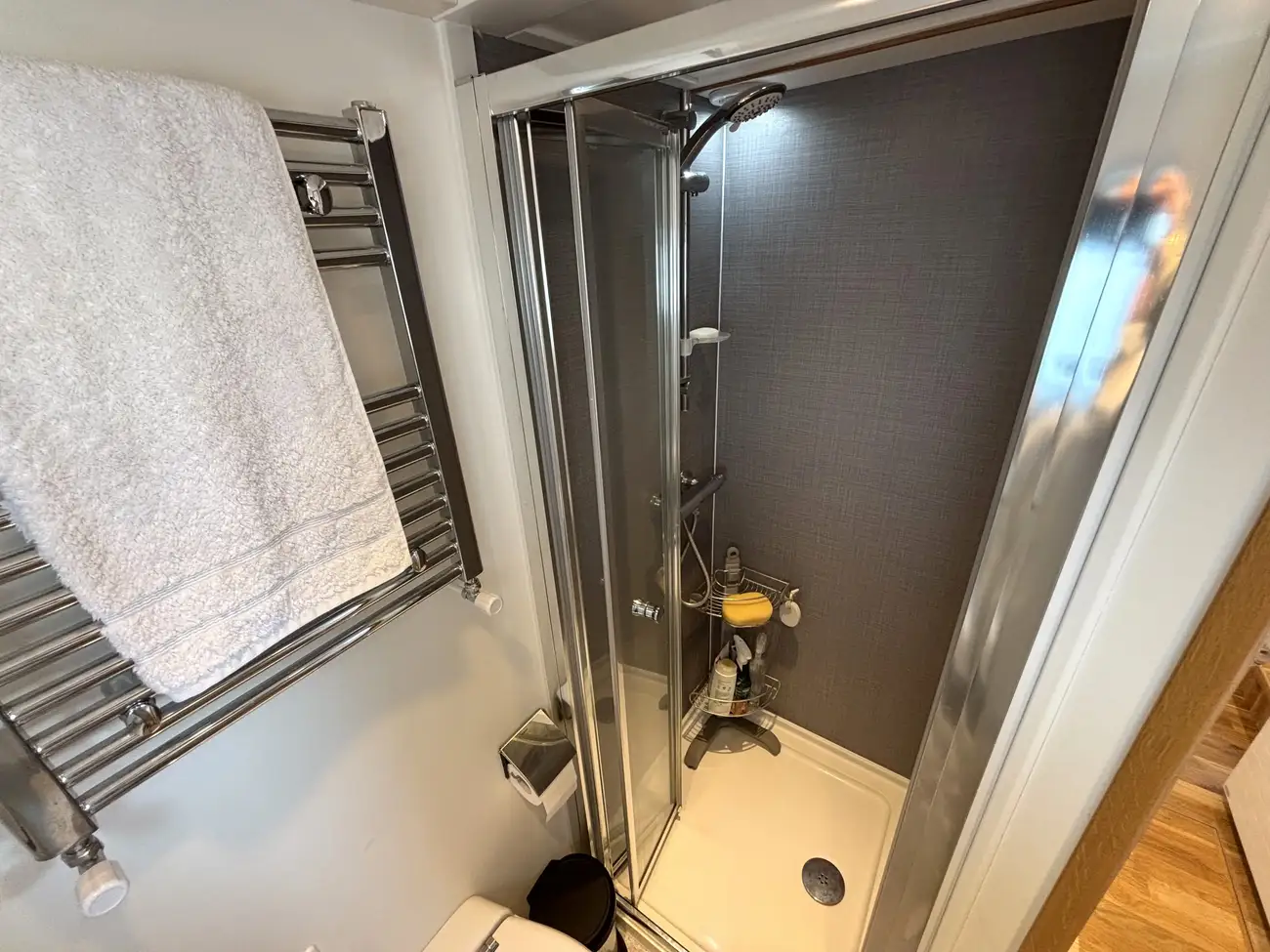

• 800 x 800 shower enclosure
• Thermostatic shower valve
• Marine remote flush toilet
• Heated towel radiator
• Vanity unit with integrated basin & waterfall edging

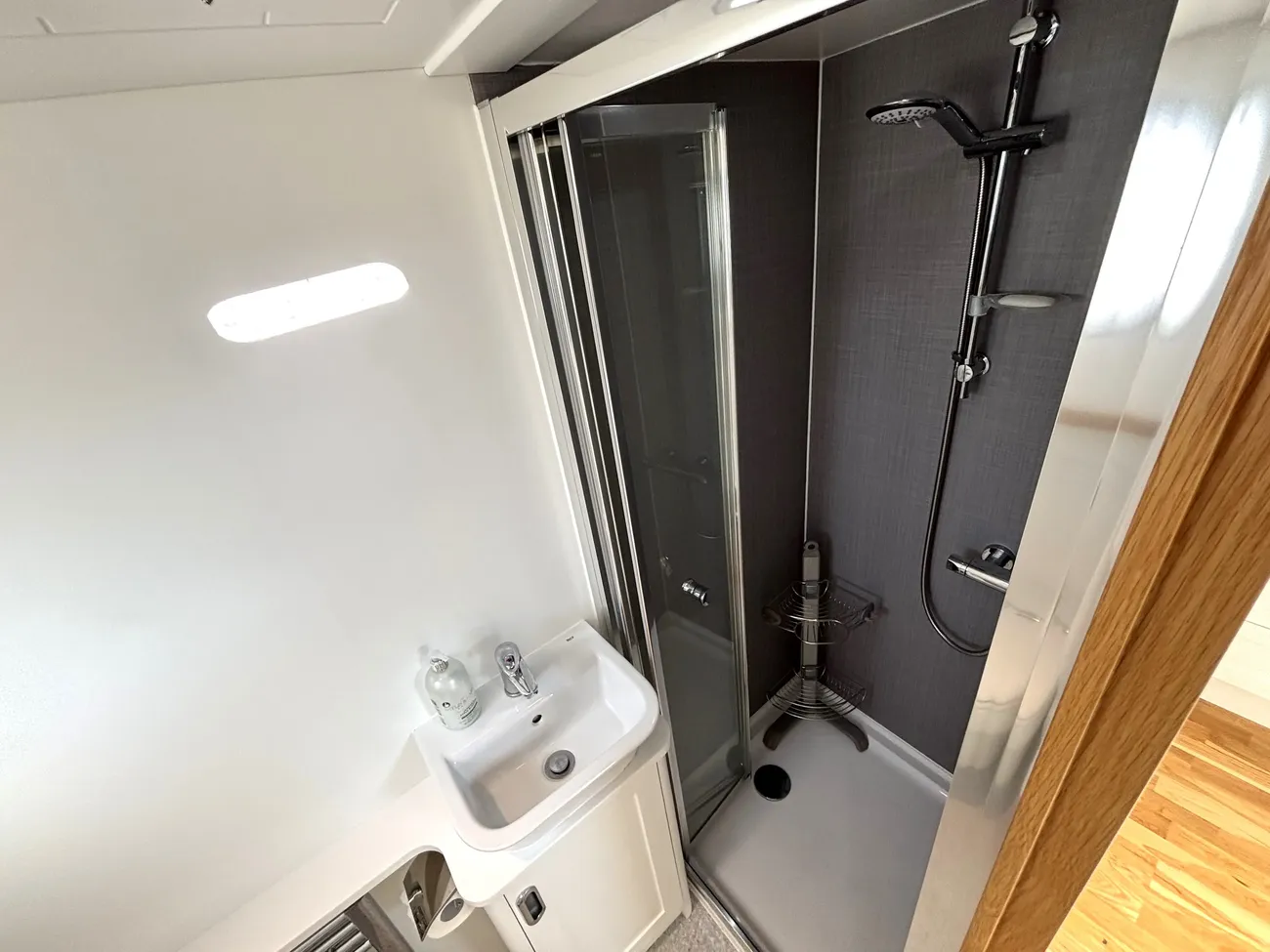

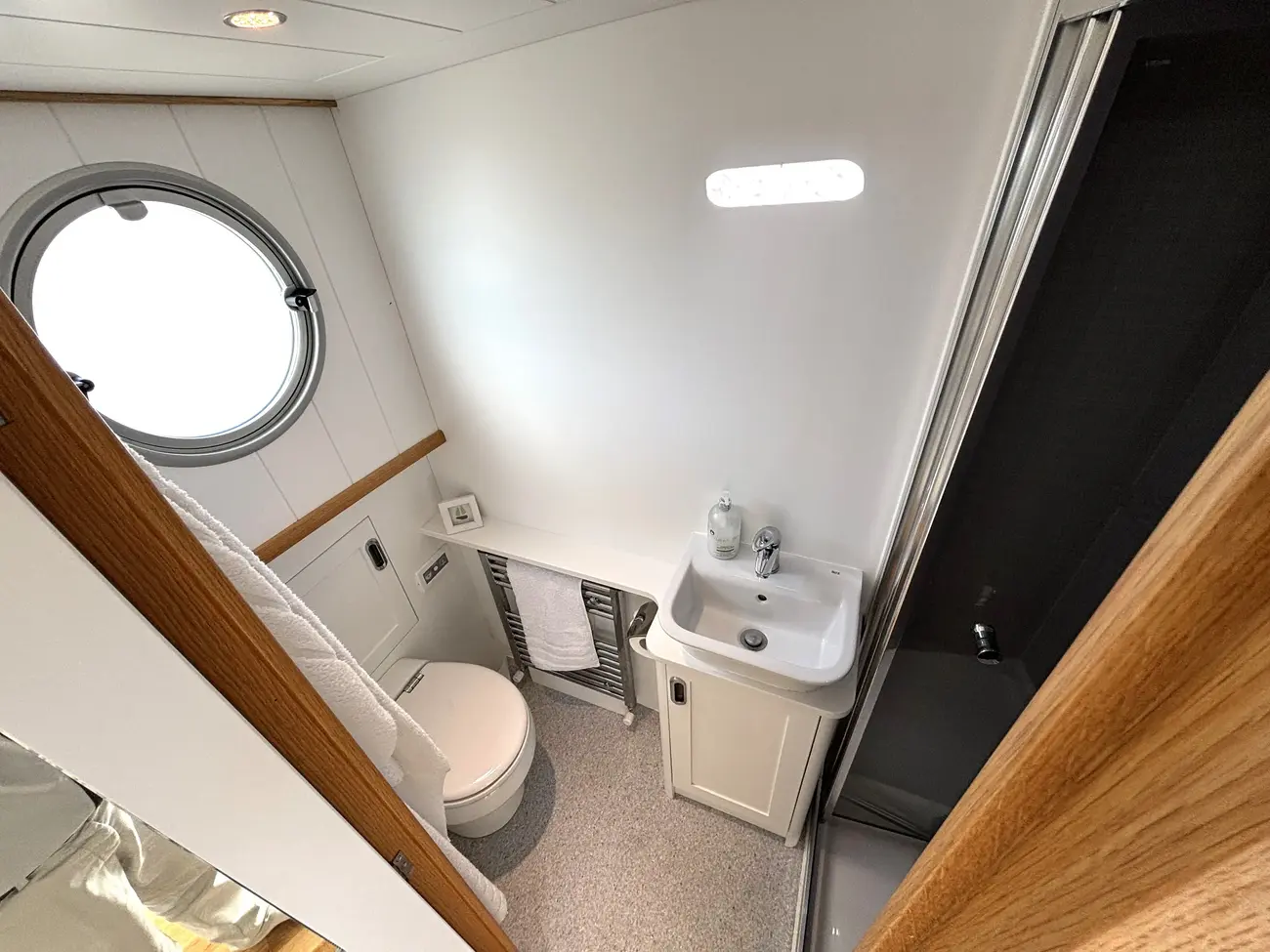

ENSUITE SECOND BEDROOM

• Walk in shower with glass screen
• Thermostatic shower valve
• Marine remote flush toilet
• Heated towel radiator
• Vanity unit with integrated basin & waterfall edging

DAY HEADS

• Day loo applicable to certain layouts only
• Marine remote flush toilet
• Heated towel radiator
• Washbasin

Additional Information

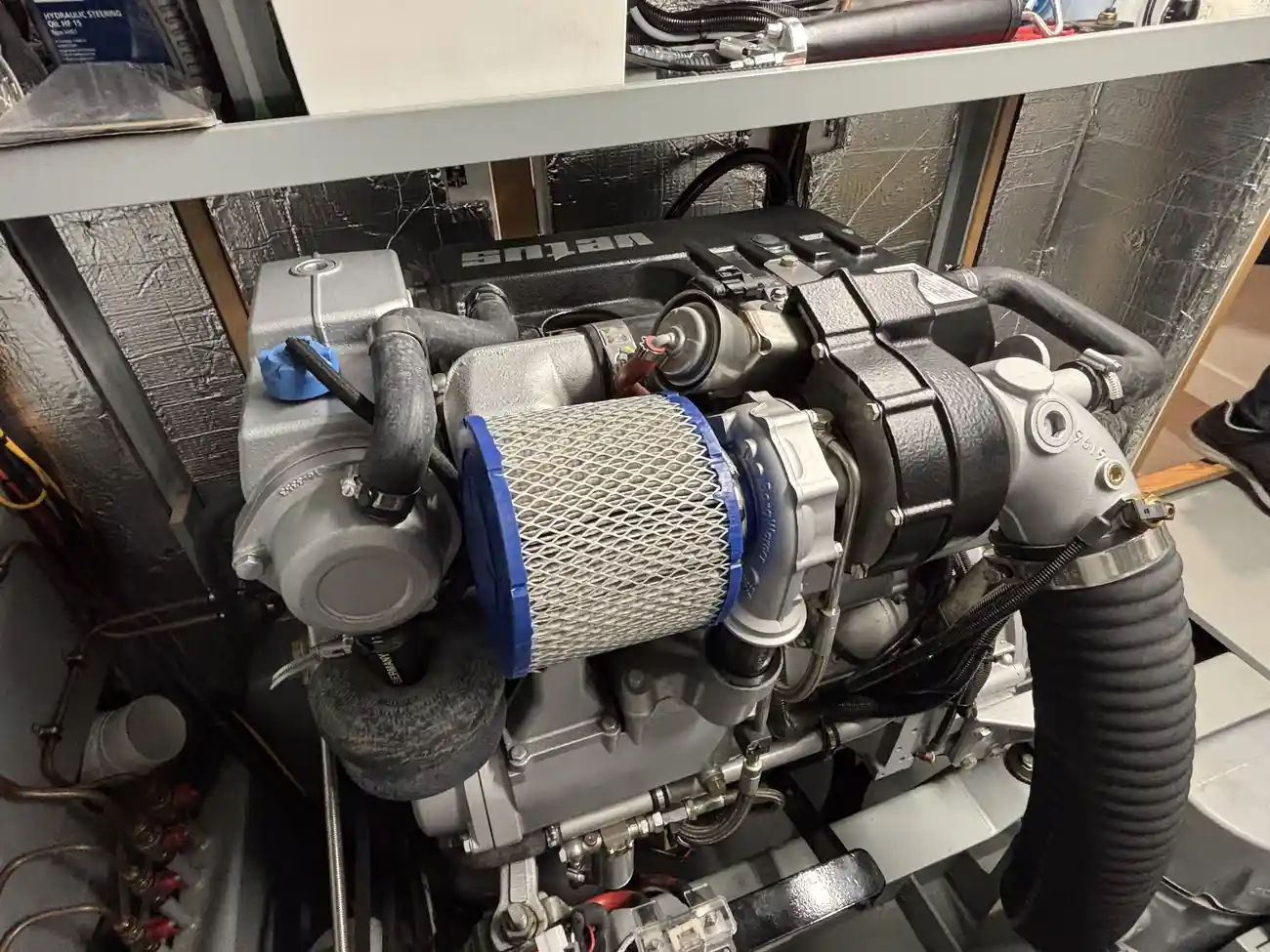

Engine: Vetus 140hp inboard Diesel (Raw Water Cooled)

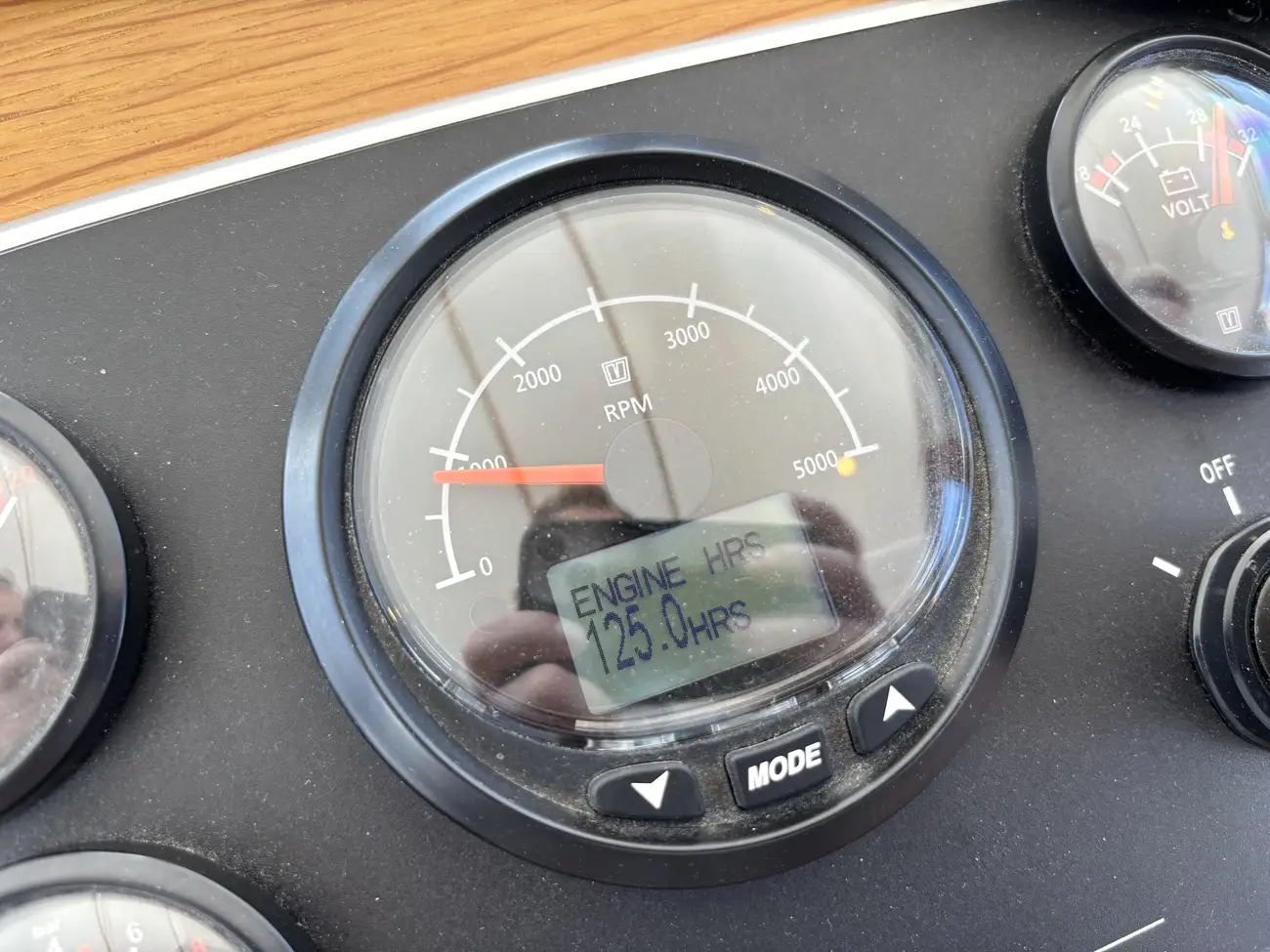

Engine Hours: 125
Equipment: Bowthruster, Heating, Generator & Air Con
Berths: 6
Last Engine Service: March 2025
Last Antifouled: Copper Coated in 2022
Air Draft: 2.925m
Draft: 1.2m
Boat Safety Certificate: Valid Sept 2026
